Amana 36561 (BOM: P1108501W)

Model: 36561 (BOM: P1108501W)

Save Part Not Listed?
product name

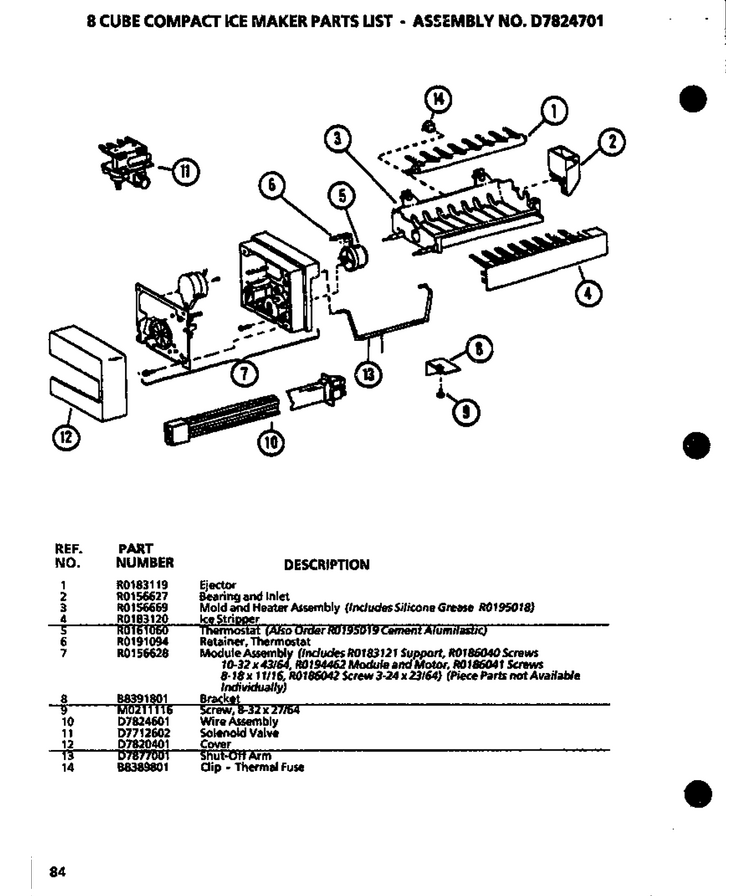

01 - 8 Cube Compact Ice Maker

...
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Ice Maker Assy. WPL-D7824706Q
...
4
Arm-Stripr WPL-WP2182124
...
5
Bimetl-Def WPL-WP627985
...
6
Clip WPL-WP2315522
...
7
Ice Maker Assy. WPL-D7824706Q
...
8
Bracket, I/m WPL-B8391802
...
9
Screw WPL-WP90767
...
10
Harness WPL-D7824601
...
11
Valve-Inlt WPL-WPD7712603
...
12
Cover Im WPL-D7820401
...
13
Arm,ice Maker Shut Off WPL-D7877001
...
14
Clip WPL-WP628379

03 - Drain And Rollers

...
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Bracket, Retainer WPL-C8985801
...
10
Screw (3) WPL-67006425
...
11
Drain Tube WPL-D7748501
...
12
Tank, Coil Water WPL-D7787801
...
13
Clamp WPL-M0102303
...
14
Screw WPL-WP489069
...
15
Insulation, Tube WPL-10851302
...
16
Clamp WPL-M0102327
...
17
Screw, Mach WPL-M0206313
...
18
Fill Tube WPL-R0182123
...
19
Tunnel, Heat Ex. WPL-C8971902

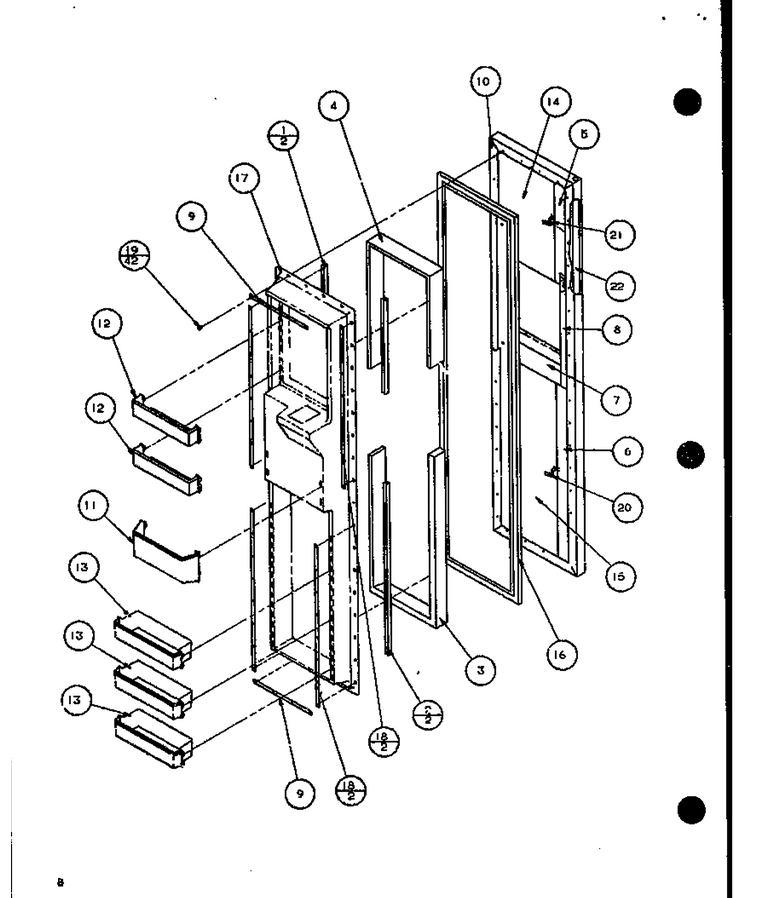

06 - Fz Door

...
...
1
Seal, Door Dike WPL-C8987101
...
2
Seal, Door Dike WPL-C8987103
...
3
Insul. By The Ft. WPL-B0523562
...
4
Insulation, Per Ft. WPL-B0523583
...
5
Insulation WPL-B5629049
...
6
Insulation WPL-B5629050
...
7
Insulation WPL-B5629048
...
8
Insulation WPL-B5629051
...
9
Retainer, Door Liner WPL-C8982801
...
10
Fz Door Pan, White WPL-D7757908
...
11
Shelf, Half Fz. Dr WPL-D7783508
...
12
Shelf Fz Door WPL-D7783607
...
13
Bucket Frz Door WPL-D7783707
...
14
Foam Slab Door WPL-D7800404
...
15
Foam Slab Door WPL-D7800405
...
16
Gasket W WPL-WP10359709Q
...
17
Inner Door Frz WPL-D7828503
...
18
Retainer, Door Liner WPL-D7828601
...
19
Screw WPL-WPM0219730
...
20
Clip WPL-B8388701
...
21
Clip WPL-B8388801
...
22
Tube, Protective WPL-C8964201

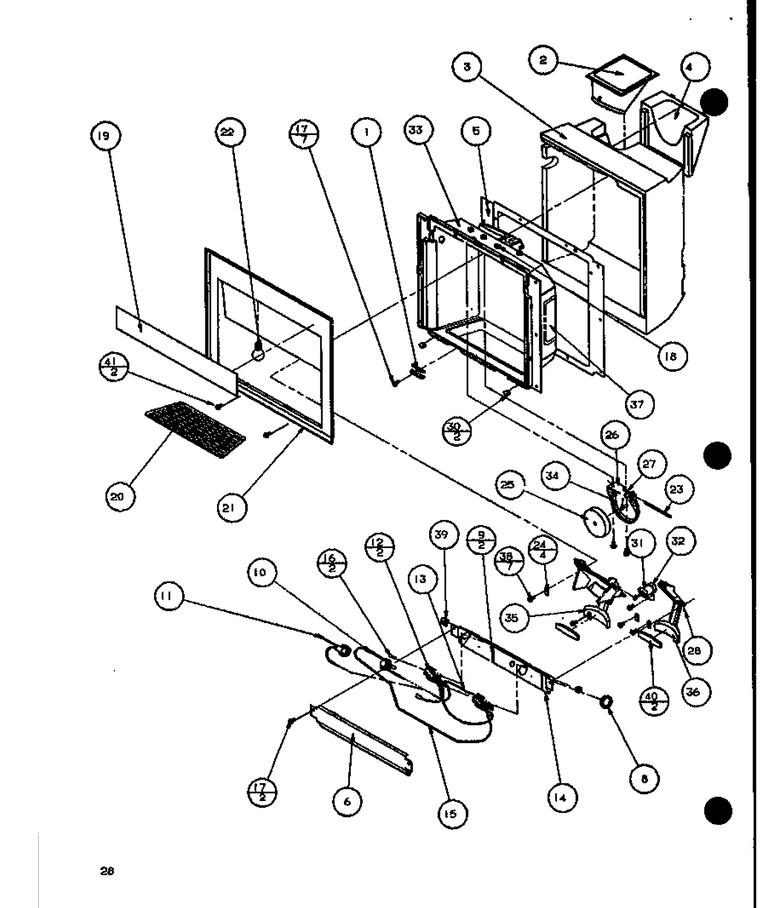

08 - Ice And Water Cavity

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Clip WPL-C8992901
...
2
Ice, Chute WPL-D7750702
...
3
Insul I & W Cavity WPL-D7789601
...
4
Insul I & W Cavity WPL-D7790901
...
5
Gasket-Cav WPL-D7791004
...
6
Cover Elect Brkt WPL-D7795901
...
8
Nut WPL-B8382701
...
9
Insulation WPL-B8386801
...
10
Switch, Light WPL-C8967504
...
11
Socket, Light WPL-C8967603
...
12
Kit, Limit Switch WPL-C8972701
...
13
Jumper Wire WPL-D7726588
...
14
Bracket, Elect. Mtg WPL-D7750501
...
15
Jumper Wire WPL-D7726589
...
16
Screw WPL-M0234008
...
17
Screw-Sm/hex WPL-12990523
...
18
Retainer, Ring WPL-M0274701
...
19
Thinplate WPL-C8986008
...
20
Grille, Sump (white) WPL-D7750603
...
21
Facade Dispenser WPL-D7877519
...
22
Bulb-Light WPL-W10857122
...
23
Pin, Chute Door WPL-A1061501
...
24
Retainer, Ice Arm WPL-A1061601
...
25
Insulation, Chute Door WPL-B8380701
...
26
Brkt-Chute Door WPL-B8380801
...
27
Spring,chute Door WPL-B8380901
...
28
Spring, Return WPL-B8385401
...
30
Clip WPL-W10819546
...
31
Retainer Door Delay WPL-C8972501
...
32
Delay, Door WPL-C8973601
...
33
Cavity Dispenser W WPL-D7750003
...
34
Kit,chute Dr No.3 WPL-D7750101
...
35
Arm-Dispsr WPL-12002642
...
36
Arm,water Actuater WPL-D7750401
...
37
Heater, Cavity WPL-D7762701
...
38
Screw WPL-WP90767
...
39
Clip, Ground WPL-B5733302
...
40
Pad, Actuating WPL-B8390201
...
41
Screw WPL-M0219601

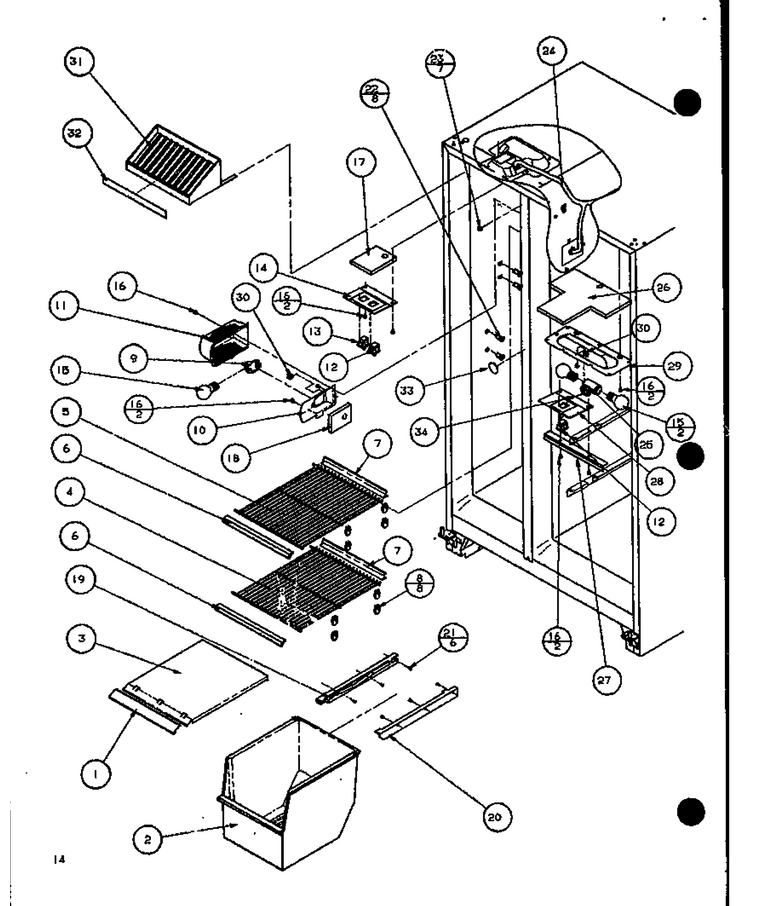

07 - Fz Shelving And Ref Light

...
...
1
Trim, Frz Shelf WPL-D7616620
...
2
Basket Fre WPL-D7781410
...
3
Freezer Shelf WPL-D7781504
...
4
Shelf Fz Wire WPL-D7788314
...
5
Shelf, Frz Wire WPL-D7788315
...
6
Trim WPL-10049917
...
7
Trim, Rear Frz Shelf WPL-C8913607
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate Lt. Socket WPL-D7753501
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680306
...
14
Cover Light WPL-D7749002
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Barrier Frz. WPL-C8976401
...
18
Barrier, Frz Side WPL-C8974501
...
19
Glide, Container (left) WPL-67005375
...
20
Glide, Frz. (rt) WPL-67004323
...
21
Screw, Handle WPL-67006529
...
22
Plug, Frz Shelf Support WPL-C8973701
...
23
Grommet, Screw WPL-M0580007
...
24
Harness, Outer Liner WPL-10030101
...
25
Socket, Dual Lamp WPL-D7808602
...
26
Insulation WPL-C8778301
...
27
Shield, Light WPL-10014716
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716409
...
30
Clip, Ground WPL-B5733302
...
31
Rack, Juice V WPL-D7839701
...
32
Insert Juice Rack WPL-C8986111
...
33
Plug WPL-A3069103
...
34
Jumper Wire WPL-B5781002

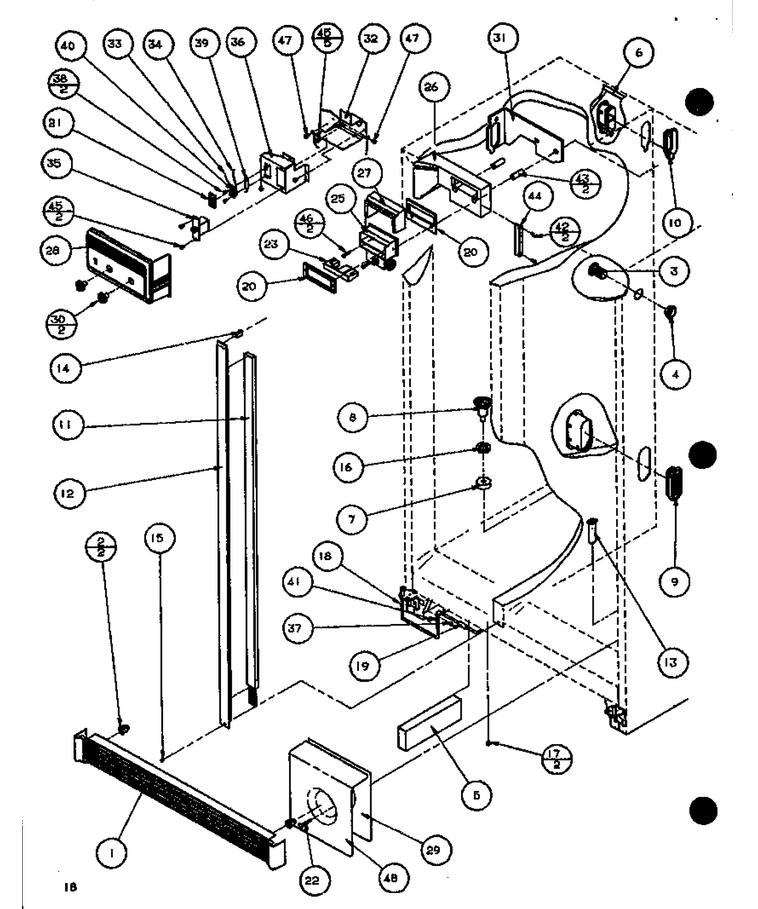

14 - Ref/fz Controls And Cabinet Part

...
...
1
Grille Toe W WPL-D7786703
...
2
Clip WPL-WPM0117303
...
3
Tunnel, Air WPL-A3187703
...
4
Retainer WPL-A3187801
...
5
Insulation WPL-B5629045
...
6
Tube-Plastic WPL-B8372601
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel, Air Supply WPL-D7785501
...
11
Heater, Mullion WPL-D7837501
...
12
Mullion,vert-White E Ct WPL-D7788602
...
13
Grommet WPL-D7793501
...
14
Clip WPL-M0113604
...
15
Screw, Handle (black) WPL-12991101
...
16
Seal- O Ri WPL-WPM0500703
...
17
Grommet, Screw WPL-M0580007
...
18
Tube WPL-WPB5705307
...
19
Fitting WPL-WP4373559
...
20
Gasket, Damper WPL-B8345401
...
21
Collar, Switch WPL-B8391601
...
22
Clip K WPL-C6457701
...
23
Insert, Control WPL-C8902601
...
25
Control, Damper WPL-D7547407
...
26
D7749902q WPL-D7749902
...
27
Insulation WPL-D7788201
...
28
Cover Control WPL-D7790316
...
29
Insulation Cut Tank WPL-D7793402
...
30
Kit Knob WPL-D7795806
...
31
Gasket Air Duct WPL-D7819101
...
32
Box, Control Btm WPL-D7822406
...
33
Wire Jumper WPL-A3221103
...
34
Wire Jumper WPL-A3221104
...
35
Assy, Control-Fz WPL-R0161092
...
36
Box Control Top WPL-D7868601
...
37
Screw WPL-WP90767
...
38
Screw WPL-M0234003
...
39
Diode WPL-M0305301
...
40
Switch, Heater WPL-M0342601
...
41
Clamp WPL-M0102301
...
42
Screw WPL-WP489474
...
43
Spacer Damper WPL-A3044208
...
44
Clamp WPL-C8977301
...
45
Screw WPL-WP489464
...
46
Screw WPL-M0216539
...
47
Screw WPL-WP489399
...
48
Cover, Tank WPL-D7879301

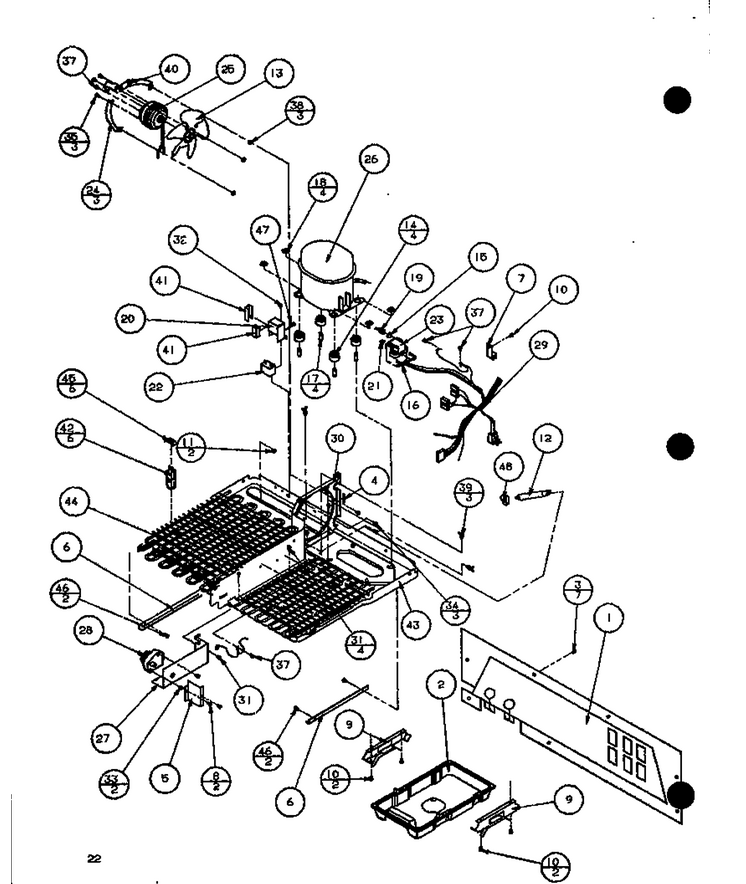

10 - Machine Compartment

...
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Bracket, Timer WPL-C8973502
...
6
Support M.c. WPL-D7835501
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Spring, Overload WPL-B8358301
...
16
Bale Strap WPL-YB8358601
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-10377005
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-C8931503
...
22
Capacitor WPL-WPW10662129
...
23
Term Cover WPL-C8960801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-C3667102H
...
27
Bracket, Timer WPL-D7844201
...
28
Timer-Def WPL-R0131577
...
29
Harness M.c. WPL-D7867101
...
30
Cond Fan Shroud WPL-D7844108
...
31
Screw WPL-WP90767
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
41
Grommet Per In. WPL-A3261703
...
42
Spacer Cond. WPL-B8346301
...
43
Base Pan WPL-D7748602
...
44
Condenser Pntd WPL-D7824503
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530

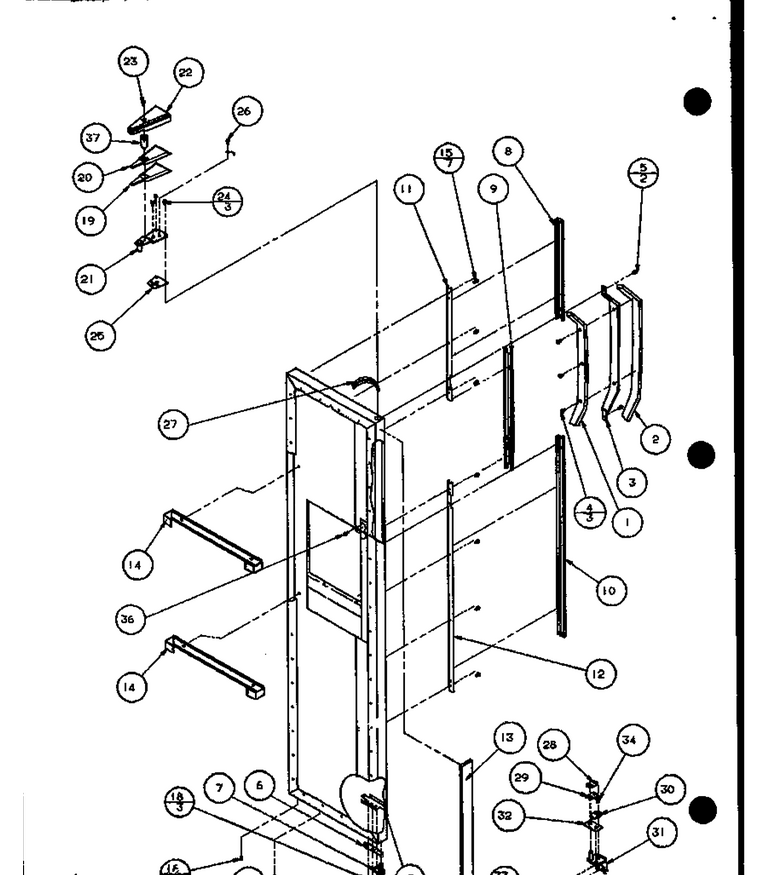

11 - Ref Door

...
...
1
Bushing, Top WPL-C8965901
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
4
Nut, Door Stop WPL-D7790801
...
5
Upper Trim Ref Dr WPL-D7852003
...
6
Trim Center Ref WPL-D7853803
...
7
Trim Lwr Ref Door WPL-D7792803
...
8
Ref. Trim, Retainer WPL-D7793202
...
9
Trim, Door WPL-C8974102
...
10
Screw WPL-WP98165
...
11
Screw WPL-M0213815
...
12
Screw WPL-WP489349
...
13
Screw WPL-WP3400094
...
14
Pad, Handle Inner (wht) WPL-D7863002
...
15
Pad, Handle Outer (wht) WPL-D7863102
...
16
Screw WPL-M0215116
...
17
Handle WPL-D7826603
...
18
Screw WPL-WP8281196
...
19
Hinge Cover WPL-D7789504
...
20
Top Hinge Assy WPL-D7757803
...
21
Kit, Screw WPL-R9800670
...
22
Shim, Top Hinge WPL-B8389007
...
23
Shim, Door Closure WPL-B8387701
...
24
Shim, Door Closure WPL-B8387702
...
25
Screw WPL-WPW10068250
...
26
Kit,dr Closure WPL-R0181181
...
27
Hinge Assy Bottom WPL-D7757706
...
28
Kit,btm Hinge Shim WPL-B8386701
...
29
Screw WPL-WP67006715
...
30
Support, Handle WPL-D7837402
...
31
Thinplate WPL-C8984307

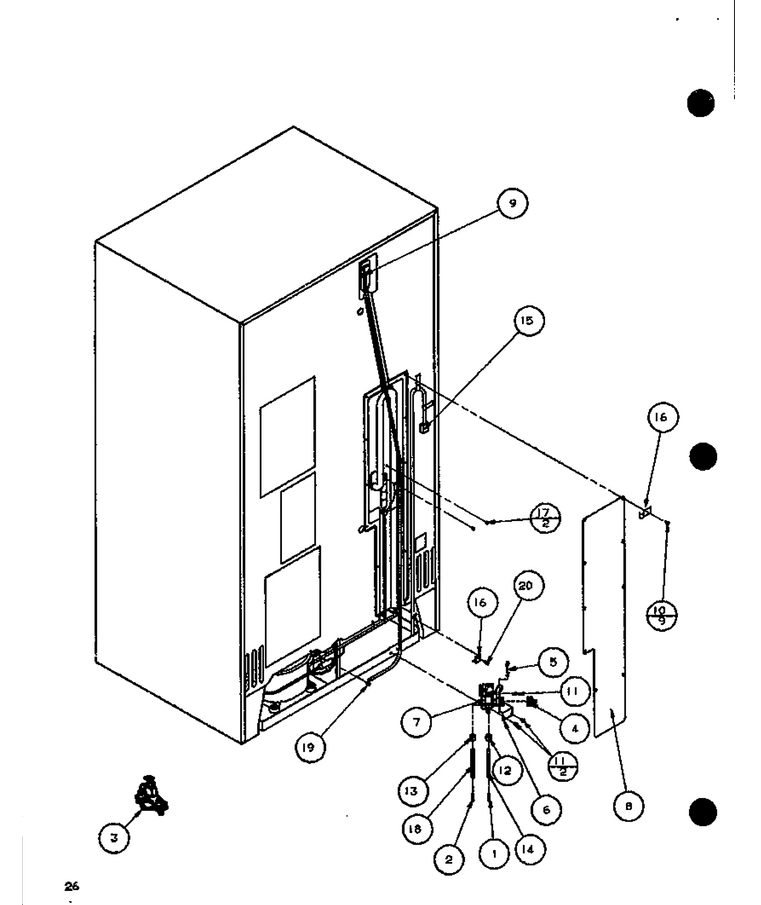

02 - Cabinet Back

...
...
1
Spring WPL-WPA1055105
...
2
Spring K WPL-A1055102
...
3
Saddle Valve WPL-A3034801
...
4
Coupling WPL-10127801
...
5
Clip, Water Valve WPL-10798001
...
6
Bracket WPL-WPD7701602
...
7
Valve-Inlt WPL-WPW10245167
...
8
Cover, O.c.back WPL-10178406
...
9
Clip- Spee WPL-WPM0114003
...
10
Screw WPL-WP90767
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut WPL-WP627018
...
13
Nut WPL-8201513
...
14
Tube WPL-WPB5705307
...
15
Power Cord WPL-R0157154
...
16
Clamp WPL-M0103901
...
17
Screw WPL-WP489399
...
18
Tank, Coil Water WPL-D7787801
...
19
Screw WPL-WP489069
...
20
Screw WPL-WP90767

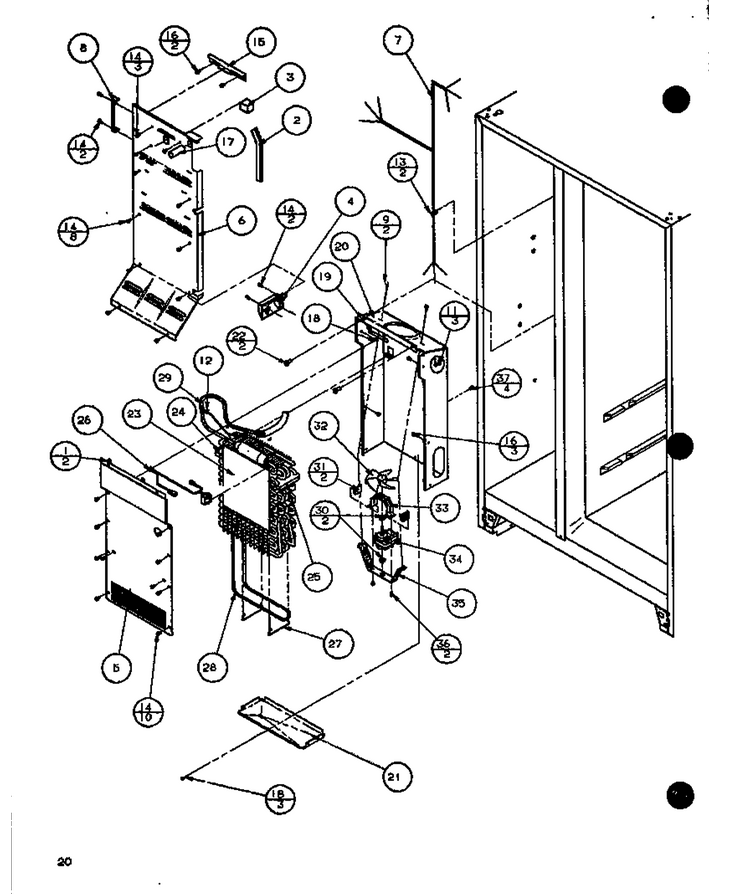

04 - Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k. Air WPL-D7786902
...
5
Cover Evap WPL-D7865901
...
6
Back, Inner Frz WPL-D7821101
...
7
Harness M.c. WPL-D7866901
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP489464
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
17
Ext. Fill Tube WPL-A3127414
...
18
Rivet WPL-10098801
...
19
Gasket, Foam WPL-B5757707
...
20
Shield WPL-D7865802
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Grommet WPL-M0580003
...
23
Gasket, Evap. WPL-B8327901
...
24
Block-Lh Air Coil WPL-B8385502
...
25
Block P M Air Coil WPL-B8385601
...
26
Thermostat WPL-WPC8972006
...
27
Clip, Evap. Heater WPL-C8983101
...
28
Heater, Defrost WPL-D7872801
...
29
Assy,low Side-Thin Wall Evap WPL-R0170031
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Bracket, Motor Shroud WPL-D7767701
...
36
Screw WPL-WP12990527
...
37
Grommet A WPL-M0580002

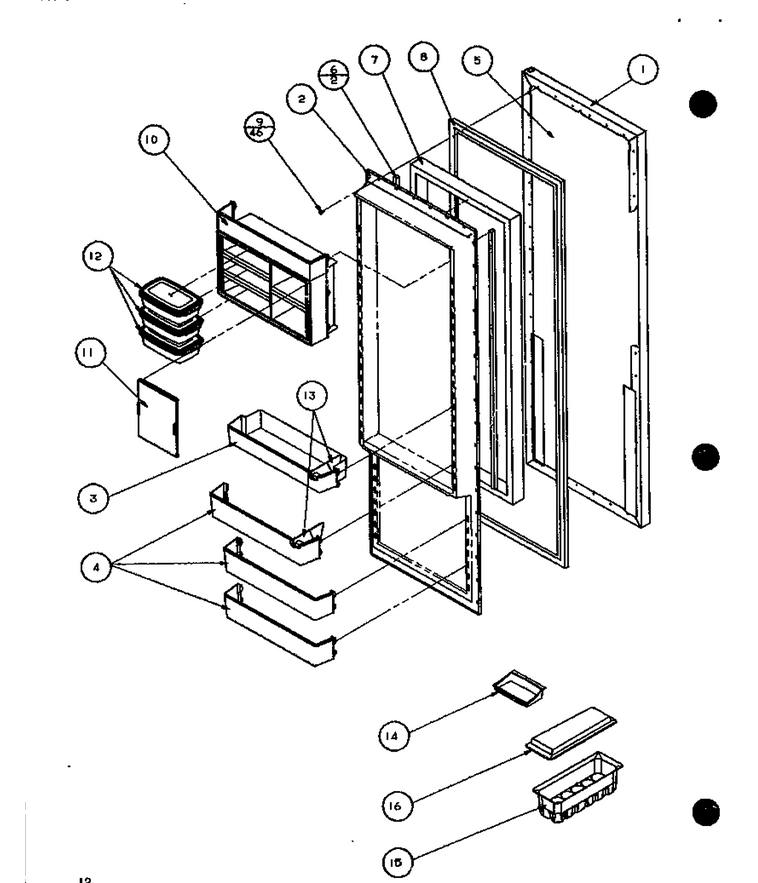

12 - Ref Door

...
...
1
Xdoor Ref W WPL-D7834006
...
2
Inner Door, Ref WPL-D7828203
...
3
Bucket- Do WPL-67003696
...
4
Shelf- Doo WPL-67003697
...
5
Insulation WPL-B0566723
...
6
Seal, Door Dike WPL-C8987104
...
7
Insul. By The Ft. WPL-B0523562
...
8
Gasket-Dr WPL-WP10359708Q
...
9
Screw WPL-WPM0219730
...
10
Module-Dairy WPL-D7781202
...
11
Door Dairy WPL-D7781315
...
12
Container Sec. Ser. WPL-D7806403
...
13
Snugger, Door WPL-D7814607
...
14
Butter Tray WPL-D3799802
...
15
Assy,egg Bkt W/ Lid WPL-12460016
...
16
Cover, Egg Bucket WPL-D7805909

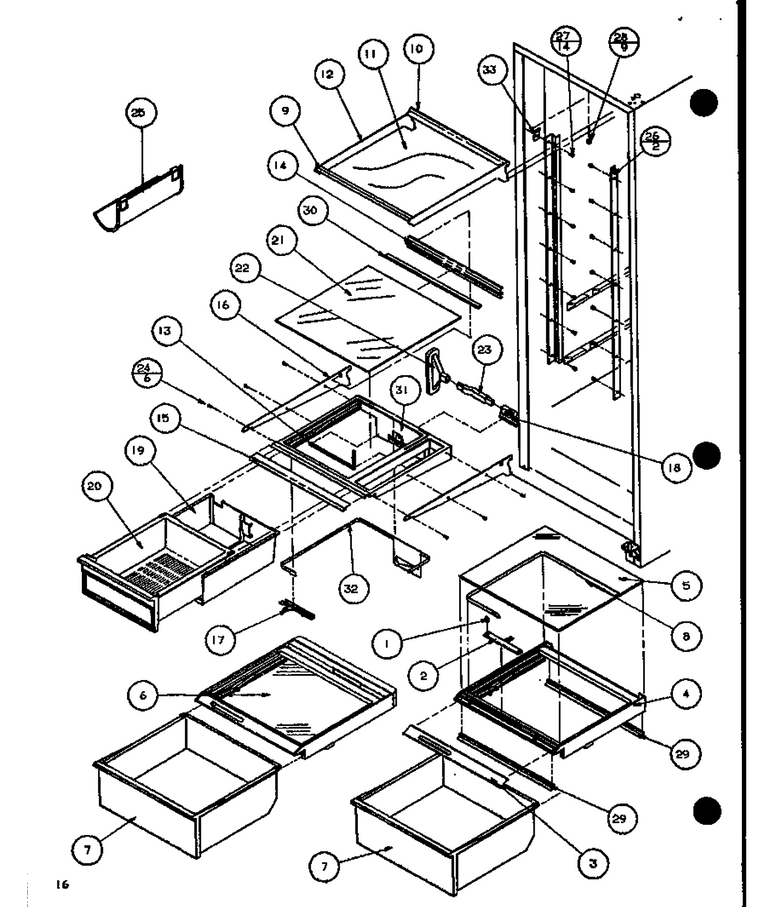

13 - Ref Shelving And Drawers

...
...
NI
Crisper Frame Assy-Glass WPL-R0179159
...
1
Knob, Crisper Control WPL-10038401
...
2
Slide, Crisper WPL-YD7860605
...
3
Trim, Crisper Front WPL-D7616654
...
4
Frame,crisper WPL-D7853207
...
5
Glass Crisper Top WPL-D7421275
...
6
Glass Crisper Top WPL-D7421275
...
7
Pan Crisper WPL-D7782119
...
8
Band M.k. Control WPL-D7859604
...
9
Trim, Front Shelf WPL-C8913513
...
10
Trim, Glass Shelf Rear WPL-C8913606
...
11
Glass Shelf WPL-10036025
...
12
Frame-Cantilever Shelf WPL-D7871009
...
13
Gasket WPL-A3030302
...
14
Trim-M.k., Top, Rear WPL-C8990404
...
15
Trim WPL-10049914
...
16
Blank Side Rail (silver) WPL-D7862925
...
17
Slide-Mk Control WPL-D7859401
...
18
Ext. Air Duct WPL-D7869102
...
19
Sleeve M.k. WPL-D7698113
...
20
Pan-Meat WPL-D7698329
...
21
Glass Shelf M.k. WPL-10036028
...
22
Grommet, Mk WPL-D7873601
...
23
Xduct M.k. Air WPL-D7869001
...
24
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
25
Rack, Bottle WPL-D7547614
...
26
Ladder Cantilever WPL-D7789807
...
27
Screw (3) WPL-67006425
...
28
Grommet, Screw WPL-M0580007
...
29
Seal, Crisper Front WPL-D7718403
...
30
Ext. Rear Glass WPL-10043102
...
31
Frame, M.k. WPL-D7857002
...
32
Band M.k. Control WPL-D7859503
...
33
Brkt, Cont Cover WPL-12414701

05 - Fz Door

...
...
1
Pad, Handle Inner (wht) WPL-D7863002
...
2
Pad, Handle Outer (wht) WPL-D7863102
...
3
Handle WPL-D7826603
...
4
Screw WPL-M0215116
...
5
Screw WPL-WP3400094
...
6
Stop, Door (blk) WPL-12636401B
...
7
Kit,dr Closure WPL-R0181181
...
8
Upper Trim Frz Dr (w) WPL-D7852103
...
9
Trim Center Frz (w) WPL-D7854003
...
10
Trim, Lwr Frz Door (w) WPL-D7792703
...
11
Retainer, Trim WPL-D7793002
...
12
Retainer, Trim WPL-D7793102
...
13
Trim, Door WPL-C8974102
...
14
Support, Handle WPL-D7837401
...
15
Screw WPL-M0213815
...
16
Screw WPL-WP489349
...
17
Nut, Door Stop WPL-D7790801
...
18
Screw WPL-WP98165
...
19
Insulator, Hinge Cover WPL-C8976001
...
20
Foil, Hinge Cover WPL-C8987901
...
21
Top Hinge Assy WPL-D7757803
...
22
Hinge Cover WPL-D7789504
...
23
Screw WPL-WP8281196
...
24
Kit, Screw WPL-R9800670
...
25
Shim, Top Hinge WPL-B8389007
...
26
Screw WPL-W11214483
...
27
Harness, Freezer Dr WPL-10030202
...
28
Shim, Door Closure WPL-B8387701
...
29
Shim, Door Closure WPL-B8387702
...
30
Kit,dr Closure WPL-R0181181
...
31
Hinge Assy WPL-D7757705
...
32
Kit,btm Hinge Shim WPL-B8386701
...
33
Screw WPL-WP67006715
...
34
Screw WPL-WPW10068250
...
35
Tube WPL-WPB5705307
...
36
Screw WPL-WP489399
...
37
Tubing Plastic WPL-A3012532

09 - Ice Bucket And Ice Maker

...
...
1
I.m. Shut Off Assy WPL-C8980402
...
2
Helix WPL-D7749501
...
3
Support,auger Motor WPL-D7749207
...
4
Motor-Auger WPL-D7749302
...
5
Washer WPL-A1061701
...
6
Nut-Helix WPL-B8385101
...
7
Bar, Breaker WPL-C8964101
...
8
Insert Bkt Cfc 113 WPL-10099703
...
9
Cap- Helix WPL-WPD7749401
...
10
Helix WPL-D7749501
...
11
Wheel Lift WPL-D7749601
...
12
Bucket, Ice V WPL-D7749706
...
13
Front, Bucket WPL-D7749802
...
14
Screw (3) WPL-67006425
...
15
Arm,ice Maker Shut Off WPL-D7877001
...
16
Cover Im WPL-D7820401
...
17
Support-Im WPL-D7821004
...
18
Harness WPL-D7824601
...
19
Ice Maker Assy. WPL-D7824706Q
...
20
Nut WPL-M0120501
...
21
Gasket-Per Ft WPL-A3030305
...
23
Cover, Auger Motor WPL-D7788836
...
24
Screw WPL-WP489128
...
25
Clip WPL-B5720301
...
26
Clip WPL-WP628379
...
27
Bracket, I/m WPL-B8391802
...
28
Screw WPL-WP98165
...
29
Glide, Container (left) WPL-67005375
...
30
Glide, Frz. (rt) WPL-67004323
...
31
Screw, Handle WPL-67006529
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
