Amana 36558 (BOM: P1108804W)

Model: 36558 (BOM: P1108804W)

Save Part Not Listed?
product name

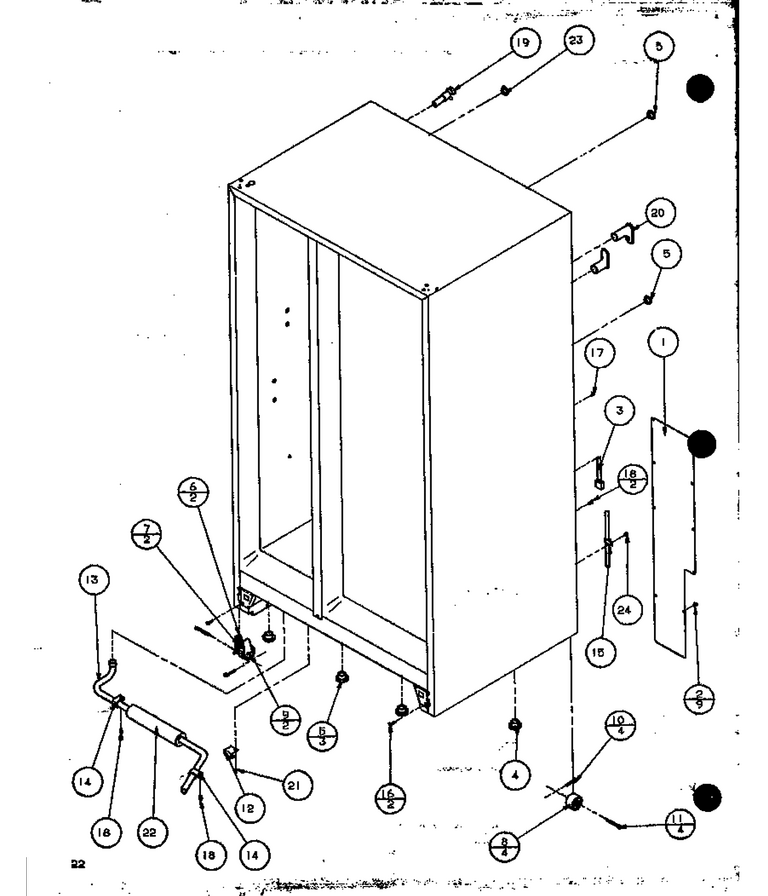

01 - Drain

...
...
1
Cover, O.c.back WPL-10178406
...
2
Screw WPL-WP90767
...
3
Power Cord WPL-R0157154
...
4
Plug, Button WPL-A3076901
...
5
Plug, Button (blk) WPL-A3080001
...
6
Assy, Roller Bracket WPL-12452602Q
...
7
Nut, Speed WPL-M0286708
...
8
Roller WPL-M0520102
...
9
Rivet WPL-M1205302
...
10
Cotter Pin K WPL-M1200004
...
11
Pin K WPL-M1200202
...
12
Bracket, Retainer WPL-C8985801
...
13
Drain Tube WPL-D7748501
...
14
Clamp WPL-M0102303
...
15
Clamp WPL-M0103901
...
16
Screw, Mach WPL-M0206313
...
17
Screw WPL-WP489399
...
18
Screw WPL-WP489069
...
19
Fill Tube WPL-R0182123
...
20
Tunnel, Heat Ex. WPL-C8971902
...
21
Screw (3) WPL-67006425
...
22
Insulation, Tube WPL-10851302
...
23
Plug Button WPL-M0310319
...
24
Screw WPL-WP90767

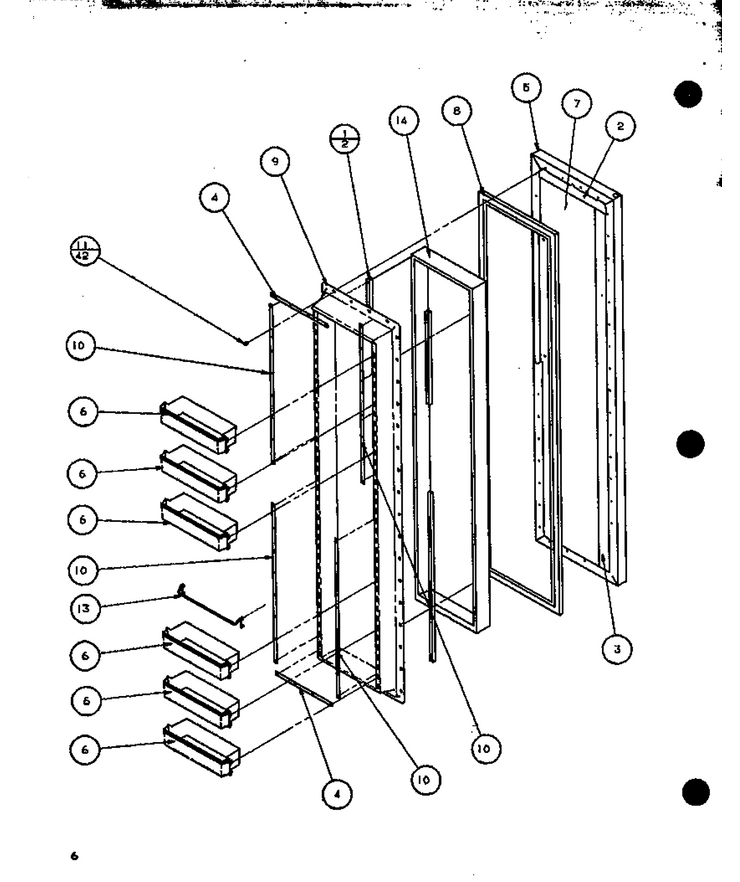

03 - Fz Door

...
...
1
Seal, Door Dike WPL-C8987105
...
2
Insulation WPL-B5629043
...
3
Insulation WPL-B5629044
...
4
Retainer, Door Liner WPL-C8982801
...
5
Door Frz L WPL-D7834010
...
6
Bucket Frz Door WPL-D7783707
...
7
Foam Slab, Door WPL-D7800403
...
8
Gasket W WPL-WP10359709Q
...
9
Inner Door Frz WPL-D7828403
...
10
Retainer, Door Liner WPL-D7828601
...
11
Screw WPL-WPM0219730
...
13
Retainer, Package WPL-D7835602
...
14
Insul. By The Ft. WPL-B0523562

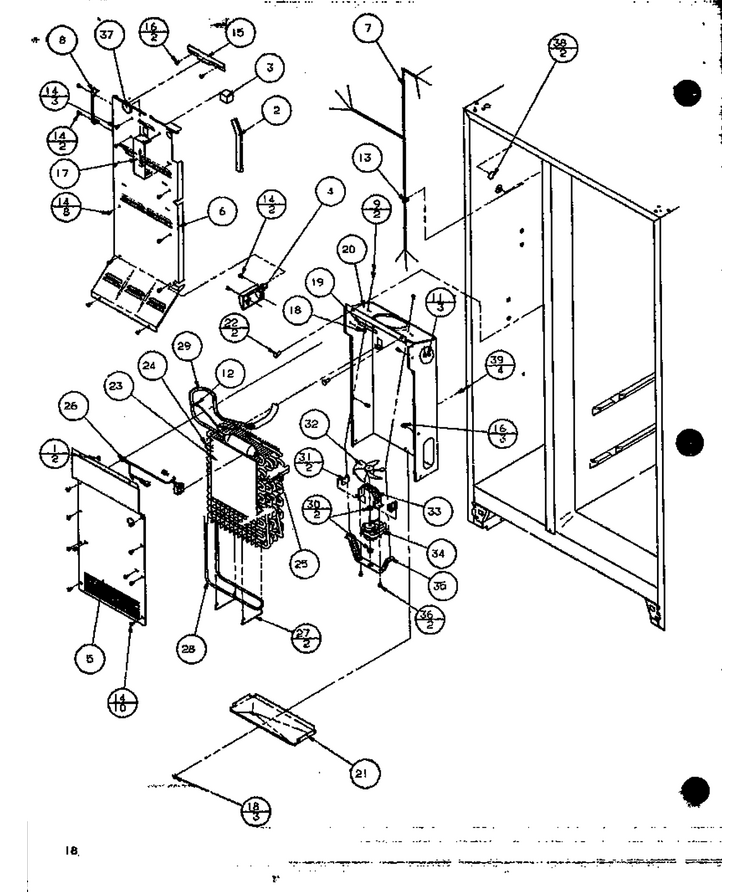

04 - Fz Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k. Air WPL-D7786902
...
5
Cover Evap WPL-D7865901
...
6
Back, Inner Frz WPL-D7821104
...
7
Harness M.c. WPL-D7867001
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP489464
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
17
Cover, Fill Tube WPL-D7827401
...
18
Rivet WPL-10098801
...
19
Gasket, Foam WPL-B5757707
...
20
Shield WPL-D7865802
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Grommet WPL-M0580003
...
23
Gasket, Evap. WPL-B8327901
...
24
Block-Lh Air Coil WPL-B8385502
...
25
Block P M Air Coil WPL-B8385601
...
26
Thermostat WPL-WPC8972006
...
27
Clip, Evap. Heater WPL-C8983101
...
28
Heater, Defrost WPL-D7872801
...
29
Assy,low Side-Thin Wall Evap WPL-R0170031
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Bracket, Motor Shroud WPL-D7767701
...
36
Screw WPL-WP12990527
...
37
Cap WPL-B5636301
...
38
Button- Pl WPL-WP67001130
...
39
Grommet A WPL-M0580002

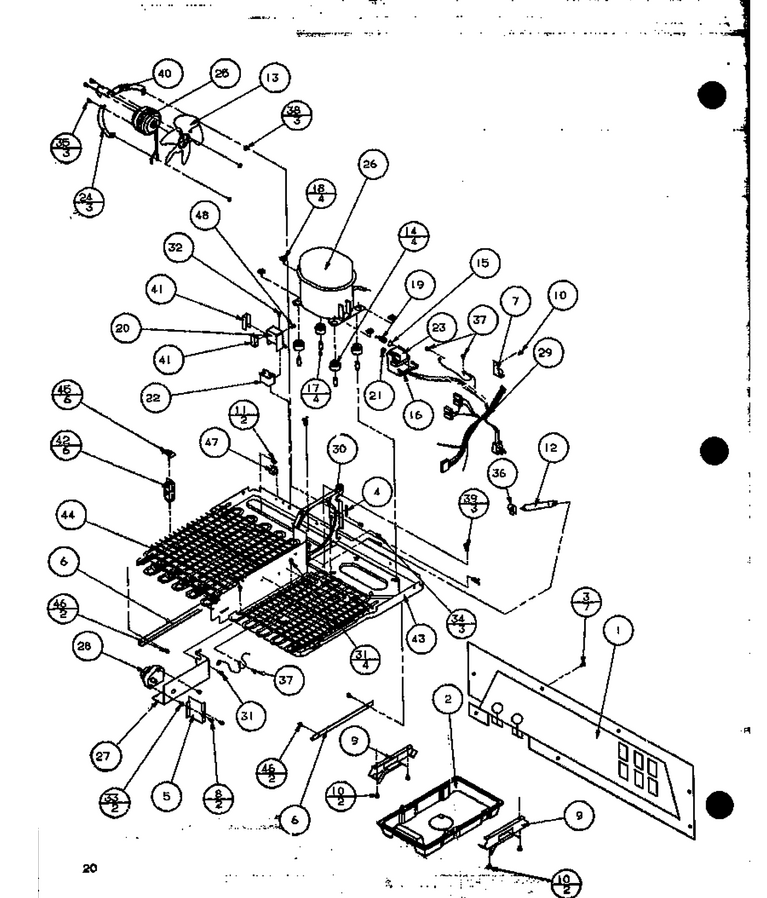

06 - Machine Compartment

...
...
NI
Spring K WPL-C8916701
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Bracket, Timer WPL-C8973502
...
6
Support M.c. WPL-D7835501
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
16
Strap K WPL-A3041801
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-C8866908
...
20
Shield, Capacitor WPL-10266402
...
21
Start-Dev WPL-WPW10189190
...
22
Capacitor WPL-WP65889-4
...
23
Cover K WPL-B0559501
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-C3667102H
...
27
Bracket, Timer WPL-D7844201
...
28
Timer-Def WPL-R0131577
...
29
Harness, M.c. WPL-10097301
...
30
Cond Fan Shroud WPL-D7844108
...
31
Screw WPL-WP90767
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
36
Clamp WPL-M0102408
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
42
Spacer Cond. WPL-B8346301
...
43
Base Pan WPL-D7748602
...
44
Condenser Pntd WPL-D7824503
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530
...
47
Clip WPL-M0110508
...
48
Kit, Screw WPL-R9800670

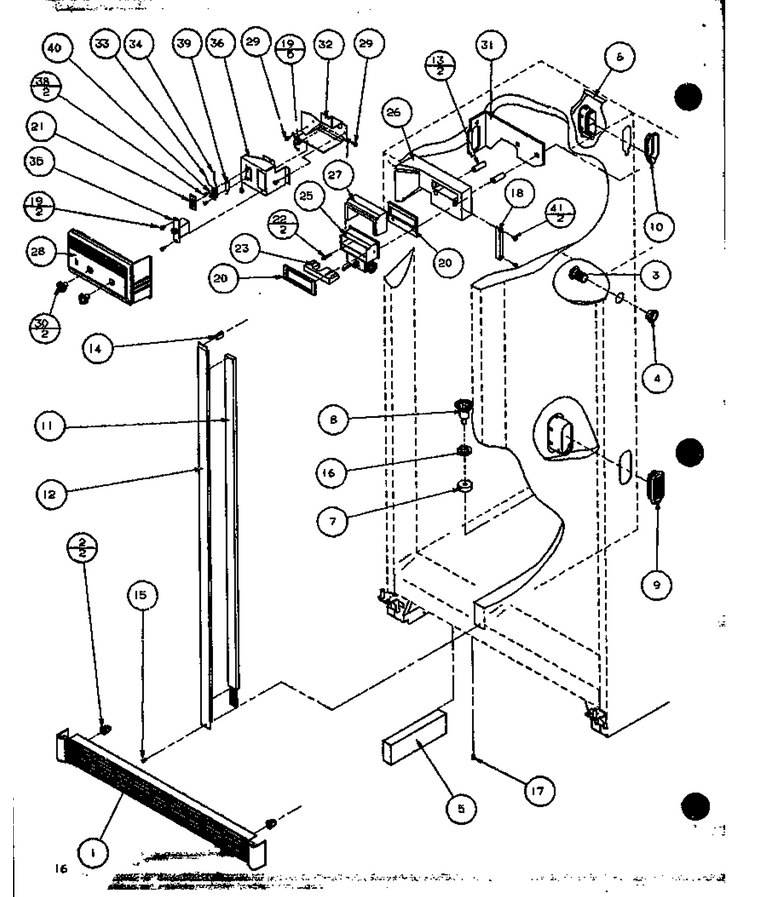

07 - Ref

...
...
1
Grille Toe L V WPL-D7786704
...
2
Clip WPL-WPM0117303
...
3
Tunnel, Air WPL-A3187703
...
4
Retainer WPL-A3187801
...
5
Insulation WPL-B5629045
...
6
Tube-Plastic WPL-B8372601
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel, Air Supply WPL-D7785501
...
11
Heater, Mullion WPL-D7837501
...
12
L Vt Mull-Pnt WPL-D7788606
...
13
Spacer Damper WPL-A3044208
...
14
Clip-U, Mullion, Not Replaceab WPL-M0113664
...
15
Screw, Handle (black) WPL-12991101
...
16
Seal- O Ri WPL-WPM0500703
...
17
Grommet, Screw WPL-M0580007
...
18
Clamp WPL-C8977301
...
19
Screw WPL-WP489464
...
20
Gasket, Damper WPL-B8345401
...
21
Collar, Switch WPL-B8391601
...
22
Screw WPL-M0216539
...
23
Insert, Control WPL-C8902601
...
25
Control, Damper WPL-D7547407
...
26
D7749902q WPL-D7749902
...
27
Insulation WPL-D7788201
...
28
Cover Control WPL-D7790316
...
29
Screw WPL-WP489399
...
30
Kit Knob WPL-D7795806
...
31
Gasket Air Duct WPL-D7819101
...
32
Box, Control Btm WPL-D7822406
...
33
Wire Jumper WPL-A3221103
...
34
Wire Jumper WPL-A3221104
...
35
Assy, Control-Fz WPL-R0161092
...
36
Box Control Top WPL-D7868601
...
38
Screw WPL-M0234003
...
39
Diode WPL-M0305301
...
40
Switch, Heater WPL-M0342601
...
41
Screw WPL-WP489474

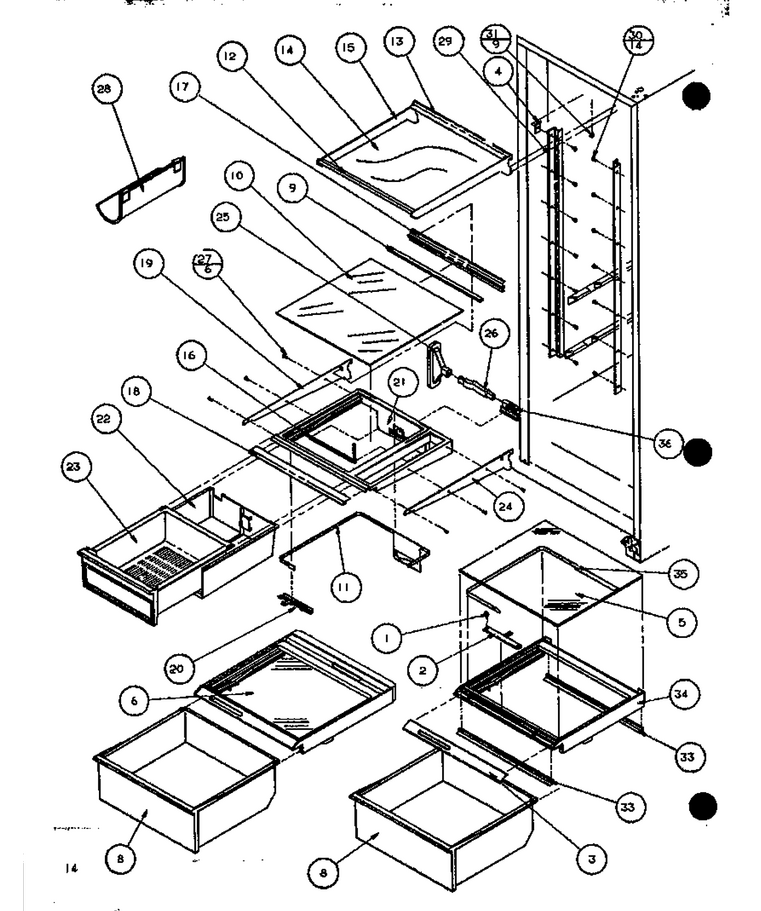

10 - Ref Shelving And Drawers

...
...
NI
Crisper Frame Assy-Glass WPL-R0179159
...
1
Knob, Crisper Control WPL-10038401
...
2
Slide, Crisper WPL-YD7860605
...
3
Trim, Crisper Front WPL-D7616654
...
4
Brkt, Cont Cover WPL-12414701
...
5
Glass Crisper Top WPL-D7421275
...
6
Glass Crisper Top WPL-D7421275
...
8
Pan Crisper WPL-D7782119
...
9
Ext. Rear Glass WPL-10043102
...
10
Glass Shelf M.k. WPL-10036028
...
11
Band M.k. Control WPL-D7859503
...
12
Trim, Front Shelf WPL-C8913513
...
13
Trim, Glass Shelf Rear WPL-C8913606
...
14
Glass Shelf WPL-10036025
...
15
Frame-Cantilever Shelf WPL-D7871009
...
16
Gasket WPL-A3030302
...
17
Trim-M.k., Top, Rear WPL-C8990404
...
18
Trim WPL-10049914
...
19
Blank Side Rail WPL-D7862924
...
20
Slide-Mk Control WPL-D7859401
...
21
Frame, M.k. WPL-D7857002
...
22
Sleeve M.k. WPL-D7698113
...
23
Pan-Meat WPL-D7698329
...
24
Blank Side Rail (silver) WPL-D7862925
...
25
Grommet, Mk WPL-D7873601
...
26
Xduct M.k. Air WPL-D7869001
...
27
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
28
Rack, Bottle WPL-D7547614
...
29
Ladder Cantilever WPL-D7789807
...
30
Screw (3) WPL-67006425
...
31
Grommet, Screw WPL-M0580007
...
33
Seal, Crisper Front WPL-D7718403
...
34
Frame Crisper WPL-D7853205
...
35
Band M.k. Control WPL-D7859604
...
36
Ext. Air Duct WPL-D7869102

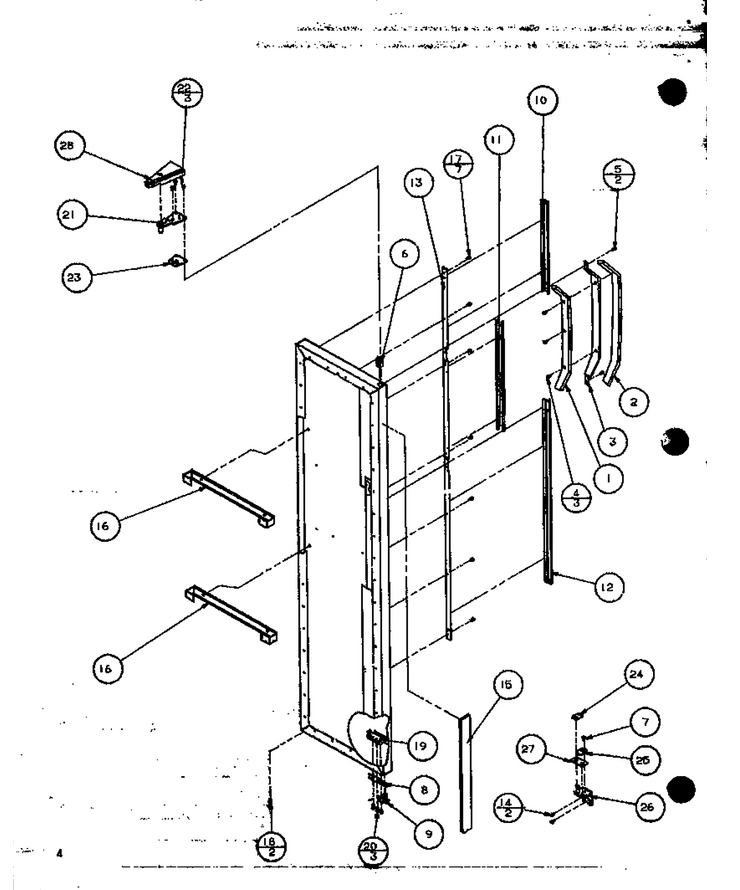

02 - Fz Door

...
...
1
Pad, Handle Inner (alm) WPL-D7863004
...
2
Pad, Handle Outer (alm) WPL-D7863104
...
3
Handle WPL-D7826603
...
4
Screw WPL-M0215116
...
5
Screw WPL-WP3400094
...
6
Bushing, Top WPL-C8965901
...
7
Screw WPL-WPW10068250
...
8
Stop, Door (blk) WPL-12636401B
...
9
Kit,dr Closure WPL-R0181181
...
10
Upper Trim Frz Dr (l) WPL-D7852105
...
11
Trim Center Frz WPL-D7853905
...
12
Trim, Lwr Frz Door (l) WPL-D7792705
...
13
Frz Trim, Retainer WPL-D7792902
...
14
Screw WPL-WP67006715
...
15
Trim, Door WPL-C8974102
...
16
Support, Handle WPL-D7837401
...
17
Screw WPL-M0213815
...
18
Screw WPL-WP489349
...
19
Nut, Door Stop WPL-D7790801
...
20
Screw WPL-WPM0219730
...
21
Top Hinge Assy WPL-D7757803
...
22
Kit, Screw WPL-R9800670
...
23
Shim, Top Hinge WPL-B8389007
...
24
Shim, Door Closure WPL-B8387702
...
25
Kit,dr Closure WPL-R0181181
...
26
Hinge Assy WPL-D7757705
...
27
Kit,btm Hinge Shim WPL-B8386701
...
28
Cover Hinge WPL-D7872101

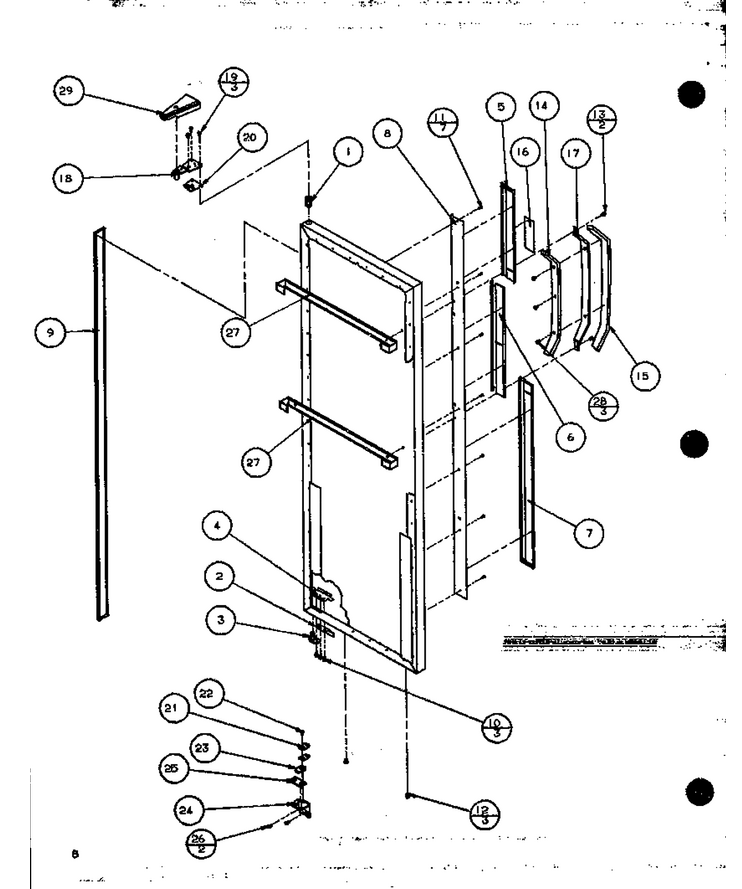

08 - Ref Door

...
...
1
Bushing, Top WPL-C8965901
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
4
Nut, Door Stop WPL-D7790801
...
5
Trim WPL-D7852010
...
6
Trim Center Ref Dr WPL-D7853805
...
7
Trim Lwr Ref Door WPL-D7792805
...
8
Ref. Trim, Retainer WPL-D7793202
...
9
Trim, Door WPL-C8974102
...
10
Screw WPL-WPM0219730
...
11
Screw WPL-M0213815
...
12
Screw WPL-WP489349
...
13
Screw WPL-WP3400094
...
14
Pad, Handle Inner (alm) WPL-D7863004
...
15
Outer Pad K WPL-D7863101
...
16
Thinplate WPL-C8984307
...
17
Handle WPL-D7826603
...
18
Top Hinge Assy WPL-D7757803
...
19
Kit, Screw WPL-R9800670
...
20
Shim, Top Hinge WPL-B8389007
...
21
Shim, Door Closure WPL-B8387702
...
22
Screw WPL-WPW10068250
...
23
Kit,dr Closure WPL-R0181181
...
24
Hinge Assy Bottom WPL-D7757706
...
25
Kit,btm Hinge Shim WPL-B8386701
...
26
Screw WPL-WP67006715
...
27
Support, Handle WPL-D7837402
...
28
Screw WPL-M0215116
...
29
Cover Hinge WPL-D7872101

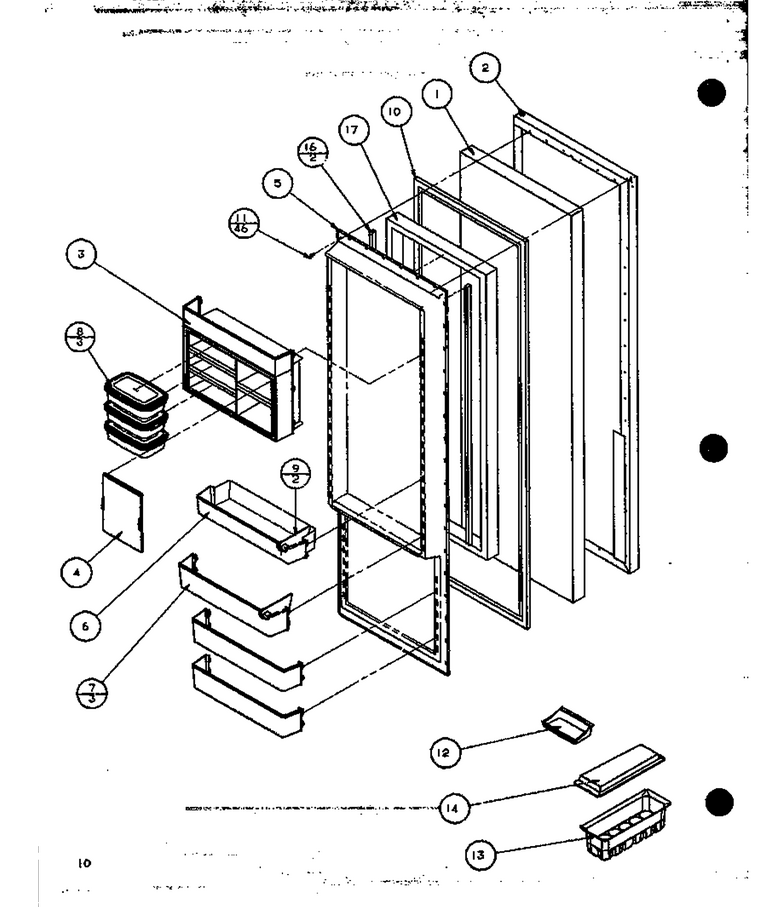

09 - Ref Door

...
...
1
Insulation WPL-B0566723
...
2
Dr Pan, Ref, L ( WPL-D7834007
...
3
Module-Dairy WPL-D7781202
...
4
Door Dairy WPL-D7781315
...
5
Inner Door, Ref WPL-D7828203
...
6
Bucket- Do WPL-67003696
...
7
Shelf- Doo WPL-67003697
...
8
Container Sec. Ser. WPL-D7806403
...
9
Snugger, Door WPL-D7814607
...
10
Gasket-Dr WPL-WP10359708Q
...
11
Screw WPL-WPM0219730
...
12
Butter Tray WPL-D3799802
...
13
Assy,egg Bkt W/ Lid WPL-12460016
...
14
Cover, Egg Bucket WPL-D7805909
...
16
Seal, Door Dike WPL-C8987104
...
17
Insul. By The Ft. WPL-B0523562

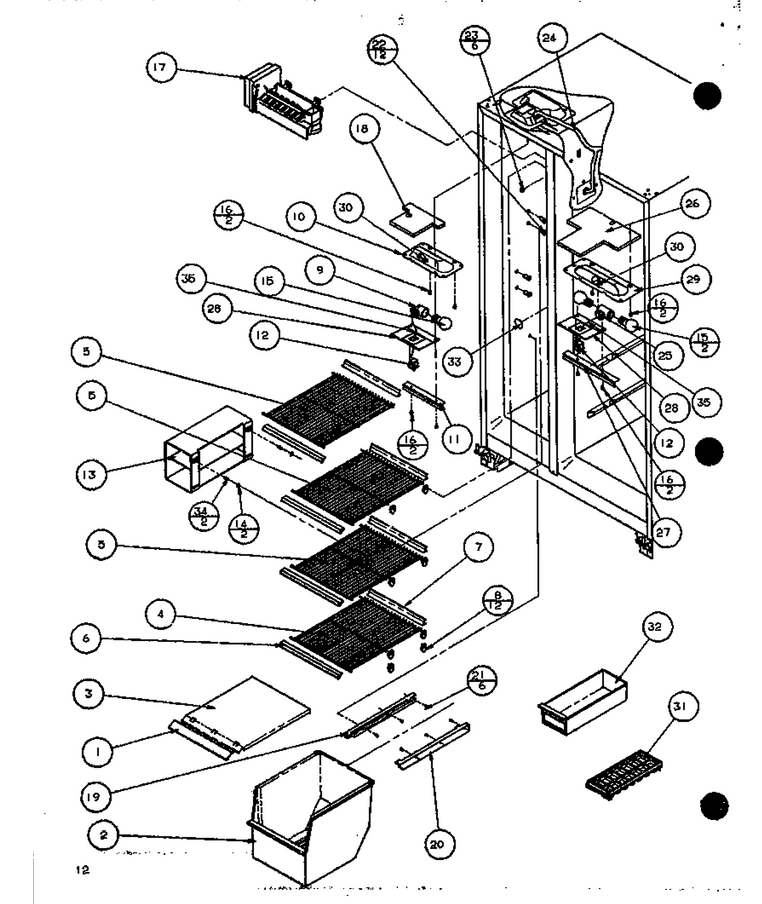

05 - Fz Shelving And Ref Light

...
...
1
Trim, Frz Shelf WPL-D7616620
...
2
Basket Fre WPL-D7781410
...
3
Freezer Shelf WPL-D7781504
...
4
Shelf Fz Wire WPL-D7788314
...
5
Shelf Freezer WPL-D7788316
...
6
Trim WPL-C8913517
...
7
Trim, Rear Frz Shelf WPL-C8913607
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-C8973402
...
10
Housing, Fz Light WPL-D7760101
...
11
Shield Light WPL-10014704
...
12
Switch WPL-W11384469
...
13
Rack, Ice WPL-D7620110
...
14
Washer WPL-M0270519
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
See Note Add-On Ice Maker Assembly -- (available Through Sales) WPL-Y00000000
...
18
Barrier WPL-C8976301
...
19
Glide, Container (left) WPL-67005375
...
20
Glide, Frz. (rt) WPL-67004323
...
21
Screw, Handle WPL-67006529
...
22
Plug, Frz Shelf Support WPL-C8973701
...
23
Grommet, Screw WPL-M0580007
...
24
Harness, Outer Liner WPL-D7771301
...
25
Socket, Dual Lamp WPL-D7808602
...
26
Insulation WPL-C8778301
...
27
Shield, Light WPL-10014716
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716409
...
30
Clip, Ground WPL-B5733302
...
31
Tray WPL-WP841180A
...
32
Bin, Ice WPL-D7620024
...
33
Plug WPL-A3069103
...
34
Screw Shoulder WPL-M0238833
...
35
Jumper Wire WPL-B5781002
