Amana 36508 (BOM: P1121708W L)

Model: 36508 (BOM: P1121708W L)

Save Part Not Listed?
product name

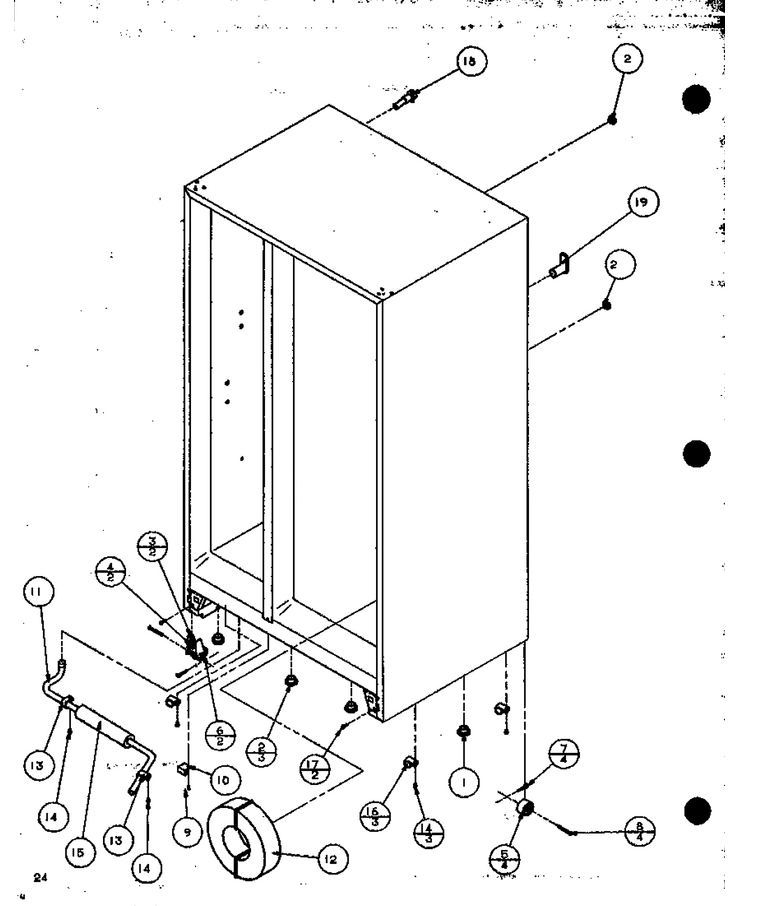

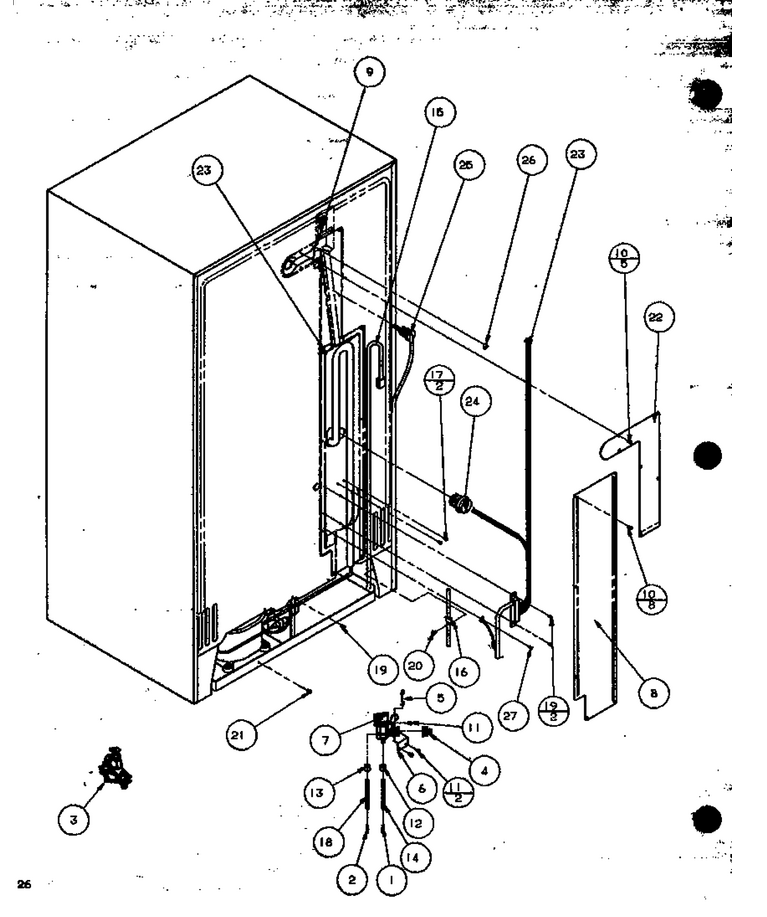

02 - Cabinet Back

...
...
1
Spring WPL-WPA1055105
...
2
Spring K WPL-A1055102
...
3
Saddle Valve WPL-A3034801
...
4
Coupling WPL-10244901
...
5
Clip, Water Valve WPL-10798001
...
6
Bracket WPL-WPD7701602
...
7
Valve-Inlt WPL-WPW10245167
...
8
Cover, O.c.back WPL-10178406
...
9
Clip- Spee WPL-WPM0114003
...
10
Screw WPL-WP90767
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut WPL-WP627018
...
13
Nut WPL-8201513
...
14
Tube WPL-WPB5705307
...
15
Cord-Power WPL-10916505
...
16
Clamp WPL-M0103901
...
17
Screw WPL-WP489399
...
18
Tank, Coil Water WPL-D7787801
...
19
Screw WPL-WP489069
...
20
Screw WPL-WP90767
...
21
Screw WPL-WP489474
...
22
Wire Cover WPL-10178502
...
23
Harness Cabinet WPL-10268101
...
24
Grommet Wire WPL-10178701
...
25
Grommet Wire WPL-10178801
...
26
Clip WPL-WPM0104106
...
27
Screw, Spextite WPL-M0232330

04 - Drain And Rollers

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Bracket, Retainer WPL-C8985801
...
10
Screw (3) WPL-67006425
...
11
Drain Tube WPL-D7748501
...
12
Tank, Coil Water WPL-D7787801
...
13
Clamp WPL-M0102303
...
14
Screw WPL-WP489069
...
15
Insulation, Tube WPL-10851302
...
16
Clamp WPL-WP488366
...
17
Screw, Mach WPL-M0206313
...
18
Assy, Fill Tube WPL-12023401Q
...
19
Tunnel, Heat Ex. WPL-C8971902

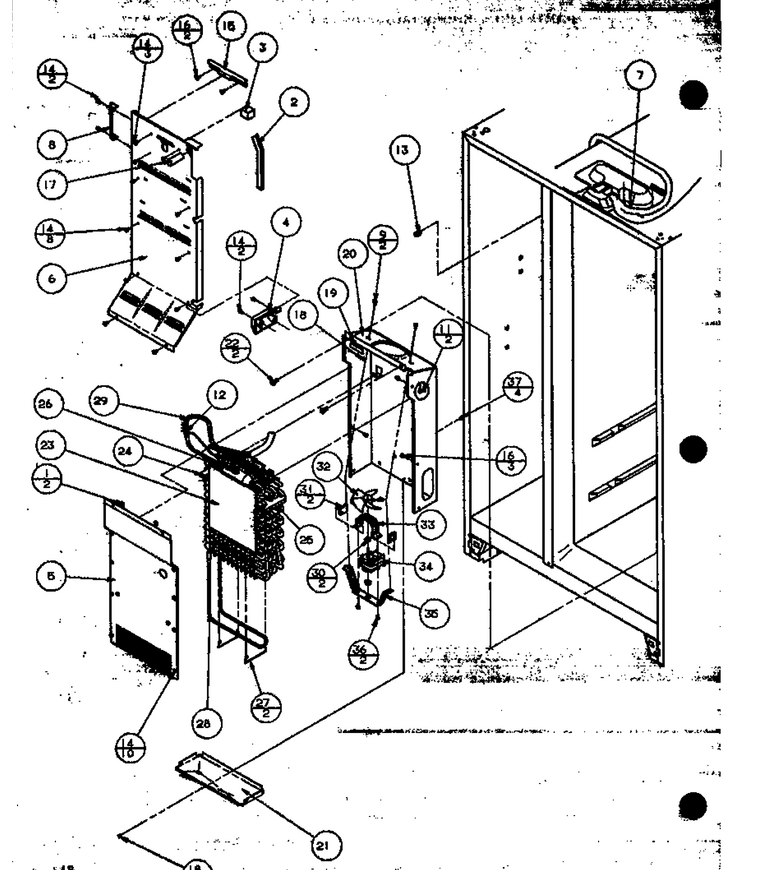

05 - Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k. Air WPL-D7786902
...
5
Cover, Evaporator WPL-D7865907
...
6
Inner Fz Bach Pnt WPL-D7821124
...
7
Harness, Ref Liner WPL-10281401
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP489464
...
11
Screw WPL-WP489399
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
17
Ext. Fill Tube WPL-A3127414
...
18
Rivet WPL-10098801
...
19
Gasket, Foam WPL-B5757707
...
20
Evaporator Shield WPL-D7865804
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Grommet WPL-M0580003
...
23
Gasket, Evap. WPL-B8327901
...
24
Block-Lh Air Coil WPL-B8385502
...
25
Block P M Air Coil WPL-B8385601
...
26
Thermostat WPL-WPC8972006
...
27
Clip, Evap. Heater WPL-C8983101
...
28
Heater, Defrost WPL-D7872801
...
29
Assy,low Side-Thin Wall Evap WPL-R0170041
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Bracket, Motor Shroud WPL-D7767701
...
36
Screw WPL-WP12990527
...
37
Grommet A WPL-M0580002

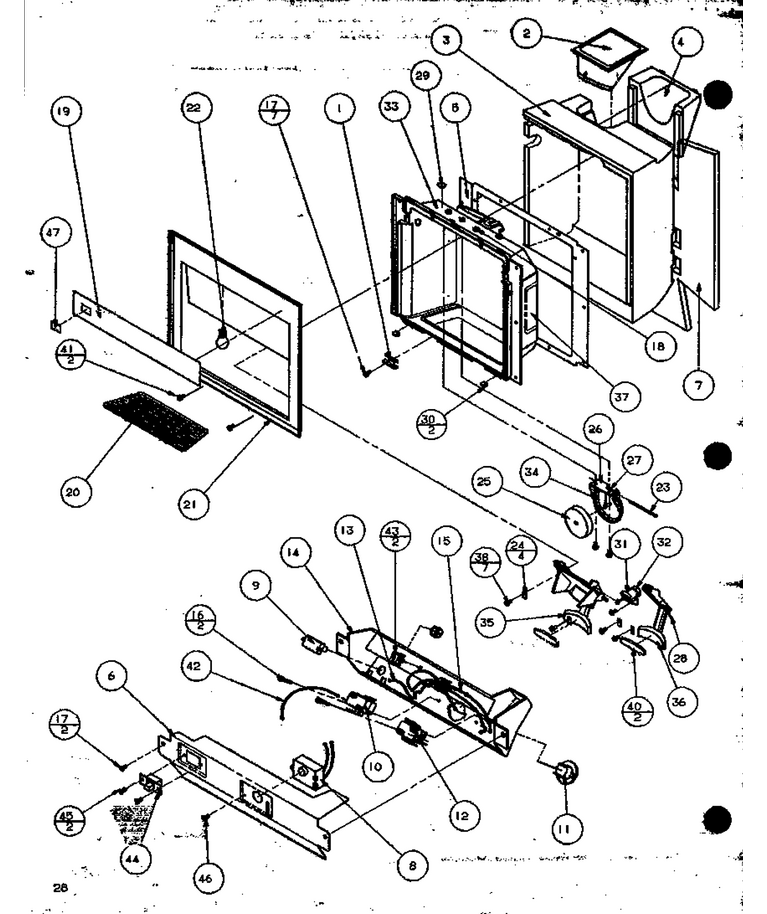

09 - Ice And Water Cavity

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Clip WPL-C8992901
...
2
Ice, Chute WPL-D7750702
...
3
Insulation I & W Cav. WPL-D7789602
...
4
Insul I & W Cavity WPL-D7790901
...
5
Gasket-Cav WPL-D7791004
...
6
Cover-Elect Brkt WPL-10131801
...
7
Insulation Batt WPL-10220201
...
8
Switch-Photosensitive WPL-D7854104
...
9
Switch-Light Cavity WPL-10166101
...
10
Assy, Limit Switch WPL-C8972702
...
11
Socket, Light WPL-10131701
...
12
Kit, Limit Switch WPL-C8972701
...
13
Wire-Jumper WPL-D7726590
...
14
Bracket, Elec Mtg WPL-10323301
...
15
Wire Jumper WPL-D7726593
...
16
Screw WPL-M0234008
...
17
Screw-Sm/hex WPL-12990523
...
18
Retainer, Ring WPL-M0274701
...
19
Membrane Facade E WPL-D7842223
...
20
Grille Sump (black) WPL-D7750602
...
21
Facade-Dispenser, Black WPL-D7877526
...
22
Bulb-Light WPL-W10857122
...
23
Pin, Chute Door WPL-A1061501
...
24
Retainer, Ice Arm WPL-A1061601
...
25
Insulation, Chute Door WPL-B8380701
...
26
Brkt-Chute Door WPL-B8380801
...
27
Spring,chute Door WPL-B8380901
...
28
Spring, Return WPL-B8385401
...
29
Plug Button WPL-M0311401
...
30
Clip WPL-W10819546
...
31
Retainer Door Delay WPL-C8972501
...
32
Delay, Door WPL-C8973601
...
33
Cavity-Dis WPL-10876038
...
34
Kit,chute Dr No.3 WPL-10246601
...
35
Arm-Dispsr WPL-12002642
...
36
Arm-Dispsr WPL-12002642
...
37
Heater-Cavity WPL-10176101
...
38
Screw WPL-WP90767
...
40
Pad, Actuating WPL-B8390201
...
41
Screw WPL-M0219601
...
42
Wire-Jumper WPL-D7726592
...
43
Wire Clip WPL-B5667304
...
44
Switch-Crushed/cube WPL-10166002
...
45
Screw WPL-M0234003
...
46
Screw WPL-WP489349
...
47
Cap-Grey Switch WPL-12043805

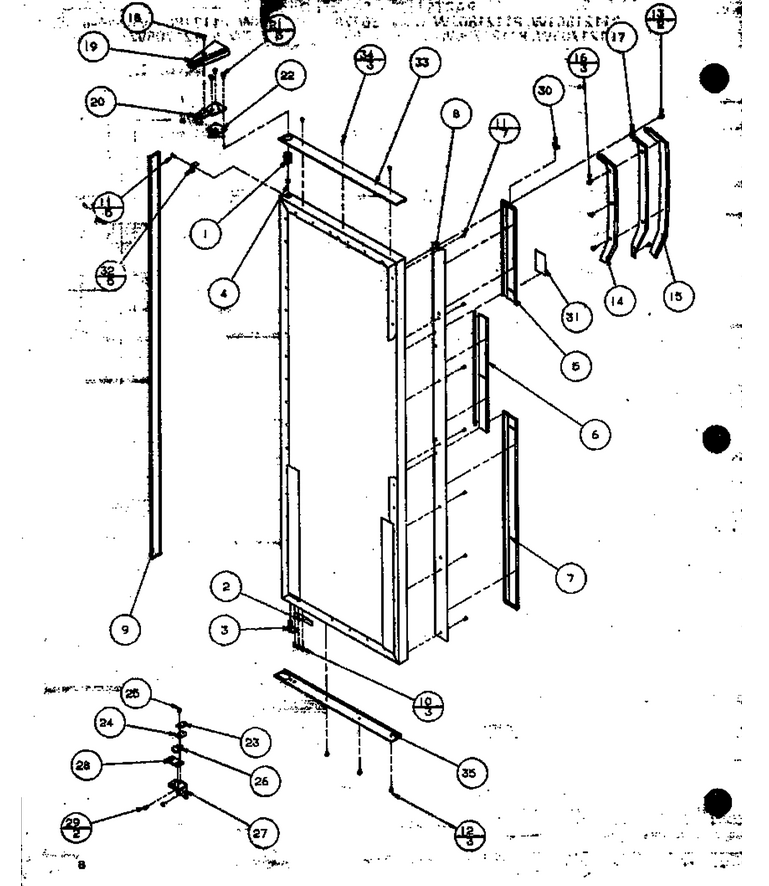

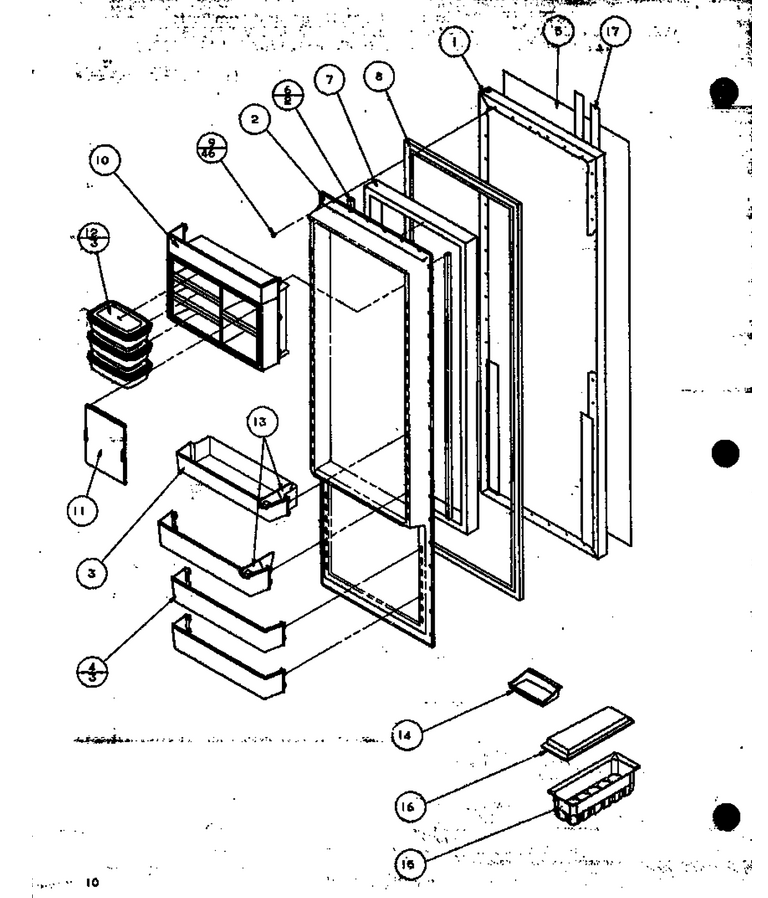

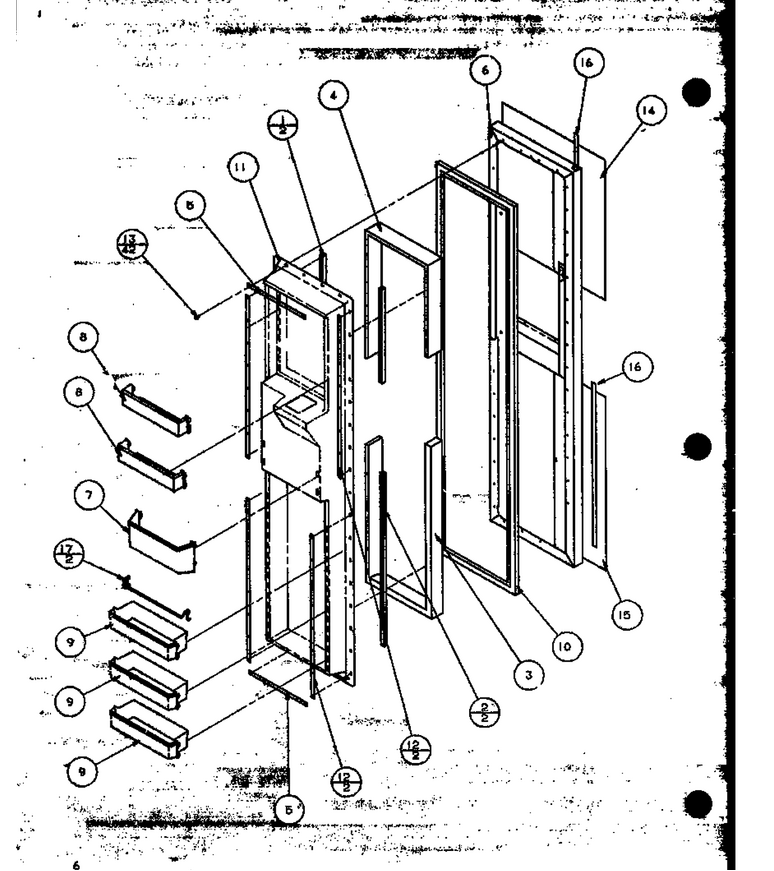

12 - Ref Door

...
...
1
Assy, Ref Door (almond) WPL-10284101LQ
...
2
Inner Door, Ref WPL-D7828203
...
3
Bucket- Do WPL-67003696
...
4
Shelf- Doo WPL-67003697
...
5
Panel Black Glass WPL-10096904
...
6
Seal, Door Dike WPL-C8987104
...
7
Insul. By The Ft. WPL-B0523562
...
8
Gasket-Dr WPL-WP10359708Q
...
9
Screw WPL-WPM0219730
...
10
Module-Dairy WPL-D7781202
...
11
Door Dairy WPL-D7781315
...
12
Container Sec. Ser. WPL-D7806403
...
13
Snugger, Door WPL-D7814607
...
14
Tray, Butter WPL-10310901
...
15
Assy,egg Bkt W/ Lid WPL-12460016
...
16
Cover, Egg Bucket WPL-D7805909
...
17
Tape Per Roll WPL-M0275163

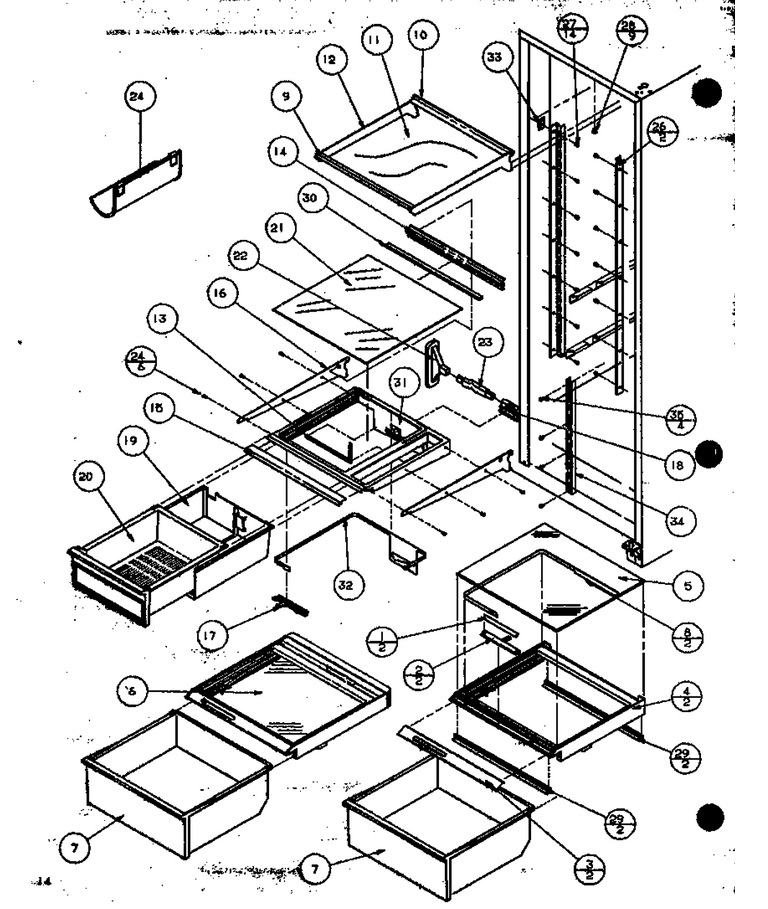

13 - Ref Shelving And Drawers

...
...
NI
Glass Shelf Assy WPL-D7871825
...
1
Knob, Crisper Control WPL-10038401
...
2
Slide, Crisper WPL-YD7860605
...
3
Trim, Crisper Front WPL-D7616654
...
4
Frame,crisper WPL-D7853207
...
5
Glass Crisper Top WPL-D7421275
...
6
Glass Crisper Top WPL-D7421275
...
7
Pan Crisper WPL-D7782119
...
8
Band M.k. Control WPL-D7859604
...
9
Trim WPL-10049915
...
10
Trim, Glass Shelf WPL-C8913614
...
11
Glass Shelf WPL-10036025
...
12
Frame Cant. Door WPL-D7871018
...
13
Gasket WPL-A3030302
...
14
Trim-M.k., Top, Rear WPL-C8990404
...
15
Trim WPL-10049914
...
16
Blank Side Rail WPL-D7862924
...
17
Slide-Mk Control WPL-D7859401
...
18
Ext. Air Duct WPL-D7869102
...
19
Sleeve M.k. WPL-D7698113
...
20
Pan-Meat WPL-D7698329
...
21
Glass Shelf M.k. WPL-10036028
...
22
Grommet, Mk WPL-D7873601
...
23
Xduct M.k. Air WPL-D7869001
...
24
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
25
Rack, Bottle WPL-D7547614
...
26
Ladder Cantilever WPL-D7789807
...
27
Screw (3) WPL-67006425
...
28
Grommet, Screw WPL-M0580007
...
29
Seal, Crisper Front WPL-D7718403
...
30
Ext. Rear Glass WPL-10043102
...
31
Frame, M.k. WPL-D7857002
...
32
Band M.k. Control WPL-D7859503
...
33
Brkt, Cont Cover WPL-12414701
...
34
Ladder, Center WPL-D7599003
...
35
Screw-Sm WPL-M0238636

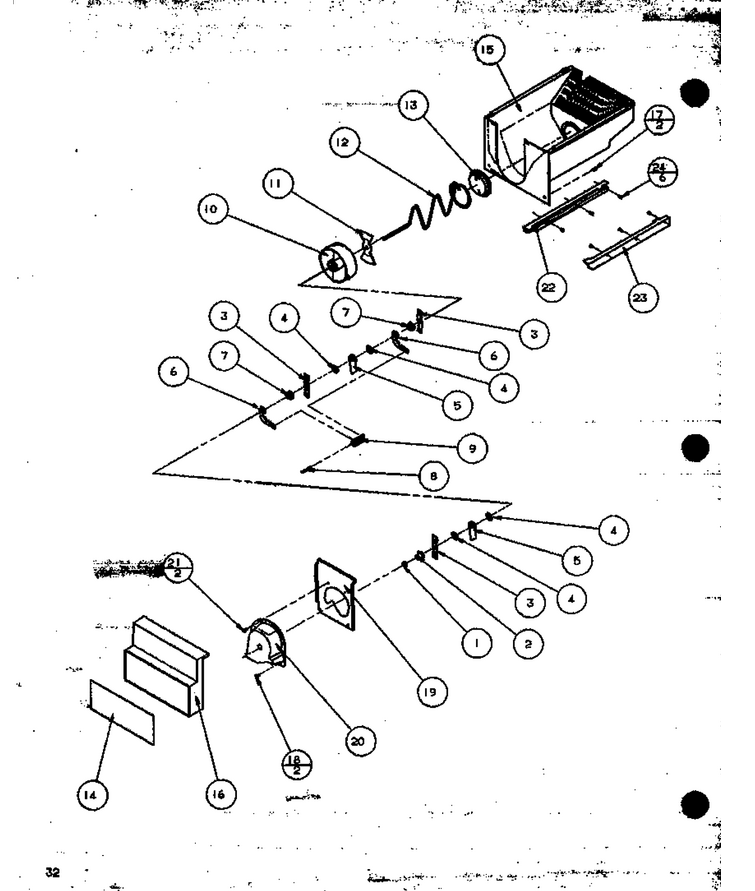

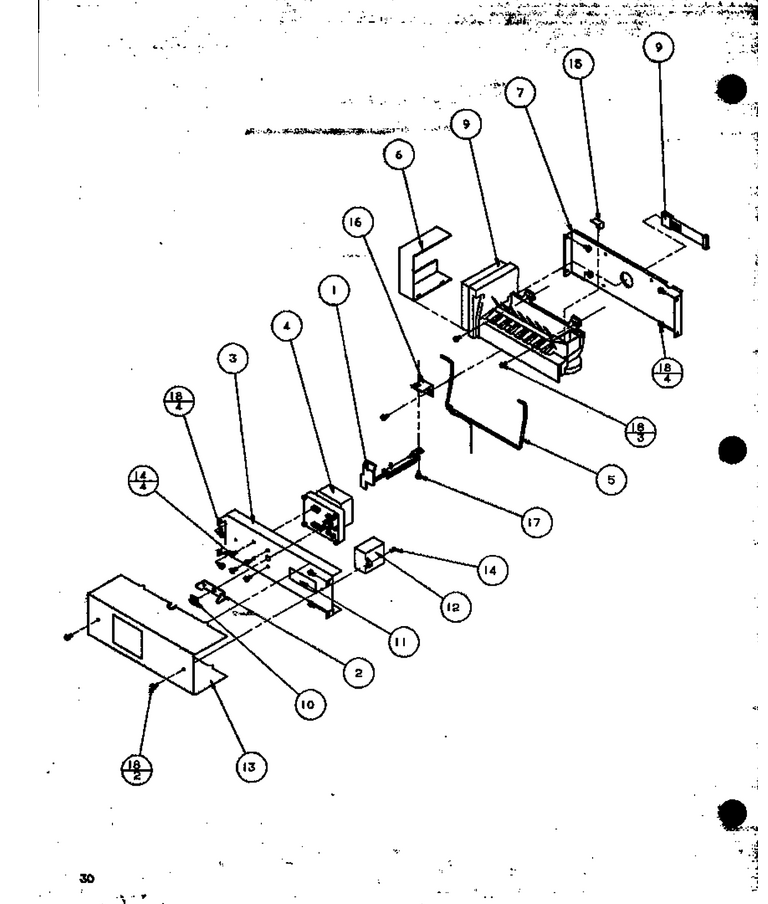

01 - Ice Bucket And Ice Maker

...
...
1
Im Shut Off Assy WPL-C8980404
...
2
Coupling WPL-WP10114901
...
3
Support,auger Motor WPL-D7749207
...
4
Kit, Auger Motor WPL-10114801
...
5
Arm,ice Maker Shut Off WPL-D7877001
...
6
Cover Im WPL-D7820401
...
7
Support-Im WPL-D7821004
...
8
Harness WPL-D7824601
...
9
Ice Maker Assy. WPL-D7824706Q
...
10
Nut WPL-WPM0223101
...
11
Gasket-Per Ft WPL-A3030305
...
12
Start-Dev WPL-W10613606
...
13
Cover, Auger Motor WPL-D7788836
...
14
Screw WPL-WP489128
...
15
Clip WPL-B5720301
...
16
Bracket, I/m WPL-B8391802
...
17
Screw WPL-WP98165
...
18
Screw (3) WPL-67006425

03 - Crushed Ice Bucket

...
...
NI
Crushr-Mec WPL-WP12740302
...
1
Nut WPL-WPM0223101
...
2
Spacer, Cover WPL-10113901
...
3
Blade, Rotating WPL-10114501
...
4
Washer, Waved WPL-10275101
...
5
Damper, Ice WPL-10275201
...
6
Blade, Static WPL-10114601
...
7
Washer Stepped WPL-10114301
...
8
Pin, Roll WPL-M1200108
...
9
Anchor, Blade WPL-10114101
...
10
Wheel- Crs WPL-WP67002052
...
11
Bar, Crsh Ice Bucket WPL-10113801
...
12
Agitator, Ice WPL-10114401
...
13
Cap- Helix WPL-WPD7749401
...
14
Insert Bkt Cfc 113 WPL-10099703
...
15
Bucket- Cr WPL-WP10111905
...
16
Front-Crsh Ice Brkt WPL-10112001
...
17
Screw (3) WPL-67006425
...
18
Screw WPL-WP3388228
...
19
Front, Ice Crusher WPL-10115001
...
20
Cover, Blade WPL-10114002
...
21
Screw, Tf WPL-M0231704
...
22
Glide, Container (left) WPL-67005375
...
23
Glide, Frz. (rt) WPL-67004323
...
24
Screw, Handle WPL-67006529

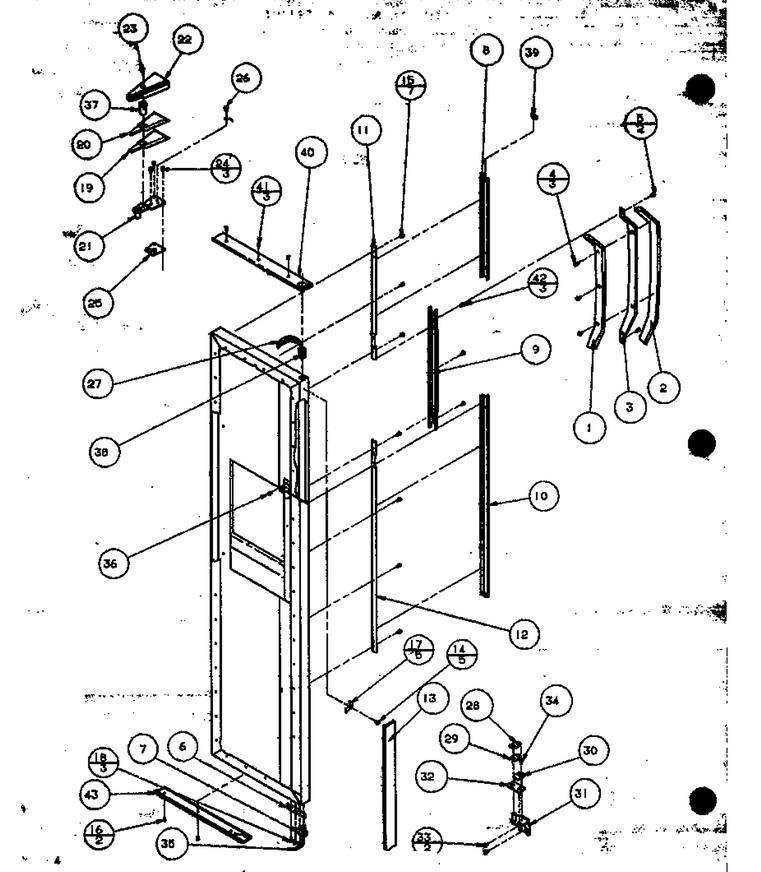

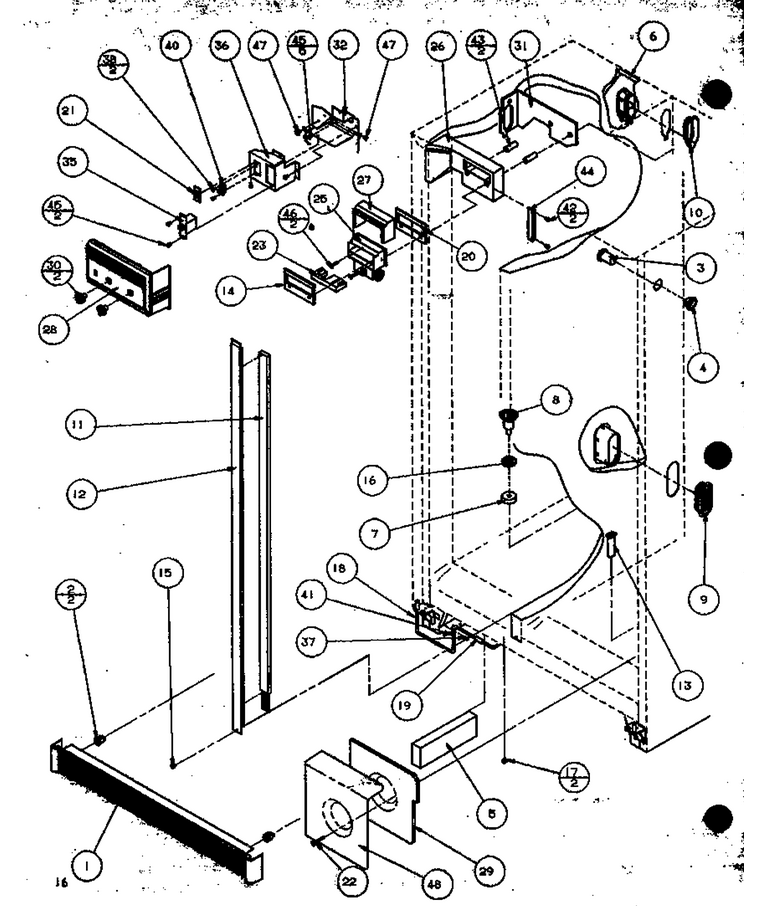

06 - Fz

...
...
1
Inner Pad K WPL-D7863001
...
2
Outer Pad K WPL-D7863101
...
3
Handle WPL-D7826603
...
4
Screw WPL-M0215116
...
5
Screw WPL-WP3400094
...
6
Stop, Door (blk) WPL-12636401B
...
7
Kit,dr Closure WPL-R0181181
...
8
Trim Upper Frz Door (b) WPL-D7852102
...
9
Trim Center Frz (b) WPL-D7854002
...
10
Lower Trim Frz Door (b) WPL-D7792702
...
11
Retainer, Trim WPL-D7793002
...
12
Retainer, Trim WPL-D7793102
...
13
Trim Vertical WPL-10274201
...
14
Clip, Trim WPL-10274101
...
15
Screw WPL-M0213815
...
16
Screw WPL-WP489349
...
17
Screw WPL-M0213815
...
18
Screw WPL-WP98165
...
19
Insulation, Hinge Cover WPL-10126501
...
20
Foil, Hinge Cover V/a WPL-10126601
...
21
Top Hinge-E Ct WPL-12077313
...
22
Hinge Cover - Chrome WPL-10126401
...
23
Screw WPL-WP8281196
...
24
Kit, Screw WPL-R9800670
...
25
Shim, Top Hinge WPL-B8389007
...
26
Screw WPL-W11214483
...
27
Harness Fz Door WPL-10164202
...
28
Shim, Door Closure WPL-B8387701
...
29
Shim, Door Closure WPL-B8387702
...
30
Kit,dr Closure WPL-R0181181
...
31
Bottom Hinge, Frz WPL-10163601
...
32
Kit,btm Hinge Shim WPL-B8386701
...
33
Screw WPL-WP67006715
...
34
Screw WPL-WP489128
...
35
Tube WPL-WPB5705307
...
36
Screw WPL-WP489399
...
37
Tubing Plastic WPL-A3012532
...
38
Bushing- D WPL-WP67004977
...
39
Shim WPL-C8972303
...
40
Trim Fz Door Top WPL-10272001
...
41
Screw WPL-W11245710
...
42
Screw-Sm/hex WPL-12990523
...
43
Trim-Fz Door Bot. WPL-10271901

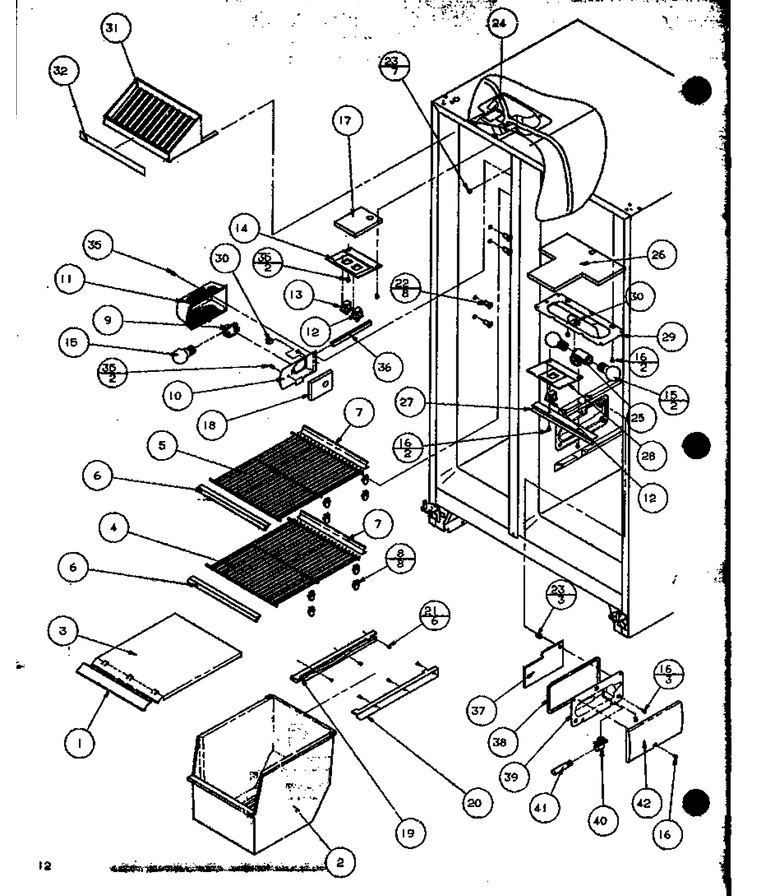

08 - Fz Shelving And Ref Light

...
...
1
Trim, Frz Shelf WPL-D7616620
...
2
Basket Fre WPL-D7781410
...
3
Freezer Shelf WPL-D7781504
...
4
Shelf Fz Wire WPL-D7788314
...
5
Shelf, Frz Wire WPL-D7788315
...
6
Trim WPL-10049917
...
7
Trim, Rear Frz Shelf WPL-C8913607
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate-Light Socket WPL-D7753503
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680306
...
14
Cover Light WPL-D7749002
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Barrier Frz. WPL-C8976401
...
18
Barrier, Frz Side WPL-C8974501
...
19
Glide, Container (left) WPL-67005375
...
20
Glide, Frz. (rt) WPL-67004323
...
21
Screw, Handle WPL-67006529
...
22
Plug, Frz Shelf Support WPL-C8973701
...
23
Grommet, Screw WPL-M0580007
...
24
Harness Fz Liner WPL-10268001
...
25
Socket, Dual Lamp WPL-D7808602
...
26
Insulation WPL-C8778301
...
27
Shield, Light WPL-10014716
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716409
...
30
Clip, Ground WPL-B5733302
...
31
Rack, Juice V WPL-D7839701
...
32
Insert Juice Rack WPL-C8986111
...
35
Screw (3) WPL-67006425
...
36
Cover Wiring WPL-10250001
...
37
Insulation WPL-10278001
...
38
Gasket WPL-A3189337
...
39
Housing, Light WPL-10270203
...
40
Socket-Light WPL-10281601
...
41
Bulb-Light WPL-WPA3073101
...
42
Cover-Light WPL-Y10270101

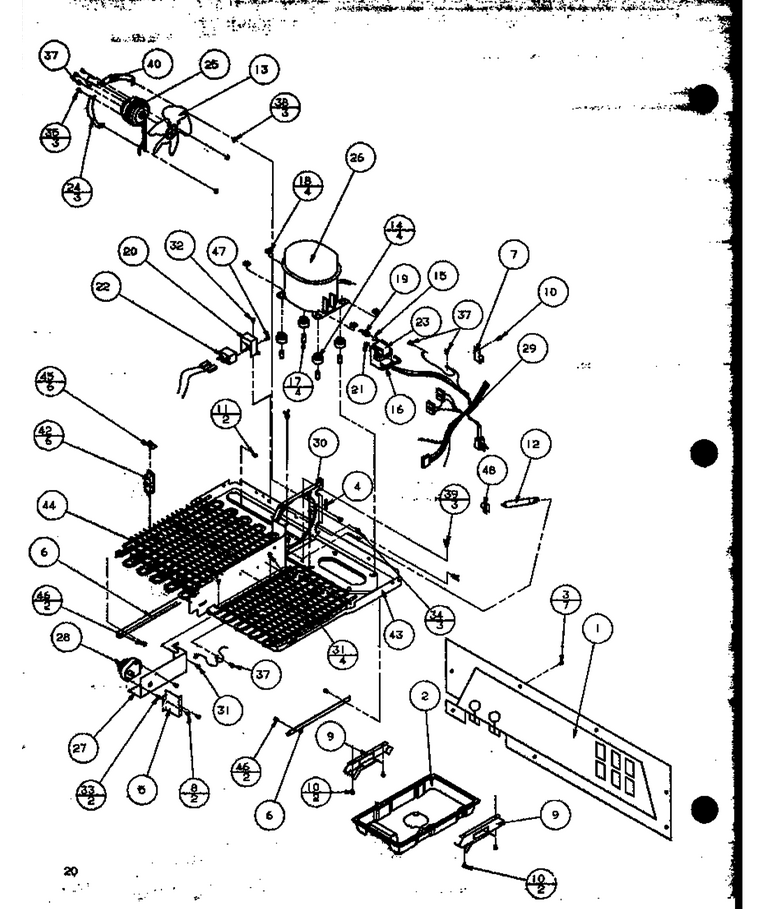

10 - Machine Compartment (tec Comp)

...
...
NI
Spring K WPL-C8916701
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Bracket, Timer WPL-C8973502
...
6
Support M.c. WPL-D7835501
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Spring, Overload WPL-B8358301
...
16
Strap K WPL-A3041801
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-C8866908
...
20
Shield, Capacitor WPL-10266402
...
21
Start-Dev WPL-WPW10189190
...
22
Capacitor WPL-WP65889-4
...
23
Cover K WPL-B0559501
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-C3667102H
...
27
Bracket, Timer WPL-D7844201
...
28
Timer-Def WPL-R0131577
...
29
Harness M.c. WPL-10356801
...
30
Cond Fan Shroud WPL-D7844108
...
31
Screw WPL-WP12990527
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
42
Spacer Cond. WPL-B8346301
...
43
Pan, Base WPL-D7748610
...
44
Condenser Pntd WPL-D7824503
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530
...
47
Kit, Screw WPL-R9800670
...
48
Clamp-Tube WPL-M0107701

11 - Ref Door

...
...
1
Bushing, Door (wht) WPL-10263802
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
4
Filter Bushing WPL-10252902
...
5
Trim Upper Ref Door K WPL-D7852007
...
6
Trim Center Refr K WPL-D7853802
...
7
Lower Trim Ref Door K WPL-D7792802
...
8
Ref. Trim, Retainer WPL-D7793202
...
9
Trim Vertical WPL-10274201
...
10
Screw WPL-WP98165
...
11
Screw WPL-M0213815
...
12
Screw WPL-WP489349
...
13
Screw WPL-WP3400094
...
14
Inner Pad K WPL-D7863001
...
15
Outer Pad K WPL-D7863101
...
16
Screw WPL-M0215116
...
17
Handle WPL-D7826603
...
18
Screw WPL-WP8281196
...
19
Hinge Cover - Chrome WPL-10126401
...
20
Top Hinge-E Ct WPL-12077313
...
21
Kit, Screw WPL-R9800670
...
22
Shim, Top Hinge WPL-B8389007
...
23
Shim, Door Closure WPL-B8387701
...
24
Shim, Door Closure WPL-B8387702
...
25
Screw WPL-WP489128
...
26
Kit,dr Closure WPL-R0181181
...
27
Rh Bot Hinge-Bk E Ct WPL-10496118
...
28
Kit,btm Hinge Shim WPL-B8386703
...
29
Screw WPL-WP67006715
...
30
Shim WPL-C8972304
...
31
Thinplate WPL-C8984307
...
32
Clip, Trim WPL-10274101
...
33
Trim-Ref Door Top WPL-10271801
...
34
Screw WPL-W11245710
...
35
Trim-Ref Door Bot WPL-10271701

07 - Fz Door

...
...
1
Seal, Door Dike WPL-C8987101
...
2
Seal, Door Dike WPL-C8987103
...
3
Insul. By The Ft. WPL-B0523562
...
4
Insulation, Per Ft. WPL-B0523583
...
5
Retainer, Door Liner WPL-C8982801
...
6
Ass`y, Fz Dr Fm WPL-10300502L
...
7
Shelf, Half Fz. Dr WPL-D7783508
...
8
Shelf Fz Door WPL-D7783607
...
9
Bucket Frz Door WPL-D7783707
...
10
Gasket W WPL-WP10359709Q
...
11
Inner Door Panel WPL-D7828505
...
12
Retainer, Door Liner WPL-D7828601
...
13
Screw WPL-WPM0219730
...
14
Panel Black Glass WPL-10096902
...
15
Panel Black Glass WPL-10096903
...
16
Tape Per Roll WPL-M0275163
...
17
Retainer, Package WPL-10169402

14 - Ref/fz Controls And Cabinet Part

...
...
1
Grille, Toe Black WPL-D7786702
...
2
Clip WPL-WPM0117303
...
3
Tunnel, Air WPL-A3187703
...
4
Retainer WPL-A3187801
...
5
Insulation WPL-B5629045
...
6
Tube-Plastic WPL-B8372601
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel Air Supply WPL-10178001
...
11
Heater, Mullion WPL-D7837501
...
12
L Vt Mull-Pnt WPL-D7788606
...
13
Grommet WPL-D7793501
...
14
Gasket, Damper WPL-10383201
...
15
Screw, Handle (black) WPL-12991101
...
16
Seal- O Ri WPL-WPM0500703
...
17
Grommet, Screw WPL-M0580007
...
18
Tube WPL-WPB5705307
...
19
Fitting WPL-WP4373559
...
20
Gasket, Damper WPL-B8345401
...
21
Collar, Switch WPL-B8391602
...
22
Clip K WPL-C6457701
...
23
Insert, Control WPL-C8902601
...
25
Control, Damper WPL-D7547407
...
26
Air Duct, Waxed WPL-10176602
...
27
Insulation WPL-D7788201
...
28
Cover Cont WPL-D7790324
...
29
Insulation Cut Tank WPL-D7793402
...
30
Kit Knob WPL-D7795806
...
31
Gasket, Air Duct WPL-10177901
...
32
Box, Bottom Control WPL-D7822404
...
35
Assy, Control-Fz WPL-R0161092
...
36
Box Control Top WPL-D7868601
...
37
Screw WPL-WP90767
...
38
Screw WPL-M0234003
...
40
Switch, Heater WPL-M0342601
...
41
Clamp WPL-M0102301
...
42
Screw WPL-WP489474
...
43
Spacer Damper WPL-A3044208
...
44
Clamp WPL-C8977301
...
45
Screw WPL-WP489464
...
46
Screw WPL-M0216539
...
47
Screw WPL-WP489399
...
48
Cover, Tank WPL-D7879301
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
