product name

Amana 35531 (BOM: P1121905W W)

Model: 35531 (BOM: P1121905W W)

Save Part Not Listed?
product name

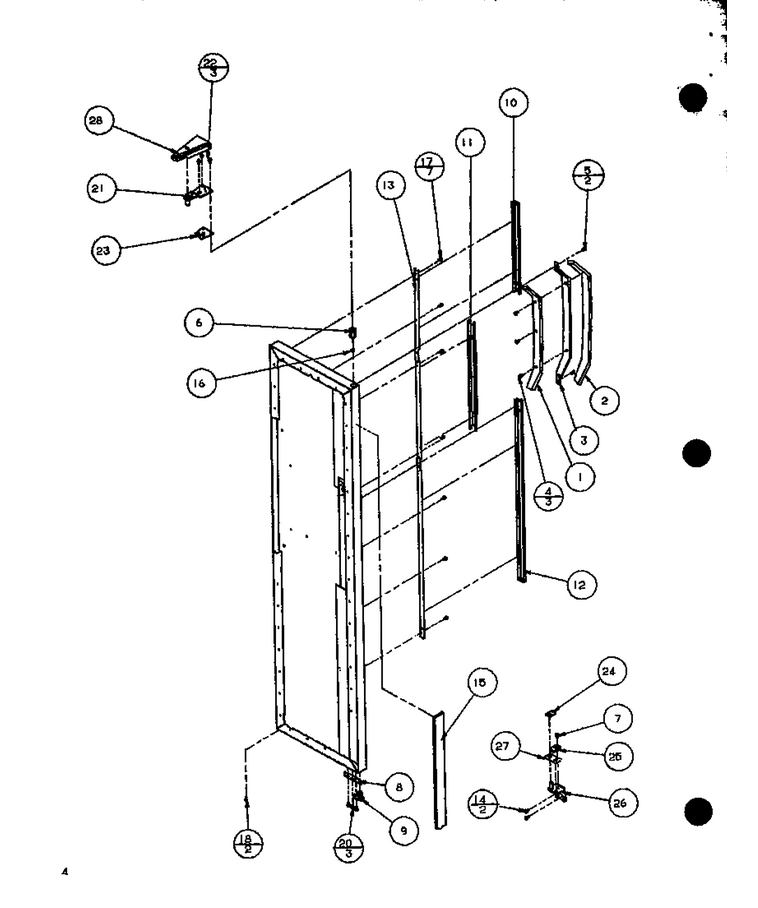

03 - Fz Door

...
...
1
Pad, Handle Inner (wht) WPL-D7863002
...
2
Pad, Handle Outer (wht) WPL-D7863102
...
3
Handle WPL-D7826603
...
4
Screw WPL-M0215116
...
5
Kit, Screw WPL-R9800670
...
6
Bushing, Door (wht) WPL-10263802
...
7
Screw WPL-WP489128
...
8
Stop, Door (blk) WPL-12636401B
...
9
Kit,dr Closure WPL-R0181181
...
10
Upper Trim Frz Dr (w) WPL-D7852103
...
11
Trim Center Frz WPL-D7853903
...
12
Trim, Lwr Frz Door (w) WPL-D7792703
...
13
Frz Trim, Retainer WPL-D7792902
...
14
Screw WPL-WP67006715
...
15
Trim, Door WPL-C8974102
...
16
Filter Bushing WPL-10252902
...
17
Screw WPL-M0213815
...
18
Screw WPL-WP489349
...
20
Screw WPL-WP98165
...
21
Top Hinge-E Ct WPL-12077313
...
22
Kit, Screw WPL-R9800670
...
23
Shim, Top Hinge WPL-B8389007
...
24
Shim, Door Closure WPL-B8387702
...
25
Kit,dr Closure WPL-R0181181
...
26
Bottom Hinge, Frz WPL-10163601
...
27
Kit,btm Hinge Shim WPL-B8386701
...
28
Cover Hinge WPL-D7872101

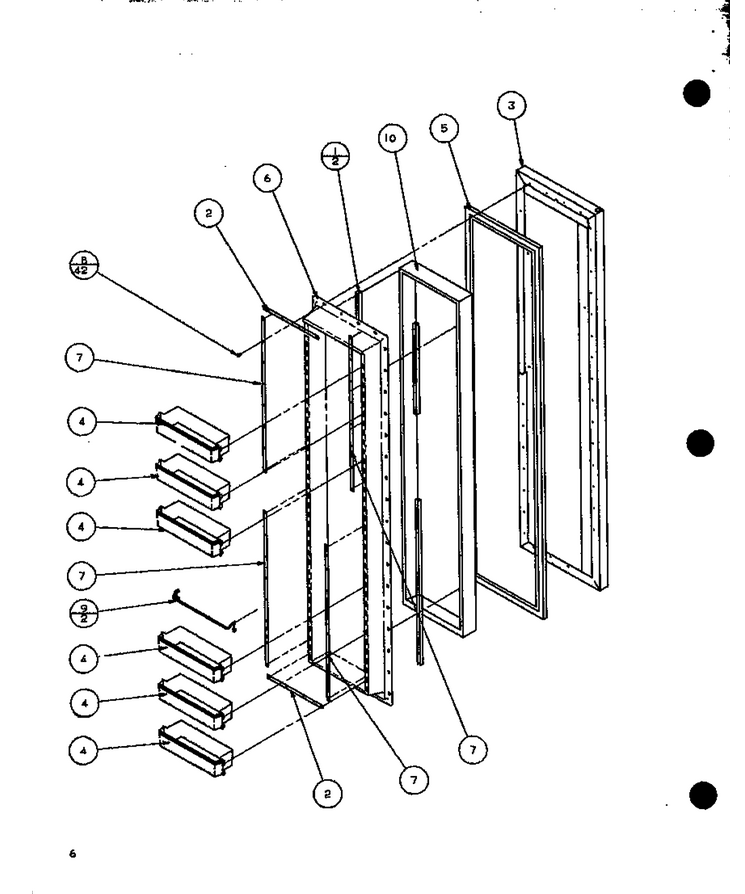

10 - Ref Door

...
...
2
Assy Rf Dr Fm WPL-10284102WQ
...
3
Module-Dairy WPL-D7781202
...
4
Door Dairy WPL-D7781315
...
5
Inner Door, Ref WPL-D7828203
...
6
Bucket- Do WPL-67003696
...
7
Shelf- Doo WPL-67003697
...
8
Container Sec. Ser. WPL-D7806403
...
9
Snugger, Door WPL-D7814607
...
10
Gasket-Dr WPL-WP10359708Q
...
11
Screw WPL-WPM0219730
...
12
Tray, Butter WPL-10310901
...
13
Assy,egg Bkt W/ Lid WPL-12460016
...
14
Cover, Egg Bucket WPL-D7805909
...
16
Seal, Door Dike WPL-C8987104
...
17
Insul. By The Ft. WPL-B0523562

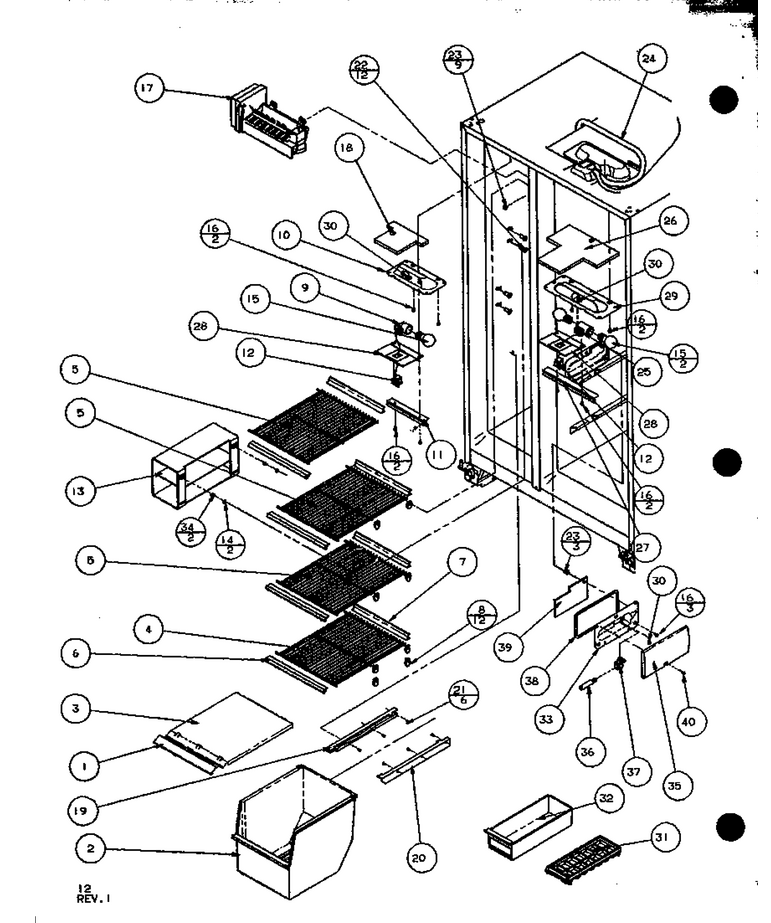

06 - Fz Shelving And Ref Light

...
...
1
Trim, Frz Shelf WPL-D7616620
...
2
Basket Fre WPL-D7781410
...
3
Freezer Shelf WPL-D7781504
...
4
Shelf Fz Wire WPL-D7788314
...
5
Shelf Freezer WPL-D7788316
...
6
Trim WPL-10049917
...
7
Trim, Rear Frz Shelf WPL-C8913607
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-C8973404
...
10
Housing, Light WPL-D7760104
...
11
Shield Light WPL-10014704
...
12
Switch WPL-W11384469
...
13
Rack, Ice WPL-D7620110
...
14
Washer WPL-M0270519
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
See Note Add-On Ice Maker Assembly WPL-Y00000000
...
18
Barrier WPL-C8976301
...
19
Glide, Container (left) WPL-67005375
...
20
Glide, Frz. (rt) WPL-67004323
...
21
Screw, Handle WPL-67006529
...
22
Plug, Frz Shelf Support WPL-C8973701
...
23
Grommet, Screw WPL-M0580007
...
24
Harness-Outer Liner WPL-10281301
...
25
Socket, Dual Lamp WPL-D7808602
...
26
Insulation WPL-C8778301
...
27
Shield, Light WPL-10014716
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716409
...
30
Clip, Ground WPL-B5733302
...
31
Tray WPL-WP841180A
...
32
Bin, Ice WPL-D7620024
...
33
Housing, Light WPL-10270203
...
34
Screw Shoulder WPL-M0238833
...
35
Cover-Light WPL-Y10270101
...
36
Bulb-Light WPL-WPA3073101
...
37
Socket-Light WPL-10281601
...
38
Gasket WPL-A3189337
...
39
Insulation WPL-10278001
...
40
Screw WPL-WP12990527

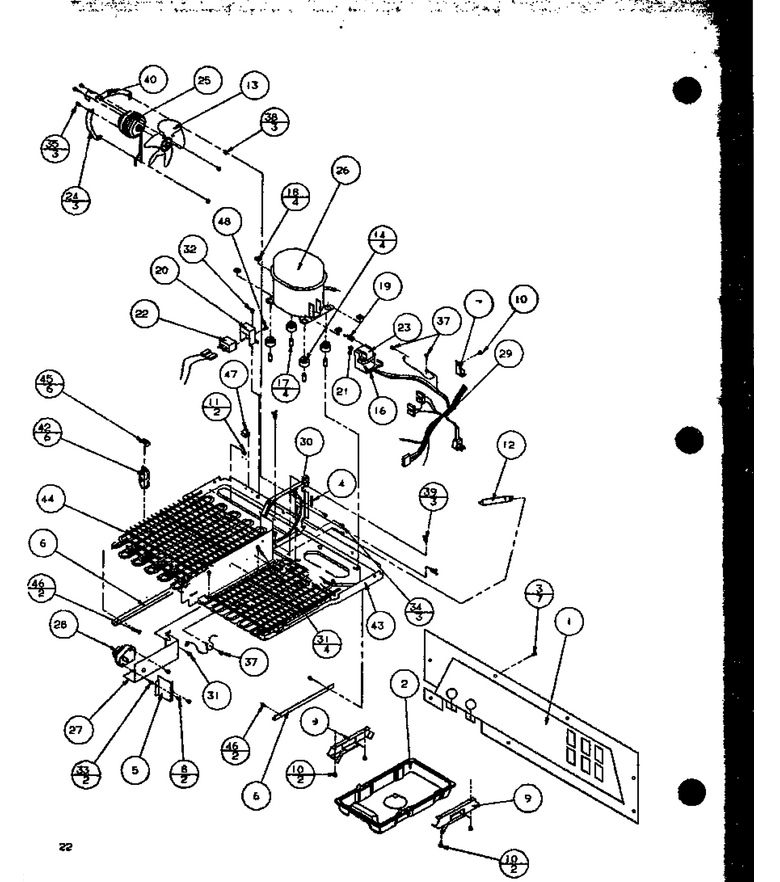

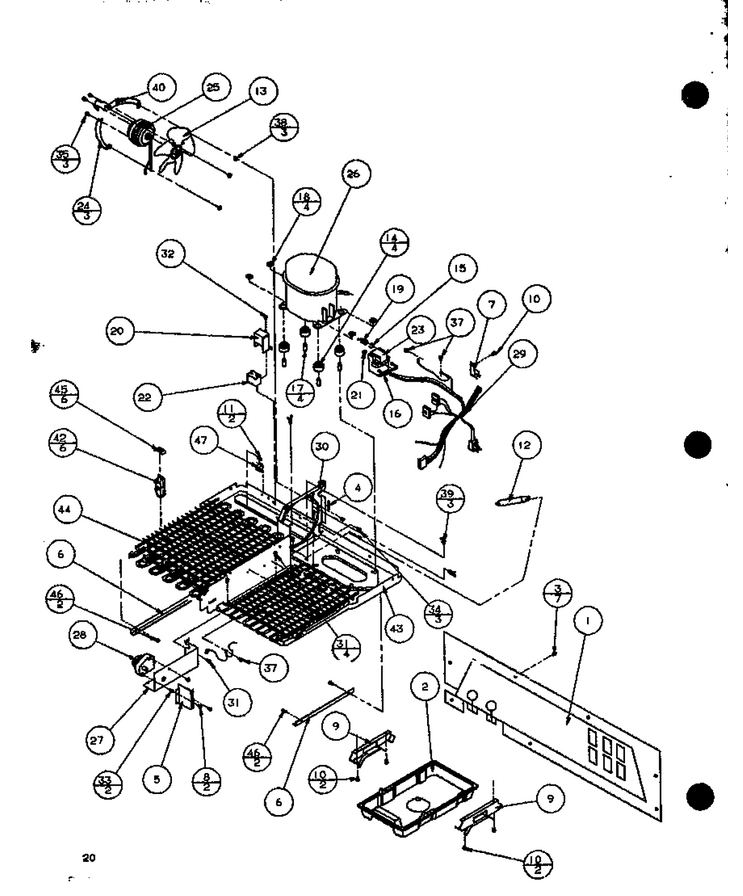

07 - Machine Compartment - Panasonic

...
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Bracket, Timer WPL-C8973502
...
6
Support M.c. WPL-D7835501
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Spring, Overload WPL-B8358301
...
16
Bale Strap WPL-YB8358601
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-10377005
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-C8931503
...
22
Capacitor WPL-WPW10662129
...
23
Term Cover WPL-C8960801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-C3667102H
...
27
Bracket, Timer WPL-D7844201
...
28
Timer-Def WPL-R0131577
...
29
Harness-M.c. WPL-10357001
...
30
Cond Fan Shroud WPL-D7844108
...
31
Screw WPL-WP12990527
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
42
Spacer Cond. WPL-B8346301
...
43
Pan, Base WPL-D7748610
...
44
Condenser Pntd WPL-D7824503
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530
...
47
Clip WPL-M0110508

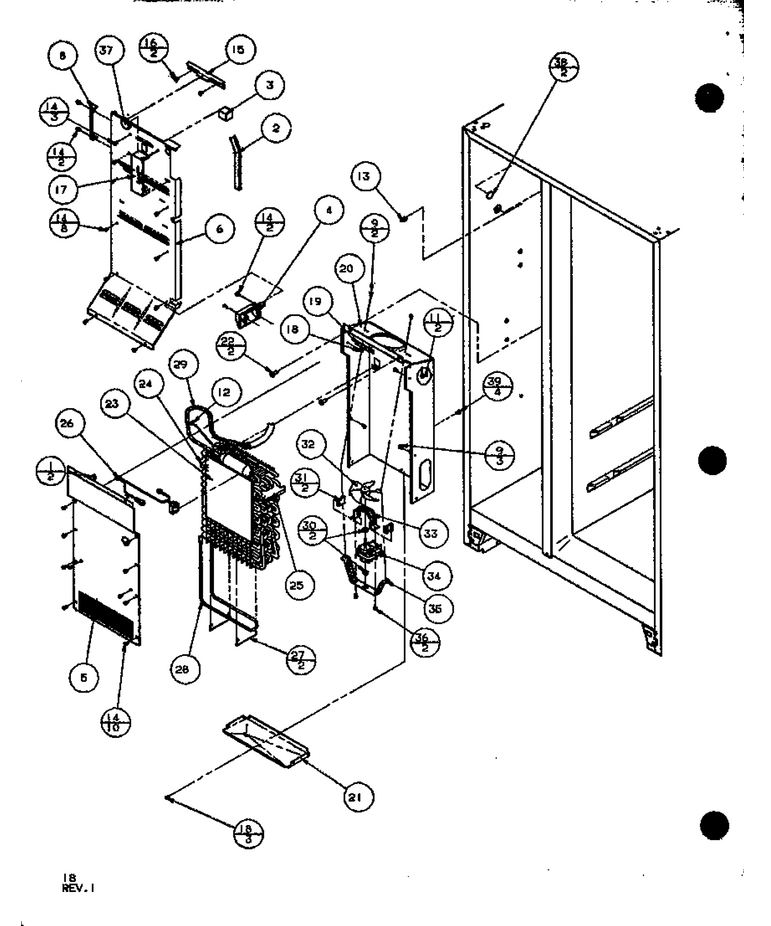

05 - Fz Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k. Air WPL-D7786902
...
5
Cover, Evaporator WPL-D7865907
...
6
Inner Fz Back Pnt WPL-D7821127
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP12990527
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
17
Cover, Fill Tube WPL-D7827402
...
18
Rivet WPL-10098801
...
19
Gasket, Foam WPL-B5757707
...
20
Evaporator Shield WPL-D7865804
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Grommet WPL-M0580003
...
23
Gasket, Evap. WPL-B8327901
...
24
Block-Lh Air Coil WPL-B8385502
...
25
Block P M Air Coil WPL-B8385601
...
26
Thermostat WPL-WPC8972006
...
27
Clip, Evap. Heater WPL-C8983101
...
28
Heater, Defrost WPL-D7872801
...
29
Assy,low Side-Thin Wall Evap WPL-R0170041
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Bracket, Motor Shroud WPL-D7767701
...
36
Screw WPL-WP12990527
...
37
Cap WPL-B5636301
...
38
Button- Pl WPL-WP67001130
...
39
Grommet A WPL-M0580002

08 - Machine Compartment - Tec Comp

...
...
NI
Spring K WPL-C8916701
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Bracket, Timer WPL-C8973502
...
6
Support M.c. WPL-D7835501
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
16
Strap K WPL-A3041801
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-C8866908
...
20
Shield, Capacitor WPL-10266402
...
21
Start-Dev WPL-WPW10189190
...
22
Capacitor WPL-WPW10662129
...
23
Cover K WPL-B0559501
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-C3667102H
...
27
Bracket, Timer WPL-D7844201
...
28
Timer-Def WPL-R0131577
...
29
Harness, Machine Compartment WPL-10357101
...
30
Cond Fan Shroud WPL-D7844108
...
31
Screw WPL-WP90767
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
42
Spacer Cond. WPL-B8346301
...
43
Pan, Base WPL-D7748610
...
44
Condenser Pntd WPL-D7824503
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530
...
47
Clip WPL-M0110508
...
48
Kit, Screw WPL-R9800670

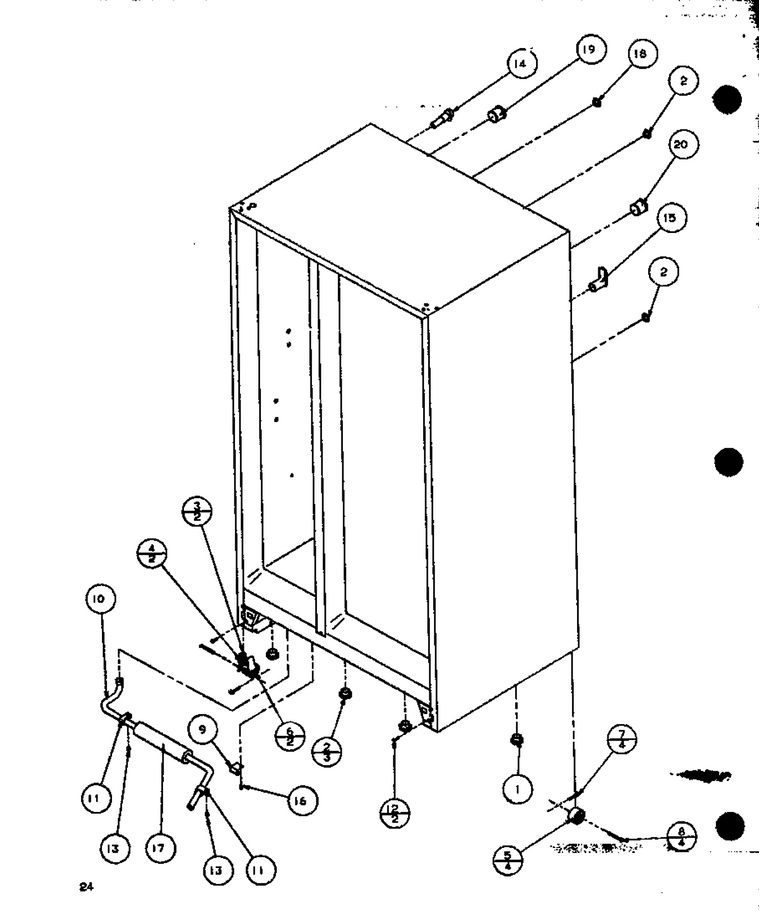

02 - Drain Rollers And Cabinet Back

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Bracket, Retainer WPL-C8985801
...
10
Drain Tube WPL-10393002
...
11
Clamp WPL-M0102303
...
12
Screw, Mach WPL-M0206313
...
13
Screw WPL-WP489069
...
14
Assy, Fill Tube WPL-12023401Q
...
15
Tunnel, Heat Ex. WPL-C8971902
...
16
Screw (3) WPL-67006425
...
17
Insulation, Tube WPL-10851302
...
18
Plug Button WPL-M0310319
...
19
Tunnel Wire WPL-10187601
...
20
Tunnel Wire WPL-10187501

04 - Fz Door

...
...
1
Seal, Door Dike WPL-C8987105
...
2
Retainer, Door Liner WPL-C8982801
...
3
Assy, Fz Dr Foam WPL-10300601WQ
...
4
Bucket Frz Door WPL-D7783707
...
5
Gasket W WPL-WP10359709Q
...
6
Inner Door Frz WPL-D7828403
...
7
Retainer, Door Liner WPL-D7828601
...
8
Screw WPL-WPM0219730
...
9
Retainer, Package WPL-10169402
...
10
Insul. By The Ft. WPL-B0523562

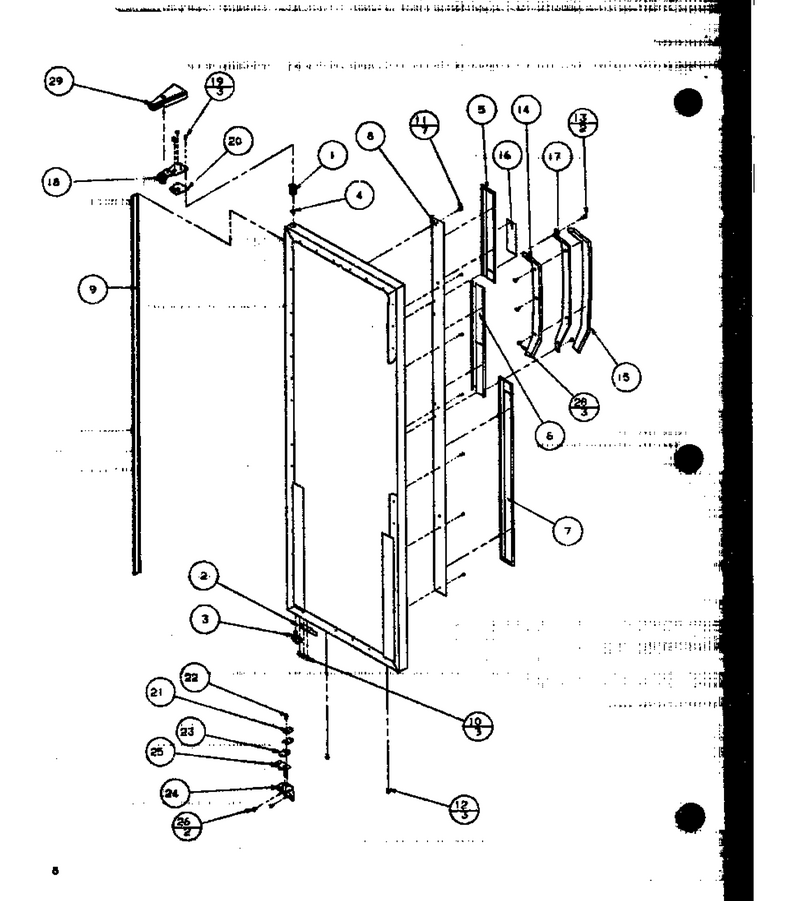

09 - Ref Door

...
...
1
Bushing, Door (wht) WPL-10263802
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
4
Filter Bushing WPL-10252902
...
5
Trim WPL-D7852008
...
6
Trim Center Ref WPL-D7853803
...
7
Trim Lwr Ref Door WPL-D7792803
...
8
Ref. Trim, Retainer WPL-D7793202
...
9
Trim, Door WPL-C8974102
...
10
Screw WPL-WP98165
...
11
Screw WPL-M0213815
...
12
Screw WPL-WP489349
...
13
Kit, Screw WPL-R9800670
...
14
Pad, Handle Inner (wht) WPL-D7863002
...
15
Pad, Handle Outer (wht) WPL-D7863102
...
16
Thinplate K WPL-C8984305
...
17
Handle WPL-D7826603
...
18
Top Hinge-E Ct WPL-12077313
...
19
Kit, Screw WPL-R9800670
...
20
Shim, Top Hinge WPL-B8389007
...
21
Shim, Door Closure WPL-B8387701
...
22
Screw WPL-WP489128
...
23
Kit,dr Closure WPL-R0181181
...
24
Rh Bot Hinge-Bk E Ct WPL-10496118
...
25
Kit,btm Hinge Shim WPL-B8386703
...
26
Screw WPL-WP67006715
...
28
Screw WPL-M0215116
...
29
Cover Hinge WPL-D7872101

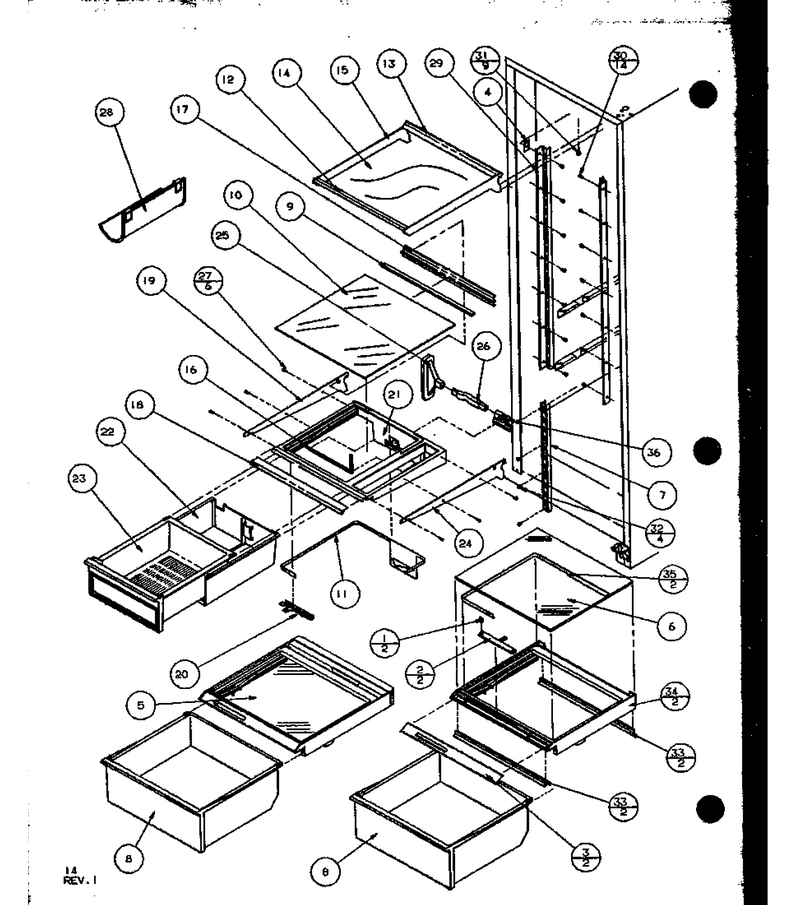

11 - Ref Shelving And Drawers

...
...
NI
Crisper Frame Assy-Glass WPL-R0179159
...
1
Knob, Crisper Control WPL-10038401
...
2
Slide, Crisper WPL-YD7860605
...
3
Trim, Crisper Front WPL-D7616654
...
4
Brkt, Cont Cover WPL-12414701
...
5
Glass Crisper Top WPL-D7421275
...
6
Glass Crisper Top WPL-D7421275
...
7
Ladder, Center WPL-D7599003
...
8
Pan Crisper WPL-D7782119
...
9
Ext. Rear Glass WPL-10043102
...
10
Glass Shelf M.k. WPL-10036028
...
11
Band M.k. Control WPL-D7859503
...
12
Trim, Front Shelf WPL-C8913513
...
13
Trim, Glass Shelf Rear WPL-C8913606
...
14
Glass Shelf WPL-10036025
...
15
Frame Cant. Door WPL-D7871018
...
16
Gasket WPL-A3030302
...
17
Trim-M.k., Top, Rear WPL-C8990404
...
18
Trim WPL-10049914
...
19
Blank Side Rail WPL-D7862924
...
20
Slide-Mk Control WPL-D7859401
...
21
Frame, M.k. WPL-D7857002
...
22
Sleeve M.k. WPL-D7698113
...
23
Pan-Meat WPL-D7698329
...
24
Blank Side Rail (silver) WPL-D7862925
...
25
Grommet, Mk WPL-D7873601
...
26
Xduct M.k. Air WPL-D7869001
...
27
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
28
Rack, Bottle WPL-D7547614
...
29
Ladder Cantilever WPL-D7789807
...
30
Screw WPL-WP90767
...
31
Grommet, Screw WPL-M0580007
...
32
Screw-Sm WPL-M0238636
...
33
Seal, Crisper Front WPL-D7718403
...
34
Frame Crisper WPL-D7853205
...
35
Band M.k. Control WPL-D7859604
...
36
Ext. Air Duct WPL-D7869102

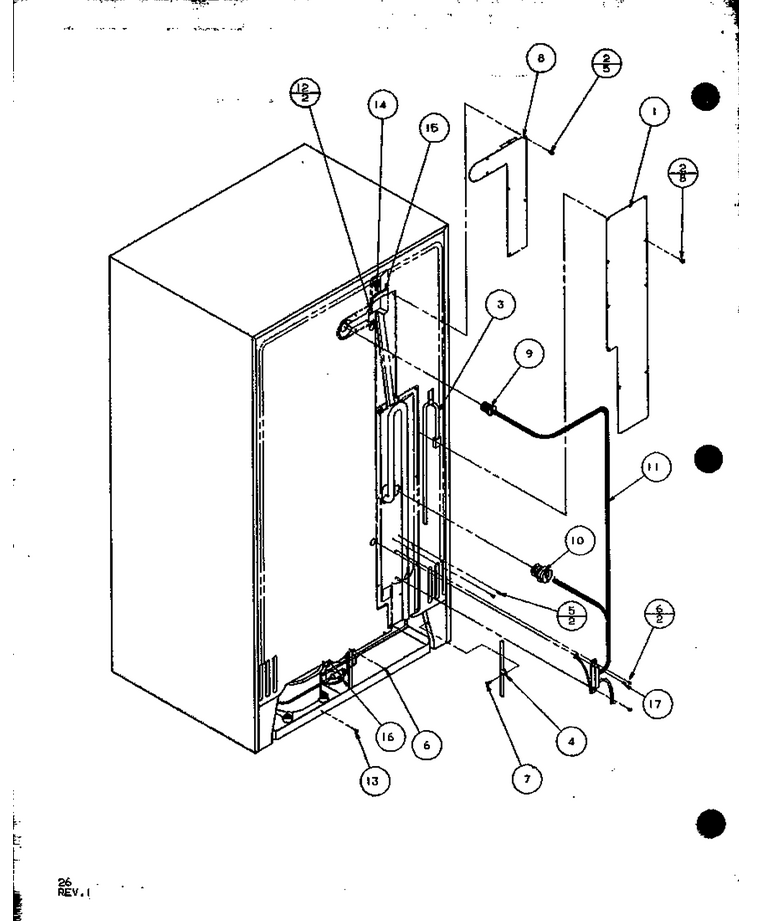

01 - Cabinet Back

...
...
1
Cover, O.c.back WPL-10178406
...
2
Screw WPL-WP489069
...
3
Cord-Power WPL-10916505
...
4
Clamp WPL-M0103901
...
5
Screw WPL-WP489399
...
6
Screw WPL-WP489069
...
7
Screw WPL-WP12990527
...
8
Wire Cover WPL-10178502
...
9
Grommet Wire WPL-10178801
...
10
Grommet Wire WPL-10178701
...
11
Harness, Cabinet WPL-10222901
...
12
Clip WPL-WPM0104106
...
13
Screw WPL-WP489474
...
14
Plug Button WPL-M0310319
...
15
Gasket (ft.) WPL-10839803
...
16
Clamp-Tube WPL-M0107701
...
17
Screw, Spextite WPL-M0232330
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
