Amana 330.000

Model: 330.000

Save Part Not Listed?
product name

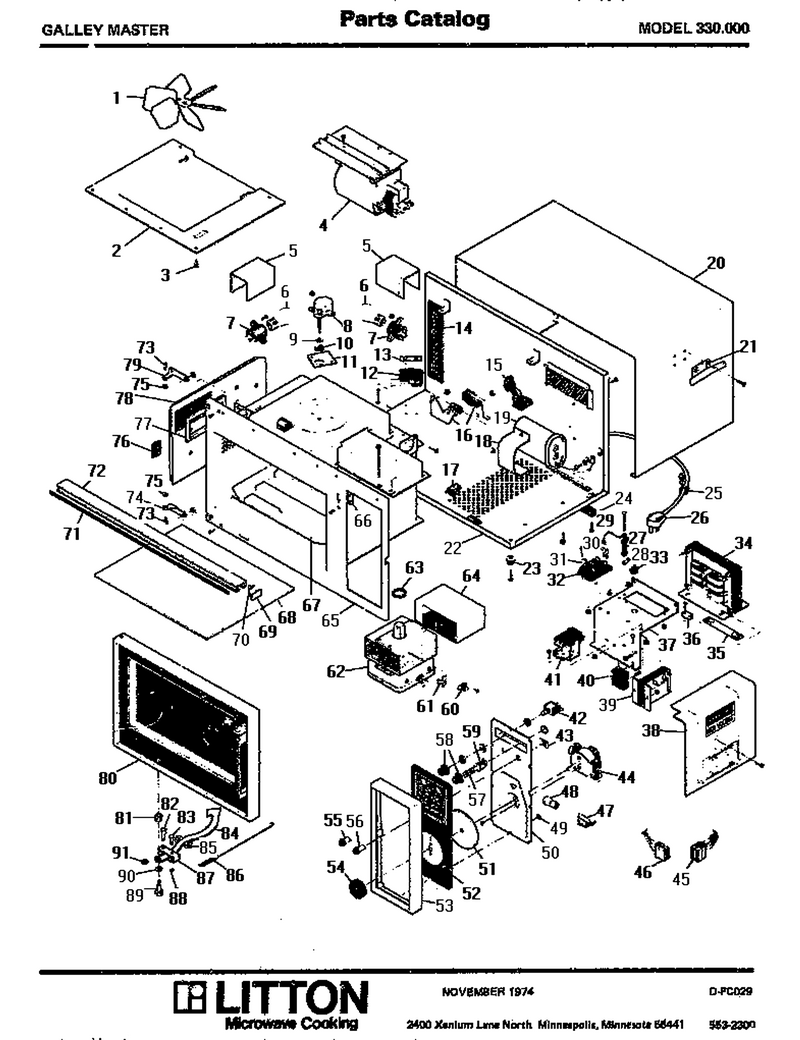

01 - Page 1

...
...
1
Set Screw Kit (1) WPL-M1D461
...
2
Stirrer Cover WPL-M45D1
...
3
.187 Dia Push Rivet/bag-25pcs WPL-M1D25
...
4
Tinnerman (25) WPL-M1D70
...
5
Not Available WPL-M7D1
...
6
Light Bulb WPL-8009
...
7
Screw WPL-WPW10068250
...
8
Nut, Motor Mtg. WPL-M1D3
...
9
Washer (25) WPL-M1D12
...
10
R.f. Gasket WPL-94072P01
...
11
Spacer WPL-M2D156
...
12
Screw, Switch Mtg. WPL-M1D37
...
13
Tinman Clip (10) WPL-M1D47
...
14
Not Available WPL-M25D6
...
15
Line Filter Assembly WPL-M10D4
...
16
Front Protective Switch Assemb WPL-M14D9
...
17
Harness Retainer WPL-M2D12
...
18
Not Available WPL-M52D2
...
19
Not Available WPL-M94D6
...
20
Not Available WPL-M80D3
...
21
Screw (25) WPL-M1D71
...
22
Not Available WPL-M79D1
...
23
Molded Foot(4per Pkg.) WPL-M2D4
...
24
Screw (25) WPL-M1D21
...
25
Strain Relief WPL-M2D10
...
26
No.8 Spring Lockwasher (25) WPL-M1D57
...
27
Screw (25) WPL-M1D50
...
28
Terminal (25) WPL-M1D49
...
29
Jumper Lead WPL-M5D8
...
30
Adapter WPL-M1D23
...
31
Jumper Lead WPL-M5D3
...
32
High Voltage Lead - 9 In. Leng WPL-M5D10
...
33
Snap Bushing K WPL-M2D1
...
34
Lock Washer (25) WPL-M1D74
...
35
Nut Plate (1) WPL-M1D67
...
36
Nut, Motor Mtg. WPL-M1D3
...
37
Screw WPL-M1D8
...
38
Not Available WPL-M94D15
...
39
High Voltage Lead, 5`` Length WPL-M5D9
...
40
Nut, Motor Mtg. WPL-M1D3
...
41
Nut WPL-M0282009
...
42
Switch, On/off WPL-M14D8
...
43
Tinnerman (25) WPL-M1D72
...
44
Adapter WPL-M1D23
...
45
Pin (25) WPL-M1D65
...
46
Connector Housing WPL-M5D7
...
47
Not Available WPL-M5D2
...
48
Light Bulb WPL-M9D2
...
49
Not Available WPL-M1D52
...
50
Not Available WPL-M7D18
...
51
Not Available WPL-M1D28
...
52
Not Available WPL-M7D19
...
53
Not Available Trim Tim WPL-M7D2
...
54
Knob Timer WPL-M6D10
...
55
Power Lite On WPL-M9D5
...
56
Cook Lite WPL-M9D4
...
57
Not Available WPL-M2D18
...
58
Button Push WPL-M6D11
...
59
Spacer WPL-M2D16
...
60
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
61
Adapter WPL-M1D23
...
62
Not Available WPL-M1D19
...
63
R F Gasket WPL-M2D15
...
64
Air Duct WPL-M65D3
...
65
Not Available WPL-M77D1
...
66
No.6 Flat Hd Machine Screw WPL-M1D60
...
67
Not Available WPL-M55D2
...
68
Shelf Pyro-Ceram Kit WPL-M50D1
...
69
Ia End Cover WPL-21887P01
...
70
T Bolt (25) WPL-M1D15
...
71
Not Available WPL-M7D9
...
72
Nut WPL-WP488130
...
73
Ia Hinge Pin WPL-M2D6
...
74
No.6 Flat Hd Machine Screw WPL-M1D60
...
75
Washer (25) WPL-M1D42
...
76
Retainer, Exhaust Duct WPL-M2D17
...
77
Gasket, Exhaust Duct WPL-M25D5
...
78
Not Available WPL-M65D2
...
79
No.6 Flat Hd Machine Screw WPL-M1D60
...
80
Door Assembly WPL-M68D4
...
81
Spacer WPL-M2D13
...
82
Not Available WPL-M1D41
...
83
Not Available WPL-M2D8
...
84
Ia Cam WPL-M8D1
...
85
Cam Roller WPL-M2D3
...
86
Not Available WPL-M2D5
...
87
Not Available WPL-M2D7
...
88
E Ring .188 Shaft WPL-M1D24
...
89
Not Available WPL-M1D43
...
90
Flat Washer (25) WPL-M1D644
...
91
Oilite Spacer (10) WPL-M1D54
