Amana 3094.A00

Model: 3094.A00

Save Part Not Listed?
product name

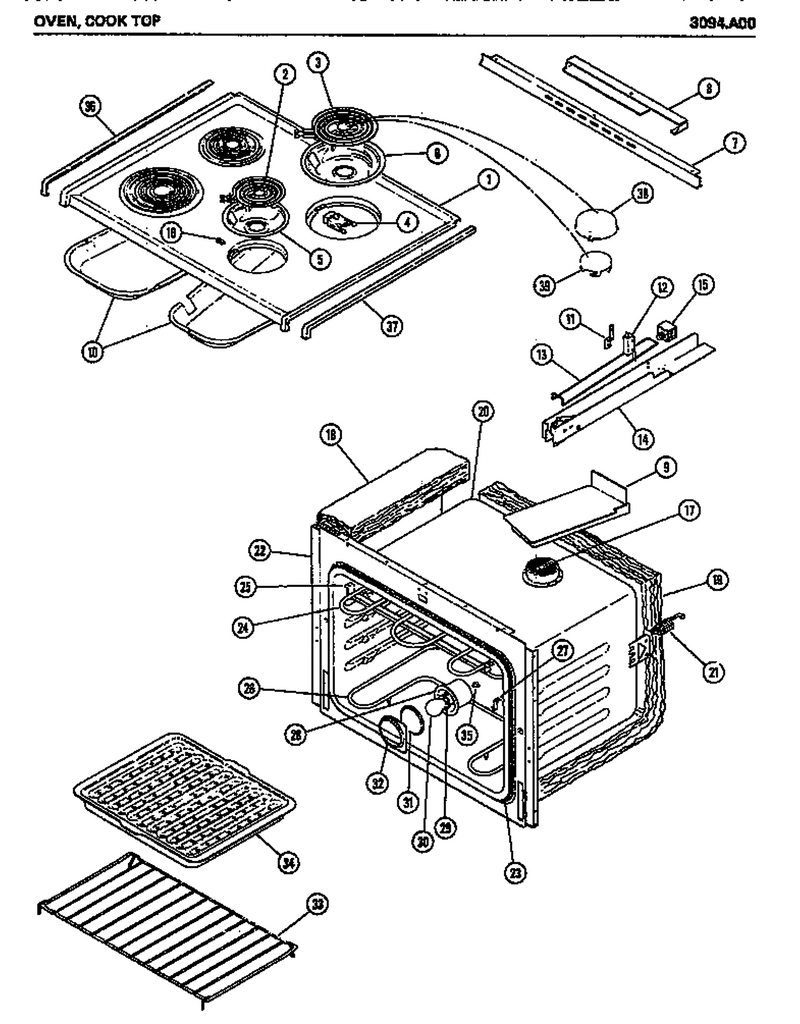

04 - Oven

...
...
1
Main Top, White WPL-M82D131
...
2
Surface Elem. 6`` 240 V. 1250 W WPL-Y0051573
...
3
Elmnt-Surf WPL-WP3191454
...
4
Receptacle WPL-330031
...
5
Burner Bow WPL-51294P01
...
6
Bowl-Drip WPL-WPW10196405
...
7
Screw WPL-WP90767
...
8
Screw WPL-WP90767
...
9
Vent-Horiz WPL-M65D188
...
10
Not Available WPL-M44D16
...
11
Bracket WPL-M2D391
...
12
Screw (25) WPL-M1D806
...
13
Linkage-Lock WPL-M20D133
...
14
Washer Cup WPL-M1D531
...
15
Screw (25) WPL-M1D791
...
16
Screw (25) WPL-M1D591
...
17
Screw, Frame Mounting WPL-M1D802
...
18
Not Available WPL-M63D24
...
19
Not Available WPL-M63D24
...
20
Net-Kit,oven Cavity WPL-M77D87
...
21
Oven Spring WPL-M5D114
...
22
Washer Cup WPL-M1D531
...
23
Gasket, Oven Cavity WPL-M25D40
...
24
Screw, Frame Mounting WPL-M1D802
...
25
Screw, Frame Mounting WPL-M1D802
...
26
Screw, Frame Mounting WPL-M1D802
...
27
Screw, Frame Mounting WPL-M1D802
...
28
Housing M20d69 WPL-51012P01
...
29
Socket Oven WPL-M5D113
...
30
Light Bulb WPL-8009
...
31
Lens, Oven Light WPL-M6D93
...
32
Screw, Frame Mounting WPL-M1D802
...
33
Wire Rack WPL-M67D9
...
34
Procelain Broiler (pan And Grid) WPL-4396923
...
35
Plug Btn Kit WPL-M1D695
...
36
Trim-Coil WPL-M75D53
...
37
Not Available WPL-M75D52
...
38
Insert WPL-M2D267
...
39
Hi Temp Term Kit WPL-M5D352

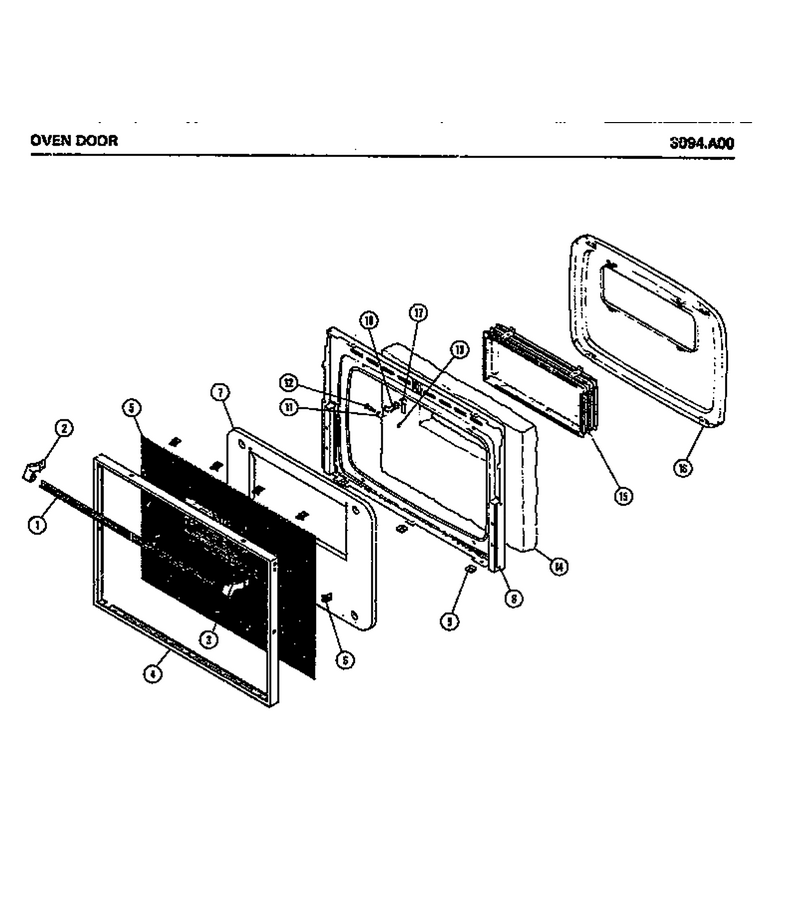

05 - Oven Door

...
...
1
Handle, Oven Door WPL-M49D4
...
2
Screw (25) WPL-M1D541
...
3
Screw (25) WPL-M1D541
...
4
Screw (25) WPL-M1D540
...
5
Glass Outer Door Kit WPL-M51D16
...
6
Clip (1) WPL-M1D512
...
7
Heat Shield Kit WPL-M72D21
...
8
Door Frame Asy WPL-M72D35
...
9
U-Nut (25) WPL-M1D516
...
10
Latch WPL-M2D246
...
11
Spring WPL-M2D288
...
12
Pin WPL-M2D248
...
13
C Clip (25) WPL-M1D517
...
14
Not Available WPL-M63D24
...
15
Inner Window Assembly WPL-M51D22
...
16
Screw WPL-WP90767
...
17
Leaf Spring WPL-M2D542

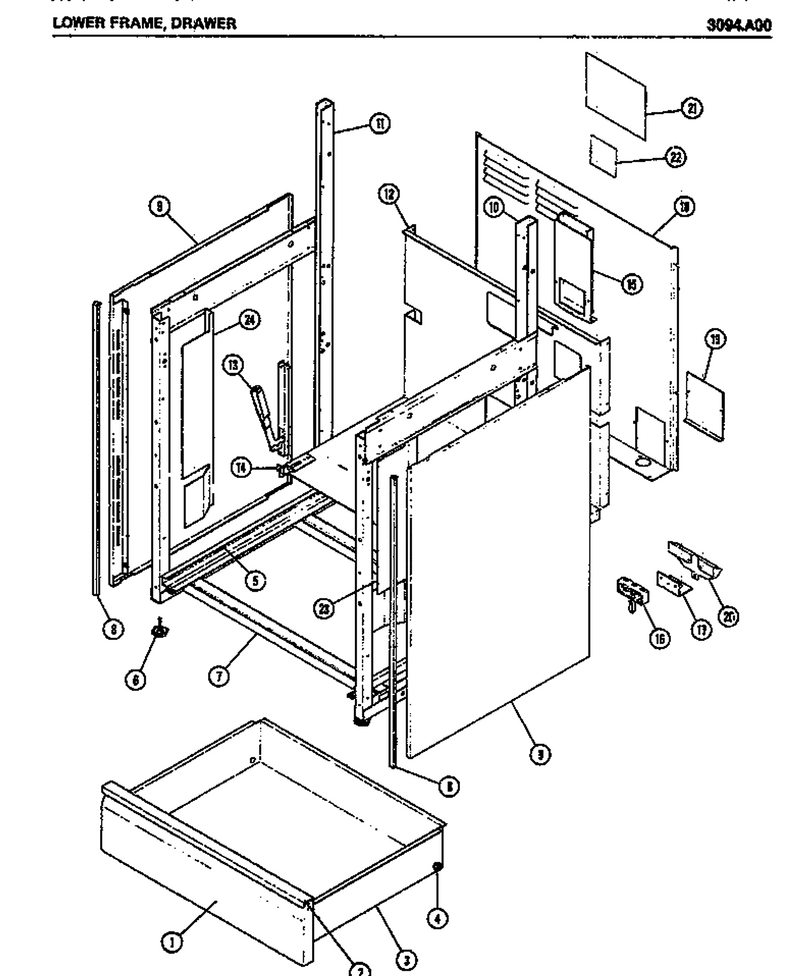

02 - Lower Frame

...
...
1
Screw WPL-WPW10348409
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Retainer (25) WPL-M1D511
...
5
Drawer-Rail WPL-50106A01
...
6
Leveling Foot WPL-M8D117
...
7
Screw WPL-WP90767
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP90767
...
10
Frame Assembly, Right WPL-M83D9
...
11
Frame Assembly, Left WPL-M83D10
...
12
Not Available WPL-M82D136
...
13
Screw (25) WPL-M1D280
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Terminal WPL-M4D45
...
17
Screw WPL-WP90767
...
18
Screw WPL-WP90767
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Insulator Broil WPL-M5D220
...
22
Rivet, Pop WPL-A4539629
...
23
S-Clip (25) WPL-M1D790
...
24
S-Clip (25) WPL-M1D790

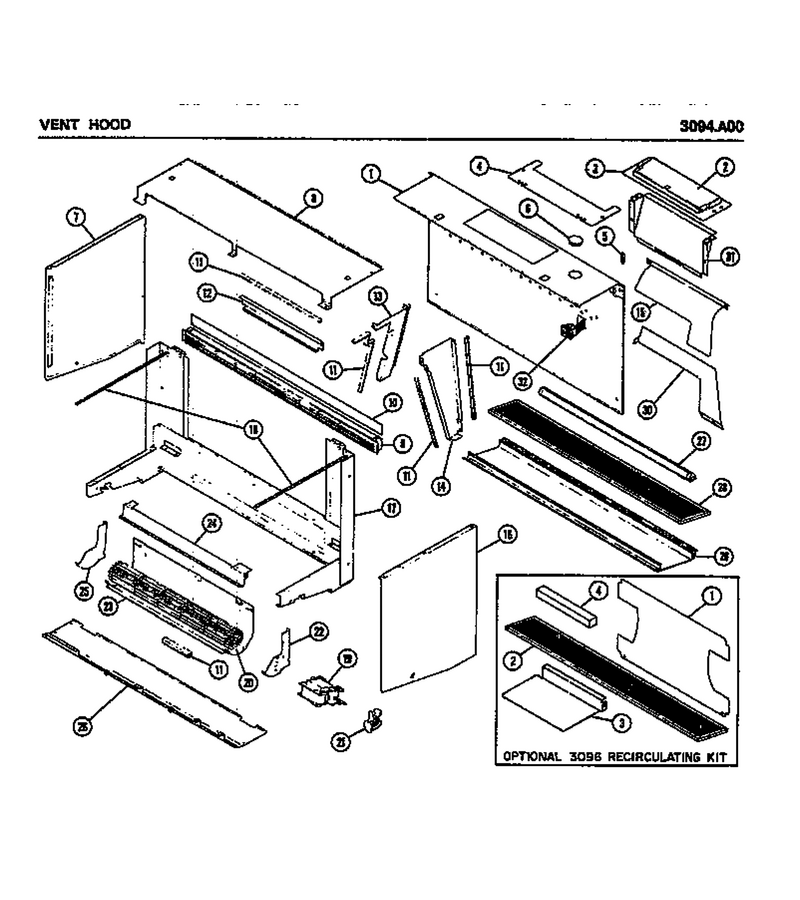

03 - Optional 3096 Recirculating Kit

...
...
1
Nut, Locking WPL-M1D859
...
2
Shutter WPL-M20D242
...
3
Damper Frame Kit WPL-M20D367
...
4
Insul. Retainer WPL-M52D206
...
5
1/4 Turn Recept. WPL-M2D650
...
6
Hole Plug WPL-M2D681
...
7
Not Available WPL-M82D197
...
8
Not Available WPL-M82D189
...
9
Grille WPL-M65D297
...
10
Filter, Air 15 X 24 X 1/4 WPL-R0139413
...
11
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
12
Exh Baffle Cover Kit WPL-M20D245
...
13
Exh Baffle Left WPL-M20D243
...
14
Exh Baffle Right Kit WPL-M20D244
...
15
Screw WPL-WP90767
...
16
Not Available WPL-M82D191
...
17
Not Available WPL-M80D112
...
18
1/4 Turn Clip WPL-M2D649
...
19
Grommet WPL-M2D515
...
20
Blower Wheel WPL-M35D33
...
21
Fan Blade WPL-M35D34
...
22
End-Cap Blwr WPL-42174P01
...
23
Scroll Housing WPL-M65D295
...
24
Screw WPL-WP90767
...
25
End Cap - Left WPL-M20D238
...
26
Cushion-Flr WPL-M2D656
...
27
Light Bulb WPL-Y0064116
...
28
Filter WPL-42149P01
...
29
Clip, Lens Mounting WPL-M2D646
...
30
Deflector, Air WPL-M65D313
...
31
Screw WPL-WP90767
...
32
Plug Receptacle Kit WPL-M5D368

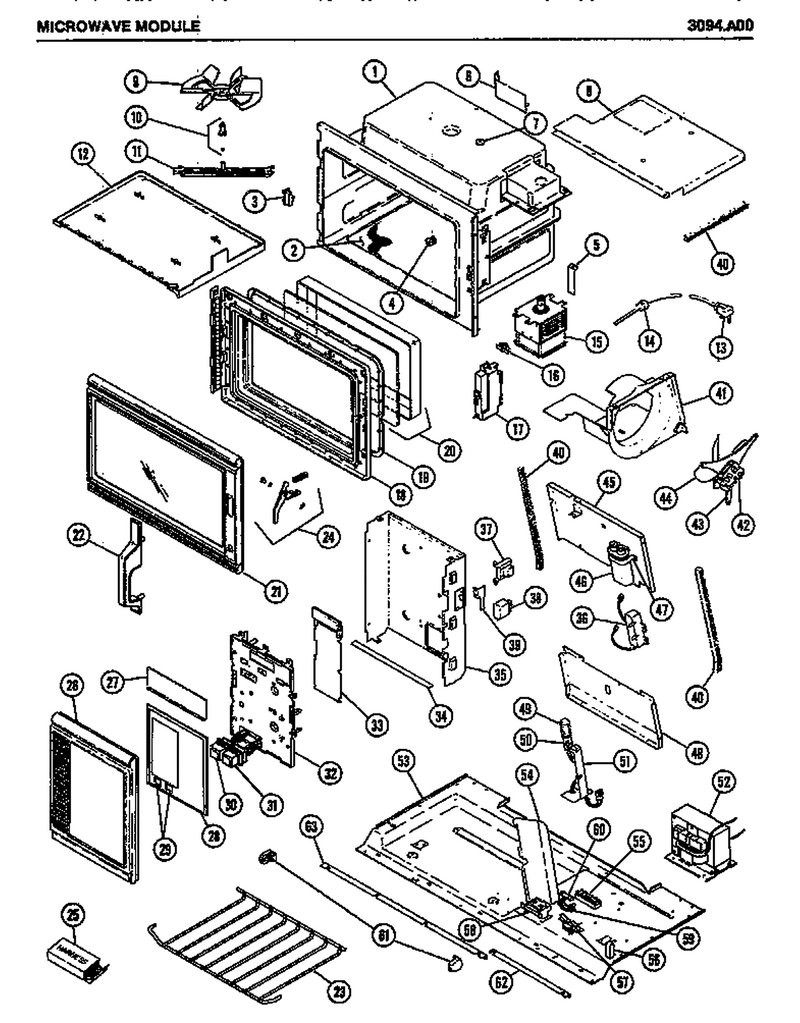

06 - Page 1

...
...
1
Trim Strip Kit WPL-M7D701
...
2
Shelf W/sealant Kit WPL-M50D42
...
3
Washer (25) WPL-M1D914
...
4
Support Rack WPL-B8371001
...
5
Rivet, Pop WPL-A4539629
...
6
Baffle Waveguide WPL-M8D281
...
7
Cavity Plug (10) WPL-M1D755
...
8
Retainer Clip, Duct Mounting WPL-M2D645
...
9
Stirrer Blade Kit WPL-M35D44
...
10
Insert Stirrer Kit WPL-M2D571
...
11
Support-Stir WPL-M20D236
...
12
Stirrer Co WPL-3010007901
...
13
Cord, Power (300) WPL-1732000101
...
14
Strain Relief WPL-8536977
...
15
Gasket-Rf WPL-M2D296
...
16
Screw Thrm WPL-M1D666
...
17
U-Clip WPL-M2D575
...
18
Inner Door-Brown WPL-M70D127
...
19
Gasket-R.f. WPL-38874P01
...
20
Cap Inner Door Assy Kit WPL-M55D23
...
21
No.8 Ab X 3/8`` Screw WPL-M1D900
...
22
Handle Asy WPL-M11D79
...
23
Wire Rack WPL-42110P01
...
24
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
25
Wire Pkg Assy WPL-M27D370
...
26
Cont Panel Frame Kit WPL-M7D665
...
27
Display Window WPL-M2D720
...
28
Mem Swi Asy 8094.004 WPL-M7D782
...
29
Bezel Button WPL-M2D641
...
30
Switch-Fan Pushbutton WPL-M14D262
...
31
Switch, Light WPL-M14D264
...
32
Component Holder WPL-M7D664
...
33
Net-Assy,ckt Bd(rework-$25 Dep WPL-M32R47
...
34
Not Available WPL-M8D279
...
35
Screw WPL-WP90767
...
36
Screw WPL-WP90767
...
37
Screw WPL-WP90767
...
38
Screw WPL-WP90767
...
39
Screw WPL-WP90767
...
40
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
41
Duct Assembly, Magnetron WPL-M65D294
...
42
Nut K WPL-M0282005
...
43
Blower Brkt Mtg WPL-M20D235
...
44
Fan Blade WPL-M35D15
...
45
Screw WPL-WP90767
...
46
Capacitor Kit WPL-M10D113
...
47
Capacitor Brkt WPL-M20D60
...
48
Screw WPL-WP90767
...
49
M9d107 Lamp WPL-2031415101
...
50
Lamp Socket-Uas-S/s-2041112201 WPL-M5D361
...
51
Slide-Lamp WPL-M8D282
...
52
Hv Trans Mod Kit WPL-M60D112
...
53
Screw WPL-WP90767
...
54
Rivet, Pop WPL-A4539629
...
55
Terminal Block WPL-M5D277
...
56
Lock Washer WPL-M0272803
...
57
Screw WPL-WP90767
...
58
Screw WPL-WP90767
...
59
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
60
Fuse 20 A WPL-WPM0805101
...
61
Fluorescent Lamp Holder WPL-M5D311
...
62
No Longer Available WPL-M8D284
...
63
Instl Instr WPL-M94D463

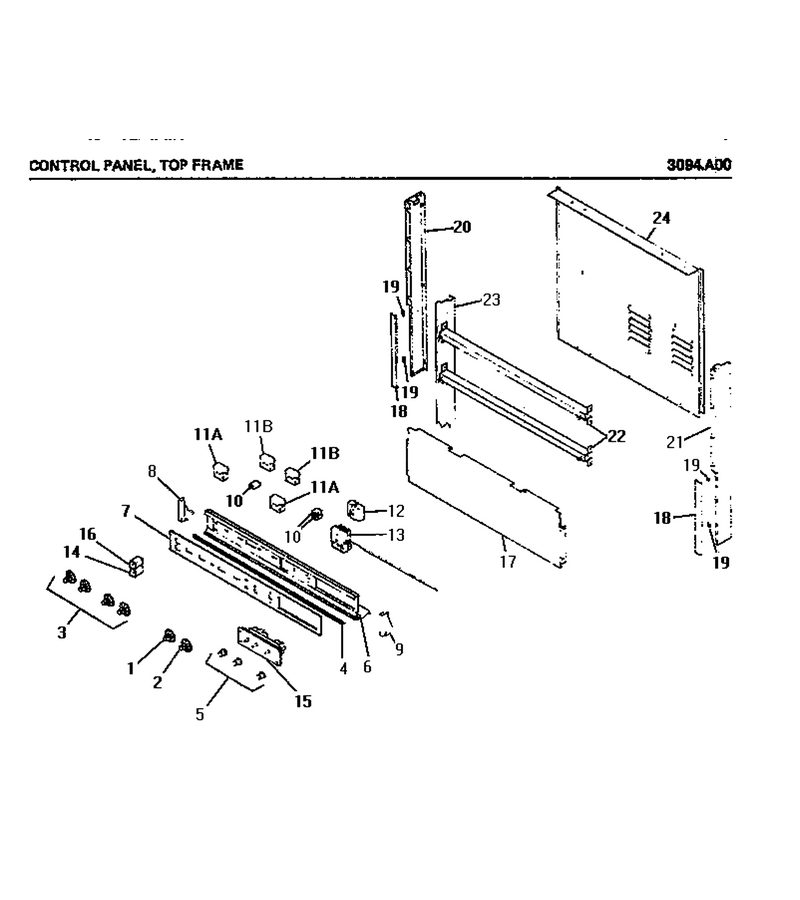

01 - Control Panel

...
...
1
Control Knob Kit WPL-M6D253
...
2
Knob, Thermostat WPL-M6D292
...
3
Knob, Surface WPL-M6D254
...
4
Nomen Strip WPL-M52D193
...
5
Knob, Clock Timer WPL-M6D257
...
6
Screw WPL-WPW10348409
...
7
Decorative Insert WPL-M52D194
...
8
End Cap WPL-M7D382
...
9
Screw (25) WPL-M1D541
...
10
Indicator Light WPL-M9D86
...
11
Switch- In WPL-R0702564
...
12
Screw 8-32 (25) WPL-M1D536
...
13
Kit, Thermostat WPL-M18D25
...
14
Switch Door WPL-M14D248
...
15
Timer-Rang WPL-39790P01
...
16
Switch Oven Lite WPL-M14D249
...
17
Not Available WPL-M82D198
...
18
Trim, Middle Side Panel WPL-M7D753
...
19
Clip (10) WPL-51169P01
...
20
Not Available WPL-M53D60
...
21
Filler Pnl Rt, Wht WPL-M53D61
...
22
Screw WPL-WP90767
...
23
Screw WPL-WP90767
...
24
Screw WPL-WP90767
