Amana 3090.000

Model: 3090.000

Save Part Not Listed?
product name

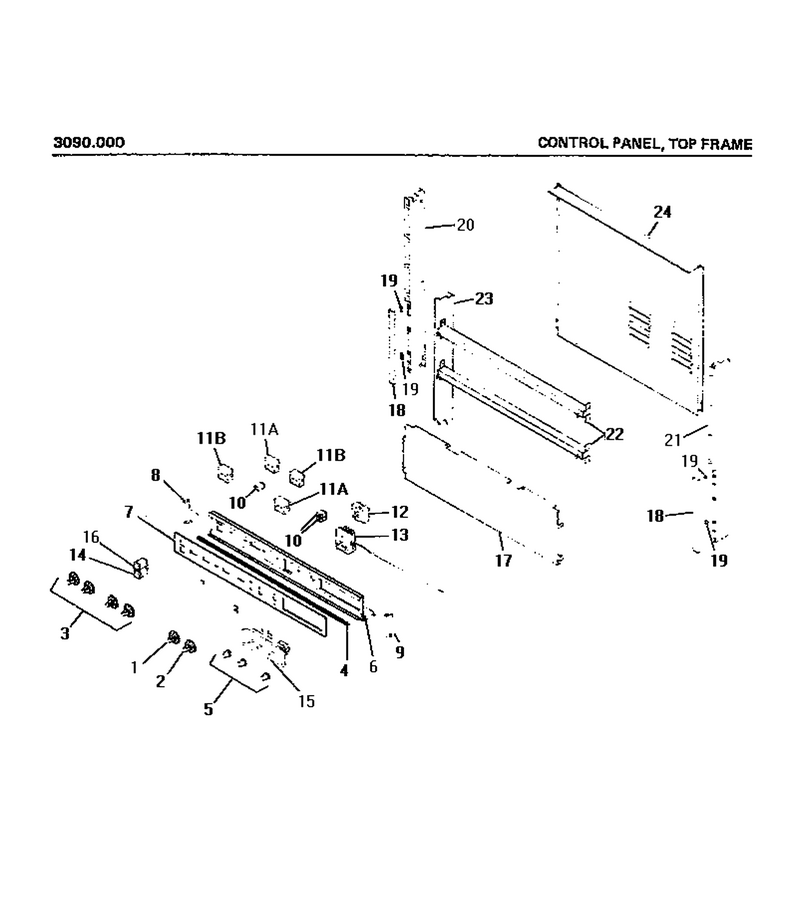

01 - Control Panel

...
...
1
Control Knob Kit WPL-M6D253
...
2
Knob, Thermostat WPL-M6D292
...
3
Knob, Surface WPL-M6D254
...
4
Nomen Strip WPL-M52D193
...
5
Knob, Clock Timer WPL-M6D257
...
6
Extrusion WPL-M52D195
...
7
Decorative Insert WPL-M52D194
...
8
Screw (25) WPL-M1D541
...
9
Screw (25) WPL-M1D541
...
10
Indicator Light WPL-M9D86
...
11
Switch- In WPL-R0702564
...
12
Switch- Se WPL-53268P01
...
13
Kit, Thermostat WPL-M18D25
...
14
Switch Door WPL-M14D248
...
15
Timer-Rang WPL-39790P01
...
16
Switch Oven Lite WPL-M14D249
...
17
Not Available WPL-M82D198
...
18
Trim, Middle Side Panel WPL-M7D753
...
19
Clip (10) WPL-51169P01
...
20
Filler Pnl Lt Wh WPL-M53D59
...
21
Filler Pnl Rt, Wht WPL-M53D61
...
22
Nut, Locking WPL-M1D859
...
23
Not Available WPL-M52D221
...
24
Not Available WPL-M82D157

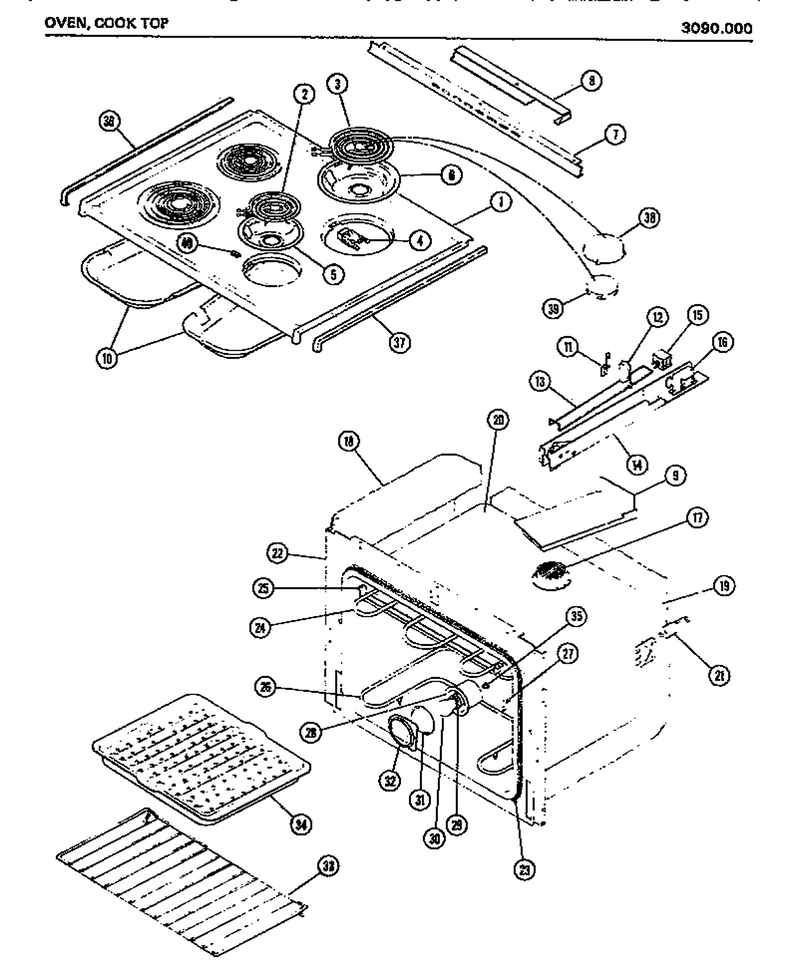

03 - Oven

...
...
NI
Screw WPL-WP90767
...
1
Main Top, White WPL-M82D131
...
2
Surface Elem. 6`` 240 V. 1250 W WPL-Y0051573
...
3
Elmnt-Surf WPL-WP3191454
...
4
Receptacle WPL-330031
...
5
Burner Bow WPL-51294P01
...
6
Bowl-Drip WPL-WPW10196405
...
7
Screw WPL-WP90767
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP90767
...
10
Not Available WPL-M44D16
...
11
Screw (25) WPL-M1D807
...
12
Screw (25) WPL-M1D806
...
13
Linkage-Lock WPL-M20D133
...
14
Washer Cup WPL-M1D531
...
15
Screw (25) WPL-M1D791
...
16
Screw (25) WPL-M1D591
...
17
Screw, Frame Mounting WPL-M1D802
...
18
Not Available WPL-M63D24
...
19
Not Available WPL-M63D24
...
20
Net-Kit,oven Cavity WPL-M77D87
...
21
Oven Spring WPL-M5D114
...
22
Screw (25) WPL-M1D280
...
23
Gasket, Oven Cavity WPL-M25D40
...
24
Screw, Frame Mounting WPL-M1D802
...
25
Screw, Frame Mounting WPL-M1D802
...
26
Screw, Frame Mounting WPL-M1D802
...
27
Screw, Frame Mounting WPL-M1D802
...
28
Housing M20d69 WPL-51012P01
...
29
Socket Oven WPL-M5D113
...
30
Light Bulb WPL-8009
...
31
Lens, Oven Light WPL-M6D93
...
32
Screw, Frame Mounting WPL-M1D802
...
33
Wire Rack WPL-M67D9
...
34
Procelain Broiler (pan And Grid) WPL-4396923
...
35
Plug Btn Kit WPL-M1D695
...
36
Trim-Coil WPL-M75D53
...
37
Not Available WPL-M75D52
...
38
Insert WPL-M2D267
...
39
Medallion Blk WPL-M2D321
...
40
Clip Cooktop (10) WPL-M1D794

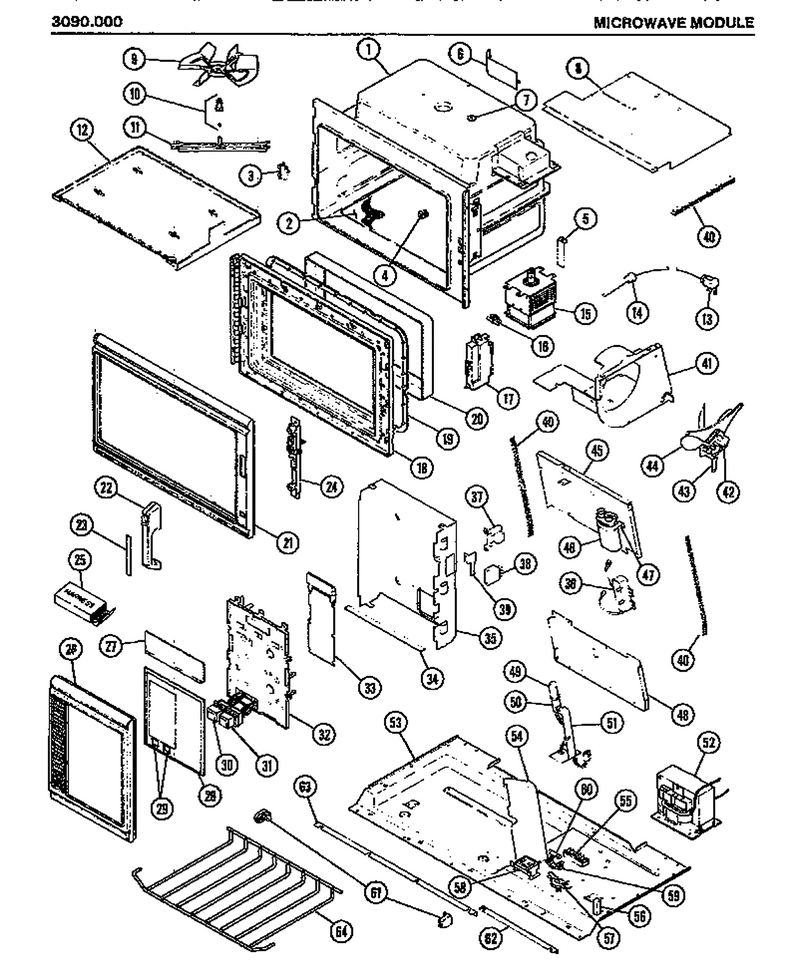

05 - Page 1

...
...
1
Rivet, Pop WPL-A4539629
...
2
Adhesive WPL-W10841140
...
3
Fuse- Ther WPL-59001951
...
4
Support Rack WPL-B8371001
...
5
Rivet, Pop WPL-A4539629
...
6
Baffle Waveguide WPL-M8D281
...
7
Cavity Plug (10) WPL-M1D755
...
8
Comp Cover Top WPL-M52D212
...
9
Stirrer Blade Kit WPL-M35D44
...
10
Insert Stirrer Kit WPL-M2D571
...
11
Support-Stir WPL-M20D236
...
12
Stirrer Co WPL-3010007901
...
13
Flat Washer (1) WPL-M1D56
...
14
Strain Relief WPL-8536977
...
15
Gasket-Rf WPL-M2D296
...
16
Therm Prot WPL-M4D104
...
17
Screw WPL-WPW10001160
...
18
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
19
Gasket-R.f. WPL-38874P01
...
20
Cap Inner Door Assy Kit WPL-M55D17
...
21
Outer Door (gen) Kit WPL-M70D97
...
22
Door Handle Kit WPL-M11D61
...
23
Insert Kit WPL-M7D588
...
24
Bkg Plate Assy. WPL-M20D218
...
25
Harness Pkg WPL-M27D335
...
26
Screw WPL-M0215116
...
27
Window-Dspl WPL-M2D644
...
28
Membrane Touch Panel WPL-M7D669
...
29
Bezel Button WPL-M2D641
...
30
Switch-Fan Pushbutton WPL-M14D262
...
31
Switch, Light WPL-M14D264
...
32
Ia Clip WPL-43274P01
...
33
Screw (25) WPL-M1D590
...
34
Not Available WPL-M8D279
...
35
Bushing WPL-M2D639
...
36
H.v. Relay WPL-M16D103
...
37
Kit, Lv Transformer WPL-M60D118
...
38
Screw WPL-WP90767
...
39
Screw WPL-WP90767
...
40
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
41
Retainer Clip, Duct Mounting WPL-M2D645
...
42
Motor Blower WPL-M12D86
...
43
Blower Brkt Mtg WPL-M20D235
...
44
Fan Blade WPL-M35D15
...
45
Cover, Rear Top WPL-M52D214
...
46
Capacitor, Hv (m10d99) WPL-M10D99
...
47
Capacitor Brkt WPL-M20D60
...
48
Screw WPL-WP90767
...
49
M9d107 Lamp WPL-2031415101
...
50
Rivet, Pop WPL-A4539629
...
51
Screw WPL-WP90767
...
52
No.10 T X 3/8`` Screw WPL-M1D479
...
53
Screw WPL-WP90767
...
54
Rivet, Pop WPL-A4539629
...
55
Screw WPL-WP90767
...
56
Kit, Diode WPL-M3D71
...
57
Screw WPL-WP90767
...
58
Screw WPL-WP90767
...
59
Ia Screw WPL-M1D329
...
60
Fuse 20 A WPL-WPM0805101
...
61
Fluorescent Lamp Holder WPL-M5D311
...
62
Screw WPL-WP90767
...
63
Screw WPL-WP90767
...
64
Wire Rack WPL-42110P01

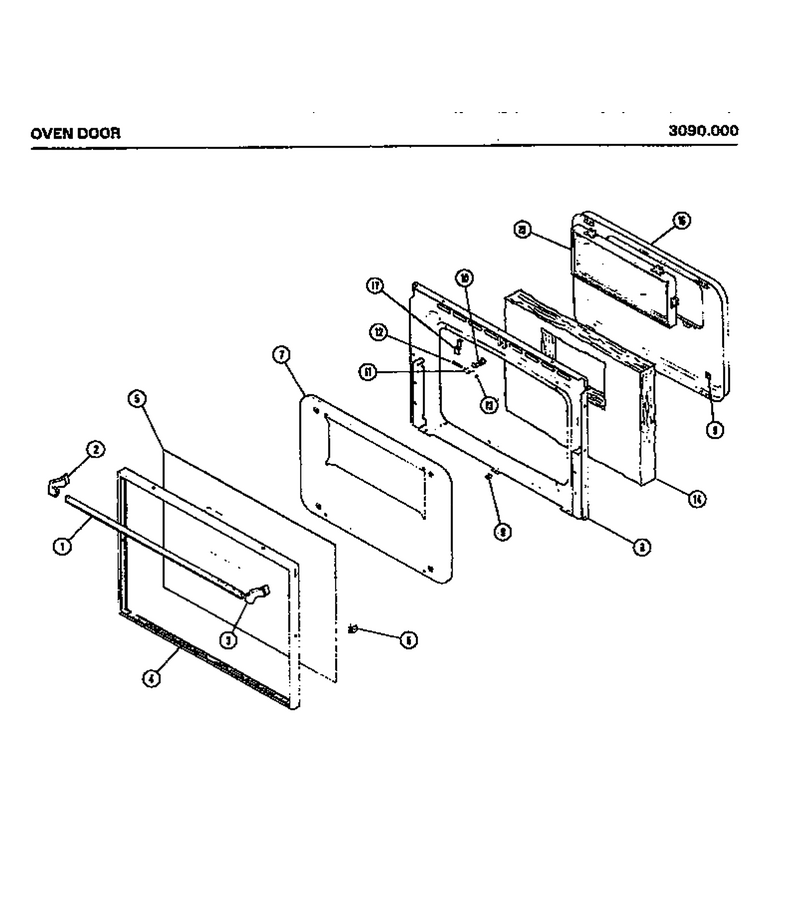

04 - Oven Door

...
...
1
Handle, Oven Door WPL-M49D4
...
2
Screw (25) WPL-M1D541
...
3
Screw (25) WPL-M1D541
...
4
Frame, Door Glass WPL-M75D20
...
5
Glass Outer Door Kit WPL-M51D16
...
6
Clip (1) WPL-M1D512
...
7
Heat Shield Kit WPL-M72D21
...
8
Door Frame Asy WPL-M72D35
...
9
U-Nut (25) WPL-M1D516
...
10
Latch WPL-M2D246
...
11
Spring WPL-M2D288
...
12
Pin WPL-M2D248
...
13
C Clip (25) WPL-M1D517
...
14
Not Available WPL-M63D24
...
15
Screw WPL-WP90767
...
16
Screw WPL-WP90767
...
17
Leaf Spring WPL-M2D542

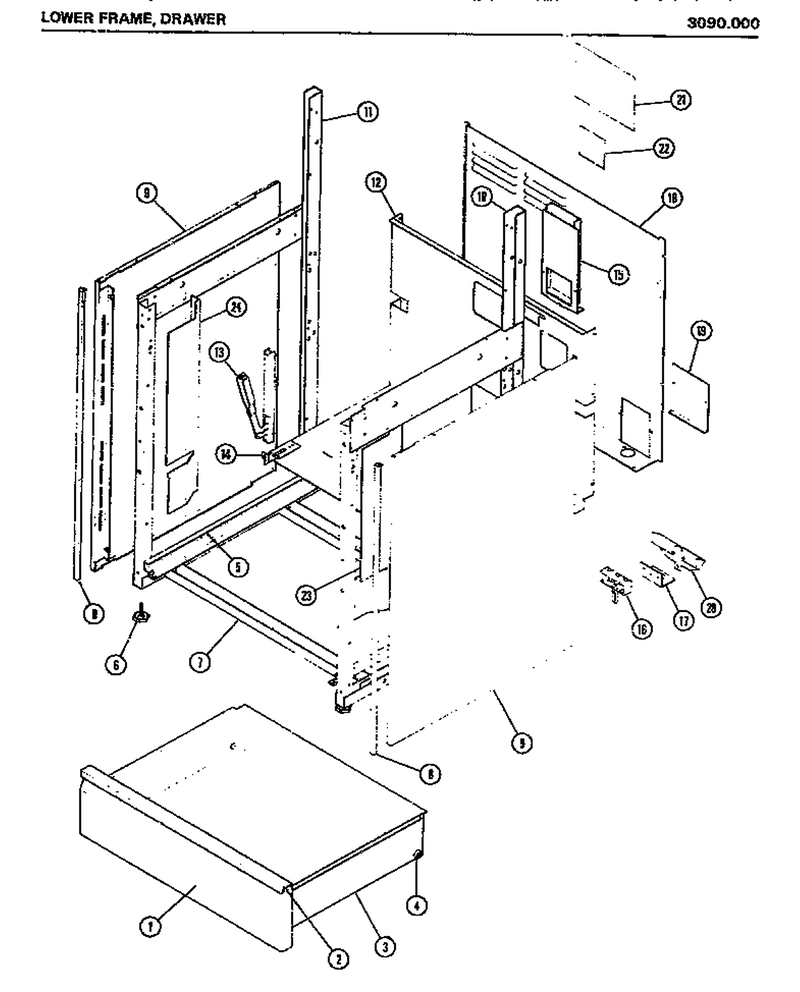

02 - Lower Frame

...
...
NI
Screw WPL-WP90767
...
1
Not Available WPL-M72D24
...
2
Handle WPL-M49D3
...
3
Drawer Sides WPL-M82D44
...
4
Roller WPL-M2D242
...
5
Drawer-Rail WPL-50106A01
...
6
Leveling Foot WPL-M8D117
...
7
Not Available WPL-M52D84
...
8
Trim-Corner M75d19 WPL-53024P01
...
9
Lwr Side Pnl Alm WPL-M82D115
...
10
Frame Assembly, Right WPL-M83D9
...
11
Frame Assembly, Left WPL-M83D10
...
12
Screw WPL-WP90767
...
13
Hinge Assy WPL-M8D77
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Terminal WPL-M4D45
...
17
Screw WPL-WP90767
...
18
Screw WPL-WP90767
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Rivet, Pop WPL-A4539629
...
22
Rivet, Pop WPL-A4539629
...
23
S-Clip (25) WPL-M1D790
...
24
S-Clip (25) WPL-M1D790

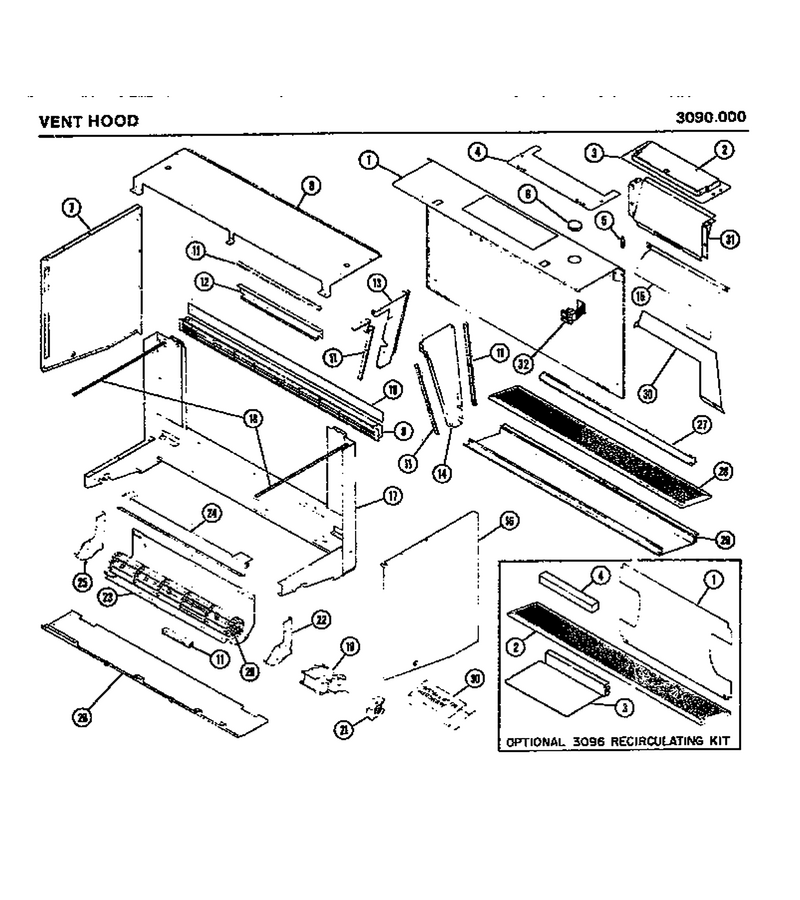

06 - Vent Hood

...
...
NI
Screw WPL-WP90767
...
1
Not Available WPL-M80D118
...
2
Filter- Ch WPL-42228P01
...
3
Damper Frame Kit WPL-M20D367
...
4
Foam Baffle Air WPL-M2D682
...
5
1/4 Turn Recept. WPL-M2D650
...
6
Hole Plug WPL-M2D681
...
7
Not Available WPL-M82D194
...
8
Filler Top WPL-M82D190
...
9
Grille WPL-M65D297
...
10
Filter, Air 15 X 24 X 1/4 WPL-R0139413
...
11
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
12
Exh Baffle Cover Kit WPL-M20D245
...
13
Exh Baffle Left WPL-M20D243
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Not Available WPL-M82D196
...
17
Not Available WPL-M80D112
...
18
1/4 Turn Clip WPL-M2D649
...
19
Exhaust Motor Kit WPL-M12D87
...
20
Blower Wheel WPL-M35D33
...
21
Fan Blade WPL-M35D34
...
22
End-Cap Blwr WPL-42174P01
...
23
Screw WPL-WP90767
...
24
Screw WPL-WP90767
...
25
End Cap - Left WPL-M20D238
...
26
Cushion-Flr WPL-M2D656
...
27
Light Bulb WPL-Y0064116
...
28
Filter WPL-42149P01
...
29
Clip, Lens Mounting WPL-M2D646
...
30
Deflector, Air WPL-M65D313
...
31
Screw WPL-WP90767
...
32
Plug Receptacle Kit WPL-M5D368
