Amana 302.701

Model: 302.701

Save Part Not Listed?
product name

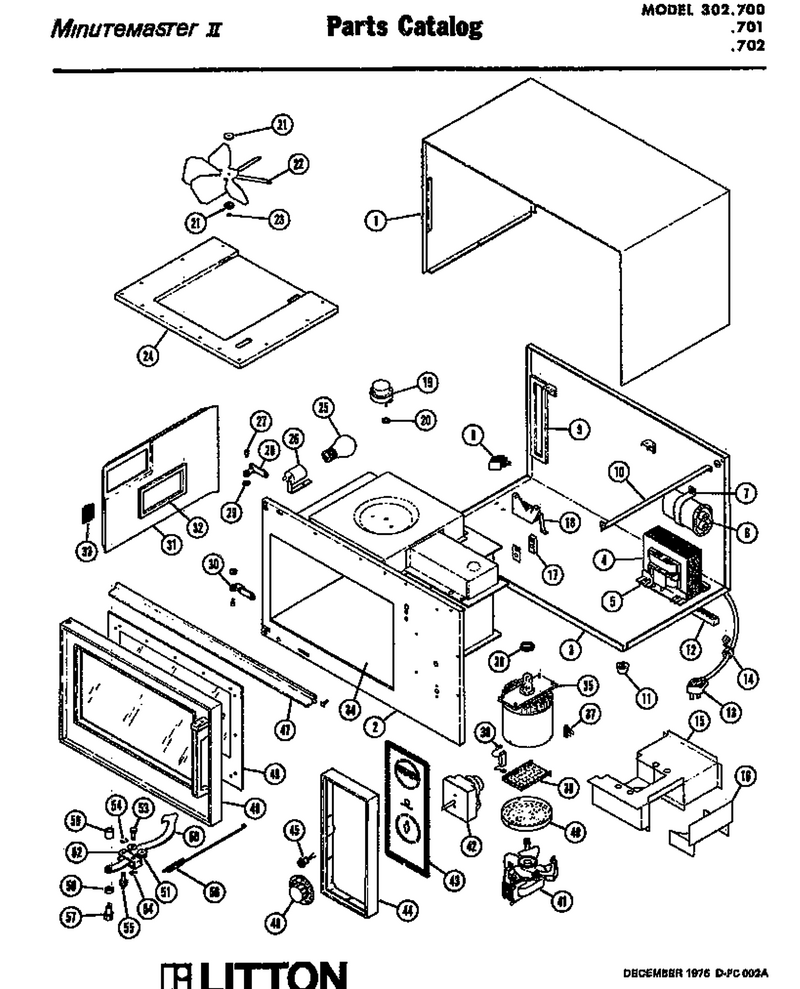

01 - Page 1

...
...
NI
High Voltage Lead, 5`` Length WPL-M5D9
...
1
Not Available WPL-M80D28
...
2
Not Available WPL-M77D7
...
3
Not Available WPL-M79D2
...
4
Screw, Transformer Mtg WPL-M1D35
...
5
Tinnerman (25) WPL-M1D79
...
6
Capacitor-.69 WPL-59001160
...
7
Screw WPL-WPW10068250
...
8
Switch Rt Prot WPL-M14D10
...
9
Not Available WPL-M25D6
...
10
Not Available WPL-M52D31
...
11
Screw (25) WPL-M1D21
...
12
Screw (25) WPL-M1D21
...
13
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
14
Strain Relief WPL-M2D10
...
15
Not Available WPL-M65D6
...
16
Not Available WPL-M65D7
...
17
Shim WPL-M2D24
...
18
Front Protective Switch Assemb WPL-M14D11
...
19
Nut, Motor Mtg. WPL-M1D3
...
20
R F Gasket Kit WPL-M2D152
...
21
Spcr-Stir WPL-M2D26
...
22
Str Blade Kit WPL-M35D2
...
23
.156 Dia Push On Clip WPL-M1D78
...
24
.187 Dia Push Rivet/bag-25pcs WPL-M1D25
...
25
Light Bulb WPL-8009
...
26
Nut, Motor Mtg. WPL-M1D3
...
27
Ia Hinge Pin WPL-M2D6
...
28
Nut WPL-WP488130
...
29
Washer (25) WPL-M1D42
...
30
Hinge Asm Bottom WPL-M8D6
...
31
Not Available WPL-M65D2
...
32
Gasket, Exhaust Duct WPL-M25D5
...
33
Retainer, Exhaust Duct WPL-M2D17
...
34
Shelf Pyro-Ceram Kit WPL-M50D1
...
35
Washer (25) WPL-M1D73
...
36
R F Gasket WPL-M2D35
...
37
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
38
Not Available WPL-M1D96
...
39
Not Available WPL-M7D34
...
40
Screw (25) WPL-M1D92
...
41
Ia Fan WPL-M35D3
...
42
Screw 8-32 (25) WPL-M1D86
...
43
Not Available WPL-M7D47
...
44
Not Available Trim Tim WPL-M7D2
...
45
Tinnerman (25) WPL-M1D72
...
46
Not Available WPL-M6D21
...
47
Not Available WPL-M7D48
...
48
Not Avialable WPL-M68D13
...
49
Seal Pl & Wind Kit WPL-M54D6
...
50
Ia Cam WPL-M8D1
...
51
Cam Roller WPL-M2D3
...
52
Not Available WPL-M2D7
...
53
Not Available WPL-M2D8
...
54
E Ring .188 Shaft WPL-M1D24
...
55
Lockwasher, Bolt Mtg. WPL-M1D88
...
56
Not Available WPL-M2D5
...
57
Not Available WPL-M1D43
...
58
Flat Washer (25) WPL-M1D644
...
59
Spacer WPL-M2D13
