Amana 2494.001

Model: 2494.001

Save Part Not Listed?
product name

Popular Parts

Popular Parts

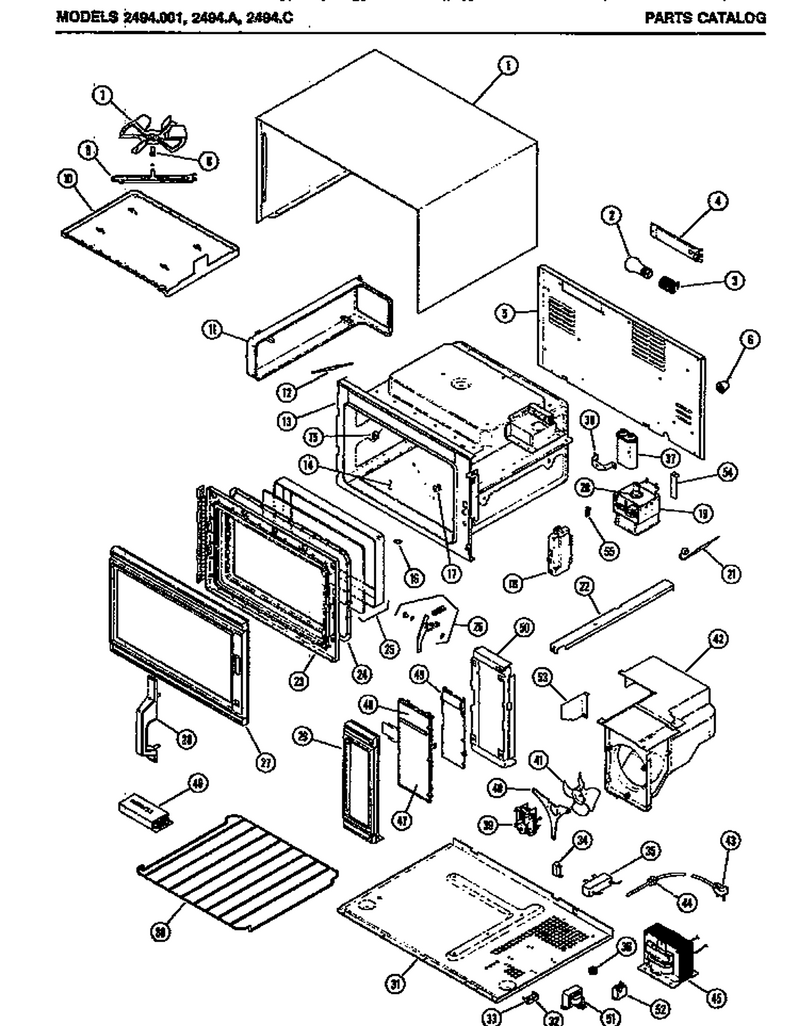

01 - Page 1

...
...
NI
Menu Guide Label WPL-M94D393
...
1
Screw WPL-WP90767
...
2
Light Bulb WPL-8009
...
3
Lamp Holder WPL-40082P01
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
6
Foot, Outer Case WPL-C8960601
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Ball WPL-38321P01
...
9
Support-Stir WPL-M20D236
...
10
Poly Button WPL-M1D832
...
11
Screw Plastc (25) WPL-M1D897
...
12
Screw (25) WPL-M1D898
...
13
Cavity Assy WPL-M77D132
...
14
Shelf W/sealant Kit WPL-M50D40
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Cavity Plug (10) WPL-M1D755
...
17
Support Rack WPL-B8371001
...
18
Screw WPL-WP98165
...
19
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
20
Gasket-Rf WPL-M2D296
...
21
Thermal Prot Kit WPL-M4D115
...
22
Screw WPL-WP90767
...
23
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
24
Gasket-R.f. WPL-38874P01
...
25
Cap Inner Door Assy Kit WPL-M55D23
...
26
Kit, Latch Hook WPL-M2D739
...
27
Screw Frame WPL-41327P01
...
28
Screw, Handle Mtg WPL-Y05600099
...
29
Screw WPL-M0215116
...
30
Rack (white) Kit WPL-M67D44
...
31
Not Available WPL-M79D104
...
32
Fuse 20 A WPL-WPM0805101
...
33
Ia Screw WPL-M1D329
...
34
Screw WPL-WPW10001160
...
35
Screw WPL-WPW10001160
...
36
Screw (25) WPL-M1D21
...
37
Capacitor- WPL-WP59001168
...
38
Screw WPL-WP90767
...
39
Nut K WPL-M0282005
...
40
Bracket Blower WPL-M20D219
...
41
Fan Blade WPL-M35D40
...
42
Screw Plastc (25) WPL-M1D897
...
43
Screw WPL-WPW10001160
...
44
Strain Relief WPL-Y0057183
...
45
Kit, Transformer WPL-M60D181
...
46
H.v. Lead Kit WPL-M5D350
...
47
Touch Panel Assembly WPL-M7D830
...
48
Display Window WPL-M2D722
...
49
Net-Assy,ckt Bd(rework) WPL-M32R62
...
50
Screw WPL-WP90767
...
51
Screw, Tf WPL-M0231704
...
52
Relay WPL-38806P01
...
53
Baffle Cav Upper WPL-M65D337
...
54
Rivet, Pop WPL-A4539629
...
55
Wire Clip (10) WPL-M2D741
