product name

Amana 2234.000

Model: 2234.000

Save Part Not Listed?
product name

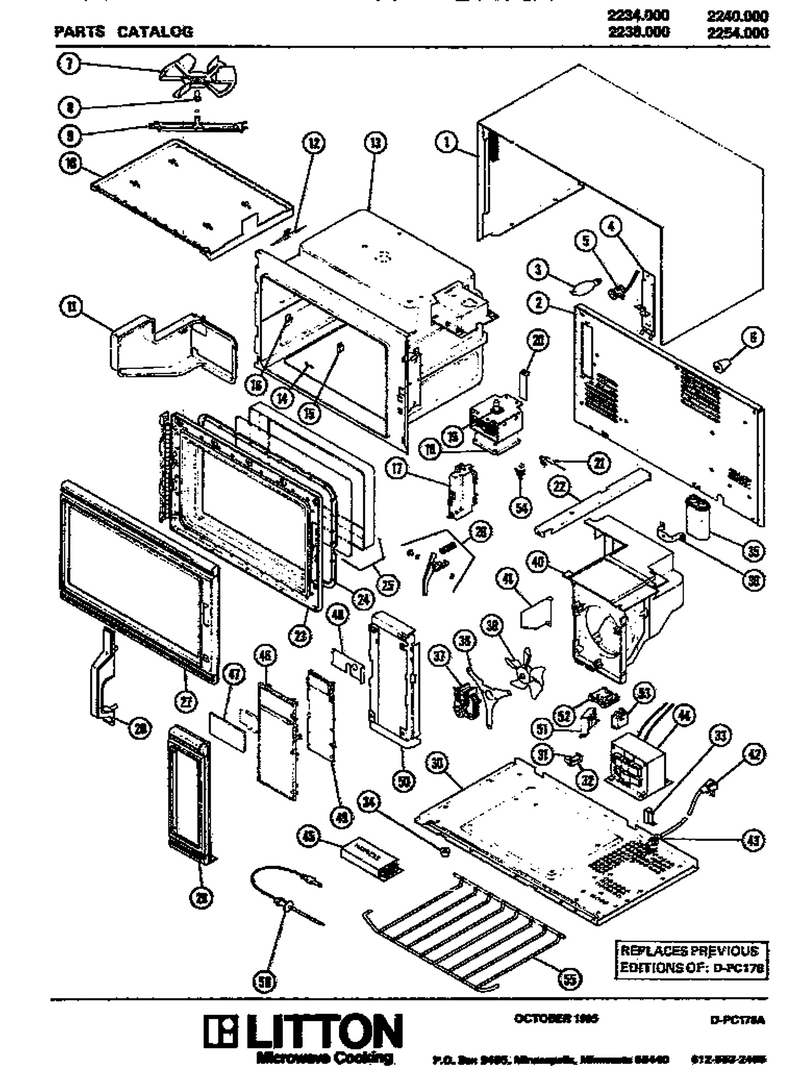

01 - Page 1

...
...
1
Screw WPL-WP90767
...
2
Screw WPL-WP90767
...
3
M9d107 Lamp WPL-2031415101
...
4
Lamp Access Door WPL-M7D812
...
5
Lamp Socket Kit WPL-M5D381
...
6
Foot, Outer Case WPL-C8960601
...
7
Kit-Insert & Blade Stirrer WPL-R0130737
...
8
Ball WPL-38321P01
...
9
Poly Button WPL-M1D832
...
10
Stirrer Co WPL-3010007901
...
11
Screw Plastc (25) WPL-M1D897
...
12
Sensor, Cavity Kit WPL-M4D102
...
13
Not Available WPL-M77D145
...
14
Adhesive WPL-W10841140
...
15
Rack Support Set WPL-M2D601
...
16
Support Rack WPL-B8371001
...
17
Switch, Interlock WPL-M14D253
...
18
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
19
Gasket-Rf WPL-M2D296
...
20
Rivet, Pop WPL-A4539629
...
21
Thermal Prot Kit WPL-M4D115
...
22
Support Bracket WPL-M20D296
...
23
Inner Door-Brown WPL-M70D127
...
24
Gasket-R.f. WPL-38874P01
...
25
Cap Inner Door Assy Kit WPL-M55D23
...
26
Kit, Latch Hook WPL-M2D739
...
27
No.8 Ab X 3/8`` Screw WPL-M1D900
...
28
Screw, Handle Mtg WPL-Y05600099
...
29
Cont Pnl Frame WPL-M7D813
...
30
Rivet, Pop WPL-A4539629
...
31
Fuse 20 A WPL-WPM0805101
...
32
Ia Screw WPL-M1D329
...
33
Kit, Diode WPL-M3D71
...
34
Foot WPL-M2D179
...
35
Capacitor- WPL-WP59001168
...
36
Bracket WPL-10825501
...
37
Nut K WPL-M0282005
...
38
Bracket Blower WPL-M20D219
...
39
Fan Blade WPL-M35D52
...
40
Screw Plastc (25) WPL-M1D897
...
41
Baffle Cav Upper WPL-M65D337
...
42
Power Cord WPL-1731300202
...
43
Strain Relief WPL-Y0057183
...
44
Kit, Transformer WPL-M60D181
...
45
Ground Lead Kit WPL-M5D351
...
46
Touch Panel Assembly WPL-M7D819
...
47
Display Window WPL-M2D737
...
48
Int Barrier WPL-M8D342
...
49
Net-Assy,ckt Bd WPL-M32R32
...
50
Control Panel Housing WPL-M7D816
...
51
Kit, Lv Transformer WPL-M60D118
...
52
Triac WPL-M16D93
...
53
Screw, Tf WPL-M0231704
...
54
Probe Jack WPL-M14D246
...
55
Wire Rack WPL-42110P01
...
56
Paint-Off- WPL-R0197018
