product name

Amana 2185K (BOM: P6753507R)

Model: 2185K (BOM: P6753507R)

Save Part Not Listed?
product name

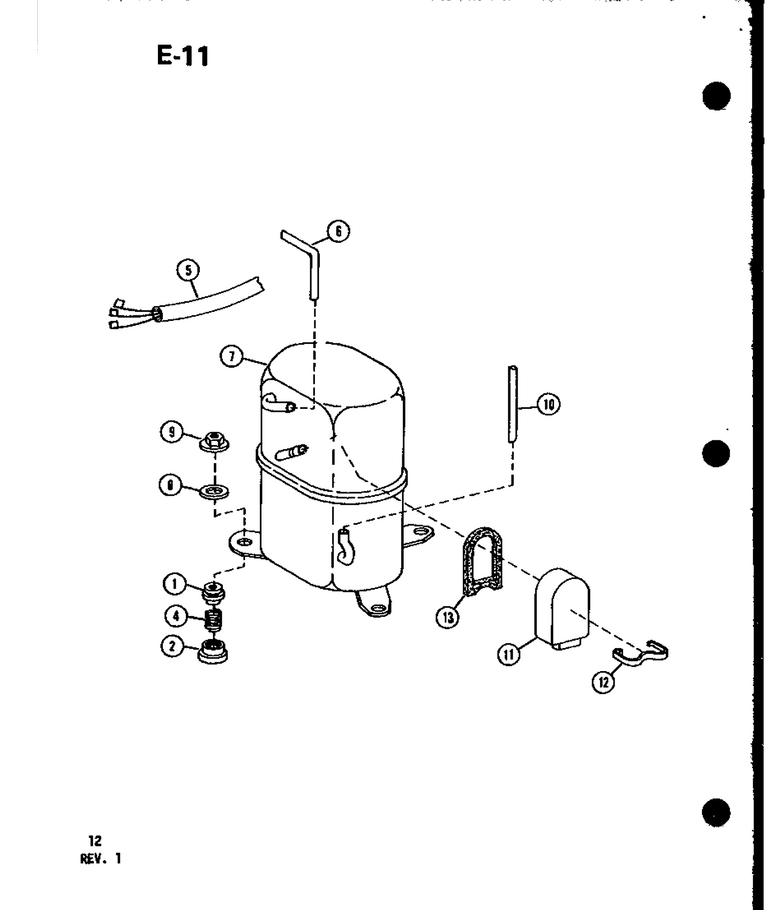

06 - Page 5

...
...
1
Grommet WPL-A3314001
...
2
Grommet WPL-A3314101
...
4
Spring WPL-A3412101
...
5
Wiring Harness WPL-C6216902
...
6
Tube Suction WPL-D6810202
...
7
Compressor, 1 H.p., 240/220 V. WPL-D6789202
...
8
Washer,fibre WPL-M0274008
...
9
Nut WPL-M0283610
...
10
Tube Discharge WPL-C6265401
...
11
Terminal Cover WPL-C6250201
...
12
Bale Strap WPL-A4594001
...
13
Gasket WPL-A3410801

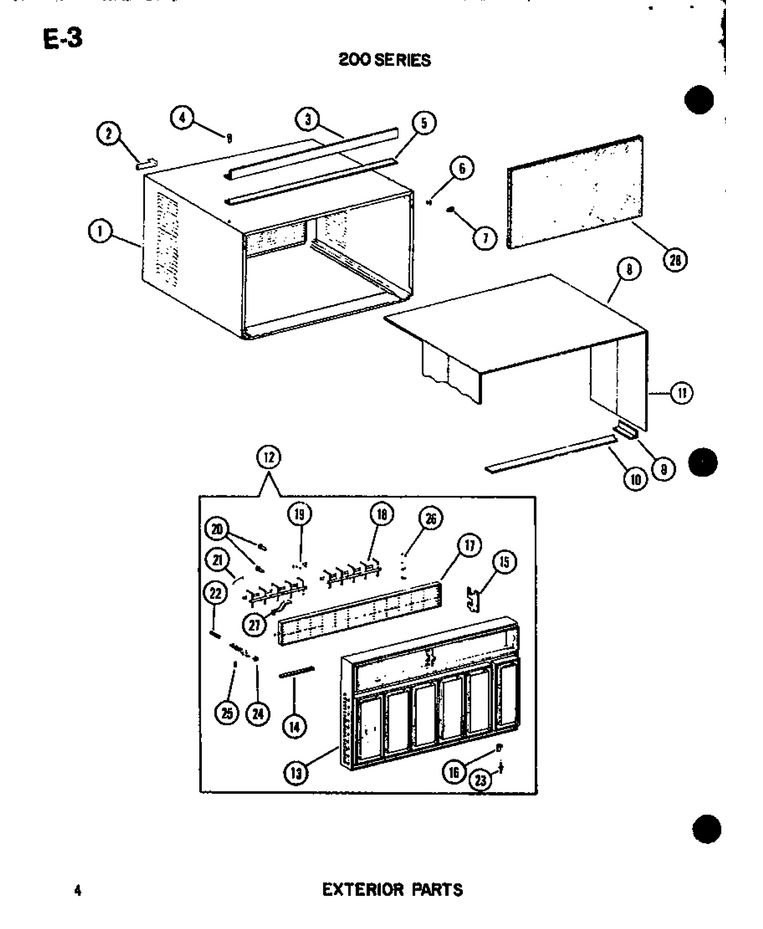

03 - Exterior Parts

...
...
1
Outer Case Weldment WPL-D6759102
...
2
Nameplate WPL-B4115501
...
3
Angle-Top WPL-B1100701
...
4
Screw WPL-WP1163839
...
5
Gasket 1 WPL-10839714
...
6
Speed Nut WPL-M0288412
...
7
Thumb Screw K WPL-M0234916
...
8
Insulation WPL-B1288601
...
9
Gasket WPL-B5107615
...
10
Gasket WPL-10839707
...
11
Insulation WPL-B1288701
...
12
Front WPL-D5468226
...
13
Front WPL-D5466825
...
14
Gasket (per Foot) WPL-A3030313
...
15
Gasket-Lh WPL-B1109601
...
16
Hook, Cabinet Front Bottom To WPL-A4577806
...
17
Louver Box WPL-D5396422
...
18
Louvers WPL-C5286601
...
19
Pin WPL-B5167101
...
20
Screw WPL-M0229004
...
21
Linkage Bar WPL-A4623801
...
22
Spring K WPL-A4624103
...
23
Pop Rivet WPL-A4539602
...
24
Lever K WPL-B1185001
...
25
Pin K WPL-A3339201
...
26
Spring WPL-A4688901
...
27
Friction Clip WPL-A4664503
...
28
Filter WPL-D6758601

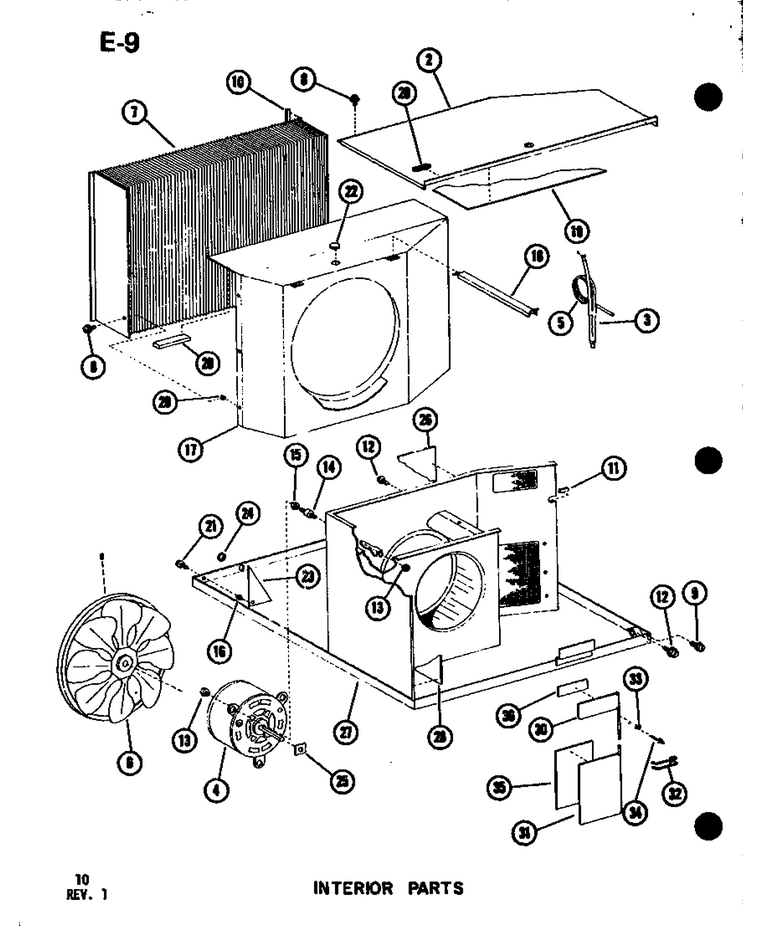

05 - Interior Parts

...
...
2
Top Cover WPL-D6813702
...
3
Strainer WPL-B5159301
...
4
Motor, Fan, 208/230 V., 50 Hz, WPL-C6206402
...
5
Capillary Preform WPL-D6806901
...
6
Fan Blade Cond WPL-D6787901
...
7
Condenser Coil WPL-D6793401
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP90767
...
10
Gasket WPL-10839712
...
11
Gasket WPL-10839708
...
12
Screw WPL-M0233116
...
13
Nut WPL-WP487939
...
14
Grommet WPL-M0500606
...
15
Nut WPL-Y052721
...
16
Grommet WPL-A3309801
...
17
Shroud Cond. WPL-D9947103
...
18
Tie Brace WPL-B1285901
...
19
Insulation WPL-D6790901
...
20
Gasket-Per Ft WPL-A3030332
...
21
Screw (3) WPL-67006425
...
22
Plug Button K WPL-M0570801
...
23
Splash Guard WPL-B1299201
...
24
Plug Button WPL-A3080003
...
25
Gasket WPL-B5107608
...
26
Insulation WPL-D6759901
...
27
Base Pan Pnt WPL-D6759013
...
28
Insulation WPL-B1288801
...
29
Speednut WPL-M0288115
...
30
Exhst Dr Weld-Pnt WPL-C6200202
...
31
Vent Door-Pnt WPL-C6200302
...
32
Spring-Damper WPL-B1294401
...
33
Clamp WPL-A3396601
...
34
Rivet-Pop WPL-59002054
...
35
Gasket WPL-B5107616
...
36
Gasket WPL-B5107602

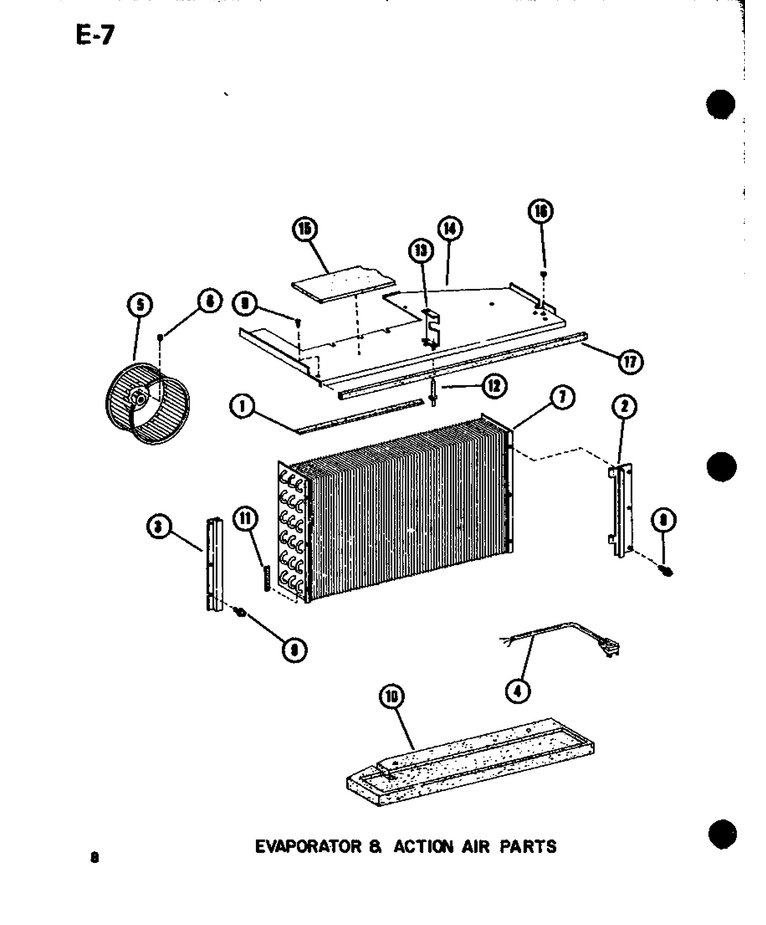

02 - Evap & Action Air Parts

...
...
1
Gasket-Per Ft WPL-A3030332
...
2
Retainer, Right Hand WPL-C6215501
...
3
Retainer, Left Hand WPL-B1287001
...
4
Cord, Power WPL-C5283104
...
5
Blower Wheel WPL-D6790101
...
6
Set Screw WPL-M0210104
...
7
Evaporator Assy WPL-D6788801
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP489464
...
10
Filler Block WPL-D6757501
...
11
Gasket-Evap WPL-B1292201
...
12
Rivet-Pop WPL-59002054
...
13
Spacer WPL-B5170402
...
14
Evap Cover Pnt WPL-D6755102
...
15
Insulation WPL-D6759501
...
16
Snap Bushing WPL-A4554811
...
17
Gasket WPL-10839712

04 - Factory Installed Mount

...
...
1
Light Bulb WPL-8009
...
2
Angle Support Weld WPL-C5872104
...
3
Gasket WPL-B1108301
...
4
Window Board WPL-A4607701
...
5
Gasket-Polyethylene WPL-A4684201
...
6
Spacer K WPL-A4065501
...
7
Screw WPL-M0212062
...
8
Screw WPL-M0206557
...
9
Plug WPL-M0310312
...
10
Spring WPL-B1100601
...
11
Gasket WPL-B4764402
...
12
Screw Adjusting WPL-M0200003
...
13
Nut-Keps WPL-M0282019
...
14
Accessory Kit Q WPL-B1139001

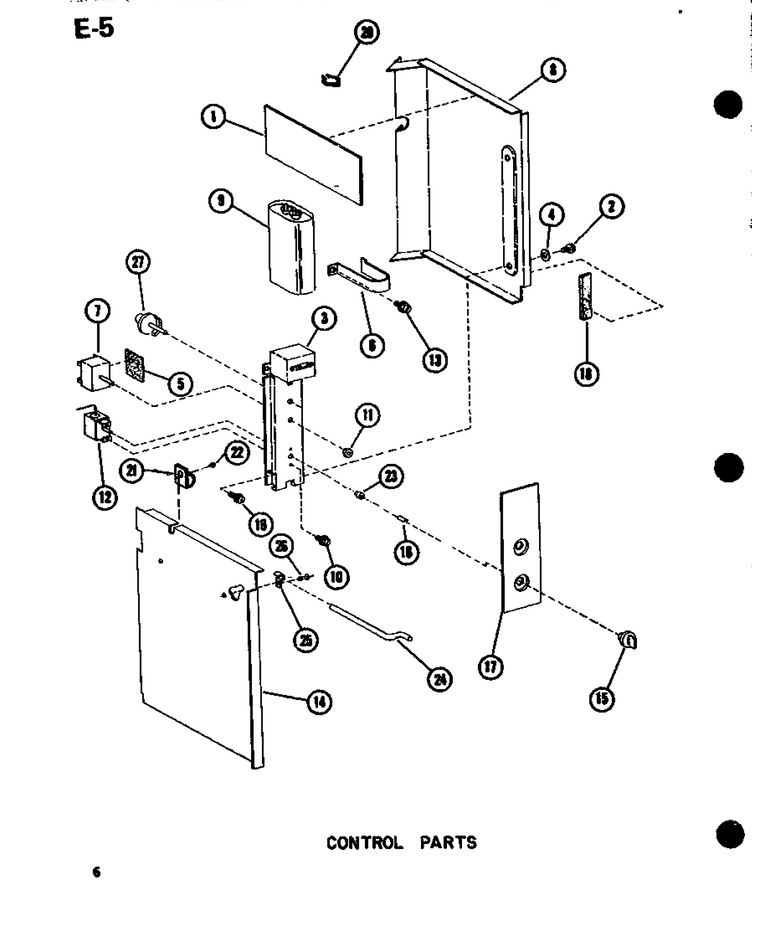

01 - Control Parts

...
...
1
Insulation WPL-B1288501
...
2
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
3
Bracket WPL-D6769202
...
4
Lock Washer WPL-M0272803
...
5
Insulator WPL-A4662301
...
6
Strap-Cap. WPL-B5115903
...
7
Switch, Rotary WPL-B5108802
...
8
Panel Side R-Pnt WPL-D6789402
...
9
Capacitor, 35/5 Mfd, 370 V. WPL-D6711824
...
10
Screw WPL-M0232012
...
11
Palnut WPL-M0289601
...
12
Thermostat WPL-B4763502
...
13
Screw WPL-WP489399
...
14
Barrier WPL-D6790801
...
15
Knob WPL-D7009804
...
16
Clip,retainer WPL-M0115902
...
17
Nameplate WPL-C6244302
...
18
Gasket-Per Ft WPL-A3030332
...
19
Screw WPL-WP90767
...
20
Clip-Guide WPL-M0118701
...
21
Clamp, Wiring WPL-M0102310
...
22
Screw WPL-WP489464
...
23
Bushing WPL-A3073601
...
24
Rod WPL-B1312801
...
25
Clamp WPL-A3396601
...
26
Rivet-Pop WPL-59002054
...
27
Actuator Assembly WPL-D6759302
