Amana 2183J (BOM: P6021801R)

Model: 2183J (BOM: P6021801R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

03 - Interior Parts

...
...
NI
Screw WPL-M0206557
...
156
Gasket WPL-10839702
...
157
Secondary Stop WPL-B1101701
...
159
Weldment, Angle Support, L.h. WPL-C5872102
...
160
Gasket WPL-B1108301
...
161
Window Board WPL-A4607701
...
162
Gasket WPL-10839708
...
163
Gasket, Closure Plate Flange, WPL-A3030325
...
164
Spacer K WPL-A4065501
...
165
Screw WPL-M0212062
...
167
Plug WPL-M0310312
...
168
Screw WPL-M0211530
...
169
Spring WPL-B1100601
...
170
Gasket WPL-B4764402
...
171
Screw Adjusting WPL-M0200003
...
172
Nut-Keps WPL-M0282019

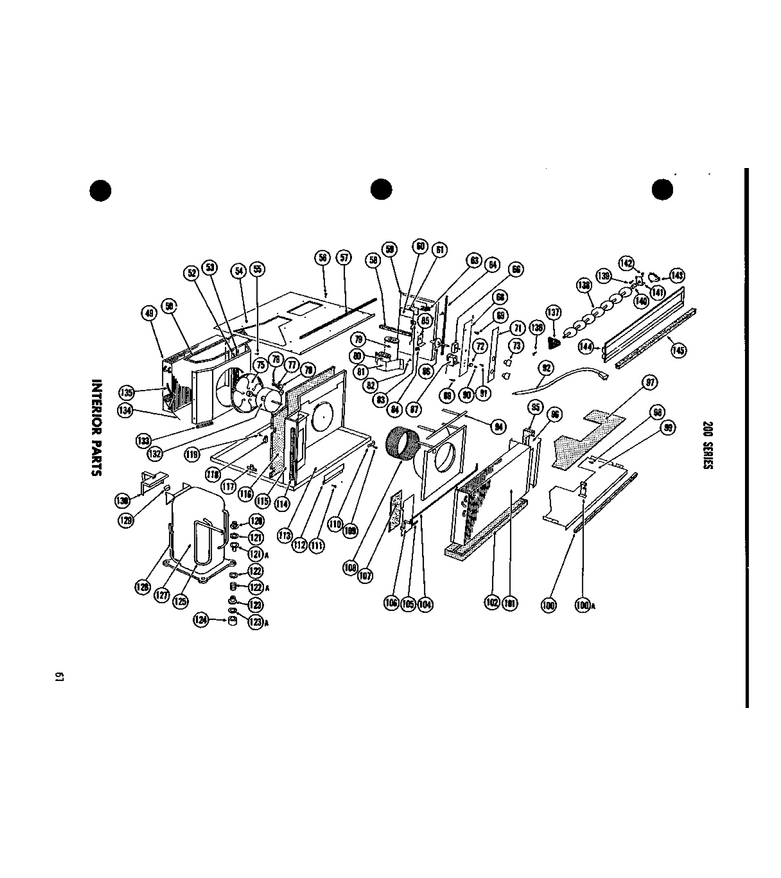

02 - Interior Parts

...
...
NI
Plug Button WPL-A3080003
...
49
Condenser Coil Assembly WPL-D5351304
...
50
Gasket-Per Ft WPL-A3030332
...
52
Screen WPL-B5117101
...
53
Gasket WPL-10839708
...
54
Top Cover, Weldment WPL-B1111701
...
55
Screw WPL-W11233072
...
56
Kit, Screw WPL-R9800670
...
57
Gasket WPL-B1106204
...
58
Gasket-Per Ft WPL-A3030332
...
59
Access Panel Pnt WPL-D5349305
...
60
Damper Door WPL-B5110802
...
61
Gasket WPL-B5107602
...
63
Spring WPL-B4778002
...
64
Gasket WPL-B1106203
...
66
Switch-Rotary WPL-B5131604
...
68
Bracket-Control WPL-D5349604
...
71
Escutcheon WPL-C5884901
...
72
Bushing WPL-A3073601
...
73
Knob WPL-D7009804
...
75
Fan Blade WPL-D5353102
...
76
Nut WPL-M0282009
...
77
Washer WPL-M0270519
...
78
Grommet WPL-M0500501
...
79
Capacitor, Comp. Run, 30 Mfd, WPL-C5825019
...
80
Capacitor, Fan Motor Run, 5 M. WPL-C5825010
...
81
Strap WPL-B5115801
...
82
Screw WPL-M0211545
...
83
Clamp WPL-A4598401
...
84
Clip WPL-M0110503
...
85
Bearing WPL-A4615401
...
86
Shaft WPL-B5132501
...
87
Thermostat WPL-B4763504
...
89
Screw WPL-WP90767
...
90
Clip,retainer WPL-M0115902
...
91
Screw WPL-M0232012
...
92
Cord, Appliance WPL-8215269
...
94
Gasket-Per Ft WPL-A3030332
...
95
Insulation WPL-A4622001
...
96
Barrier WPL-B5107002
...
97
Insulation, Fiberglas, Evapora WPL-B1105702
...
98
Kit, Screw WPL-R9800670
...
99
Evaporator Cover WPL-D5466401
...
100
Gasket (per Foot) WPL-A3030303
...
101
Evaporator Coil Assembly WPL-D5397001
...
102
Filler Block WPL-D5350101
...
104
Damper Rod WPL-A4615501
...
105
Clip WPL-M0110901
...
106
Damper Door WPL-C5236701
...
107
Gasket WPL-B5107601
...
108
Blower Wheel WPL-D5352101
...
109
Kit, Screw WPL-R9800670
...
110
Clamp WPL-M0102101
...
111
Kit, Screw WPL-R9800670
...
112
Handle WPL-A4591402
...
113
Base Pan Wldmt WPL-D5444705
...
114
Gasket WPL-B1106203
...
116
Insulation, Partition Panel, O WPL-C5239301
...
117
Gasket-Per Ft WPL-A3030315
...
118
Clamp, Tube WPL-M0102305
...
119
Kit, Screw WPL-R9800670
...
120
Nut WPL-M0283610
...
121
Washer,fibre WPL-M0274008
...
122
Spring-Comp Mtg WPL-A4658702
...
123
Grommet WPL-A4013601
...
125
Tube-Suction WPL-D5480201
...
127
Compressor, Srb4-0200-Pfv, 230 WPL-D5320106
...
128
Tube-Discharge WPL-C5900401
...
129
Overload WPL-D4976658
...
130
Terminal Cover WPL-C5864401
...
132
Fan Mtr, Franklin, Cy641192/87 WPL-C5262704Q
...
133
Seal Strip WPL-A4017201
...
134
Capillary Assy WPL-C5900801
...
135
Strainer WPL-B5159301

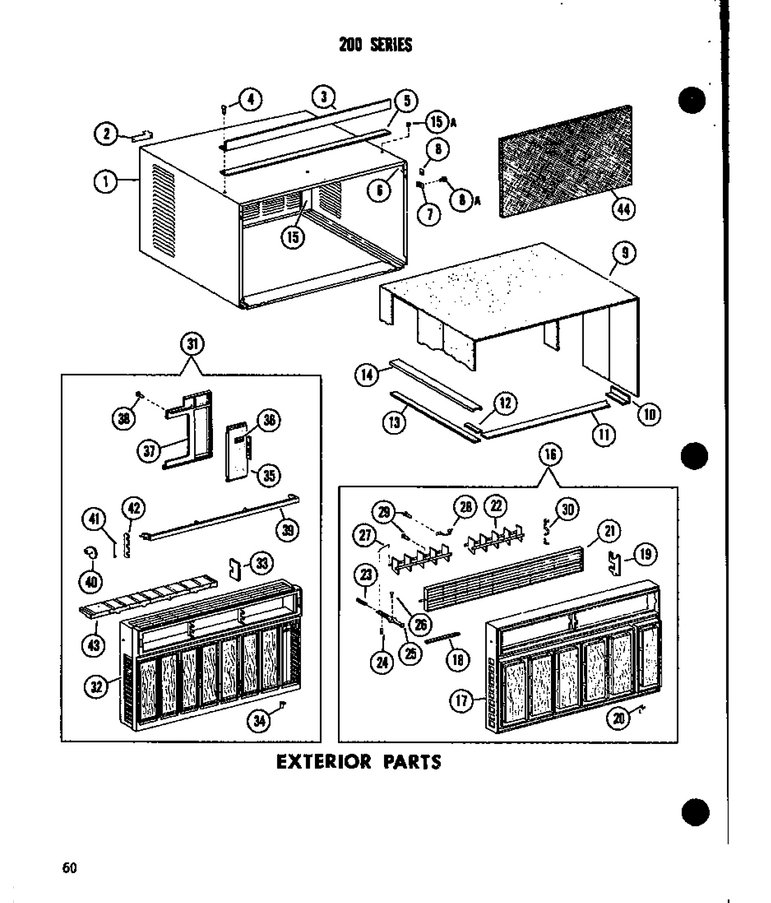

01 - Exterior Parts

...
...
1
Outer Case Weld WPL-D5378320
...
2
Nameplate WPL-B4115501
...
4
Screw WPL-WP1163839
...
5
Gasket 1 WPL-10839714
...
6
Guide WPL-A4607401
...
7
Strike WPL-A4660001
...
8
Speed Nut WPL-M0288412
...
9
Insulation WPL-C5885302
...
10
Gasket WPL-B5107607
...
11
Gasket WPL-10839707
...
12
Gasket, Closure Plate Flange, WPL-A3030325
...
13
Gasket, Polyethylene, Outer Ca WPL-A4591111
...
14
Glide WPL-B5169802
...
15
Gasket-Per Ft WPL-A3030319
...
16
Front Assembly Cabinet, Air Co WPL-D5468201
...
17
Front, Cabinet, Frame Only, Ai WPL-D5466801
...
18
Gasket (per Foot) WPL-A3030313
...
19
Gasket-Lh WPL-B1109601
...
20
Hook, Cabinet Front Bottom To WPL-A4577806
...
21
Louver Box WPL-D5396415
...
22
Louvers WPL-C5286601
...
23
Spring,lever WPL-A4624102
...
24
Pin,lever WPL-A4623501
...
25
Lever, Vertical Louvers, Cabin WPL-B5139703
...
26
Clinch WPL-M0590201
...
27
Linkage Bar WPL-A4623801
...
28
Pin WPL-B5167101
...
29
Screw WPL-M0229004
...
30
Spring WPL-A4688901
...
44
Filter WPL-D5373801
