Amana 218-5K (BOM: P6753506R)

Model: 218-5K (BOM: P6753506R)

Save Part Not Listed?
product name

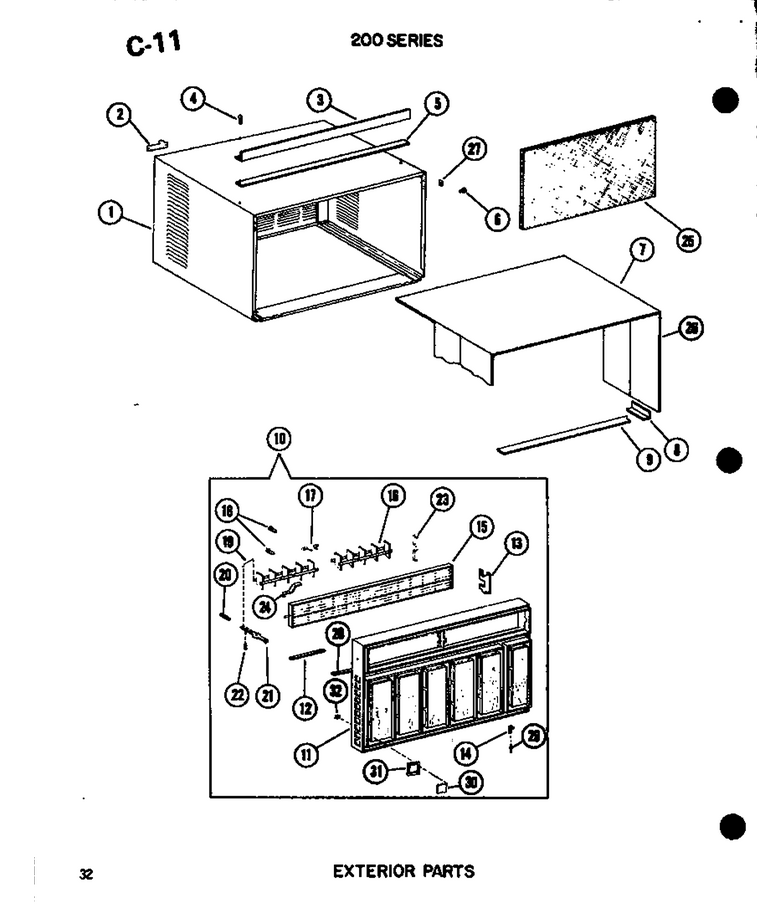

03 - Exterior Parts

...
...
1
Outer Case Weldment WPL-D6759102
...
2
Nameplate WPL-B4115501
...
3
Angle-Top WPL-B1100701
...
4
Screw WPL-WP1163839
...
5
Gasket 1 WPL-10839714
...
6
Thumb Screw K WPL-M0234916
...
7
Insulation WPL-B1288601
...
8
Gasket WPL-B5107615
...
9
Gasket WPL-10839707
...
10
Front WPL-D5468226
...
11
Front WPL-D5466825
...
12
Gasket (per Foot) WPL-A3030313
...
13
Gasket-Lh WPL-B1109601
...
14
Hook, Cabinet Front Bottom To WPL-A4577806
...
15
Louver Box WPL-D5396422
...
16
Louvers WPL-C5286601
...
17
Pin WPL-B5167101
...
18
Screw WPL-M0229004
...
19
Linkage Bar WPL-A4623801
...
20
Spring K WPL-A4624103
...
21
Lever K WPL-B1185001
...
22
Pin K WPL-A3339201
...
23
Spring WPL-A4688901
...
24
Friction Clip WPL-A4664503
...
25
Filter WPL-D6758601
...
26
Insulation WPL-B1288701
...
27
Speed Nut WPL-M0288412
...
28
Gasket (per Foot) WPL-A3030303
...
29
Pop Rivet WPL-A4539602

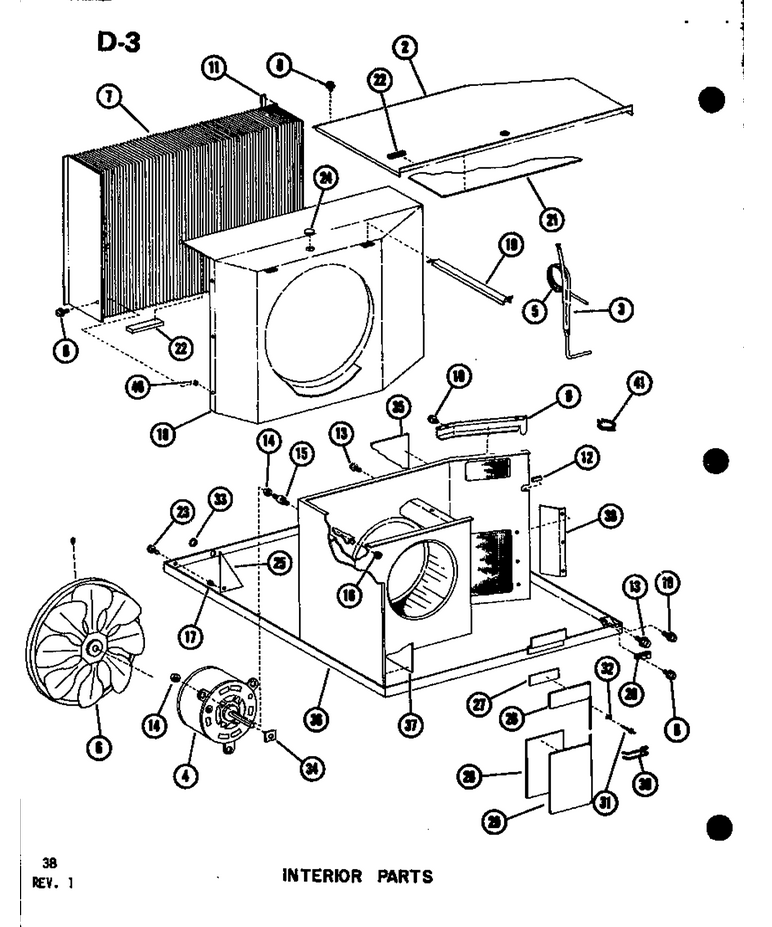

04 - Interior Parts

...
...
2
Cover WPL-D6789501
...
3
Strainer WPL-B5159301
...
4
Motor, Fan, 208/230 V., 50 Hz, WPL-C6206402
...
5
Capillary-Preform WPL-D6792901
...
6
Fan Blade Cond WPL-D6787901
...
7
Condenser Assy WPL-D6793402
...
8
Screw WPL-WP90767
...
10
Screw WPL-WP90767
...
11
Gasket WPL-10839712
...
12
Gasket WPL-10839708
...
13
Screw WPL-WP489399
...
14
Nut WPL-WP487939
...
15
Grommet WPL-M0500606
...
16
Nut WPL-Y052721
...
17
Grommet WPL-A3309801
...
18
Shroud Cond. WPL-D9947103
...
19
Tie Brace WPL-B1285901
...
20
Clamp WPL-M0102101
...
21
Insulation WPL-D6790901
...
22
Gasket-Per Ft WPL-A3030332
...
23
Screw (3) WPL-67006425
...
24
Plug Button K WPL-M0570801
...
25
Splash Guard WPL-B1299201
...
26
Exhst Dr Weld-Pnt WPL-C6200202
...
27
Gasket WPL-B5107602
...
28
Gasket WPL-B5107616
...
29
Vent Door Assy WPL-C6200601
...
30
Spring-Damper WPL-B1294401
...
31
Rivet-Pop WPL-59002054
...
32
Clamp WPL-A3396601
...
33
Plug Button WPL-A3080003
...
34
Gasket WPL-B5107608
...
35
Insulation WPL-D6759901
...
36
Base Pan Assy WPL-D6760803
...
37
Insulation WPL-B1288801
...
40
Speednut WPL-M0288115
...
41
Clip-Guide WPL-M0118701

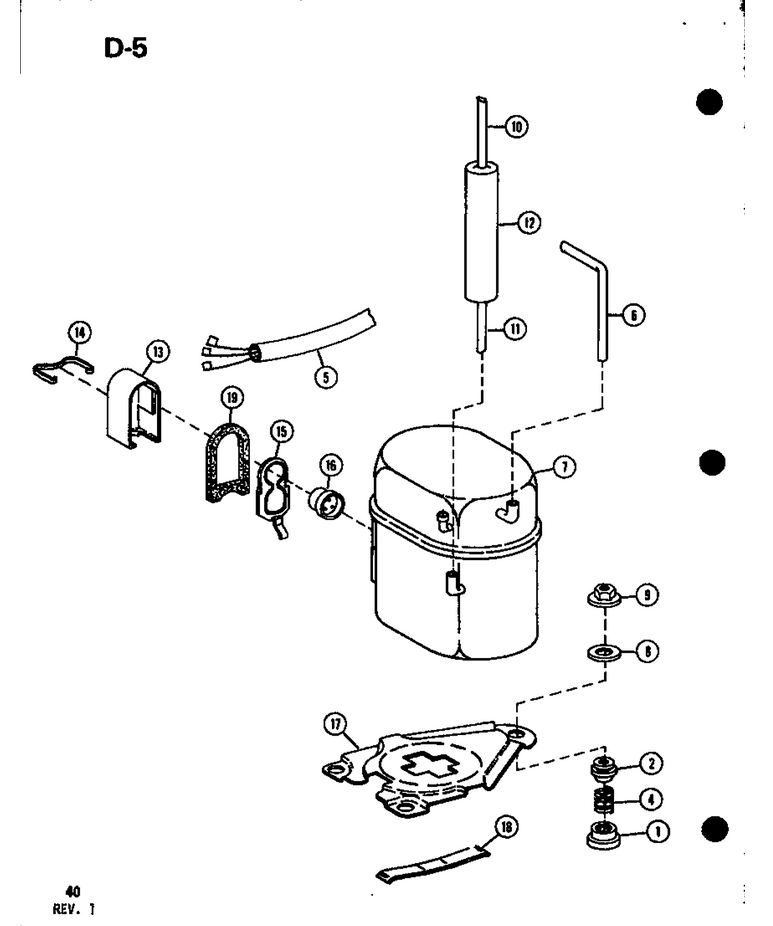

05 - Page 18

...
...
12
Muffler WPL-C5885806

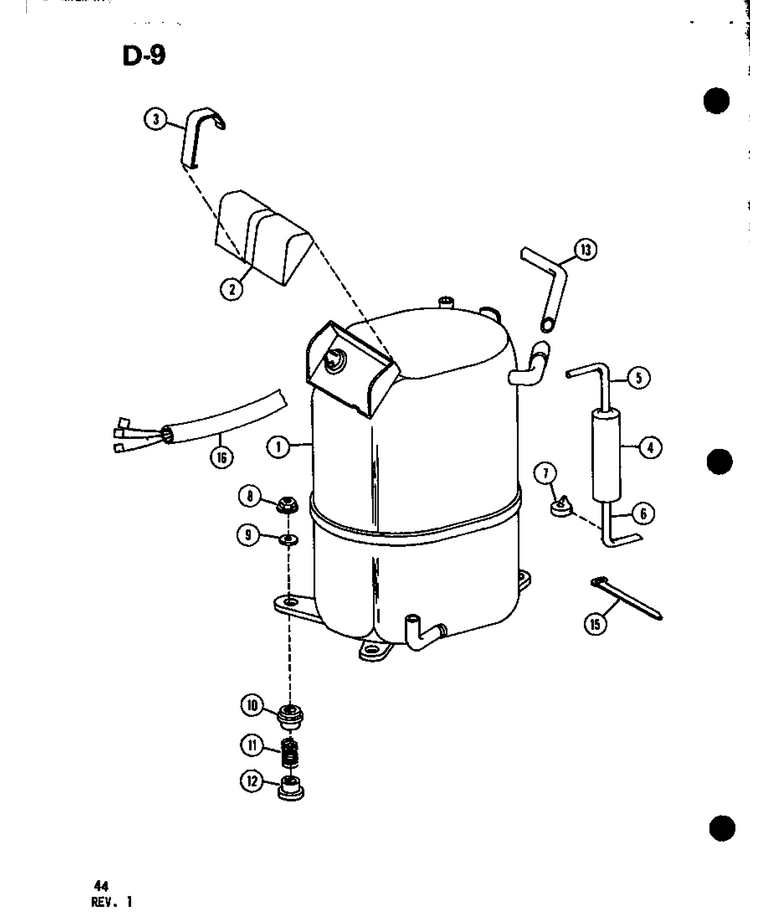

06 - Page 20

...
...
1
Compressor Src4-0200-Pfg WPL-D6762502
...
2
Terminal Cover WPL-C5864401
...
3
Spring WPL-A4610101
...
4
Muffler-Dis WPL-C5885814
...
5
Discharge Tube WPL-C6206701
...
6
Discharge Tube WPL-C6206801
...
7
Bumper WPL-A3311002
...
8
Nut WPL-M0283610
...
9
Washer,fibre WPL-M0274008
...
10
Grommet WPL-A3314001
...
11
Spring, Compressor WPL-A3338901
...
12
Grommet WPL-A3314101
...
13
Suction Tube WPL-D6764601
...
15
Tie-Wire WPL-WPW10339879
...
16
Wiring Harness WPL-C6202001

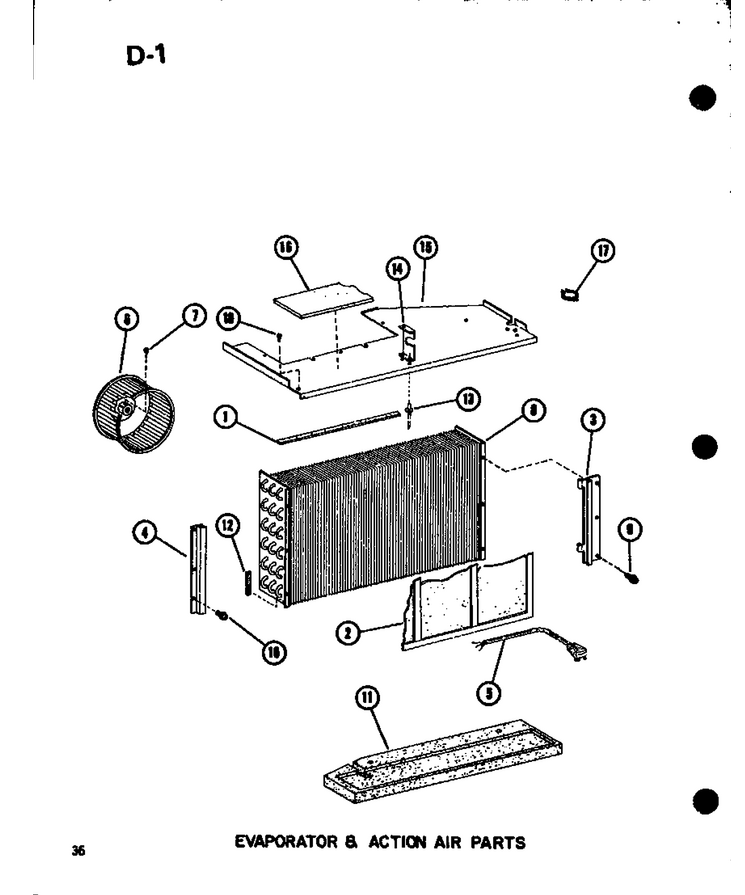

02 - Evap & Action Air Parts

...
...
1
Gasket-Per Ft WPL-A3030332
...
2
Filter WPL-D6758601
...
3
Retainer, Right Hand WPL-C6215501
...
4
Retainer, Left Hand WPL-B1287001
...
5
Cord, Power WPL-C5283104
...
6
Blower Wheel WPL-D6790101
...
8
Evaporator Assy WPL-D6788801
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP489464
...
11
Filler Block WPL-D6757501
...
12
Gasket-Evap WPL-B1292201
...
13
Rivet-Pop WPL-59002054
...
14
Spacer WPL-B5170402
...
15
Evap Cover Pnt WPL-D6755102
...
16
Insulation WPL-D6759501
...
17
Clip K WPL-M0118401

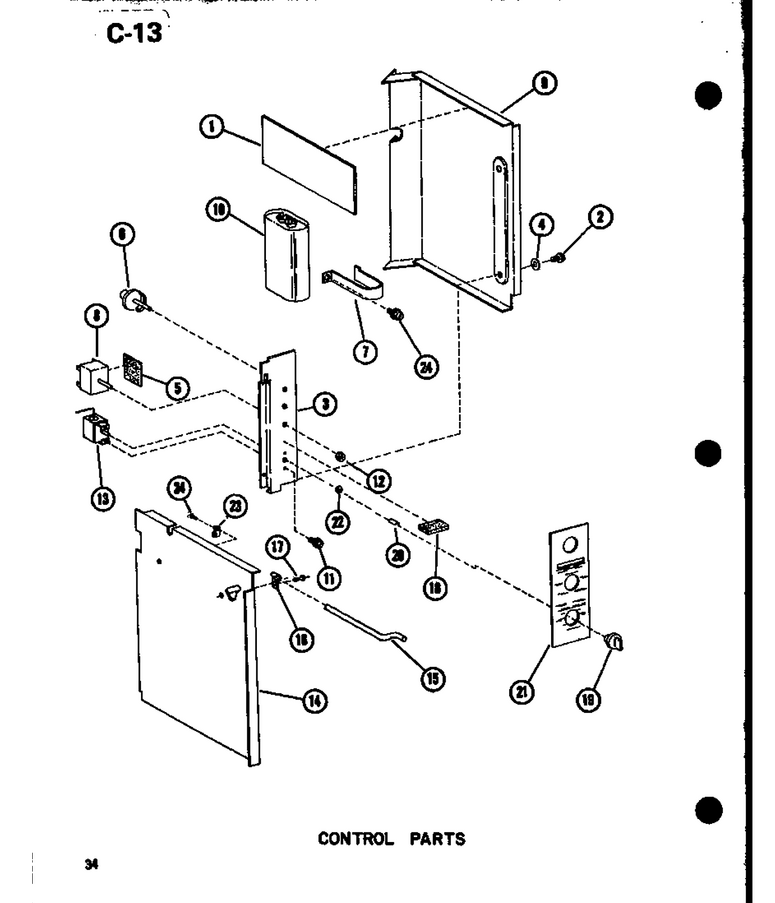

01 - Control Parts

...
...
1
Insulation-Plenum WPL-B1287401
...
2
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
3
Bracket WPL-D6769202
...
4
Lock Washer WPL-M0272803
...
5
Insulator WPL-A4662301
...
6
Actuator Assembly WPL-D6759302
...
7
Strap-Cap. WPL-B5115903
...
8
Switch, Rotary WPL-B5108802
...
9
Panel Side R-Pnt WPL-D6789402
...
10
Capacitor, 35/5 Mfd, 370 V. WPL-D6711824
...
11
Screw WPL-M0232012
...
12
Palnut WPL-M0289601
...
13
Thermostat WPL-B4763502
...
14
Barrier WPL-D6790801
...
15
Rod WPL-B1312801
...
16
Clamp WPL-A3396601
...
17
Rivet-Pop WPL-59002054
...
18
Spring Pad WPL-A3397102
...
19
Knob WPL-D7009804
...
20
Clip,retainer WPL-M0115902
...
21
Nameplate WPL-C6244302
...
22
Bushing WPL-A3073601
...
23
Clamp, Wiring WPL-M0102310
...
24
Screw WPL-WP489464
