Amana 215-3NH (BOM: P5541705R)

Model: 215-3NH (BOM: P5541705R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

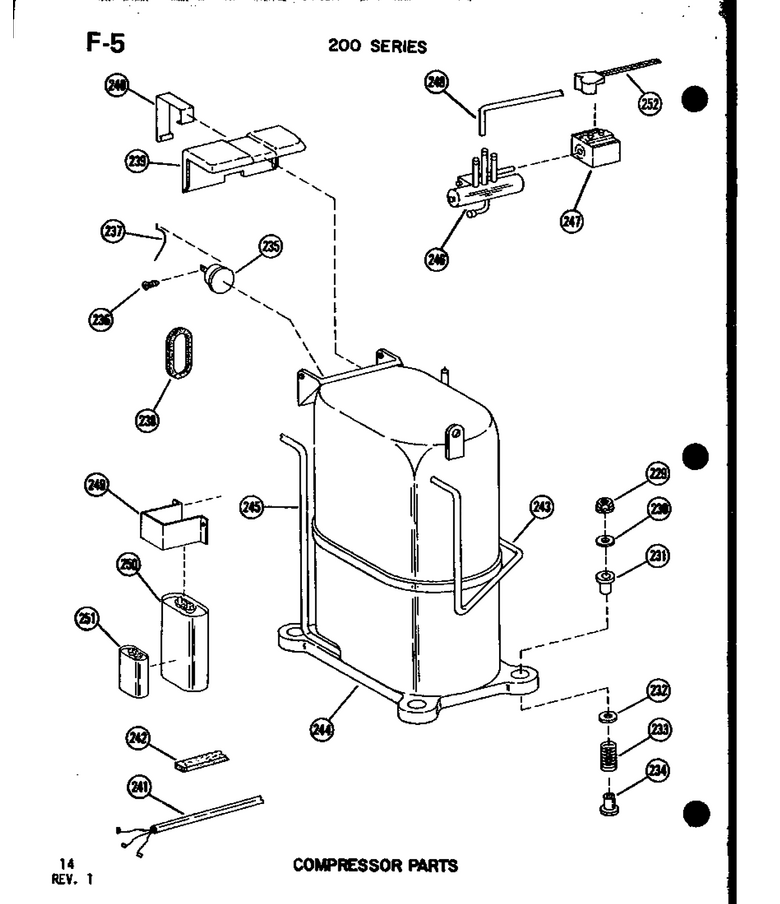

01 - Compressor Parts

...
...
152
Wiring Harness, Solenoid WPL-B5134105
...
229
Nut WPL-M0283610
...
230
Washer,fibre WPL-M0274008
...
231
Grommet WPL-A3314001
...
233
Spring WPL-A3412101
...
234
Grommet WPL-A3314101
...
235
Overload WPL-D4976644
...
236
Screw WPL-M0206116
...
237
Spring WPL-A4591501
...
238
Seal WPL-A4588001
...
239
Cover WPL-B4793701
...
240
Bale Strap WPL-A4587801
...
241
Wiring Harness WPL-C5947003
...
242
Gasket WPL-10839708
...
243
Tube-Suction WPL-D5471701
...
244
D5403102h WPL-D5351004
...
245
Tube-Muffler To Dis WPL-B1112902
...
246
Reversing Valve WPL-B4765601
...
247
Assembly, Solenoid Coil, Ranco WPL-B5108901
...
248
Tube-Preform WPL-B1112701
...
249
Strap-Capacitor Mtg WPL-B5115802
...
250
Capacitor WPL-10421701
...
251
Capacitor, Fan Motor, 5 Mfd, 3 WPL-D5515610

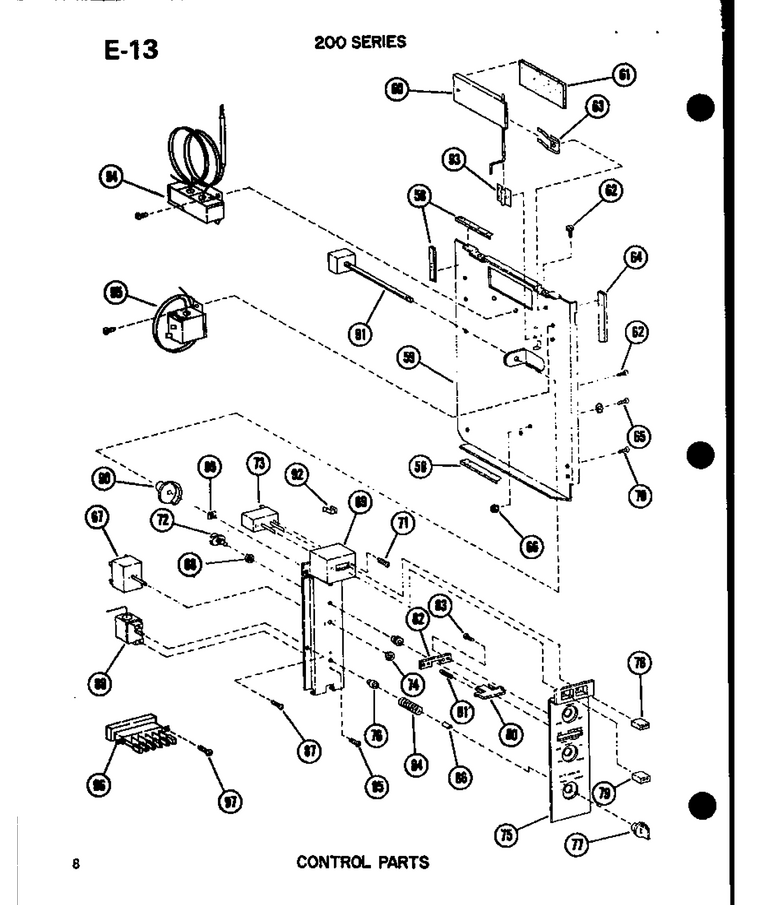

03 - Control Parts

...
...
1
Gasket-Per Ft WPL-A3030332
...
59
Access Panel Pnt WPL-D5349305
...
60
Damper Door WPL-B5110801
...
61
Gasket WPL-B5107602
...
62
Screw WPL-M0211545
...
63
Spring WPL-B4778002
...
64
Gasket WPL-B1106203
...
65
Sems Fastner WPL-M0255015
...
66
Nut WPL-WP488130
...
67
Switch WPL-B5171902
...
68
Nut A WPL-M0281401
...
69
Mtg Bracket-Control WPL-C5880101
...
70
Screw WPL-M0211530
...
71
Screw WPL-M0218116
...
72
Switch WPL-M0340101
...
73
Switch WPL-B5128502
...
74
Lock Nut WPL-M0289701
...
75
Escutcheon Assy WPL-C5882301
...
76
Bushing WPL-A3073601
...
77
Knob WPL-D7009804
...
78
Button-Off WPL-B5127303
...
79
Button-On WPL-B5127304
...
80
Button WPL-B1106601
...
81
Spring WPL-M0775101
...
82
Spring-Retainer WPL-A4689601
...
83
Screw WPL-M0229004
...
84
Spring WPL-A4663604
...
85
Screw WPL-M0232012
...
86
Clip,retainer WPL-M0115902
...
87
Screw WPL-WP90767
...
88
Thermostat WPL-B4170103
...
89
Nut WPL-M0287706
...
90
Cam WPL-C5237901
...
91
Damper Control WPL-B5109303
...
92
Clip WPL-M0110503
...
93
Clamp WPL-A4598401
...
94
Thermostat,defrost, Heat Pump WPL-C6351501
...
95
Thermostat WPL-B5105301

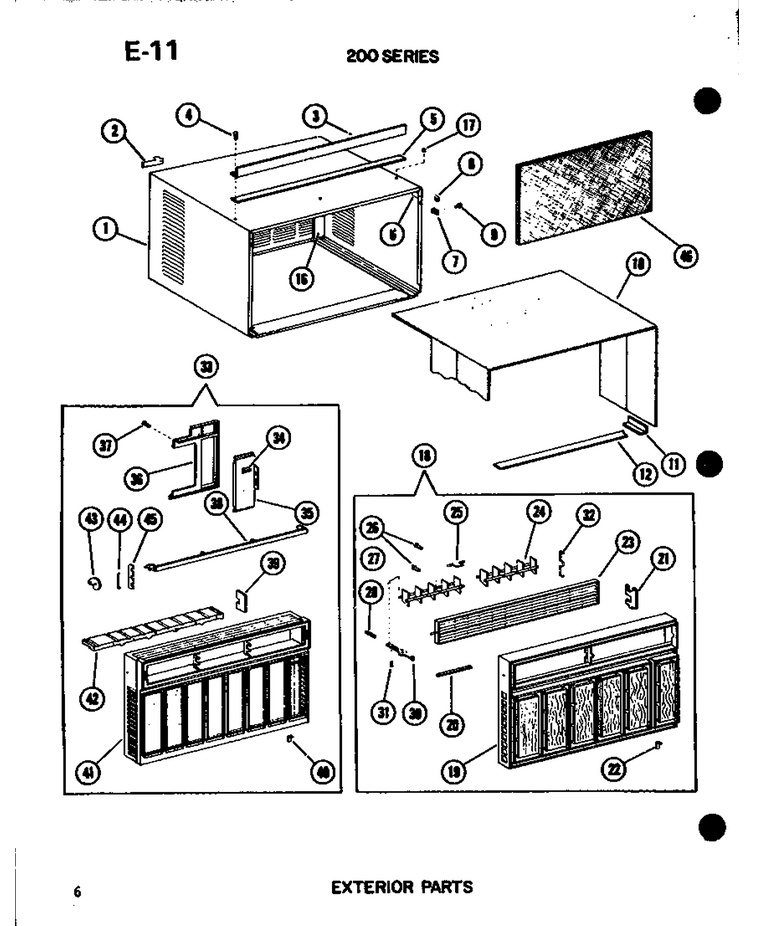

05 - Exterior Parts

...
...
1
Outer Case Weld WPL-D5378320
...
2
Nameplate WPL-B4115501
...
3
Angle-Top WPL-B1100701
...
4
Screw WPL-WP1163839
...
5
Gasket 1 WPL-10839714
...
6
Guide WPL-A4607401
...
7
Strike WPL-A4660001
...
8
Speed Nut WPL-M0288413
...
9
Thumb Screw K WPL-M0234916
...
10
Insulation-Oc WPL-C5912702
...
11
Gasket WPL-B5107615
...
12
Gasket WPL-10839707
...
16
Gasket-Per Ft WPL-A3030319
...
17
Plug WPL-M0310312
...
33
Front Assembly, Cabinet WPL-B1108801
...
34
Nameplate WPL-A4689701
...
35
Door, Cabinet Front, Decorator WPL-C5879601
...
36
Retainer WPL-D6939901
...
37
Screw,tc WPL-M0230017
...
38
Louver, Horizontal WPL-C5878602
...
39
Gasket Condenstate A WPL-B1110803
...
40
Hook, Cabinet Front Bottom To WPL-A4577806
...
41
Cabinet Front, Frame Only WPL-D5466601
...
42
Insulation WPL-D5473901
...
43
Wheel-Thumb WPL-A4688701
...
44
Spring WPL-A4697801
...
45
Tie Bar-Louver A WPL-A4688801
...
46
Filter WPL-D5373801

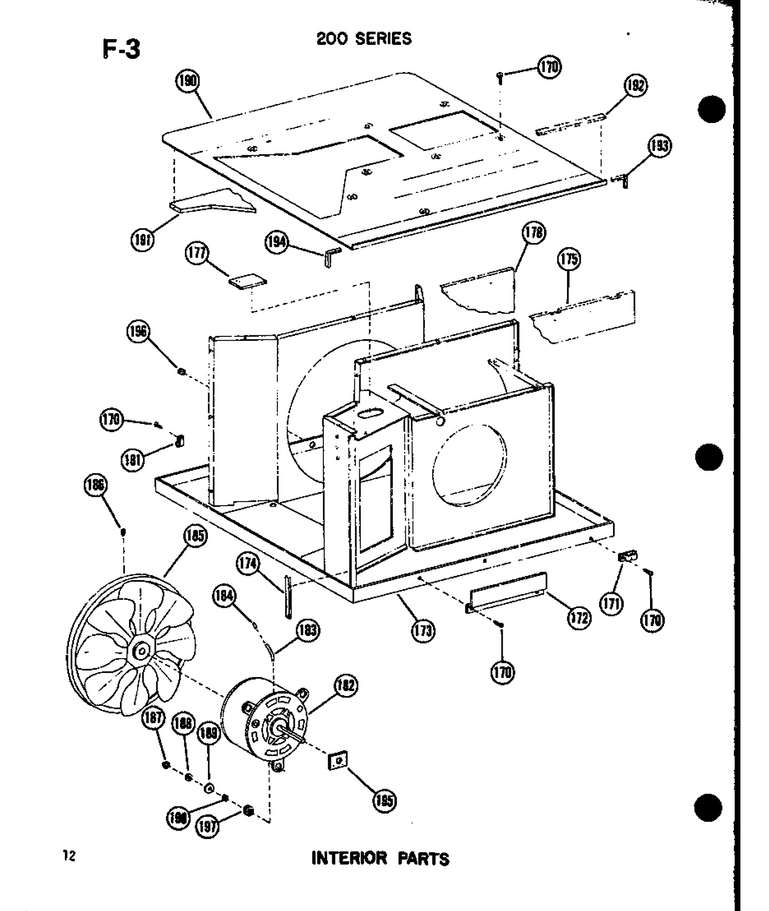

07 - Interior Parts

...
...
170
Kit, Screw WPL-R9800670
...
171
Clamp WPL-M0102101
...
172
Handle WPL-A4591402
...
173
Base Pan Weldment WPL-D5444725
...
174
Gasket WPL-B1106203
...
175
Insulation WPL-B1106102
...
177
Gasket, Partition Panel Extens WPL-B5107605
...
178
Insulation WPL-C5239302
...
181
Clamp WPL-M0102306
...
182
Fan Mtr, Franklin, Cy641192/87 WPL-C5262704Q
...
183
Oil Tube WPL-A4597701
...
184
Rivet Plastic WPL-A3032601
...
185
Fan Blade WPL-D5353102
...
186
Set Screw WPL-M0210104
...
187
Nut WPL-M0282009
...
188
Washer WPL-M0270504
...
189
Grommet WPL-M0500501
...
190
Cover Top Pnt WPL-D5538002
...
191
Insulation, Top Cover WPL-B1107201
...
192
Gasket WPL-B1106204
...
193
Gasket WPL-B1106201
...
194
Gasket WPL-B1106202
...
195
Gasket WPL-B5107608
...
196
Plug Button WPL-A3080003
...
197
Washer WPL-M0270519
...
198
Washer WPL-M0270529

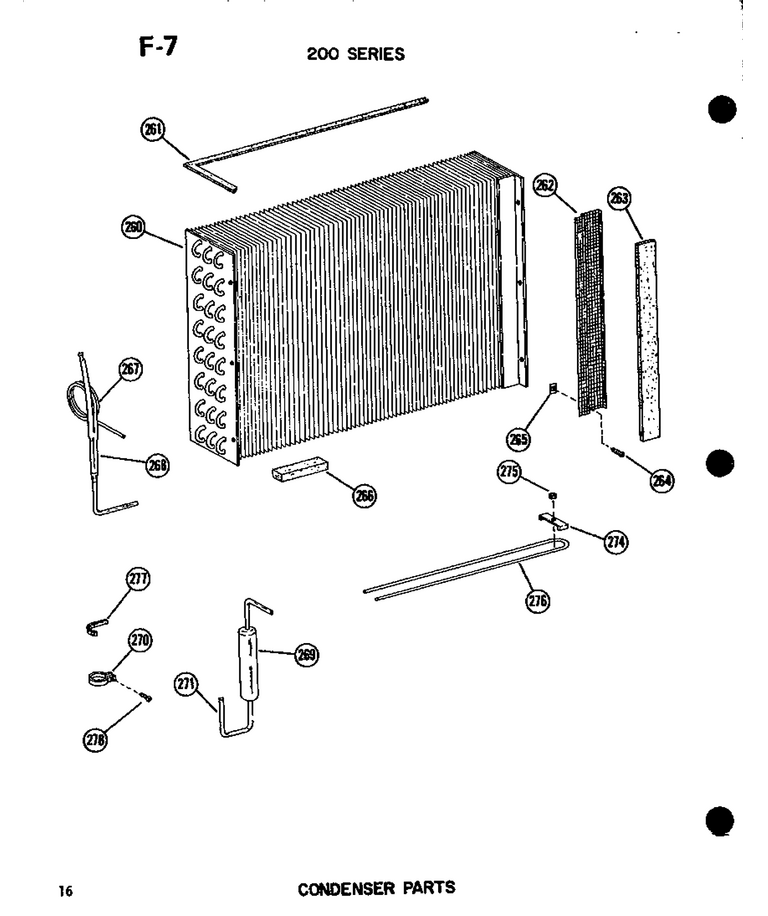

02 - Condenser Parts

...
...
162
Screen WPL-B5117101
...
260
Condenser Assy WPL-D5539401
...
261
Gasket-Per Ft WPL-A3030332
...
263
Gasket WPL-10839708
...
264
Screw WPL-W11233072
...
265
Speed Nut WPL-M0286201
...
267
Capillary Pref0rmed WPL-C5979401
...
268
Strainer WPL-B4143101
...
269
Muffler WPL-C5885803
...
270
Muffler Clamp Assy WPL-A4696501
...
271
Tube-Muffler-Desup WPL-B1112802
...
274
Clamp WPL-A4685101
...
275
Nut WPL-Y052721
...
276
Tube-Desuper Htr WPL-C5983401
...
277
Gasket-5.875`` WPL-B1114701
...
278
Kit, Screw WPL-R9800670

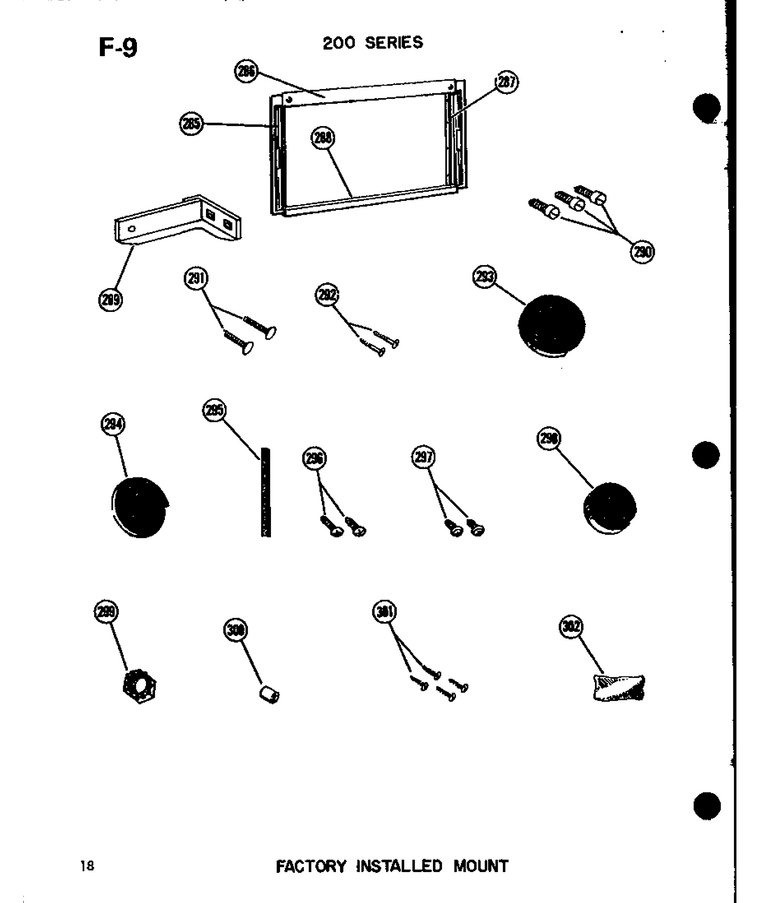

06 - Factory Installed Mount

...
...
289
Angle Support Weld WPL-C5872103
...
291
Screw Adjusting WPL-M0200003
...
292
Screw WPL-M0212062
...
293
Gasket (inch) WPL-A3030301
...
294
Gasket WPL-A3030302
...
295
Gasket WPL-10839702
...
298
Gasket-Polyethylene WPL-A4684201
...
299
Nut-Keps WPL-M0282019
...
300
Spacer K WPL-A4065501
...
301
Screw WPL-M0206557

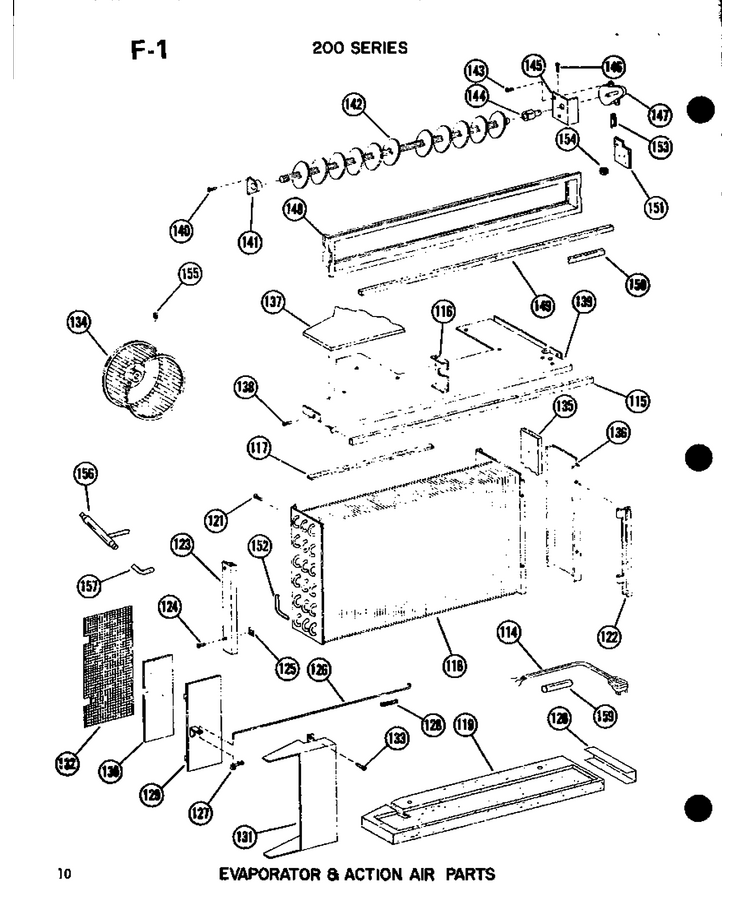

04 - Evap & Action Air Parts

...
...
114
Cord, Power WPL-C5283104
...
115
Gasket (per Foot) WPL-A3030303
...
116
Spacer,plenum WPL-B5170401
...
117
Gasket-Per Ft WPL-A3030332
...
118
Evaporator Assy WPL-D5539602
...
119
Filler Block WPL-D5350101
...
120
Shield,filler Block WPL-A4600001
...
121
Kit, Screw WPL-R9800670
...
122
Retainer WPL-B1108901
...
123
Retainer-Filter WPL-B5131902
...
125
Speed Nut WPL-M0288302
...
126
Rod WPL-B5106401
...
127
Clip WPL-M0110901
...
128
Spring WPL-B5109001
...
129
Damper Door WPL-C5236701
...
130
Gasket WPL-B5107601
...
132
Screen WPL-A4598501
...
134
Blower Wheel WPL-D5352101
...
135
Insulation WPL-A4622001
...
136
Barrier WPL-B5107002
...
137
Insulation WPL-B1177701
...
138
Screw WPL-M0211545
...
139
Cover, Evap Pnt WPL-D5466404
...
140
Screw WPL-M0211530
...
141
Bearing WPL-A4653401
...
142
Deflector WPL-C5827501
...
143
Screw WPL-WP90767
...
144
Extension WPL-A4653501
...
145
Lever WPL-A4653301
...
146
Screw WPL-M0211314
...
147
Motor WPL-M0370901
...
148
Collar-Outlet WPL-C5881101
...
150
Tape Per Roll WPL-M0275132
...
153
Sleeve WPL-A4658901
...
154
Grommet WPL-A0349901
...
155
Set Screw WPL-M0210104
...
156
Strainer WPL-A4097401
...
157
Elbow WPL-A3318302
...
159
Sleeve WPL-M0321016
