Amana 2090.000

Model: 2090.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

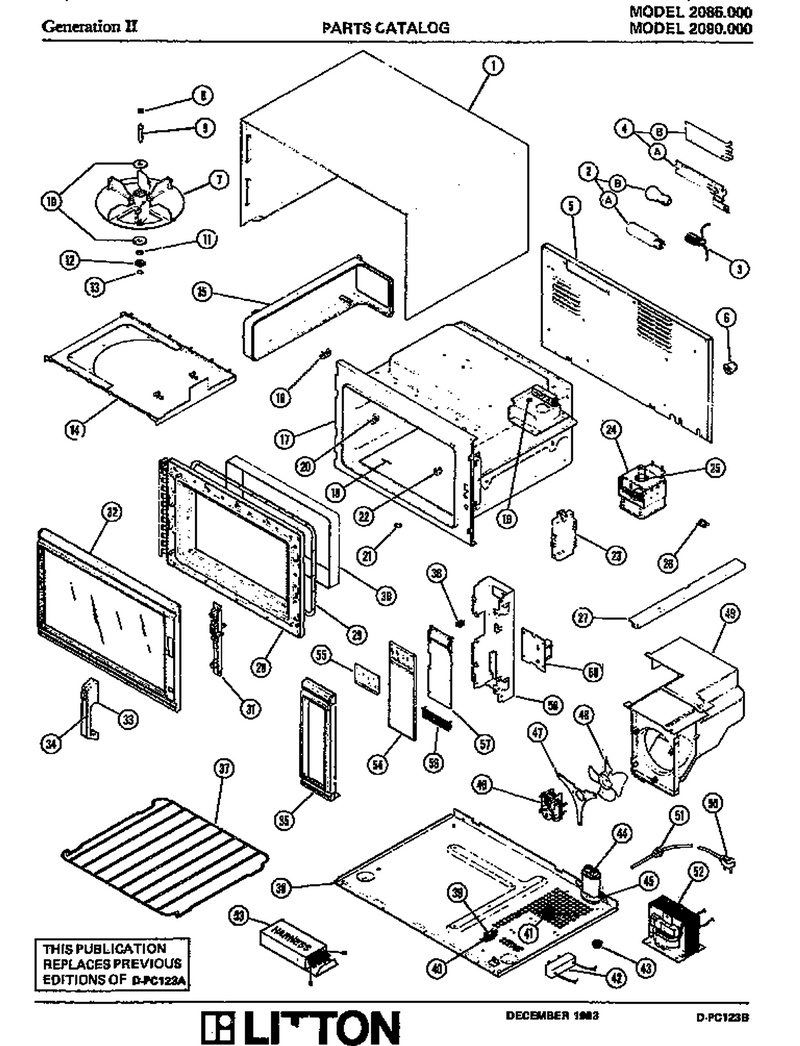

01 - Page 1

...
...
NI
Menue Label WPL-M94D392
...
1
Screw WPL-WP90767
...
2
Bulb WPL-M9D91
...
3
Lamp Holder WPL-40082P01
...
4
Lamp Access Door WPL-M20D216
...
5
Back Panel WPL-M82D178
...
6
Screw WPL-WP489474
...
7
Stirrer Kit WPL-M35D41
...
8
Nut-Ziptwist WPL-M1D907
...
9
Hanger Stirrer Kit WPL-M2D594
...
10
Bearing Stirrer WPL-M2D595
...
11
Wshr Stirrer WPL-M2D596
...
12
Washer, Shoulder WPL-M2D597
...
13
Clip Stirrer WPL-M2D603
...
14
M45d30 Stir Cover Assy WPL-M45D26
...
15
Exhaust Duct WPL-M65D282
...
16
Fuse- Ther WPL-59001951
...
17
Cavity Assembly WPL-M77D125
...
18
Shelf W/sealant Kit WPL-M50D40
...
19
Not Available WPL-M2D598
...
20
Rack Support C-Type Wht WPL-3010010002
...
21
Cavity Plug (10) WPL-M1D755
...
22
Support Rack WPL-B8371001
...
23
U-Clip WPL-M2D575
...
24
Nut, Magnetron Mounting WPL-M16D619
...
25
Gasket-Rf WPL-M2D296
...
26
Screw Thrm WPL-M1D666
...
27
Screw WPL-WP90767
...
28
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
29
Gasket-R.f. WPL-38874P01
...
30
Cap Inner Door Assy Kit WPL-M55D17
...
31
Bkg Plate Assy. WPL-M20D218
...
32
Outer Door Assy Kit WPL-M70D86
...
33
No.10 Flat Hd Machine Screw M1d9 WPL-M1D901
...
34
Insert Kit WPL-M7D588
...
35
Frame WPL-M7D637
...
36
Speed Clip WPL-41657P01
...
37
Rack (white) Kit WPL-M67D32
...
38
Rivet, Pop WPL-A4539629
...
39
Fuse 20 A WPL-WPM0805101
...
40
Ia Screw WPL-M1D329
...
41
Screw WPL-WPW10068250
...
42
Screw WPL-WPW10001160
...
43
Screw (25) WPL-M1D21
...
44
Capacitor, Hv (m10d99) WPL-M10D94
...
45
Bracket WPL-10825501
...
46
Motor, Blower WPL-46587P01
...
47
Bracket Blower WPL-M20D219
...
48
Fan Blade WPL-M35D40
...
49
Screw Plastc (25) WPL-M1D897
...
50
Flat Washer (1) WPL-M1D56
...
51
Bush, Strain Relf (10) WPL-M1D600
...
52
No.10 T X 3/8`` Screw WPL-M1D479
...
53
H.v. Lead Kit WPL-M5D350
...
54
Touch Panel Assy. M7d596 WPL-M7D596
...
55
Window Dspl WPL-40474P08
...
56
Not Available WPL-M8D253
...
57
Electronic Circuit Board WPL-M32R34
...
58
Cont Pnl Housing WPL-M7D609
...
59
Module,auxilary WPL-M22D53
