product name

Amana 2089.004

Model: 2089.004

Save Part Not Listed?
product name

Popular Parts

Popular Parts

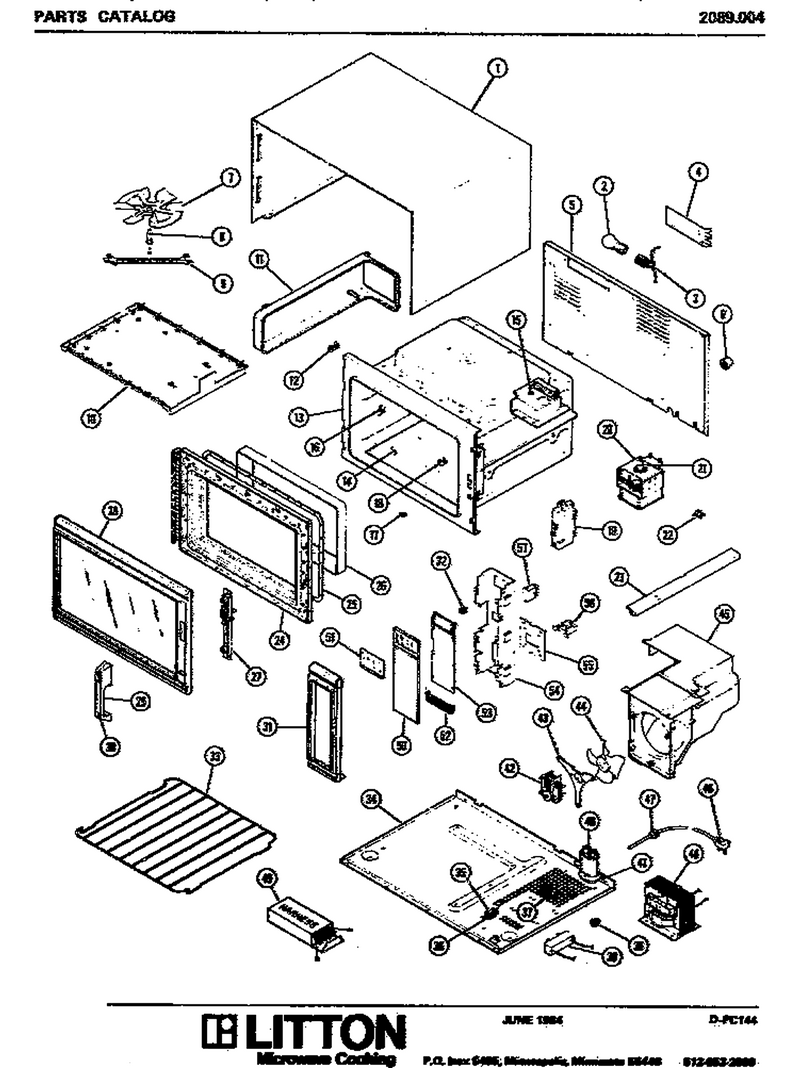

01 - Page 1

...
...
NI
Menu Guide Label WPL-M94D393
...
1
Screw WPL-WP90767
...
2
Light Bulb WPL-8009
...
3
Lamp Holder WPL-40082P01
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
6
Foot, Outer Case WPL-C8960601
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Ball WPL-38321P01
...
9
Support-Stir WPL-M20D236
...
10
Poly Button WPL-M1D832
...
11
Screw Plastc (25) WPL-M1D897
...
12
Screw (25) WPL-M1D898
...
13
Cavity Assy WPL-M77D132
...
14
Shelf W/sealant Kit WPL-M50D40
...
15
Not Available WPL-M2D598
...
16
Rack Support C-Type Wht WPL-3010010002
...
17
Cavity Plug (10) WPL-M1D755
...
18
Support Rack WPL-B8371001
...
19
Switch, Interlock WPL-M14D253
...
20
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
21
Gasket-Rf WPL-M2D296
...
22
Cutout-Thermal-Control WPL-31866P01
...
23
Screw WPL-WP90767
...
24
Inner Door Assy M70d75 WPL-92521P01
...
25
Gasket-R.f. WPL-38874P01
...
26
Cap Inner Door Assy Kit WPL-M55D17
...
27
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
28
Screw Frame WPL-41327P01
...
29
No.10 Flat Hd Machine Screw M1d9 WPL-M1D901
...
30
Insert Kit WPL-M7D588
...
31
No.8 Ab X 3/8`` Screw WPL-M1D900
...
32
Speed Clip WPL-41657P01
...
33
Rack (white) Kit WPL-M67D32
...
34
Rivet, Pop WPL-A4539629
...
35
Fuse 20 A WPL-WPM0805101
...
36
Ia Screw WPL-M1D329
...
37
Lock Washer WPL-M0272803
...
38
Screw WPL-WPW10001160
...
39
Screw (25) WPL-M1D21
...
40
High Voltage Capacitor WPL-M10D87
...
41
Screw WPL-WP90767
...
42
Nut K WPL-M0282005
...
43
Screw (25) WPL-M1D903
...
44
Fan Blade WPL-M35D40
...
45
Screw Plastc (25) WPL-M1D897
...
46
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
47
Strain Relief WPL-Y0057183
...
48
Hv Trans Mod Kit WPL-M60D112
...
49
H.v. Lead Kit WPL-M5D350
...
50
M7d632 Membrane, Touch Pnl WPL-96844P01
...
51
Display Window WPL-M2D599
...
52
Not Available WPL-M8D253
...
53
Electronic Circuit Board WPL-M32R34
...
54
Cont Pnl Hsg WPL-M7D703
...
55
Screw WPL-WP90767
...
56
Screw WPL-WP90767
...
57
Screw WPL-WP90767
Schematic Image Zoomed
