Amana 2070.004

Model: 2070.004

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Use And Care Manual WPL-M94D419
...
1
Outer Case WPL-M80D121
...
2
Back Panel WPL-M82D178
...
3
Light Bulb WPL-8009
...
4
Cover Lamp WPL-M7D309
...
5
Lamp Holder WPL-40082P01
...
6
Screw WPL-WP489474
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Insert Stirrer Kit WPL-M2D571
...
9
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
10
Poly Button WPL-M1D832
...
11
Screw Plastc (25) WPL-M1D897
...
12
Fuse- Ther WPL-59001951
...
13
Cavity Assy WPL-M77D132
...
14
Adhesive WPL-W10841140
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
3/8 Int Tooth Lockwasher WPL-M1D598
...
17
Support Rack WPL-B8371001
...
19
U-Clip WPL-M2D575
...
20
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
21
Gasket-Rf WPL-M2D296
...
22
Screw Thrm WPL-M1D666
...
23
Screw WPL-WP90767
...
24
Inner Door Assy M70d75 WPL-92521P01
...
25
Gasket-R.f. WPL-38874P01
...
26
Cap Inner Door Assy Kit WPL-M55D17
...
27
Bkg Plate Assy. WPL-M20D218
...
28
Outer Door Assy Kit WPL-M70D86
...
29
No.10 Flat Hd Machine Screw M1d9 WPL-M1D901
...
30
Insert Kit WPL-M7D588
...
31
Screw (25) WPL-M1D902
...
32
Speed Clip WPL-41657P01
...
33
Rack (white) Kit WPL-M67D32
...
34
Rivet, Pop WPL-A4539629
...
35
Fuse 20 A WPL-WPM0805101
...
36
Ia Screw WPL-M1D329
...
37
Kit, Diode WPL-M3D71
...
38
Foot WPL-M2D179
...
39
Capacitor-.69 WPL-59001160
...
40
Bracket WPL-10825501
...
41
Nut K WPL-M0282005
...
42
Bracket Blower WPL-M20D219
...
43
Fan Blade WPL-M35D40
...
44
Blower Duct Assembly WPL-M65D283
...
45
Power Cord WPL-1731300202
...
46
Strain Relief WPL-Y0057183
...
47
Kit, Transformer WPL-M60D181
...
48
H.v. Lead Kit WPL-M5D350
...
49
Touch Panel Assembly WPL-M7D602
...
50
Display Window WPL-M2D607
...
51
Not Available WPL-M8D253
...
52
Screw (25) WPL-M1D590
...
53
Cont Pnl Hsg WPL-M7D703
...
54
Screw WPL-WP90767
...
55
Screw WPL-WP90767
...
56
Screw WPL-WP90767
...
57
Screw (25) WPL-M1D590
...
58
Screw WPL-WP90767
...
59
Probe-Temp WPL-45584P01

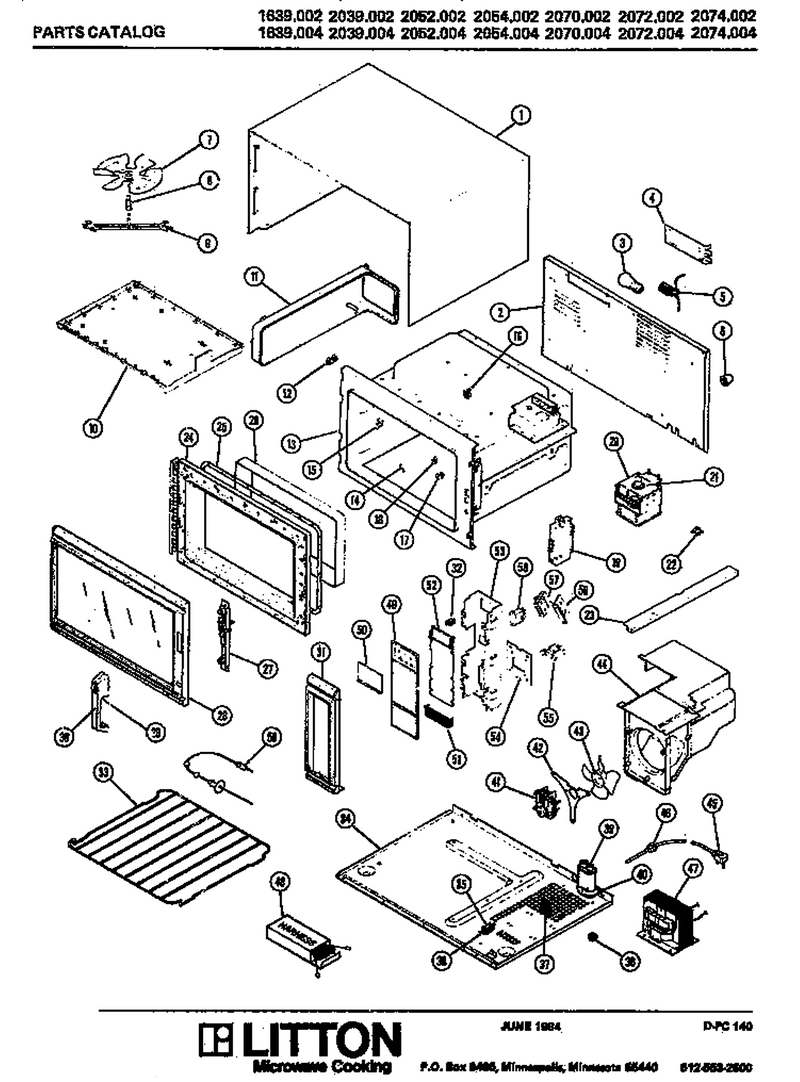

Schematic Image Zoomed
