Amana 2036.001

Model: 2036.001

Save Part Not Listed?
product name

Popular Parts

Popular Parts

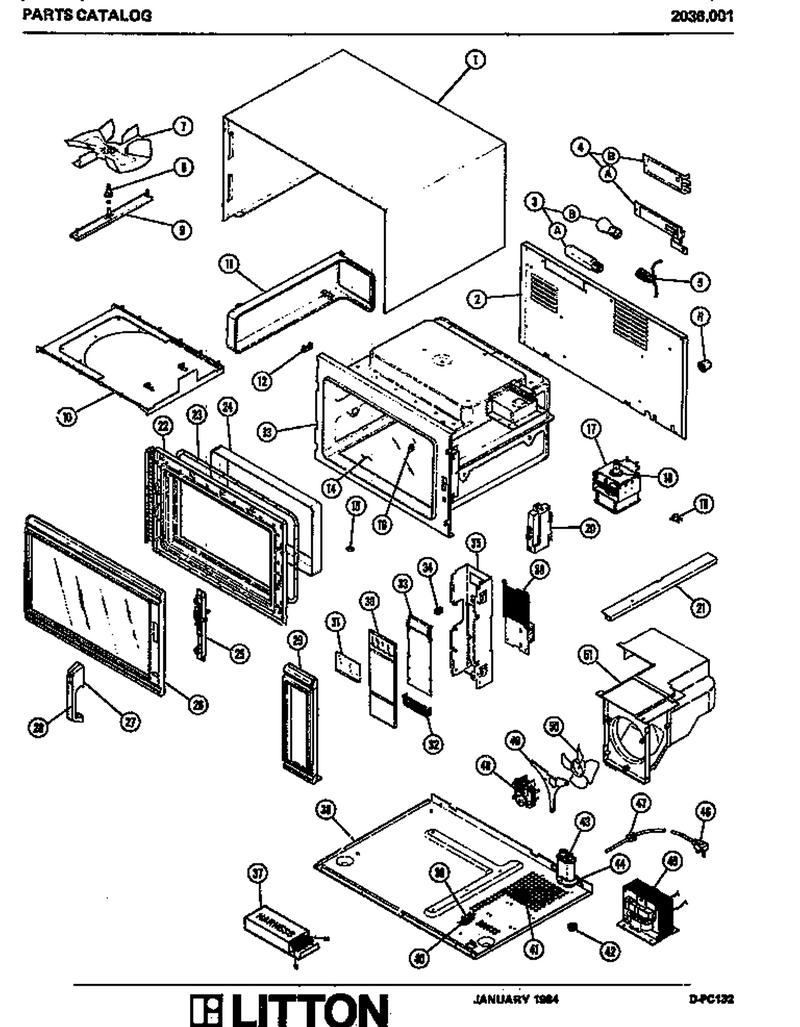

01 - Page 1

...
...
NI
Paint-Blac WPL-R0197056
...
1
Outer Case WPL-M80D121
...
2
Screw WPL-WP90767
...
3
Light Bulb WPL-8009
...
4
Screw WPL-WP90767
...
5
Lamp Holder WPL-40082P01
...
6
Foot, Outer Case WPL-C8960601
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Stirrer Support Bar WPL-M20D233
...
10
M45d30 Stir Cover Assy WPL-M45D30
...
11
Screw Plastc (25) WPL-M1D897
...
12
Screw (25) WPL-M1D898
...
13
Cavity Assembly WPL-M77D124
...
14
Shelf W/sealant Kit WPL-M50D40
...
15
Cavity Plug (10) WPL-M1D755
...
16
Rack Support Set WPL-M2D601
...
17
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
18
Gasket-Rf WPL-M2D296
...
19
Cutout-Thermal-Control WPL-31866P01
...
20
Switch, Interlock WPL-M14D253
...
21
Not Available WPL-M20D217
...
22
Inner Door Assy M70d75 WPL-92521P01
...
23
Gasket-R.f. WPL-38874P01
...
24
Cap Inner Door Assy Kit WPL-M55D17
...
25
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
26
Screw Frame WPL-41327P01
...
27
Door Handle Kit WPL-M11D61
...
28
Insert Kit WPL-M7D588
...
29
Screw (25) WPL-M1D902
...
30
Touch Panel Assy M7d651 WPL-M7D651
...
31
Display Window WPL-M2D633
...
32
Not Available WPL-M8D253
...
33
Net-Assy,ckt Bd WPL-M32R32
...
34
Speed Clip WPL-41657P01
...
35
Cont Pnl Housing WPL-M7D609
...
36
Screw (25) WPL-M1D590
...
37
H.v. Lead Kit WPL-M5D350
...
38
Rivet, Pop WPL-A4539629
...
39
Fuse 20 A WPL-WPM0805101
...
40
Ia Screw WPL-M1D329
...
41
Lock Washer WPL-M0272803
...
42
Nut WPL-WP488130
...
43
Capacitor-.69 WPL-59001160
...
44
Screw WPL-WP90767
...
45
Kit, Transformer WPL-M60D181
...
46
Power Cord WPL-1731300202
...
47
Bush, Strain Relf (10) WPL-M1D600
...
48
Nut K WPL-M0282005
...
49
Screw (25) WPL-M1D903
...
50
Fan Blade WPL-M35D40
...
51
Blower Duct Assembly WPL-M65D283
