product name

Amana 2022.004

Model: 2022.004

Save Part Not Listed?
product name

Popular Parts

Popular Parts

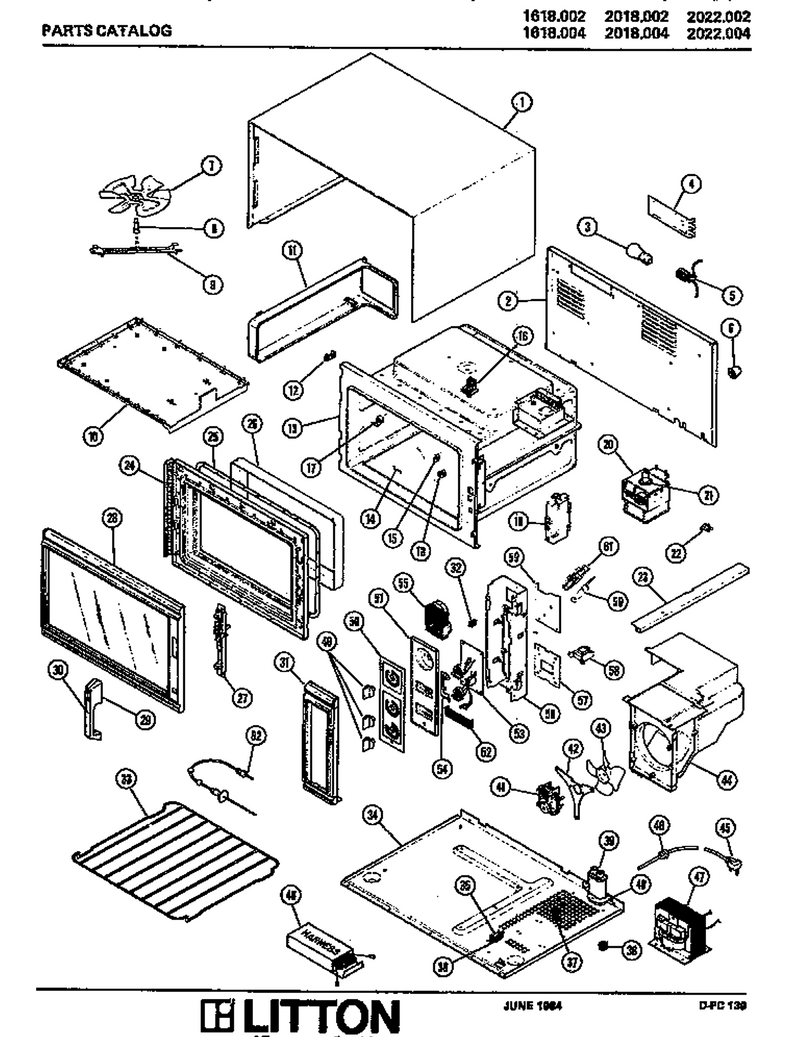

01 - Page 1

...
...
NI
U & C Mnl 1618,2018,2022. WPL-M94D418
...
1
Screw WPL-WP90767
...
2
Screw WPL-WP90767
...
3
Light Bulb WPL-8009
...
4
Screw WPL-WP90767
...
5
Lamp Holder WPL-40082P01
...
6
Foot, Outer Case WPL-C8960601
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Ball WPL-38321P01
...
9
Support-Stir WPL-M20D236
...
10
Poly Button WPL-M1D832
...
11
Screw Plastc (25) WPL-M1D897
...
12
Screw (25) WPL-M1D898
...
13
Cavity Assy WPL-M77D132
...
14
Shelf W/sealant Kit WPL-M50D40
...
15
Rack Support Set WPL-M2D601
...
16
Probe Jack WPL-M14D247
...
17
Rack Support C-Type Wht WPL-3010010002
...
18
Support Rack WPL-B8371001
...
19
Switch, Interlock WPL-M14D253
...
20
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
21
Gasket-Rf WPL-M2D296
...
22
Cutout-Thermal-Control WPL-31866P01
...
23
Screw WPL-WP90767
...
24
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
25
Gasket-R.f. WPL-38874P01
...
26
Cap Inner Door Assy Kit WPL-M55D17
...
27
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
28
No.8 Ab X 3/8`` Screw WPL-M1D900
...
29
Door Handle Kit WPL-M11D61
...
30
Insert Kit WPL-M7D588
...
31
Cont Pnl Frame WPL-M7D589
...
32
Speed Clip WPL-41657P01
...
33
Rack (white) Kit WPL-M67D32
...
34
Display Window WPL-M2D608
...
35
Fuse 20 A WPL-WPM0805101
...
36
Ia Screw WPL-M1D329
...
37
Nut WPL-WP488130
...
38
Screw (25) WPL-M1D21
...
39
Capacitor-.69 WPL-59001160
...
40
Screw WPL-WP90767
...
41
Nut K WPL-M0282005
...
42
Screw (25) WPL-M1D903
...
43
Fan Blade WPL-M35D40
...
44
Screw Plastc (25) WPL-M1D897
...
45
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
46
Strain Relief WPL-Y0057183
...
47
Kit, Transformer WPL-M60D181
...
48
H.v. Lead Kit WPL-M5D350
...
49
Knob, Timer/controller WPL-M6D298
...
50
Dec Pnl WPL-M7D606
...
51
Comp Mtg Plate WPL-M7D607
...
52
Not Available WPL-M8D253
...
53
Screw (25) WPL-M1D590
...
54
Brkt, Ground WPL-M8D254
...
55
Screw Thrm WPL-M1D666
...
56
Screw WPL-WP90767
...
57
Screw WPL-WP90767
...
58
Screw WPL-WP90767
...
59
Screw WPL-WP90767
...
60
Screw WPL-WP90767
...
61
Triac WPL-M16D93
...
62
Probe-Temp WPL-45584P01
