Amana 2018.001

Model: 2018.001

Save Part Not Listed?
product name

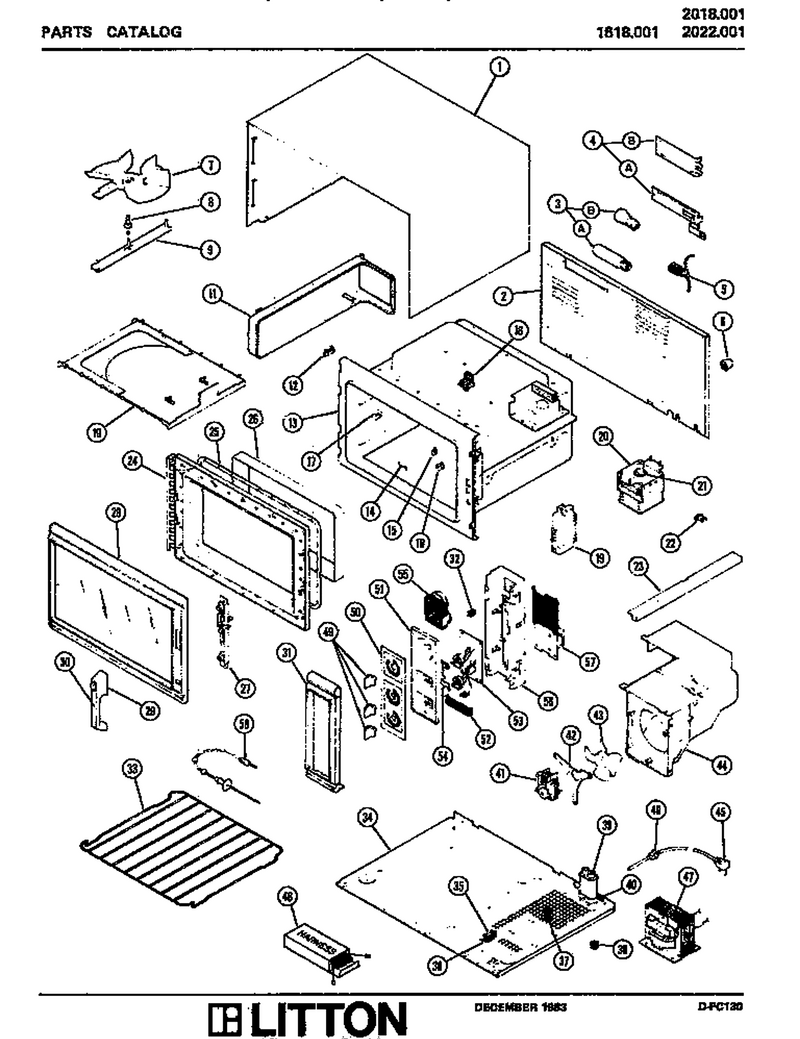

01 - Page 1

...
...
NI
Paint-Off- WPL-R0197018
...
1
Outer Case WPL-M80D121
...
2
Back Panel WPL-M82D178
...
3
Bulb WPL-M9D91
...
4
Lamp Access Door WPL-M20D216
...
5
Lamp Holder WPL-40082P01
...
6
Screw WPL-WP489474
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Stirrer Support Bar WPL-M20D233
...
10
M45d30 Stir Cover Assy WPL-M45D30
...
11
Screw Plastc (25) WPL-M1D897
...
12
Fuse- Ther WPL-59001951
...
13
Cavity Assembly WPL-M77D124
...
14
Adhesive WPL-W10841140
...
15
Rack Support Set WPL-M2D601
...
16
No.3/8-32 Hex Nut (25) WPL-M1D615
...
17
Rack Support C-Type Wht WPL-3010010002
...
18
Support Rack WPL-B8371001
...
19
U-Clip WPL-M2D575
...
20
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
21
Gasket-Rf WPL-M2D296
...
22
Screw Thrm WPL-M1D666
...
23
Screw WPL-WP90767
...
24
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
25
Gasket-R.f. WPL-38874P01
...
26
Cap Inner Door Assy Kit WPL-M55D17
...
27
Bkg Plate Assy. WPL-M20D218
...
28
Screw Frame WPL-41327P01
...
29
No.10 Flat Hd Machine Screw M1d9 WPL-M1D901
...
30
Insert Kit WPL-M7D588
...
31
Cont Panel Frame WPL-M7D590
...
32
Speed Clip WPL-41657P01
...
33
Rack (white) Kit WPL-M67D32
...
34
Display Window WPL-M2D608
...
35
Fuse 20 A WPL-WPM0805101
...
36
Ia Screw WPL-M1D329
...
37
Screw WPL-WPW10068250
...
38
Screw (25) WPL-M1D21
...
39
Capacitor-.69 WPL-59001160
...
40
Bracket WPL-10825501
...
41
Motor, Blower WPL-46587P01
...
42
Bracket Blower WPL-M20D219
...
43
Fan Blade WPL-M35D40
...
44
Screw Plastc (25) WPL-M1D897
...
45
Flat Washer (1) WPL-M1D56
...
46
Bush, Strain Relf (10) WPL-M1D600
...
47
No.10 T X 3/8`` Screw WPL-M1D479
...
48
H.v. Lead Kit WPL-M5D350
...
49
Knob, Timer/controller WPL-M6D298
...
50
Dec Pnl WPL-M7D605
...
51
Comp Mtg Plate WPL-M7D607
...
52
Not Available WPL-M8D253
...
53
Screw (25) WPL-M1D590
...
54
Brkt, Ground WPL-M8D254
...
55
Timer, 45 Minute WPL-M30D83
...
56
Not Available WPL-M7D608
...
57
Screw (25) WPL-M1D590
...
58
Probe-Temp WPL-45584P01
