Amana 1999CIWA (BOM: P1121502W L)

Model: 1999CIWA (BOM: P1121502W L)

Save Part Not Listed?
product name

06 - Fz Shelving And Ref Light

...
...
1
Trim, Frz Shelf WPL-D7616620
...
2
Basket, Frz WPL-D7781407
...
3
Freezer Shelf WPL-D7781502
...
4
Heater Defrost WPL-D7718301
...
5
Shelf Wire Frz WPL-D7788302
...
6
Trim, Rear Frz Shelf WPL-C8913515
...
7
Trim, Rear Frz Shelf WPL-C8913607
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate-Light Socket WPL-D7753503
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680306
...
14
Cover Light WPL-D7749002
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Barrier Frz. WPL-C8976401
...
18
Barrier, Frz Side WPL-C8974501
...
19
Glide, Container (left) WPL-67005375
...
20
Glide, Frz. (rt) WPL-67004323
...
21
Screw, Handle WPL-67006529
...
22
Plug, Frz Shelf Support WPL-C8973701
...
23
Grommet, Screw WPL-M0580007
...
24
Screw (3) WPL-67006425
...
25
Socket, Dual Lamp WPL-D7808602
...
26
Insulation WPL-C8778301
...
27
Shield, Light WPL-10014706
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716409
...
30
Clip, Ground WPL-B5733302
...
31
Rack, Juice V WPL-D7839703
...
32
Insert, Juice Rack WPL-C8986123
...
34
Harness Outer Inr. WPL-10338901

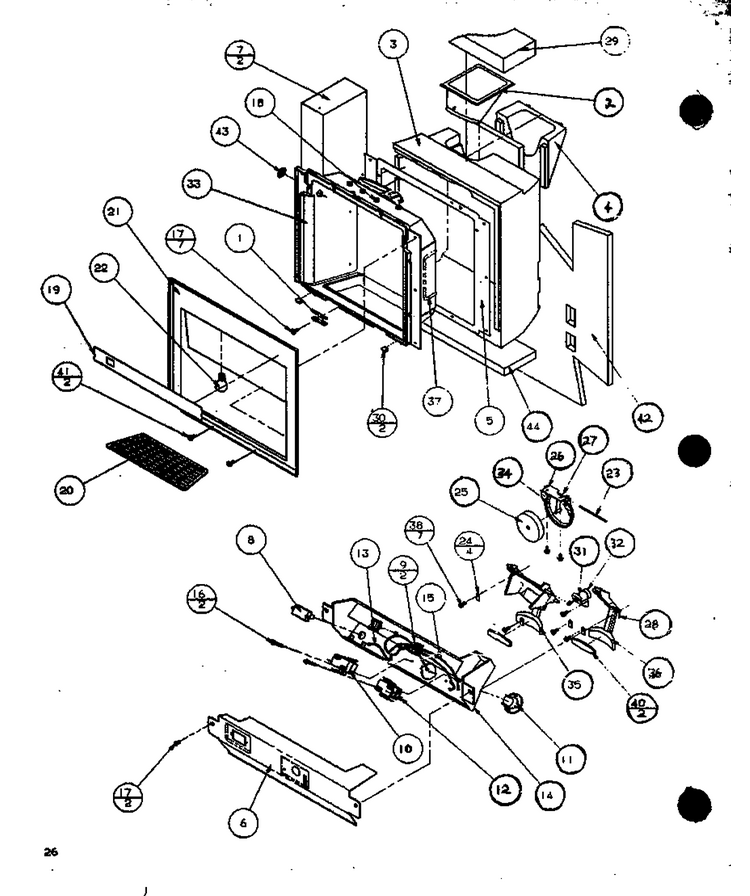

07 - Ice And Water Cavity

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Clip WPL-C8992901
...
2
Ice, Chute WPL-D7750702
...
3
Insulation I & W Cav. WPL-D7789602
...
4
Insul I & W Cavity WPL-D7790901
...
5
Gasket Cavity WPL-D7791002
...
6
Cover Elect Brkt WPL-10131804
...
7
Insulation Batt WPL-10270904
...
8
Switch-Light Cavity WPL-10166101
...
9
Wire Clip WPL-B5667304
...
10
Assy, Limit Switch WPL-C8972702
...
11
Socket, Light WPL-10131701
...
12
Kit, Limit Switch WPL-C8972701
...
13
Wire-Jumper WPL-D7726590
...
14
Bracket, Elec Mtg WPL-10323301
...
15
Wire, Jumper WPL-D7726597
...
16
Screw WPL-M0234008
...
17
Screw-Sm/hex WPL-12990523
...
18
Retainer, Ring WPL-M0274701
...
19
Thinplate, Facade WPL-C8986013
...
20
Grille, Sump L WPL-D7750605
...
21
Facade, Dispenser WPL-D7877514
...
22
Bulb-Light WPL-W10857122
...
23
Pin, Chute Door WPL-A1061501
...
24
Retainer, Ice Arm WPL-A1061601
...
25
Insulation, Chute Door WPL-B8380701
...
26
Brkt-Chute Door WPL-B8380801
...
27
Spring,chute Door WPL-B8380901
...
28
Spring, Return WPL-B8385401
...
29
Insulation Batt WPL-B5629058
...
30
Clip WPL-W10819546
...
31
Retainer Door Delay WPL-C8972501
...
32
Delay, Door WPL-C8973601
...
33
Cavity, Dispenser L. Wb WPL-10198002
...
34
Kit,chute Dr No.3 WPL-10246601
...
35
Arm-Dispsr WPL-12002642
...
36
Arm-Dispsr WPL-12002642
...
37
Heater-Cavity WPL-10176101
...
38
Screw WPL-WP90767
...
40
Pad, Actuating WPL-B8390201
...
41
Screw WPL-M0219640
...
42
Insulation Batt WPL-10220201
...
43
Plug Button WPL-M0311401
...
44
Insulation Batt WPL-B5629054

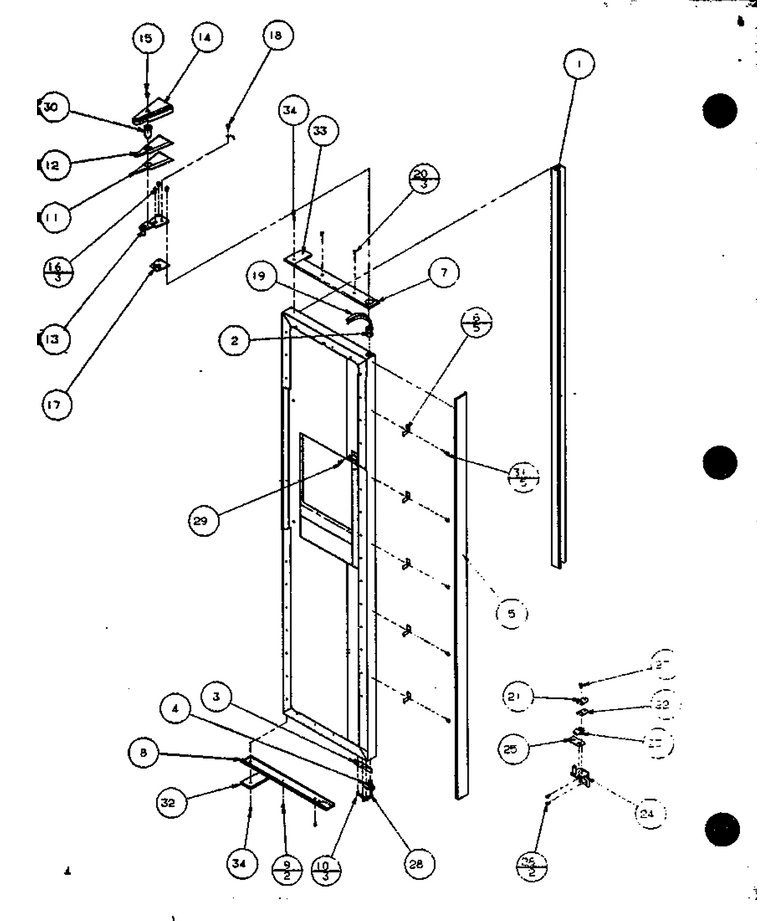

04 - Fz Door

...
...
1
Handle, Door WPL-D7573714
...
2
Bushing- D WPL-WP67004977
...
3
Stop, Door (blk) WPL-12636401B
...
4
Kit,dr Closure WPL-R0181181
...
10
Screw WPL-WP98165
...
11
Insulation, Hinge Cover WPL-10126501
...
12
Foil, Hinge Cover V/a WPL-10126601
...
13
Top Hinge-E Ct WPL-12077313
...
14
Hinge Cover - Chrome WPL-10126401
...
15
Screw WPL-WP8281196
...
16
Kit, Screw WPL-R9800670
...
17
Shim, Top Hinge WPL-B8389007
...
18
Screw WPL-W11214483
...
19
Harness Frz Door WPL-10339101
...
21
Shim, Door Closure WPL-B8387701
...
22
Shim, Door Closure WPL-B8387702
...
23
Kit,dr Closure WPL-R0181181
...
24
Bottom Hinge, Frz WPL-10163601
...
25
Kit,btm Hinge Shim WPL-B8386703
...
26
Screw WPL-WP67006715
...
27
Screw WPL-WP489128
...
28
Tube WPL-WPB5705307
...
29
Screw WPL-WP489399
...
30
Tubing Plastic WPL-A3012532
...
32
End Cap, Handle WPL-C8878901
...
33
End Cap, Handle WPL-C8878902
...
34
Screw WPL-8169479

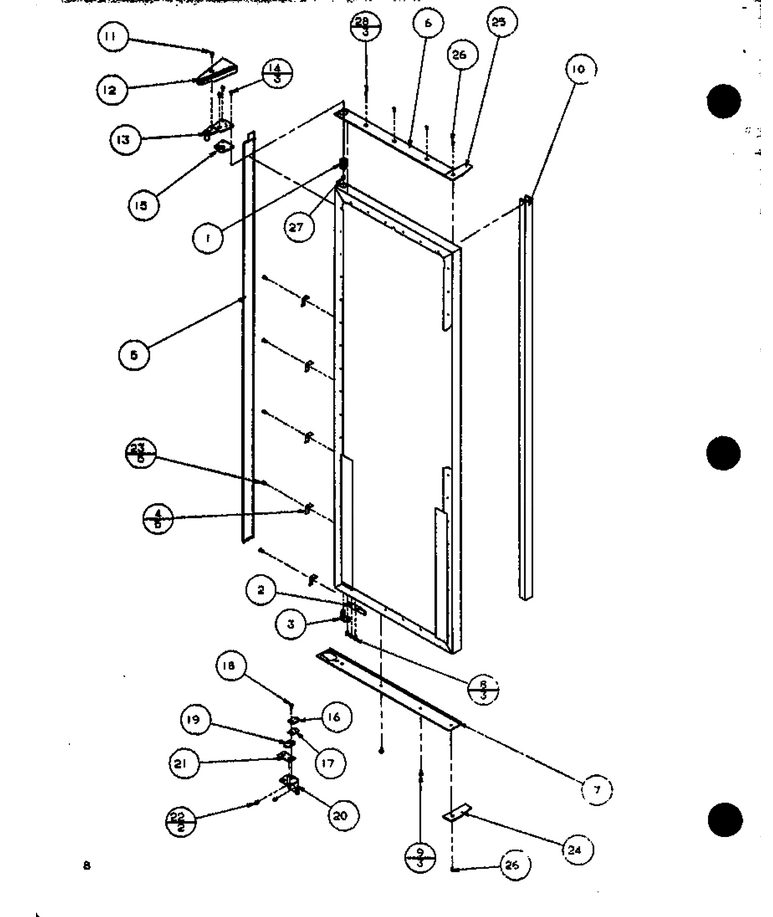

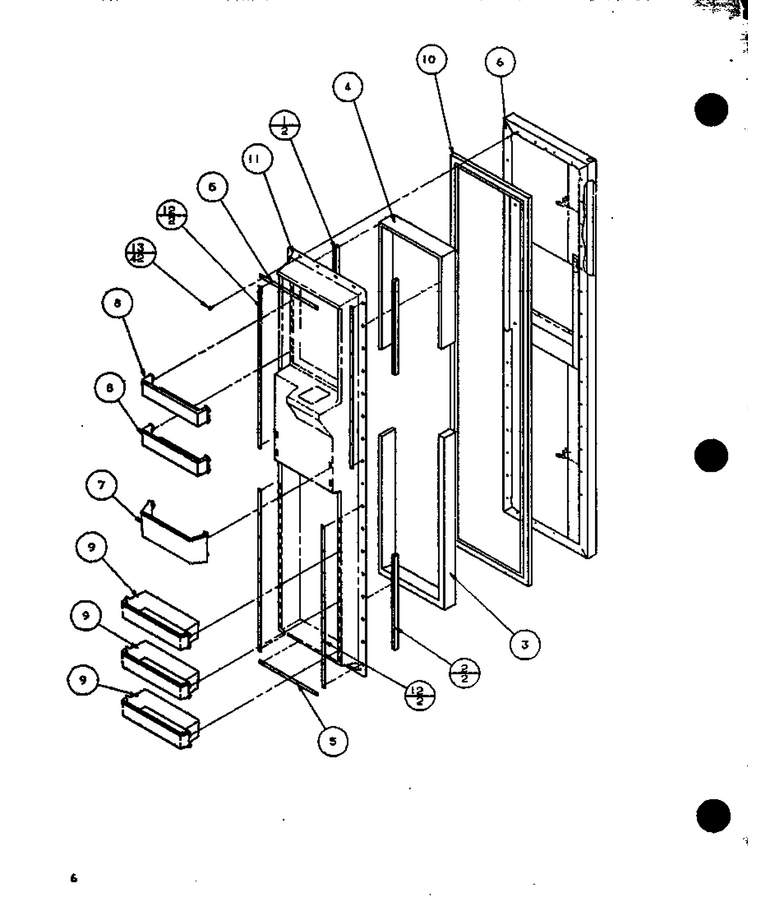

05 - Fz Door

...
...
1
Seal, Door Dike WPL-C8987101
...
2
Seal, Door Dike WPL-C8987103
...
3
Insul. By The Ft. WPL-B0523562
...
4
Insulation, Per Ft. WPL-B0523583
...
5
Retainer, Door Liner WPL-C8982801
...
6
Assy, Frz Door (almond) WPL-10284003L
...
7
Half Shelf Fr. Dr. WPL-D7783506
...
8
Shelf Frz Dr WPL-D7783605
...
9
Bucket Fz. Door WPL-D7783705
...
10
Gasket W WPL-WP10359709Q
...
11
Inner Door Frz WPL-D7828503
...
12
Retainer, Door Liner WPL-D7828601
...
13
Screw WPL-WPM0219730

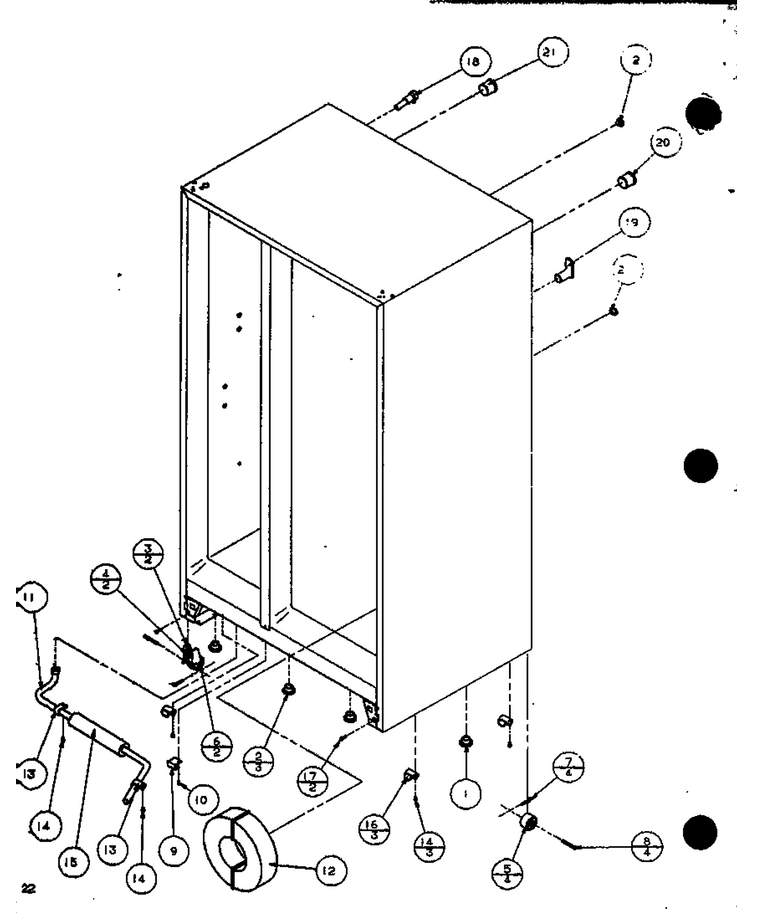

01 - Cabinet Back

...
...
NI
Insert- Pl WPL-WPA3223101
...
1
Spring WPL-WPA1055105
...
2
Spring K WPL-A1055102
...
3
Saddle Valve WPL-A3034801
...
4
Coupling WPL-10244901
...
5
Clip, Water Valve WPL-10798001
...
6
Bracket WPL-WPD7701602
...
7
Valve-Inlt WPL-WPW10245167
...
8
Heat Ex Cover WPL-D7751609
...
9
Clip- Spee WPL-WPM0114003
...
10
Screw WPL-WP90767
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut WPL-WP627018
...
13
Nut WPL-8201513
...
14
Tube WPL-WPB5705307
...
16
Clamp WPL-M0103901
...
17
Screw WPL-WP489399
...
18
Tank, Coil Water WPL-D7787802
...
19
Screw WPL-WP489069
...
20
Screw WPL-WP90767
...
25
Clip WPL-WPM0104106

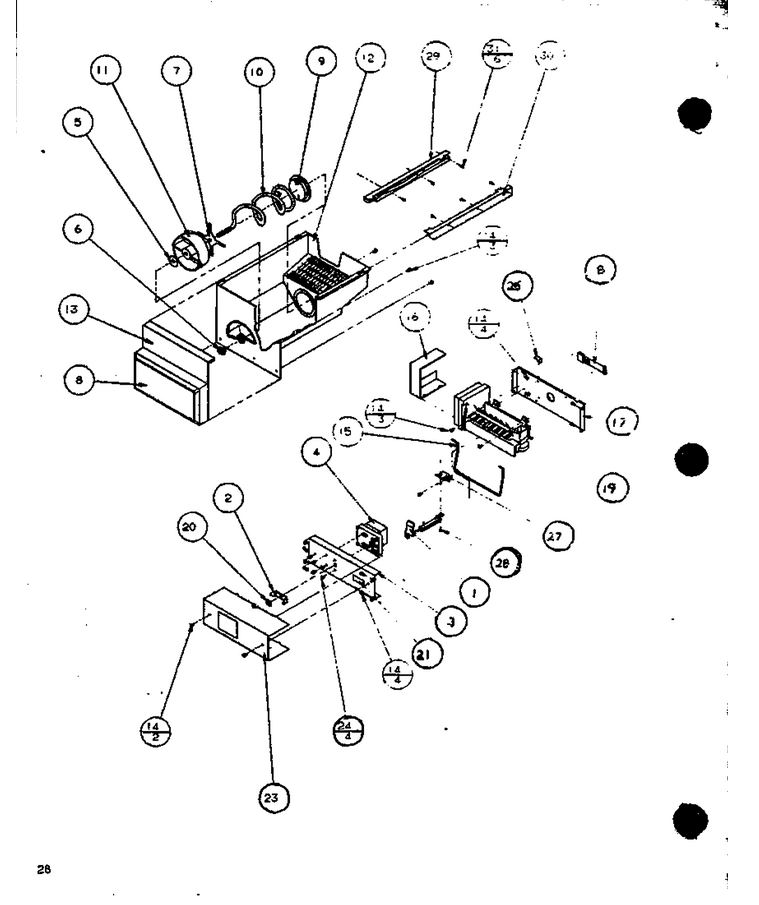

08 - Ice Bucket And Ice Maker

...
...
1
I.m. Shut Off Assy WPL-C8980402
...
2
Driver WPL-D7849501
...
3
Support,auger Motor WPL-D7749207
...
4
Motor-Auger WPL-D7749302
...
5
Washer WPL-A1061701
...
6
Nut-Helix WPL-B8385101
...
7
Bar, Breaker WPL-C8964101
...
8
Insert, Bucket Front WPL-C8975310
...
9
Cap- Helix WPL-WPD7749401
...
10
Helix WPL-D7749501
...
11
Wheel Lift WPL-D7749601
...
12
Bucket, Ice V WPL-D7749707
...
13

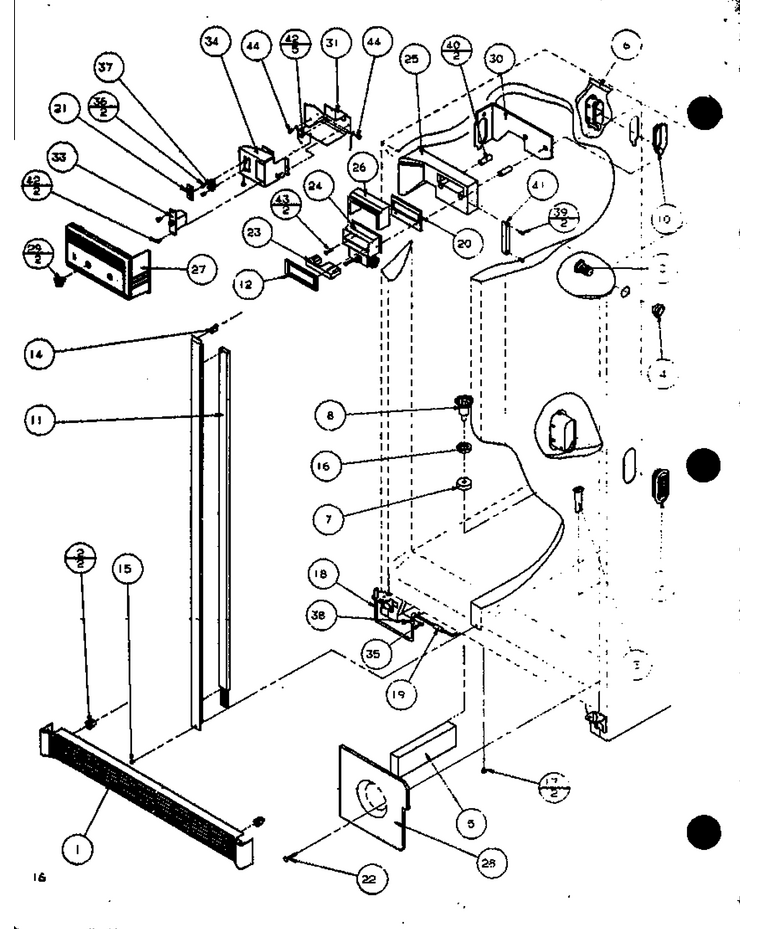

Front, Bucket WPL-D7749802
...
14
Screw (3) WPL-67006425
...
15
Arm,ice Maker Shut Off WPL-D7877001
...
16
Cover Im WPL-D7820401
...
17
Support-Im WPL-D7821004
...
18
Harness WPL-D7824601
...
19
Ice Maker Assy. WPL-D7824706Q
...
20
Nut WPL-M0120501
...
21
Gasket-Per Ft WPL-A3030305
...
23
Sue D7788808 WPL-D7788828
...
24
Screw WPL-WP489128
...
25
Clip WPL-B5720301
...
27
Bracket, I/m WPL-B8391802
...
28
Screw WPL-WP98165
...
29
Glide, Container (left) WPL-67005375
...
30
Glide, Frz. (rt) WPL-67004323
...
31
Screw, Handle WPL-67006529

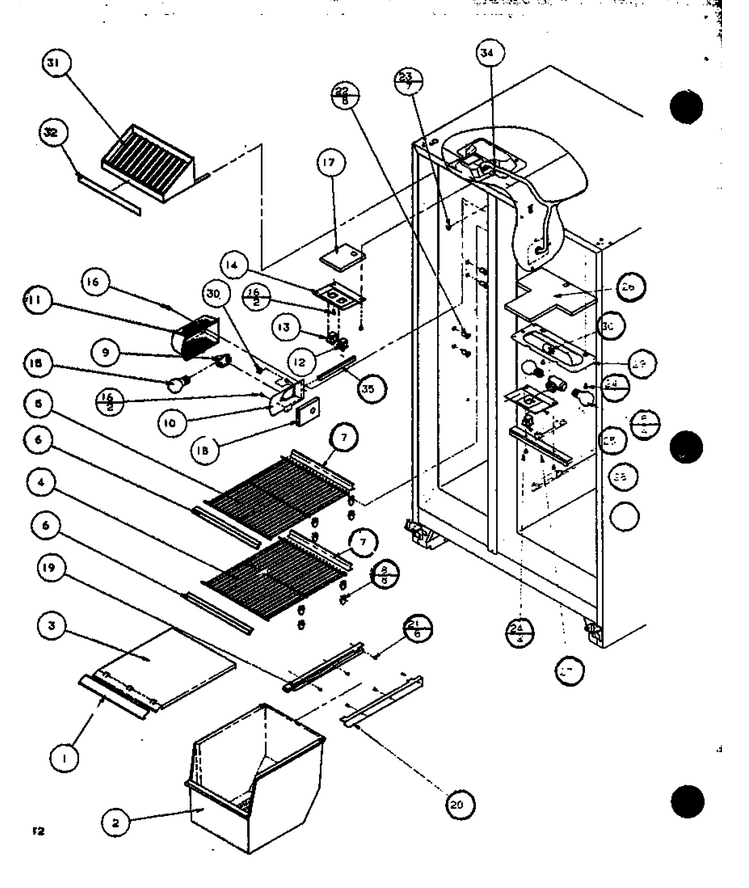

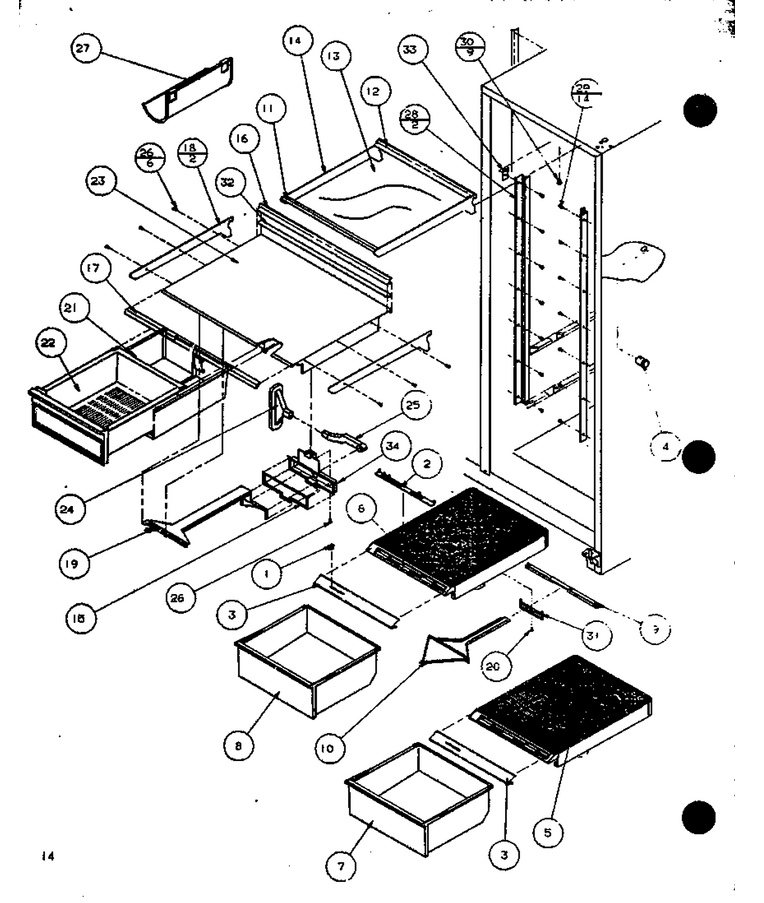

12 - Ref Shelving And Drawers

...
...
NI
Glass Crisper Top Assy WPL-R0179141
...
1
Knob Humidity A-K WPL-C8908301
...
2
Slide Humidity WPL-D7587705
...
3
Trim, Front Crisper WPL-D7616641
...
4
Deflector, Air WPL-10033201
...
5
Crisper Top WPL-D7796401
...
6
Crisper Top WPL-D7796402
...
7
Net-Pan,fruit WPL-D7797810
...
8
Net-Pan,crisper WPL-D7797809
...
9
Damper, Humidity Center WPL-D7764103
...
10
Slide Crisper Cont. WPL-D7782203
...
11
Trim, Front Shelf WPL-C8913507
...
12
Trim, Shelf Rear WPL-C8913603
...
13
Glass Shelf WPL-10036002
...
14
Frame Cont. Shelf WPL-D7871005
...
20
Screw,tc WPL-M0230017
...
27
Rack Bottle V WPL-D7547609
...
28
Ladder, Cantilever WPL-D7789801
...
29
Screw (3) WPL-67006425
...
30
Grommet, Screw WPL-M0580007
...
31
Support WPL-D7807601
...
32
Tape Per Roll WPL-M0275163
...
33
Brkt, Cont Cover WPL-12414701

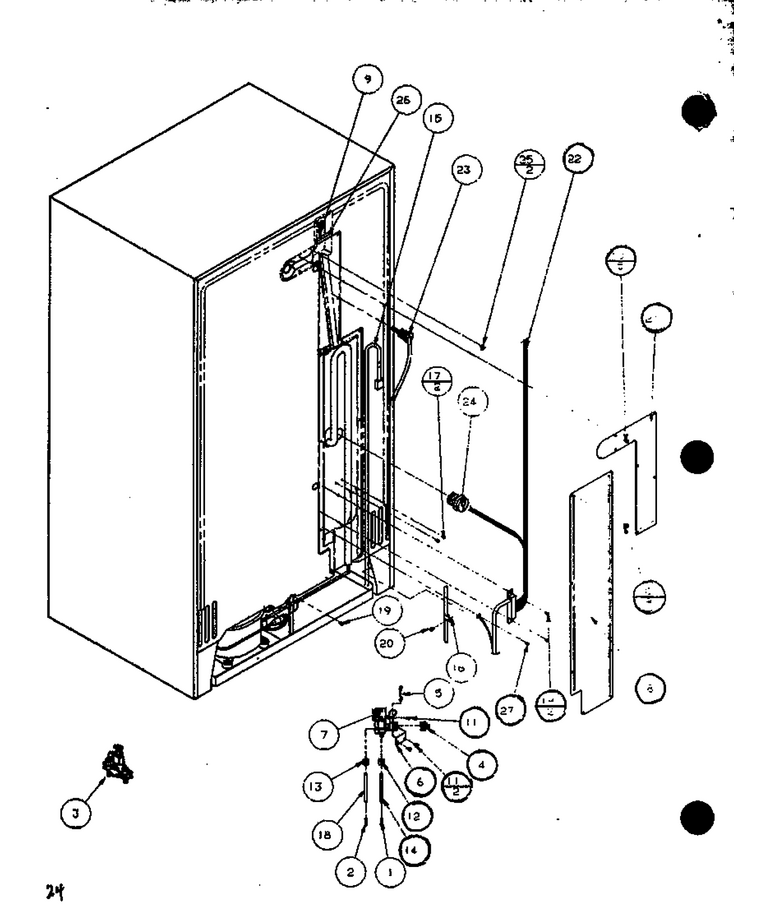

02 - Drain And Rollers

...
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
11
Drain Tube WPL-D7748501
...
12
Tank, Coil Water WPL-D7787802
...
13
Clamp WPL-M0102303
...
14
Screw WPL-WP489069
...
16
Clamp WPL-WP488366
...
17
Screw, Mach WPL-M0206313
...
18
Fill Tube WPL-R0182123
...
19
Tunnel, Heat Exchanger WPL-C8971903

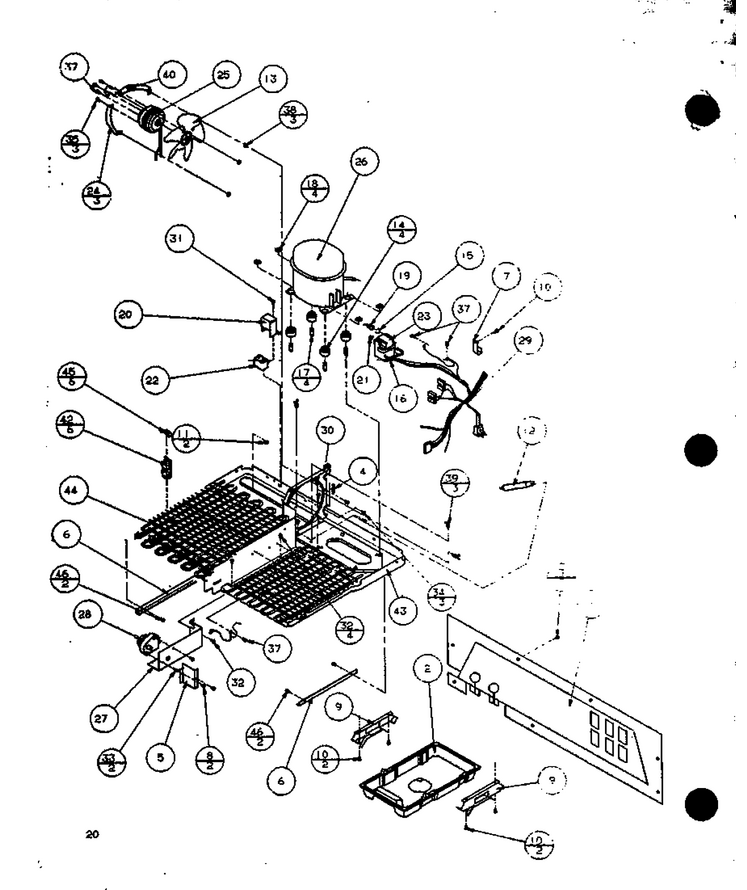

09 - Machine Compartment

...
...
1
M.c. Back WPL-C8975701
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Bracket WPL-C8979302
...
6
Support M.c. WPL-D7835501
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Spring, Overload WPL-B8358301
...
16
Bale Strap WPL-YB8358601
...
18
Clip Comp WPL-B8352901
...
19
Overload WPL-C8906203
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-2154436
...
22
Capacitor WPL-WPW10662129
...
23
Term Cover WPL-C8960801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-C3667101H
...
27
Bracket, Timer WPL-D7811001
...
28
Timer-Def WPL-R0131577
...
29
Harness - Mc WPL-10376601
...
30
Cond. Fan Shrd WPL-D7691002
...
31
Screw WPL-WP489464
...
32
Screw WPL-WP12990527
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
42
Spacer Cond. WPL-B8346301
...
43
Base Pan WPL-D7595410
...
44
Condenser WPL-D7803001
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530

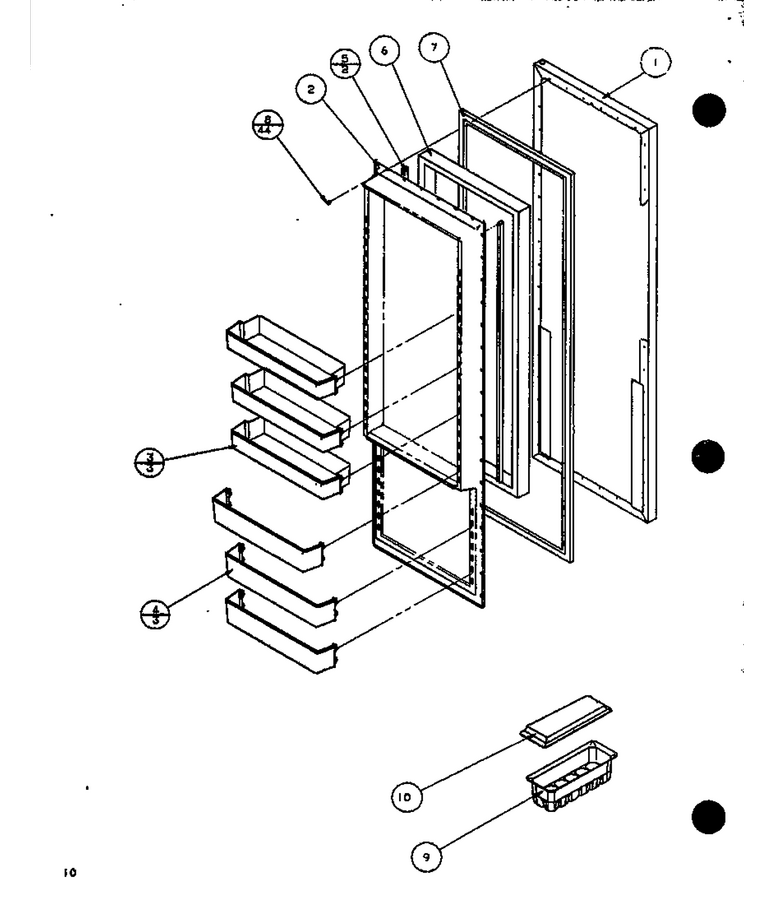

11 - Ref Door

...
...
1
Ass`y, Ref Dr Fm (white) WPL-10284104W
...
2
Inner Door, Ref WPL-D7828203
...
3
Bucket Ref Door WPL-D7797104
...
4
Shelf, Ref Door WPL-D7797004
...
5
Seal, Door Dike WPL-C8987102
...
6
Insul. By The Ft. WPL-B0523562
...
7
Gasket- Do WPL-10359712Q
...
8
Screw WPL-WPM0219730
...
9
Assy,egg Bkt W/ Lid WPL-12460016
...
10
Cover, Egg Bucket WPL-D7805911

13 - Ref/fz Control And Cabinet Part

...
...
1
Grille, Toe W WPL-12321802Q
...
2
Clip WPL-WPM0117303
...
3
Tunnel, Air WPL-A3187703
...
4
Retainer WPL-A3187801
...
6
Tube-Plastic WPL-B8372601
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel, Air Supply WPL-D7785501
...
11
Heater, Mullion WPL-D7837501
...
12
Gasket, Damper WPL-10383201
...
13
Grommet WPL-D7793501
...
14
Clip WPL-M0113605
...
15
Screw, Handle (black) WPL-12991101
...
16
Seal- O Ri WPL-WPM0500703
...
18
Tube WPL-WPB5705307
...
19
Fitting WPL-WP4373559
...
20
Gasket, Damper WPL-B8345401
...
21
Collar, Switch WPL-B8391602
...
22
Clip WPL-C6457702
...
23
Insert, Control WPL-C8902601
...
24
Control, Damper WPL-D7547408
...
25
D7749902q WPL-D7749902
...
26
Insulation WPL-D7788201
...
27
Cover, Control Wb WPL-D7790315
...
28
Insulation, Tank WPL-D7793401
...
29
Knob, Control WPL-D7795809
...
30
Gasket Air Duct WPL-D7819101
...
31
Box, Control Btm WPL-D7822406
...
33
Assy, Control-Fz WPL-R0161092
...
34
Box Control Top WPL-D7868601
...
35
Screw WPL-WP90767
...
36
Screw WPL-M0234003
...
37
Switch, Heater WPL-M0342601
...
38
Clamp WPL-M0102301
...
39
Screw WPL-WP489474
...
40
Spacer Damper WPL-A3044208
...
41
Clamp WPL-C8977301
...
42
Screw WPL-WP489464
...
43
Screw WPL-M0216539
...
44
Screw WPL-WP489399

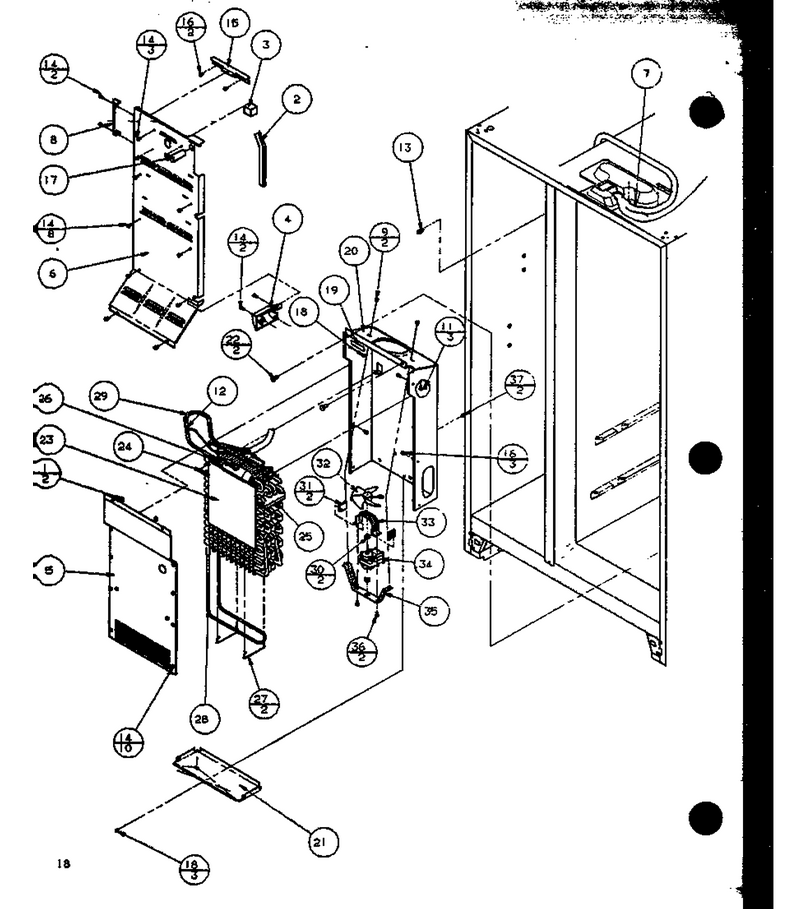

03 - Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k Air WPL-D7786901
...
5
Cover, Evaporator WPL-D7865907
...
6
Back, Inner Frz WPL-D7821101
...
7
Harness-Inner Lnr WPL-Y10222403
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP489464
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
17
Ext, Fill Tube WPL-A3127411
...
18
Rivet WPL-10098801
...
19
Gasket, Foam WPL-B5757707
...
20
Evaporator Shield WPL-D7865804
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Grommet WPL-M0580003
...
23
Gasket, Evap. WPL-B8327901
...
24
Block-Lh Air Coil WPL-B8385502
...
25
Block P M Air Coil WPL-B8385601
...
26
Thermostat WPL-WPC8972006
...
27
Clip, Evap. Heater WPL-C8983101
...
28
Heater, Defrost WPL-D7872801
...
29
Assy,low Side-Thin Wall Evap WPL-R0170041
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Bracket, Motor Shroud WPL-D7767701
...
36
Screw WPL-WP12990527
...
37
Grommet A WPL-M0580002

10 - Ref Door

...
...
1
Bushing, Door (wht) WPL-10263802
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
8
Screw WPL-WP98165
...
10
Handle, Door WPL-D7573713
...
11
Screw WPL-WP8281196
...
12
Hinge Cover - Chrome WPL-10126401
...
13
Top Hinge-E Ct WPL-12077313
...
14
Kit, Screw WPL-R9800670
...
15
Shim, Top Hinge WPL-B8389007
...
16
Shim, Door Closure WPL-B8387701
...
17
Shim, Door Closure WPL-B8387702
...
18
Screw WPL-WP489128
...
19
Kit,dr Closure WPL-R0181181
...
20
Rh Bot Hinge-Bk E Ct WPL-10496118
...
21
Kit,btm Hinge Shim WPL-B8386703
...
22
Screw WPL-WP67006715
...
23
Screw WPL-M0213815
...
24
End Cap, Handle WPL-C8878901
...
25
End Cap, Handle WPL-C8878902
...
26
Screw WPL-WP90767
...
27
Filter Bushing WPL-10252902
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
