Amana 1995.000

Model: 1995.000

Save Part Not Listed?
product name

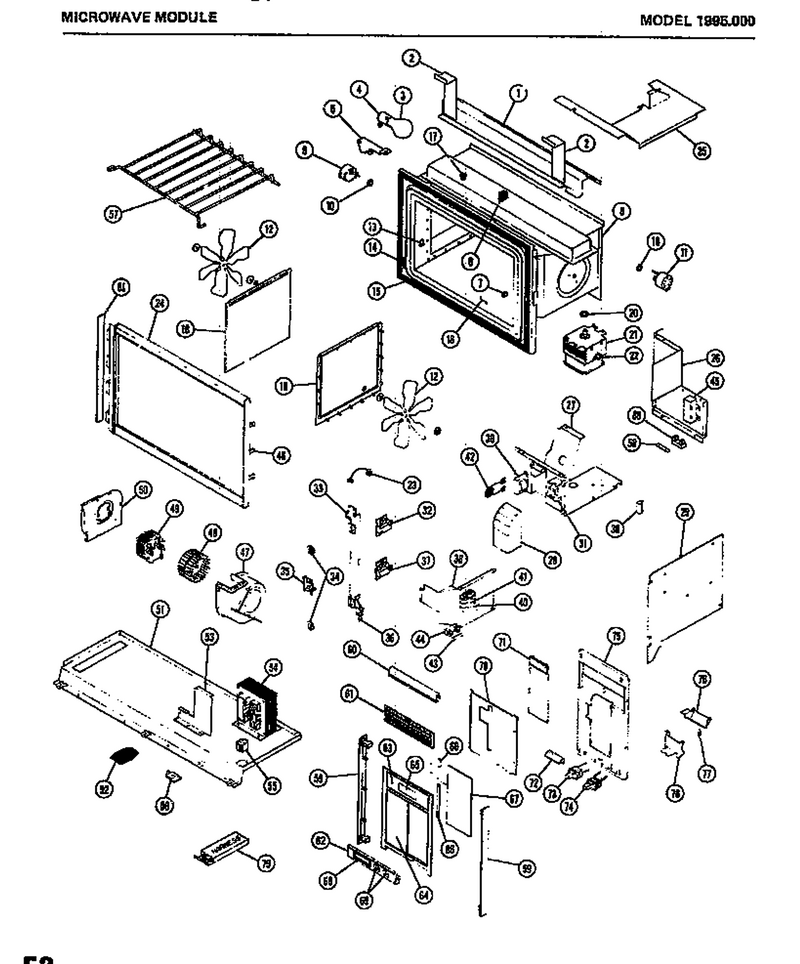

06 - Page 1

...
...
NI
Paint-Off- WPL-R0197018
...
1
S-Clip WPL-M2D519
...
2
Screw WPL-WP90767
...
3
Light Bulb WPL-8009
...
4
Socket Light WPL-M5D312
...
5
Brkt Lamp Socket WPL-M8D223
...
6
Foam Block Top WPL-M2D520
...
7
Cavity Plug (10) WPL-M1D755
...
8
Cavity Kit WPL-M77D103
...
9
Lh Stirrer WPL-M12D69
...
10
R.f. Gasket WPL-M2D492
...
11
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
12
.156 Dia Push On Clip WPL-M1D78
...
13
Support Rack WPL-B8371001
...
14
Choke Filler WPL-M55D13
...
15
Gasket WPL-M25D64
...
16
Shelf, Kit WPL-M50D37
...
17
Tuning Stud WPL-M2D537
...
18
Stir Cover Kit (l & R) WPL-M45D21
...
19
Stirrer Cover - Right WPL-M45D22
...
20
Gasket-Rf WPL-M2D296
...
21
Kit, Magnetron WPL-M57D25
...
22
Cutout-Thermal-Control WPL-31866P01
...
23
Ld Grn 16 Ga WPL-M5D120
...
24
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
25
Air Duct Top WPL-M65D245
...
26
Cover Component WPL-M20D187
...
27
Horizontal Vent WPL-M65D246
...
28
Transition Duct WPL-M8D224
...
29
Not Available WPL-M65D247
...
30
Kit, Diode WPL-M3D71
...
31
No.6 Trimmed Hex Hd Screw WPL-5000632401
...
32
Switch Asy WPL-M14D232
...
33
Lamp Slide M20d188 WPL-M20D188
...
34
Bearing Latch WPL-M2D327
...
35
Screw (25) WPL-M1D107
...
36
Block M2d522 WPL-M2D522
...
37
Not Available WPL-M1D868
...
38
Bushing WPL-M2D521
...
39
Not Available WPL-M1D411
...
40
High Voltage Capacitor WPL-M10D87
...
41
Capacitor Brkt WPL-M20D60
...
42
Varistor A WPL-37564P01
...
43
Fuse 20 A WPL-WPM0805101
...
44
Ia Screw WPL-M1D329
...
45
Screw WPL-WPW10001160
...
46
Kit, Door Hook WPL-M8D239
...
47
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
48
Clip Stirrer WPL-M1D854
...
49
Blower Motor WPL-M12D73
...
50
Brkt Blwr WPL-M20D190
...
51
Speed Nut WPL-M2D523
...
52
Foam Block Btm WPL-M2D524
...
53
No.8-Screw WPL-M1D636
...
54
Xfmr H.v. WPL-40221P01
...
55
Receptical- WPL-37251P01
...
56
Clip Rail WPL-M8D226
...
57
Rack WPL-M67D30
...
58
Fuse WPL-WP22001555
...
59
No.8 T X 1/4`` Screw WPL-M1D486
...
60
Cont Pnl Top WPL-M7D488
...
61
Grill Cont Pnl WPL-M7D489
...
62
Control Panel Bottom Trim WPL-M7D490
...
63
Gasket WPL-A3030302
...
64
Auto Cook Guide WPL-M7D536
...
65
Window WPL-M7D493
...
66
Spacer WPL-M2D440
...
67
Membrane Tch Pnl Kit WPL-M7D538
...
68
Bezel WPL-M7D495
...
69
Bezel Button M2d286 WPL-M2D286
...
70
No.8 T X 1/4`` Screw WPL-M1D486
...
71
Screw (25) WPL-M1D871
...
72
M11d55 Rel WPL-36980P01
...
73
Switch, Fan WPL-M14D238
...
74
Light Switch WPL-M14D239
...
75
Control Pnl Back WPL-M7D557
...
76
Bracket WPL-M8D228
...
77
Spring WPL-M2D531
...
78
Actuator Pivot WPL-M8D229
...
79
Harness Package WPL-M27D296
...
80
Ia Screw WPL-M1D329
...
81
Hinge Cover WPL-M7D506

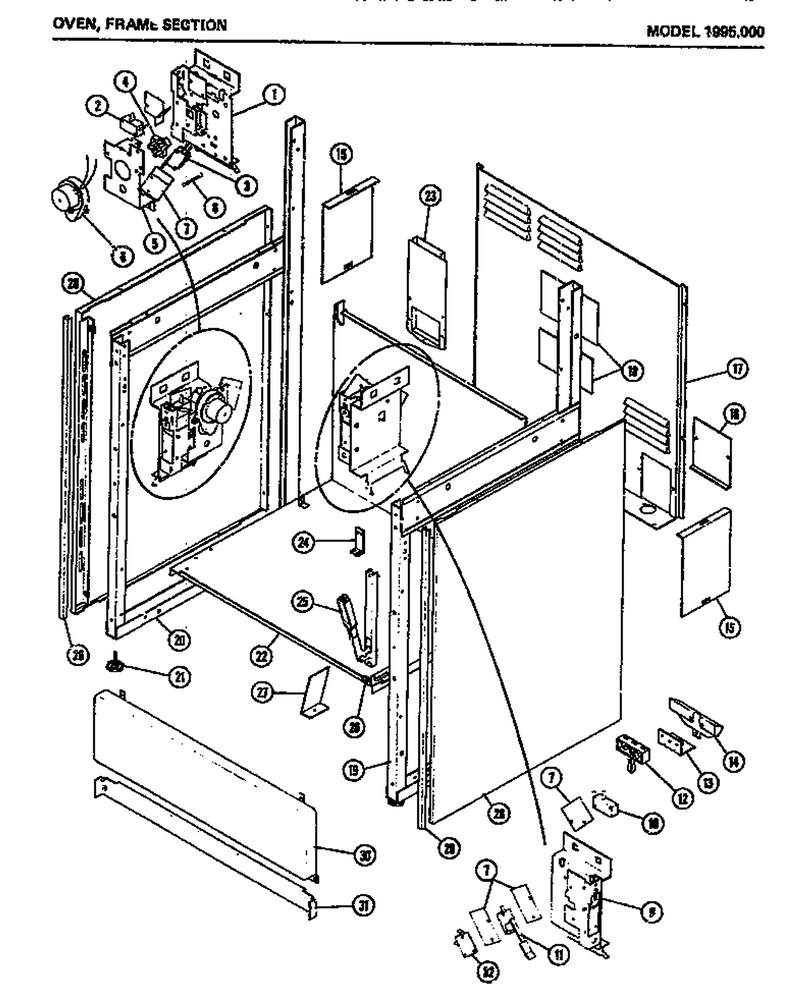

05 - Oven

...
...
NI
Not Available WPL-M13D30
...
1
Screw WPL-WP90767
...
2
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
3
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
4
Lock Cam WPL-M2D337
...
5
Brkt-Mtg WPL-52920P01
...
6
Lock Motor Assembly WPL-M12D34
...
7
Insulator WPL-M5D163
...
8
Spring WPL-M2D276
...
9
Screw WPL-WP90767
...
10
Nut Twin Spd WPL-52735P01
...
11
Nut Twin Spd WPL-52735P01
...
12
Terminal WPL-M4D45
...
13
Screw WPL-WP90767
...
14
Not Available WPL-M5D155
...
15
Screw (25) WPL-M1D638
...
16
Not Available WPL-M20D73
...
17
Not Available WPL-M82D138
...
18
Insulator Bake WPL-M5D221
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Leveling Foot WPL-M8D117
...
22
Not Available WPL-M82D139
...
23
Vent-Vert WPL-M65D189
...
24
Screw WPL-WP90767
...
25
Washer Cup WPL-M1D531
...
26
No.10 T X 3/8`` Screw WPL-M1D539
...
27
Bracket Retainer WPL-M2D315
...
28
Screw WPL-WP90767
...
29
Screw (25) WPL-M1D533
...
30
Access Pnl Avoc WPL-M72D45
...
31
Screw WPL-WP90767
...
32
Switch-Oven Lite WPL-M14D122

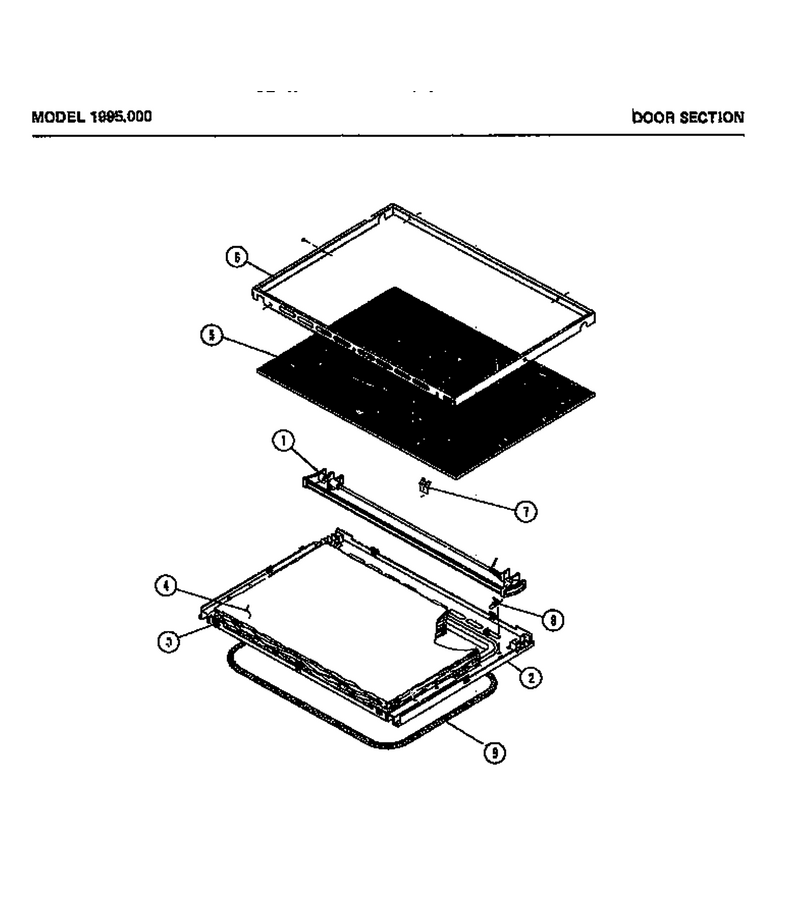

02 - Door Section

...
...
1
Door Handle Assembly WPL-M49D13
...
2
Inner Door Assy Kit WPL-M72D67
...
3
U-Nut (25) WPL-M1D516
...
4
Not Available WPL-M63D24
...
5
Door Glass Asm WPL-M51D38
...
6
Not Available WPL-M75D25
...
7
Clip (1) WPL-M1D512
...
8
Clip 10/pkg WPL-M2D458
...
9
Gasket, Oven Door WPL-M25D60

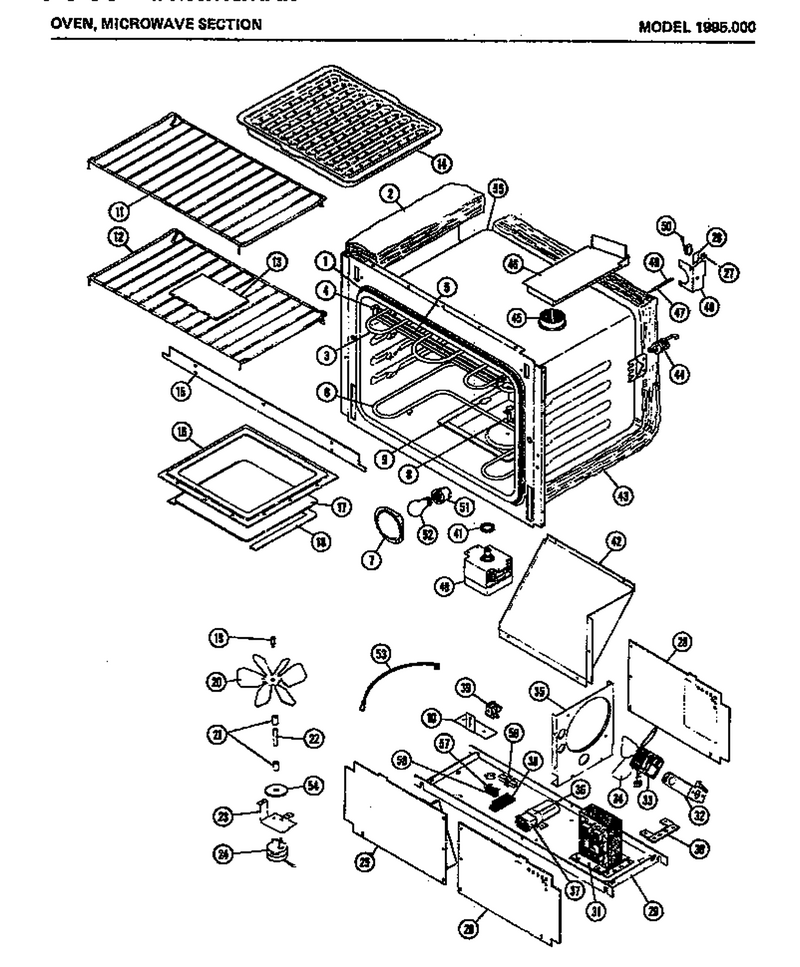

04 - Oven

...
...
NI
Hi Temp Term Kit WPL-M5D352
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D24
...
3
Element Kit WPL-M61D44
...
4
Brkt WPL-M52D72
...
5
Insulator Elemt WPL-M8D182
...
6
Bake Element WPL-M61D64
...
7
Lens Asm WPL-M7D395
...
8
Jw Clip WPL-53508P01
...
9
Hole Cover, Capillary Tube WPL-M2D420
...
10
Relay-Bkt WPL-M8D183
...
11
Range Rack WPL-M67D14
...
12
Range Rack WPL-M67D12
...
13
Shelf WPL-M50D22
...
14
Procelain Broiler (pan And Grid) WPL-4396923
...
15
Not Available WPL-M52D113
...
16
Not Available WPL-M20D169
...
17
Not Available WPL-M50D34
...
18
Gasket Assy WPL-M25D61
...
19
Screw, Stirrer Mtg WPL-M2D459
...
20
Stirrer Blade WPL-54719P01
...
21
Cup, Stir Clutch WPL-M2D460
...
22
Shaft, Stirrer WPL-M2D461
...
23
Screw (25) WPL-M1D590
...
24
Screw (25) WPL-M1D462
...
25
Pnl Side P.s. WPL-M52D210
...
26
Insulator WPL-M5D163
...
27
Clip (10) WPL-M1D839
...
28
Screw (25) WPL-M1D107
...
29
Screw WPL-WP90767
...
30
Screw (25) WPL-M1D544
...
31
Transformer WPL-M60D79
...
32
Bracket-Fan Mtg WPL-M8D116
...
33
Blwr Mtr WPL-M12D61
...
34
Fan Blade WPL-M35D15
...
35
Screw WPL-WP90767
...
36
Screw WPL-WP90767
...
37
Capacitor 1.15 WPL-D8547913
...
38
Screw 8-A WPL-M1D694
...
39
Screw (25) WPL-M1D322
...
40
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
41
Gasket-Rf WPL-M2D296
...
42
Not Available WPL-M65D291
...
43
Not Available WPL-M63D24
...
44
Oven Spring WPL-M5D114
...
45
Eliminator WPL-54326P01
...
46
Screw WPL-WP90767
...
47
Pin Interlock WPL-M2D413
...
48
Screw (25) WPL-M1D533
...
49
53571p01 WPL-M2D414
...
50
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
51
Socket Oven WPL-M5D113
...
52
Light Bulb WPL-8009
...
53
H.v. Lead Kit WPL-M5D350
...
54
Heat Sink Disc WPL-M2D467
...
55
Net Oven Cavity Assy WPL-M77D106
...
56
Speed Clip WPL-M8D123
...
57
Fuse 20 A WPL-WPM0805101
...
58
Ia Screw WPL-M1D329

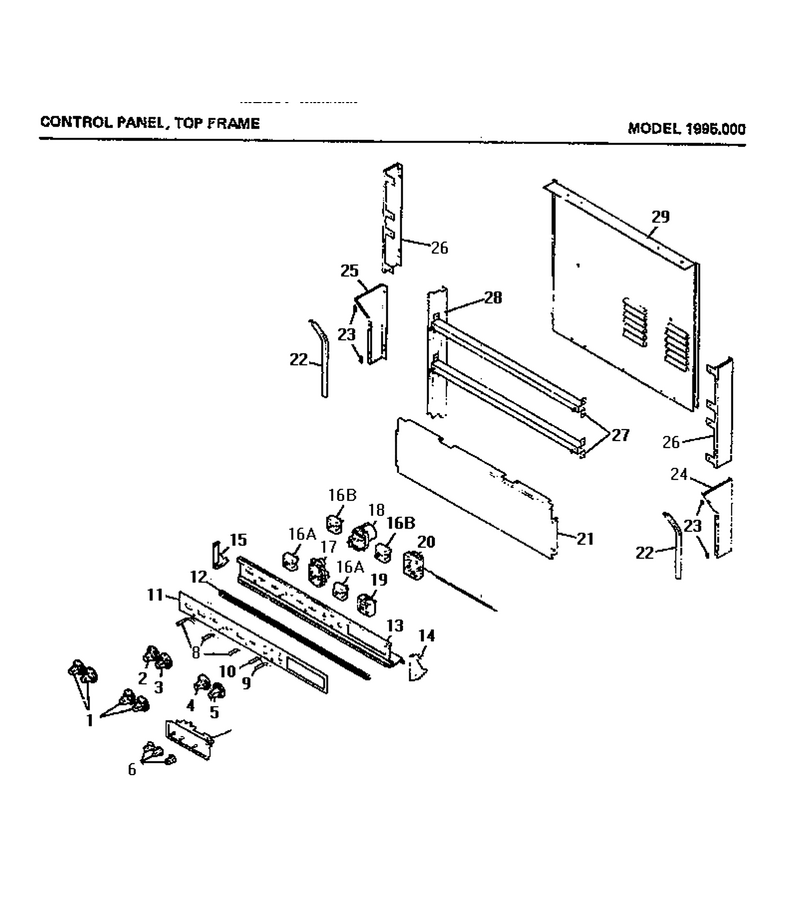

01 - Control Panel

...
...
1
Knob, Surface WPL-M6D254
...
2
Knob,m/w Timer WPL-M6D304
...
3
Varl-Cook Knob Asm WPL-M6D241
...
4
Control Knob Kit WPL-M6D253
...
5
Knob, Thermostat WPL-M6D292
...
6
Knob, Clock Timer WPL-M6D257
...
7
Timer Rangex WPL-M29D20
...
8
Ind Light Kit WPL-M9D104
...
9
Ind Light Kit WPL-M9D103
...
10
Indicator Light WPL-M9D105
...
11
Not Available WPL-M52D208
...
12
Heat Deflector WPL-M52D211
...
13
Extrusion, Panel WPL-41532P01
...
14
Screw (25) WPL-M1D541
...
15
End Cap WPL-M7D382
...
16
Switch- In WPL-R0702564
...
17
No.6 Pan Hd Machine Screw WPL-M1D321
...
18
Not Available WPL-M8D274
...
19
Switch, Selector WPL-M14D260
...
20
Thermostat, Oven WPL-M28D25
...
21
Not Available WPL-M82D165
...
22
Trim Side Pnl WPL-M7D545
...
23
Clip (10) WPL-51169P01
...
24
Side Pnl Rt Wht WPL-M53D39
...
25
Side Pnl Lt Alm WPL-M53D48
...
26
Filler Pnl Wht WPL-M53D34
...
27
Crossbar WPL-M52D196
...
28
Not Available WPL-M52D197
...
29
Not Available WPL-M82D157

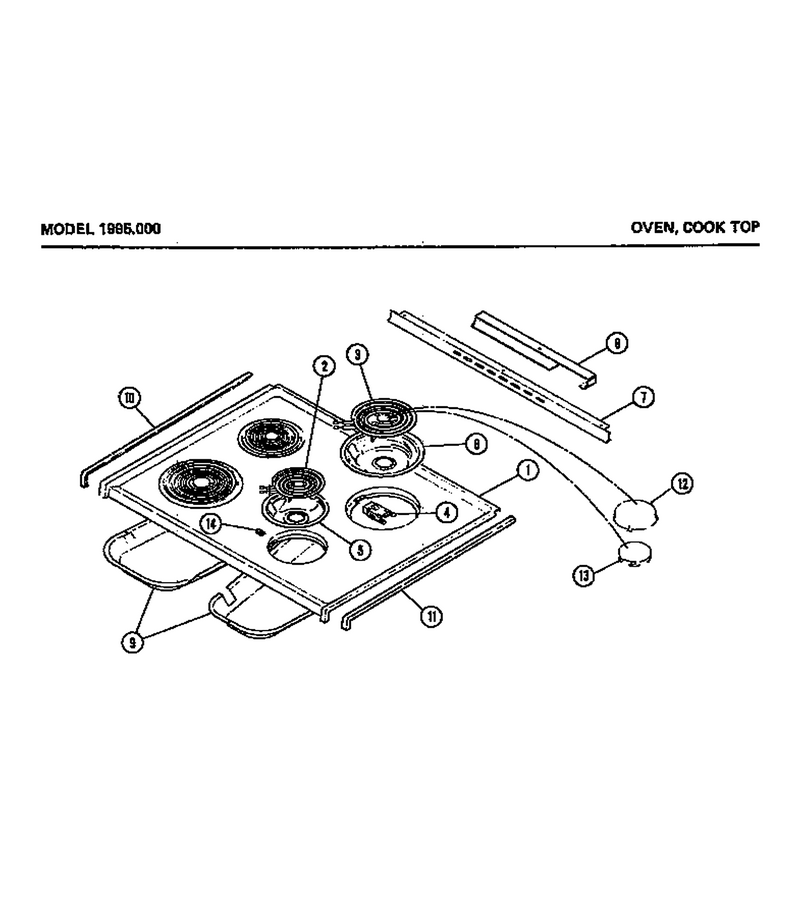

03 - Oven

...
...
1
Screw WPL-WP90767
...
2
Surface Elem. 6`` 240 V. 1250 W WPL-Y0051573
...
3
Elmnt-Surf WPL-WP3191454
...
4
Receptacle WPL-330031
...
5
Burner Bow WPL-51294P01
...
6
Bowl-Drip WPL-WPW10196405
...
7
Screw WPL-WP90767
...
8
Screw WPL-WP90767
...
9
Not Available WPL-M44D16
...
10
Trim-Coil WPL-M75D53
...
11
Not Available WPL-M75D52
...
12
Insert WPL-M2D267
...
13
Medallion Blk WPL-M2D321
...
14
Clip Cooktop (10) WPL-M1D794

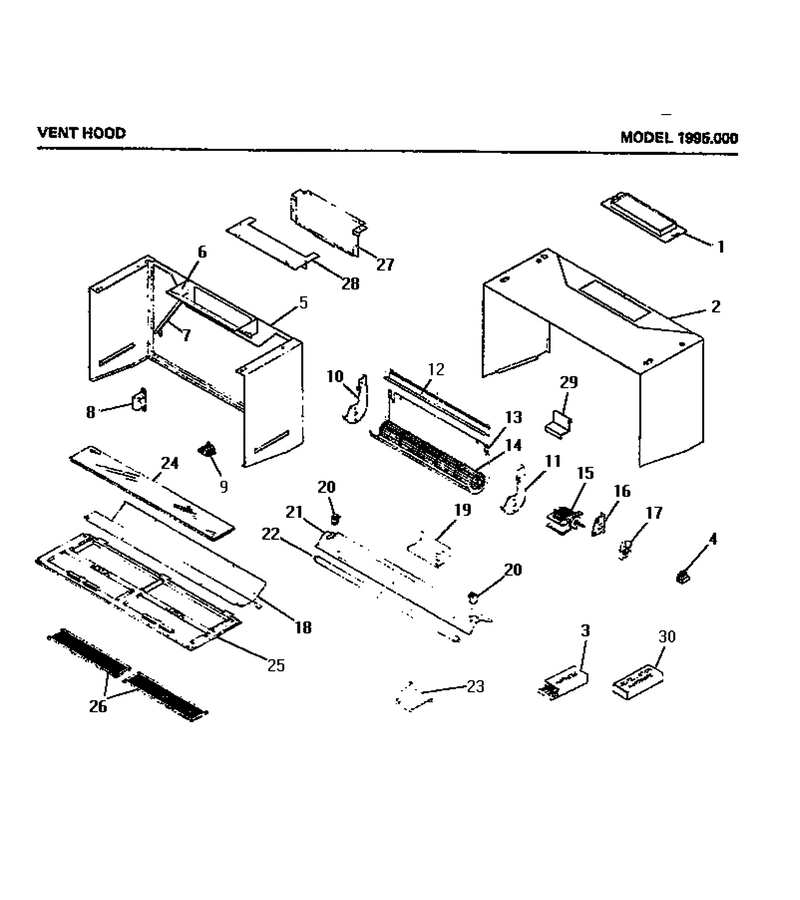

07 - Vent Hood

...
...
1
No.8-Screw WPL-M1D636
...
2
No.8-Screw WPL-M1D636
...
3
Nla (see D-Pb17) WPL-M27D283
...
4
Insertion Tool WPL-M95D22
...
5
No.8-Screw WPL-M1D636
...
6
No.8-Screw WPL-M1D636
...
7
No.8-Screw WPL-M1D636
...
8
No.8-Screw WPL-M1D636
...
9
No.8-Screw WPL-M1D636
...
10
No.8-Screw WPL-M1D636
...
11
No.8-Screw WPL-M1D636
...
12
Screw WPL-WP90767
...
13
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
14
Blower Wheel WPL-M35D33
...
15
Screw (25) WPL-M1D767
...
16
No.8-Screw WPL-M1D636
...
17
Fan Blade WPL-M35D34
...
18
Rear Acc Pnl H-G WPL-M82D159
...
19
No.8-Screw WPL-M1D636
...
20
Screw (25) WPL-M1D129
...
21
No.8-Screw WPL-M1D636
...
22
Lamp- Flou WPL-WPY0067945
...
23
No.8-Screw WPL-M1D636
...
24
Clip Light Lens WPL-M2D516
...
25
Access Panel WPL-M82D156
...
26
Clip Filter WPL-M2D518
...
27
Filler Damper WPL-M20D204
...
28
Screw WPL-WP90767
...
29
Air Baffle WPL-M8D232
...
30
Instal Guide 1990 WPL-M94D370
