Amana 1870.000

Model: 1870.000

Save Part Not Listed?
product name

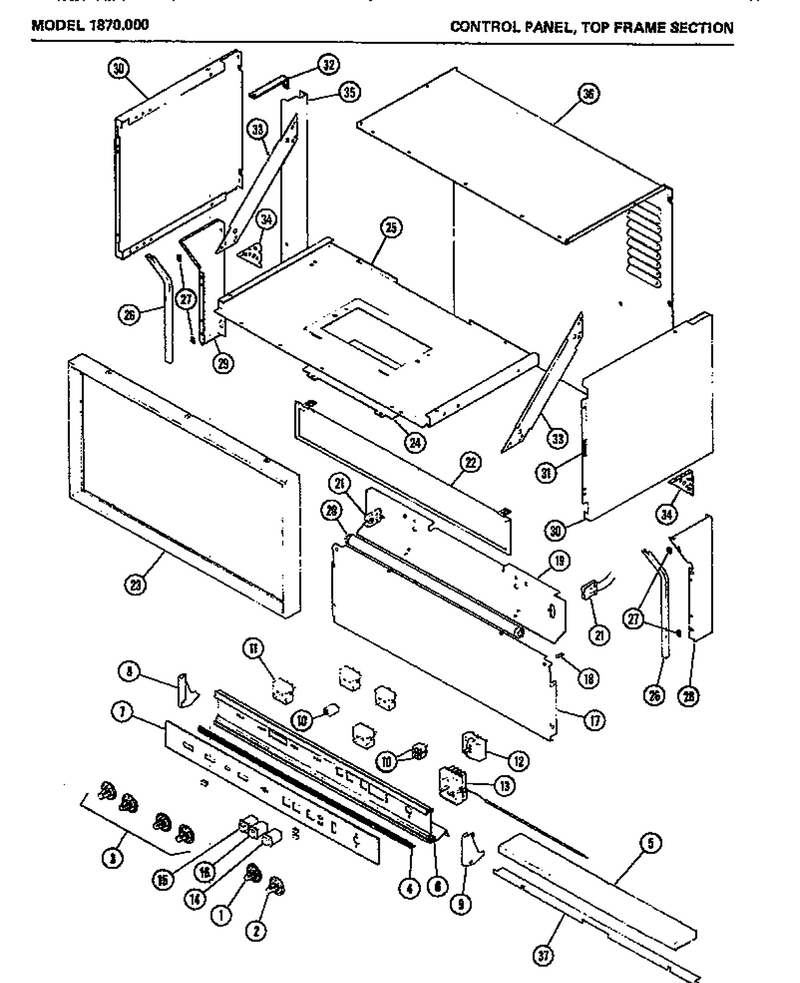

01 - Control Panel

...
...
1
Control Knob Kit WPL-M6D253
...
2
Knob, Thermostat WPL-M6D210
...
3
Knob M6d95 WPL-M6D216
...
4
Heat Deflector WPL-M52D123
...
5
Not Available WPL-M63D7
...
6
Screw WPL-WPW10348409
...
7
Decorative Insert WPL-M52D164
...
8
End Cap WPL-M7D382
...
9
Screw (25) WPL-M1D541
...
10
Indicator Light WPL-M9D86
...
11
Screw 8-32 (25) WPL-M1D536
...
12
Screw 8-32 (25) WPL-M1D536
...
13
Kit, Thermostat WPL-M18D25
...
14
Switch Door WPL-M14D187
...
15
Switch, Surface Light WPL-M14D186
...
16
Switch Lightx WPL-M14D188
...
17
Not Available WPL-M82D40
...
18
Clip (10) WPL-51204P01
...
19
Screw WPL-WP90767
...
20
Flourescent Lamp WPL-M9D45
...
21
No.6 Thread Forming Screw WPL-M1D627
...
22
Lens Assy WPL-M51D15
...
23
Screw WPL-WPW10348409
...
24
Screw WPL-WPW10348409
...
25
Screw WPL-WP90767
...
26
Trim, Middle Side Panel WPL-M7D202
...
27
Clip (10) WPL-51169P01
...
28
Side Pnl Rt H-G WPL-M53D18
...
29
Side Pnl Lt Wht WPL-M53D6
...
30
Not Available WPL-M82D101
...
31
Not Available WPL-M2D241
...
32
Not Available WPL-M8D82
...
33
Screw WPL-WP90767
...
34
Screw WPL-WP90767
...
35
Screw WPL-WP90767
...
36
Screw WPL-WP90767
...
37
Spacer Clip (25) WPL-M1D789

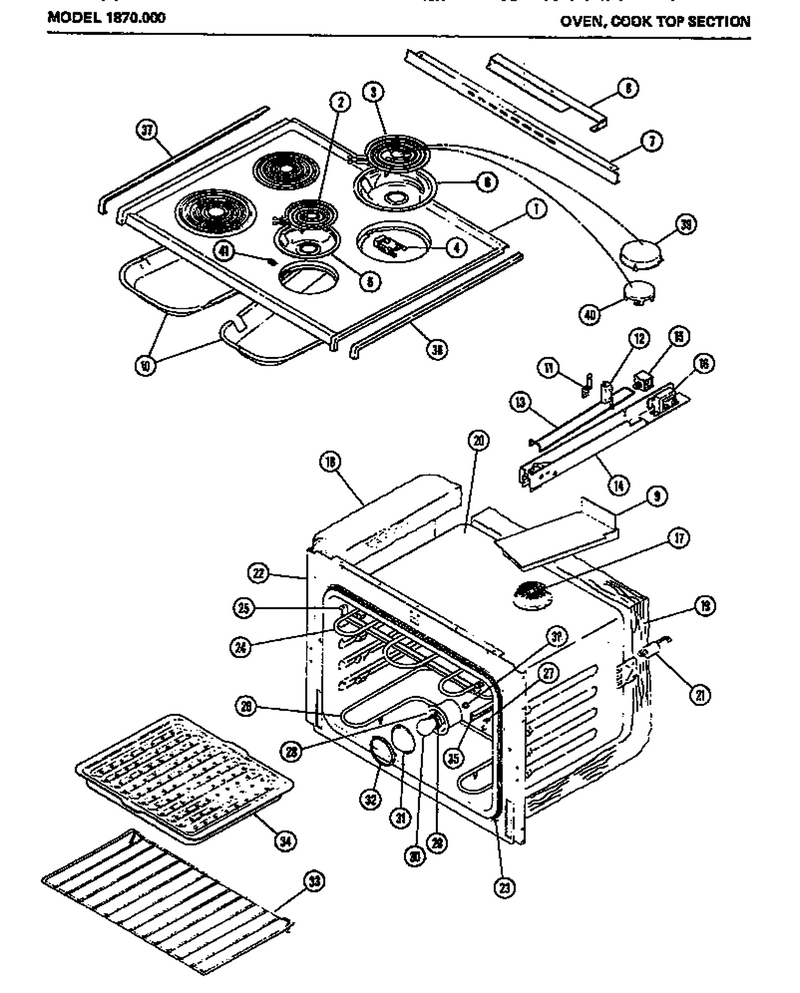

03 - Oven

...
...
1
Top-Range WPL-M82D135
...
2
Surface Elem. 6`` 240 V. 1250 W WPL-Y0051573
...
3
Elmnt-Surf WPL-WP3191454
...
4
Screw (25) WPL-M1D129
...
5
Burner Bow WPL-51294P01
...
6
Bowl-Drip WPL-WPW10196405
...
7
Screw WPL-WP90767
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP90767
...
10
Not Available WPL-M1D792
...
11
Bracket WPL-M2D391
...
12
Speednut (25) WPL-M1D779
...
13
Linkage-Lock WPL-M20D133
...
14
Washer Cup WPL-M1D531
...
15
Screw (25) WPL-M1D280
...
16
Screw (25) WPL-M1D591
...
17
Screw (25) WPL-M1D532
...
18
Not Available WPL-M63D21
...
19
Not Available WPL-M63D23
...
20
Net-Kit,oven Cavity WPL-M77D87
...
21
Oven Spring WPL-M5D114
...
22
Washer Cup WPL-M1D531
...
23
Gasket, Oven Cavity WPL-M25D40
...
24
Element Kit WPL-M61D44
...
25
Brkt WPL-M52D72
...
26
Bake Element 120v Kit WPL-M61D43
...
27
Jw Clip WPL-53508P01
...
28
Housing M20d69 WPL-51012P01
...
29
Socket Oven WPL-M5D113
...
30
Light Bulb WPL-8009
...
31
Lens, Oven Light WPL-M6D93
...
32
Screw (25) WPL-M1D532
...
33
Wire Rack WPL-M67D9
...
34
Procelain Broiler (pan And Grid) WPL-4396923
...
35
Heat Deflector Brkt. WPL-M20D78
...
36
Plug Btn Kit WPL-M1D695
...
37
Trim-Coil WPL-M75D53
...
38
Not Available WPL-M75D52
...
39
Insert WPL-M2D267
...
40
Medallion Blk WPL-M2D321
...
41
Clip Cooktop (10) WPL-M1D794

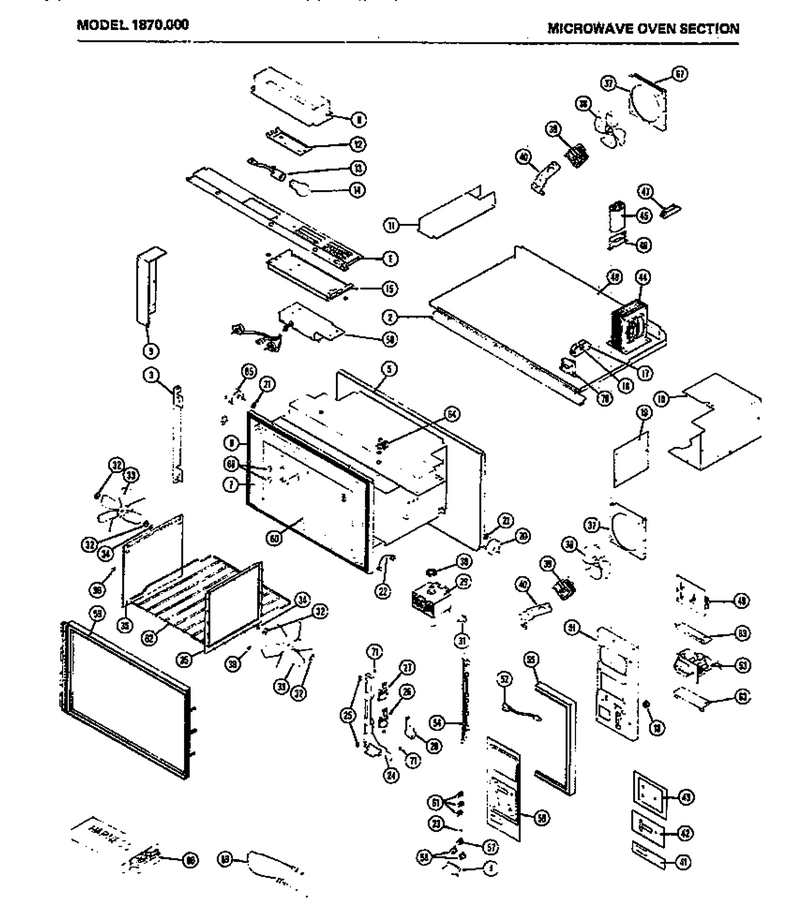

05 - Page 1

...
...
1
Not Available WPL-M65D217
...
2
Screw WPL-WP90767
...
3
Bracket Side Filler WPL-M20D165
...
4
Bar-Release WPL-M11D41
...
5
Not Available WPL-M77D92
...
6
Gasket WPL-M25D48
...
7
Choke Filler WPL-M55D13
...
8
Light Barrier WPL-M8D201
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP90767
...
11
Screw WPL-WP90767
...
12
Cover Lamp WPL-M7D309
...
13
Socket Light WPL-M5D270
...
14
Light Bulb WPL-8009
...
15
Screw WPL-WP90767
...
16
Fuse-15amp WPL-A3410402
...
17
Jw Holder WPL-M5D241
...
18
Bushing, Snap WPL-A3293504
...
19
Cover Air Duct WPL-M8D202
...
20
Stirrer Motor Kit WPL-M12D39
...
21
R F Gasket Kit WPL-M2D152
...
22
Ld Grn 16 Ga WPL-M5D120
...
23
Lens WPL-703927
...
24
Bracket, Latch Slide WPL-M20D166
...
25
Bearing Latch WPL-M2D327
...
26
Ia Screw No.10-32 WPL-M1D370
...
27
Ia Screw No.10-32 WPL-M1D370
...
28
Screw (25) WPL-M1D107
...
29
Kit, Magnetron WPL-M57D25
...
30
Gasket-Rf WPL-M2D296
...
31
Screw Thrm WPL-M1D666
...
32
Washer WPL-M1D565
...
33
Stirrer Blade Kit WPL-M35D18
...
34
.156 Dia Push On Clip WPL-M1D78
...
35
Cover, Stirrer WPL-M45D18
...
36
Retainer, Clip WPL-M1D797
...
37
Bracket Blower Inlet WPL-M20D163
...
38
Fan, Blower Kit WPL-M35D16
...
39
Nut K WPL-M0282005
...
40
Blower Brkt.kit WPL-M20D89
...
41
Backplate C P WPL-M20D162
...
42
Insert Digital WPL-M7D428
...
43
Len-Timer WPL-M7D427
...
44
No.10 T X 3/8`` Screw WPL-M1D479
...
45
Capacitor-.69 WPL-59001160
...
46
Screw WPL-WP90767
...
47
H.v. Lead Kit WPL-M5D275
...
48
No.10 T X 3/8`` Screw WPL-M1D479
...
49
Timer-Range WPL-M29D16
...
50
Controller Assembly WPL-M22D31
...
51
Screw WPL-WP90767
...
52
Indicator Lite WPL-M9D76
...
53
No.8 T X 3/8`` Screw WPL-M1D402
...
54
Set Screw (10) WPL-M1D838
...
55
No.6 Thread Forming Screw WPL-M1D627
...
56
Dec Pnl. Kit WPL-M7D426
...
57
Knob, Digital Timer WPL-M6D124
...
58
Knob, Vari-Cook WPL-M6D125
...
59
Door Assembly WPL-M68D109
...
60
Adhesive WPL-W10841140
...
61
Knob, Range Clock WPL-M6D159
...
62
Rack-Wirex WPL-M67D19
...
63
Mtg Brkt Timer WPL-M2D289
...
64
Washer (25) WPL-M1D617
...
65
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
66
H V Lead No.34 WPL-M5D274
...
67
Gasket WPL-A3030302
...
68
Support Rack WPL-B8371001
...
69
Ia Probete WPL-34005P01
...
70
Screw WPL-M0202325
...
71
Bearing WPL-M2D176

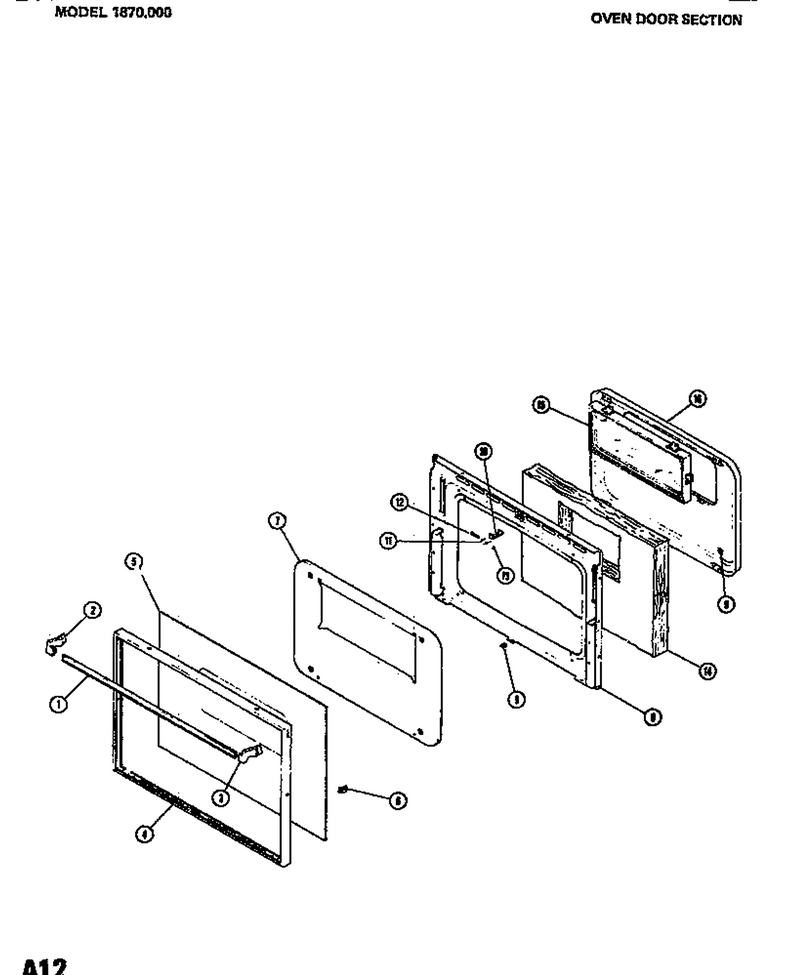

04 - Oven Door Section

...
...
1
Handle, Oven Door WPL-M49D4
...
2
End Cap WPL-M7D204
...
3
Screw (25) WPL-M1D541
...
4
Screw (25) WPL-M1D540
...
5
Glass Outer Door Kit WPL-M51D16
...
6
Clip (1) WPL-M1D512
...
7
Heat Shield Kit WPL-M72D21
...
8
Door Frame Asy WPL-M72D35
...
9
U-Nut (25) WPL-M1D516
...
10
Latch WPL-M2D246
...
11
Spring WPL-M2D288
...
12
Pin WPL-M2D248
...
13
C Clip (25) WPL-M1D517
...
14
Not Available WPL-M63D9
...
15
Inner Window Assembly WPL-M51D22
...
16
Screw WPL-WP90767

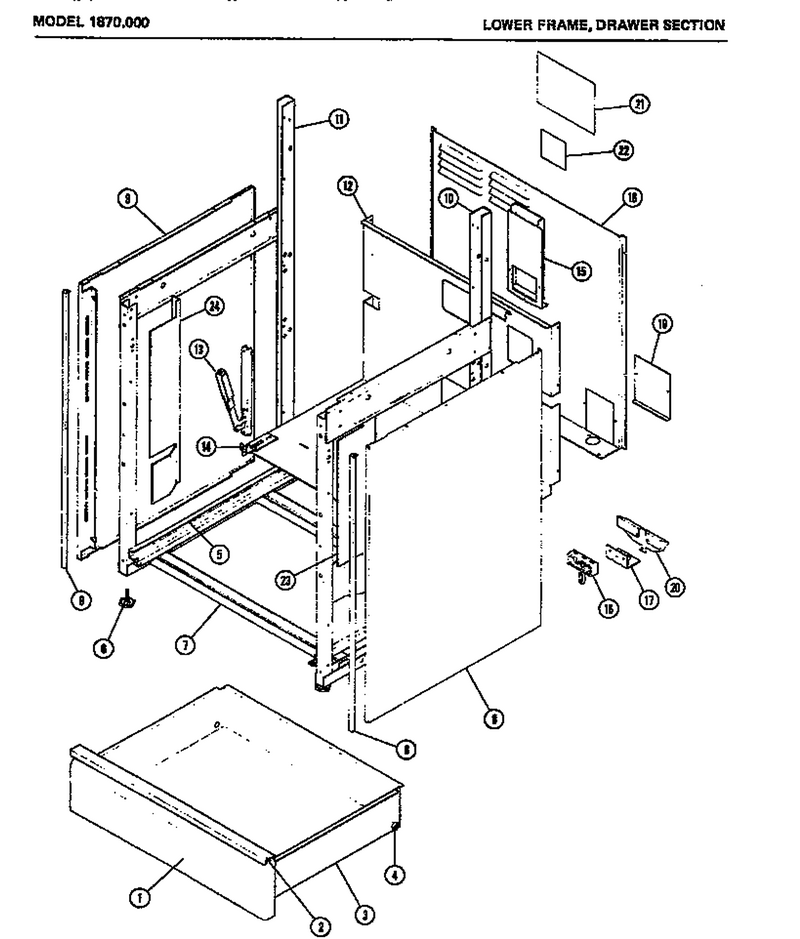

02 - Lower Frame

...
...
1
Ft Pnl Drawer Hg WPL-M72D41
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Roller WPL-M2D242
...
5
Drawer-Rail WPL-50106A01
...
6
Leveling Foot WPL-M8D117
...
7
Screw WPL-WP90767
...
8
Trim-Corner M75d19 WPL-53024P01
...
9
Not Available WPL-M82D105
...
10
Not Available WPL-M83D1
...
11
Not Available WPL-M83D2
...
12
Screw WPL-WP90767
...
13
Screw (25) WPL-M1D280
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Terminal WPL-M4D45
...
17
Screw WPL-WP90767
...
18
Not Available WPL-M82D112
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Insulator Broil WPL-M5D220
...
22
Rivet, Pop WPL-A4539629
...
23
S-Clip (25) WPL-M1D790
...
24
S-Clip (25) WPL-M1D790
