Amana 1636.000

Model: 1636.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

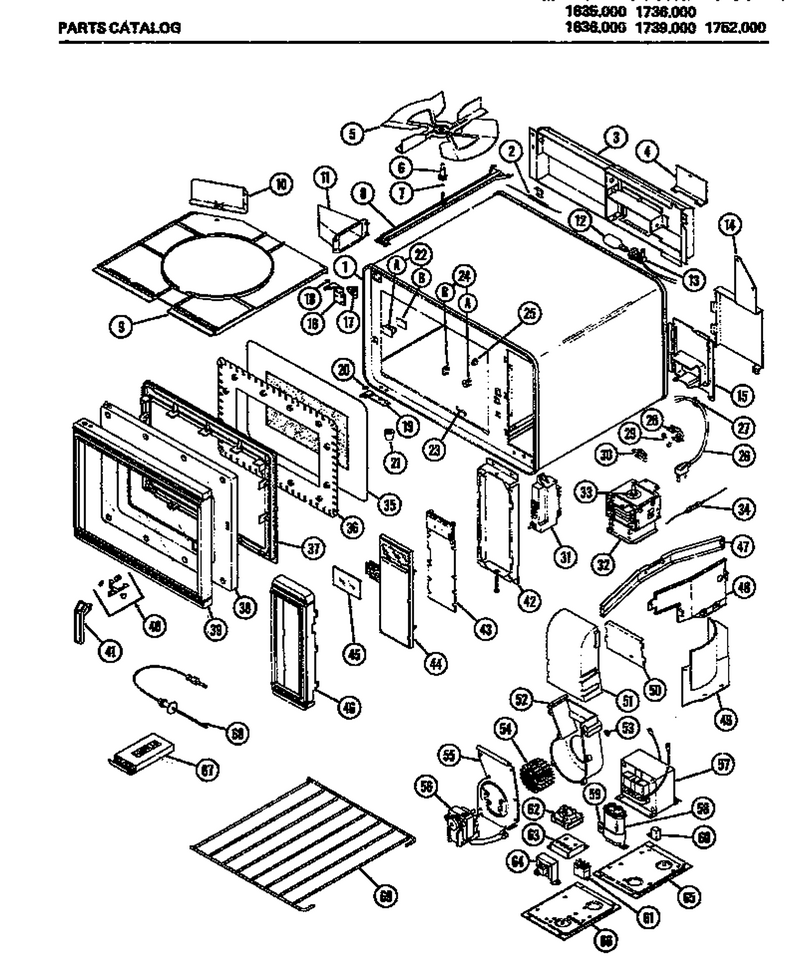

01 - Page 1

...
...
1
Not Available WPL-M77D133
...
2
Sensor, Cavity Kit WPL-M4D102
...
3
Not Available WPL-M65D307
...
4
Access Lamp Cover WPL-M7D741
...
5
Blade, Stirrer WPL-10826002Q
...
6
Insert Stirrer Kit WPL-M2D571
...
7
Ball WPL-38321P01
...
8
Plastic Fastener WPL-5524122001
...
9
Cover-X WPL-43631P01
...
10
Deflector WPL-40365P01
...
11
Not Available WPL-M65D306
...
12
M9d107 Lamp WPL-2031415101
...
13
Lamp Socket WPL-M5D366
...
14
Screw WPL-WP90767
...
15
Not Available WPL-M65D308
...
16
No.6 Flat Hd Machine Screw WPL-M1D60
...
17
Hinge Plate WPL-M8D299
...
18
No.10 Wave Washer WPL-M2D583
...
19
Hinge Assembly - Lower WPL-M8D300
...
20
Nylon Flat Washer WPL-40370P01
...
21
Molded Foot(4per Pkg.) WPL-M2D547
...
22
Plug Rack WPL-M2D668
...
23
Shelf W/sealant Kit WPL-M50D43
...
24
Support Rack WPL-B8371001
...
25
Cavity Plug (10) WPL-M1D755
...
26
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
27
Strain Relief WPL-Y0057183
...
28
Ia Screw WPL-M1D329
...
29
Fuse 20 A WPL-WPM0805101
...
30
No.3/8-32 Hex Nut (25) WPL-M1D615
...
31
Screw WPL-WPW10001160
...
32
Kit, Magnetron WPL-M57D37
...
33
Gasket-Rf WPL-M2D296
...
34
Sensor Magnetron Kit WPL-M4D101
...
35
Inner Window WPL-M51D58
...
36
No.8 Ab X 3/8`` Screw WPL-M1D906
...
37
Door Filler WPL-M55D19
...
38
Inner Door Assembly WPL-M70D100
...
39
Outer Door Assy 1636 WPL-M70D102
...
40
Door Hook Kit WPL-M2D671
...
41
Inlay WPL-M7D740
...
42
Cont Pnl Hsg WPL-M7D734
...
43
Net-Assy,ckt Bd WPL-M32R32
...
44
Touch Panel Assembly WPL-M7D738
...
45
Display Window WPL-M2D605
...
46
U-Clip WPL-M2D575
...
47
Screw 8-32 (25) WPL-M1D909
...
48
Not Available WPL-M65D304
...
49
Not Available WPL-M65D305
...
50
Not Available WPL-M65D303
...
51
Not Available WPL-M65D302
...
52
Blwr Hsg M65d293 WPL-42553P01
...
53
Retainer WPL-M1D892
...
54
Wheel Blower M35d37 WPL-45146P01
...
55
Screw WPL-WP90767
...
56
Blower Motor Kit WPL-M12D90
...
57
Power Transfomer WPL-M60D127
...
58
Capacitor- WPL-WP59001168
...
59
Screw WPL-WPW10068250
...
60
Nut WPL-WP488130
...
61
Relay WPL-38806P01
...
62
Screw (25) WPL-M1D590
...
63
Screw WPL-WP90767
...
64
Screw WPL-WP90767
...
65
Screw WPL-WP90767
...
66
Nut-Speed WPL-M0287001
...
67
Ground Lead Kit WPL-M5D351
...
68
Probe-Temp WPL-45584P01
...
69
Use And Care Manual WPL-M94D450
