Amana 16

Model: 16

Save Part Not Listed?
product name

Popular Parts

Popular Parts

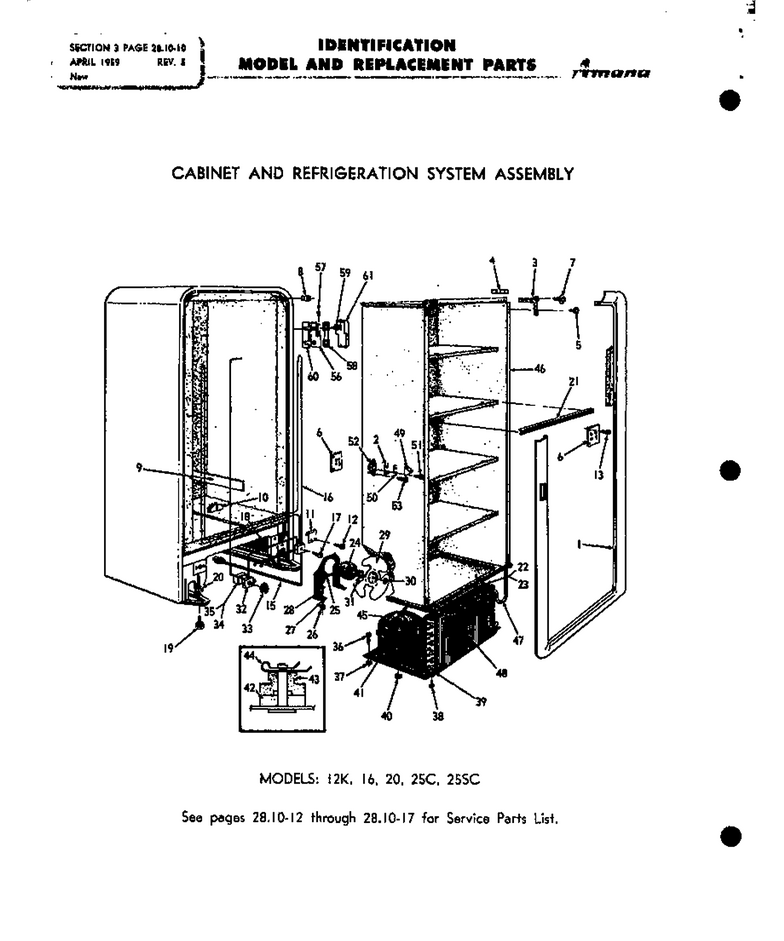

02 - Page 1

...
...
25s Serial Number Series Began K1001 And K25001 WPL-NOTE:
...
NI
Clip, Tubing, Heat Exchanger T WPL-A0251501
...
1
Clip WPL-A0327501
...
2
Cover, Strike Hole WPL-A0389501
...
3
Corner Gusset, Liner/cabinet M WPL-C3508401
...
4
Tap Strip, Corner Gusset/liner WPL-A0382101
...
5
Screw WPL-A0285901
...
6
Tie Strip, Masonite WPL-B0487201
...
7
Sems Fastner WPL-M0252047
...
8
Grommet WPL-A0381801
...
10
Retainer, Liner Support Mtg. WPL-A0312501
...
11
Cover WPL-B0470601
...
12
Screw, Lower Door Spring Mtg. WPL-A0238701
...
13
Screw WPL-WP98165
...
15
Wiring Harness WPL-C3511601
...
16
Heater Wire WPL-C3511611
...
17
Screw, Junction Block Mtg. WPL-A0283101
...
18
Speednut, Junction Blk. Mtg. WPL-A0255501
...
21
Trim, Liner Shelf WPL-A0385601
...
22
Shroud, Condenser WPL-D0742901
...
23
Screw WPL-WP98165
...
24
Motor-Cond WPL-833697
...
25
Bracket K WPL-C0681101
...
26
Clip, Waterline WPL-12454802
...
27
Eyelet K WPL-A0381401
...
28
Screw WPL-WP98165
...
29
Fan Blade WPL-B0496901
...
30
Nut K WPL-A0276101
...
31
Washer, Rubber, Fan Blade Mtg. WPL-A0276201
...
33
Knob WPL-B0486401
...
34
Terminal Cover WPL-B0486301
...
35
Screw WPL-M0202528
...
36
Sems Fastener WPL-A0257601
...
37
Keps Nut, Condensing Unit Mtg. WPL-A0307501
...
38
Screw, Condenser Mtg. WPL-A0261101
...
39
Speednut, Condenser Mtg. WPL-A0316101
...
48
Process Tube Extension, Compre WPL-A0280601
...
49
Strike WPL-A0365401
...
50
Shim WPL-A0374401
...
51
Sems Fastener WPL-A0356401
...
52
Strike Block WPL-B0468701
...
53
Screw, Strike Block Mt.g 8a X WPL-A0284001
...
56
Hinge WPL-D0743501
...
57
Hinge Bearing WPL-D0743503
...
58
Adj Plate WPL-D0743504
...
59
Sems Fastner WPL-A0399801
...
60
Light Bulb WPL-8009
...
61
Cover WPL-D0743507

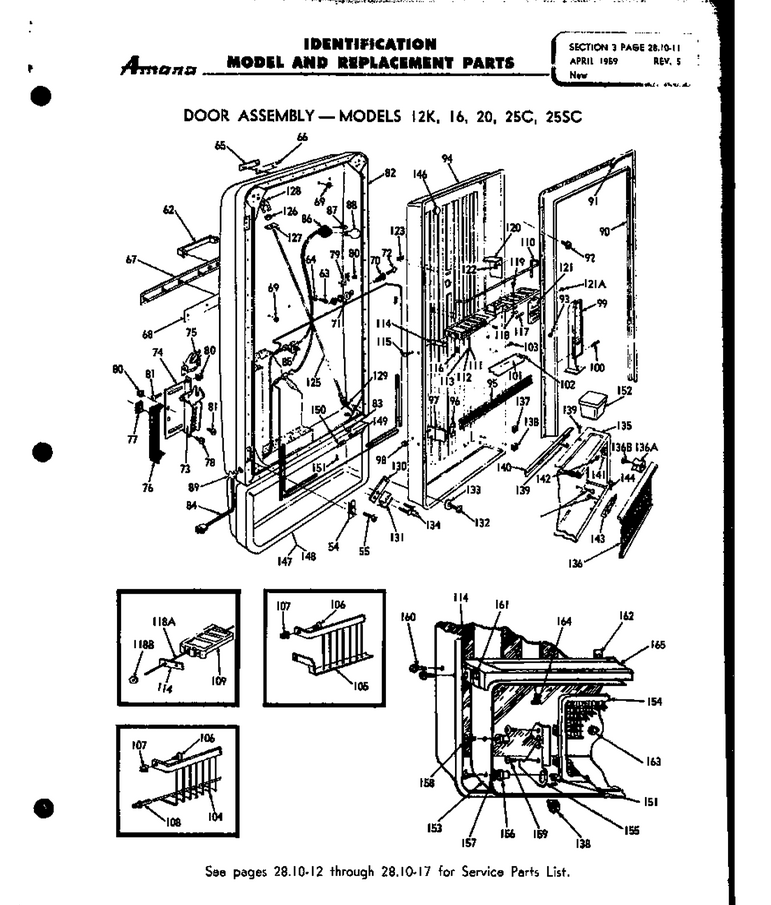

01 - Door Assy

...
...
25sa Serial Number Series Began K1001 And K25001 WPL-NOTE:
...
NI
Bolt, Wall Spacer WPL-A0328001
...
54
Hinge Leaf Assy. Door WPL-D0743601
...
55
Screw, Hinge Leaf To Door Mtg. WPL-A0282401
...
62
Door Handle WPL-B0489501
...
63
Sems Fastener, Door Handle 10- WPL-A3005701
...
64
Washer, Door Handle Mtg. WPL-A0310201
...
65
Medallion WPL-B0489901
...
66
Shim, Medallion Mtg. WPL-A0386001
...
67
Escutcheon, Door WPL-D3745102
...
68
Shim, Escutcheon Mtg. WPL-C3512101
...
69
Nut WPL-A0369601
...
70
Lock WPL-B0484901
...
71
Sealing Washer, Sealing Lock A WPL-A0320201
...
72
Keys WPL-A0382001
...
73
Latch Mechanism WPL-B0467903
...
74
Bracket WPL-B0511801
...
75
Lock Lever WPL-B0484301
...
76
Barrier, Latch Mechanism WPL-B0467801
...
77
Speed Nut WPL-M0288405
...
78
Sems Fastener, Latch Mechanism WPL-A0379201
...
79
Spacer, Latch Mechanism Mtg. WPL-B0516401
...
80
See Note Grommet, Screw Mtg.; Latch Bracket To Weld Strip Mtg. WPL-Y00000000
...
81
Sems Fastener WPL-A0356401
...
82
Outer Door Shell WPL-D3752001
...
83
Hole Plug, Bottom Of Outer Doo WPL-A0297401
...
89
Strain Relief Bushing, Wiring WPL-A0284101
...
90
Breaker Frame, Door, Starlite WPL-D3748401
...
91
Gasket, Door WPL-D3737003
...
92
Screw WPL-A0291801
...
125
Tir Rod, Door WPL-A0292302
...
126
Nut WPL-WP487939
...
127
Anchor Plate, Top WPL-A0292601
...
128
Thermal Spacer, Yoke Assembly, WPL-A0292901
...
129
Thermal Spacer, Yoke Assembly, WPL-A0292902
...
130
Therma; Spacer, Assembly WPL-A0284401
...
131
Spacer, Metal-Door Liner Mtg. WPL-B0472601
...
132
Sems Fastener, Inner Door Line WPL-A0283201
...
133
Washer, Fiber, Inner Door Line WPL-A0278501
...
134
Sems Fastener WPL-A0285001
...
146
Plug Button, Door Liner WPL-A0292802
...
147
Lower Door Assembly WPL-A0281501
...
148
Lower Door Shell WPL-B0524301
...
149
Rubber Bumper WPL-A0283001
...
150
Spring WPL-A0280401
...
151
Screw, Lower Door Spring Mtg. WPL-A0238701
