Amana 1560.000

Model: 1560.000

Save Part Not Listed?
product name

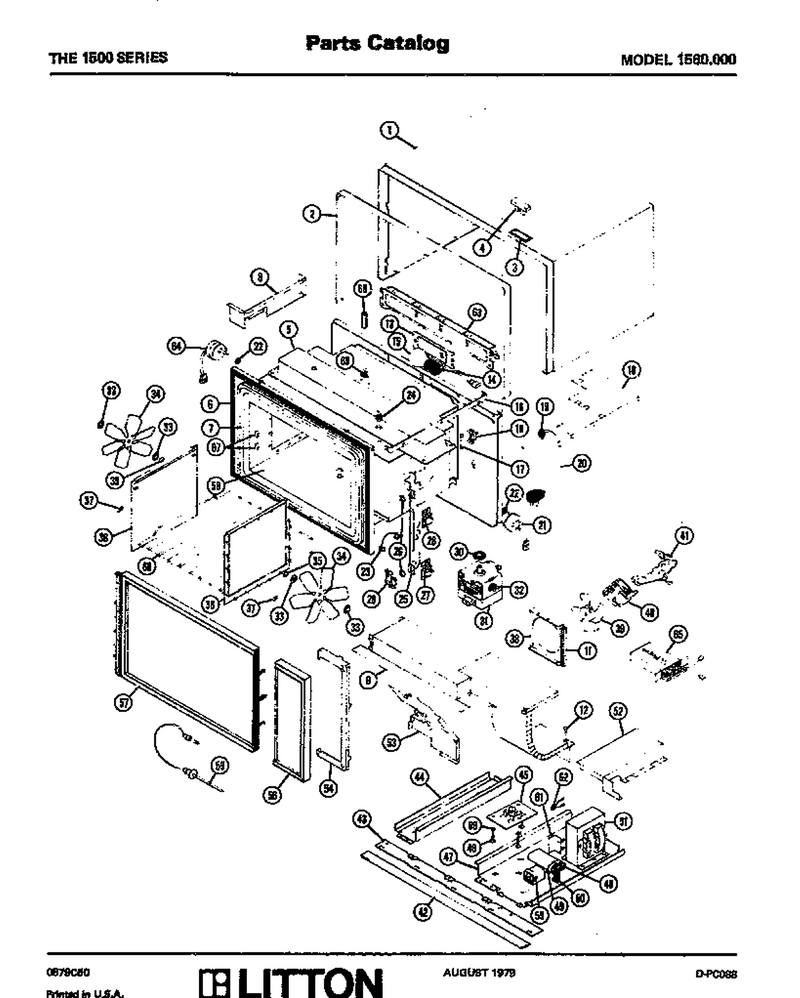

01 - Page 1

...
...
1
Screw, Base Mtg. WPL-M1D663
...
2
Trim, Outer Case WPL-M75D56
...
3
Bezel Door WPL-M6D201
...
4
Button, Door Release WPL-31990P01
...
5
Not Available WPL-M77D89
...
6
Gasket WPL-M25D48
...
7
Choke Filler WPL-M55D13
...
8
Light Barrier 500/1500 WPL-M2D360
...
9
Main Air Duct WPL-M65D151
...
10
Not Available WPL-M65D150
...
11
Gasket WPL-A3030302
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Cover Lamp WPL-M7D309
...
14
Wire Harness WPL-M5D186
...
15
Light Bulb WPL-8009
...
16
Brace Upper WPL-M20D102
...
17
Fuse 20 A WPL-WPM0805101
...
18
Ia Screw WPL-M1D329
...
19
Bush, Strain Relf (10) WPL-M1D600
...
20
No.8 T X 3/8`` Screw WPL-M1D402
...
21
Stirrer Motor Kit WPL-M12D39
...
22
R F Gasket Kit WPL-M2D152
...
23
Ld Grn 16 Ga WPL-M5D120
...
24
Probe Jack WPL-M5D197
...
25
Latch Slide WPL-M20D101
...
26
Bearing Latch WPL-M2D327
...
27
Switch Asy WPL-M14D135
...
28
Ia Screw No.10-32 WPL-M1D370
...
29
Assy, Switch WPL-M14D75
...
30
Gasket-Rf WPL-M2D296
...
31
Kit, Magnetron WPL-M57D20
...
32
Screw Thrm WPL-M1D666
...
33
Washer WPL-M1D565
...
34
Stirrer Blade Kit WPL-M35D18
...
35
.156 Dia Push On Clip WPL-M1D78
...
36
Cover, Stirrer WPL-M45D18
...
37
Retainer, Clip WPL-M1D797
...
38
Not Available WPL-M20D104
...
39
Fan, Blower Kit WPL-M35D16
...
40
Blower Motor Kit WPL-M12D33
...
41
No.10 T X 3/8`` Screw WPL-M1D479
...
42
Lower Trim WPL-M75D55
...
43
Support, Trim Mtg. WPL-M52D135
...
44
Not Available WPL-M79D44
...
45
Triac Assy Kit WPL-M16D56
...
46
Stand Off WPL-M2D359
...
47
Not Available WPL-M79D56
...
48
Capacitor-.69 WPL-59001160
...
49
Bracket WPL-10825501
...
50
Diode Lead WPL-M5D211
...
51
Transformer WPL-M60D79
...
52
Air Duct Cont WPL-M65D198
...
53
Top Trim WPL-M75D119
...
54
No.8 T X 3/8`` Screw WPL-M1D402
...
55
Relay WPL-31133P01
...
56
Electronic Control Panel WPL-M32D11
...
57
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
58
Shelf WPL-M50D29
...
59
Ia Probete WPL-34005P01
...
60
Rack-Wirex WPL-M67D19
...
61
H V Barrier WPL-M2D329
...
62
Varistor Asy WPL-M3D33
...
63
Not Available WPL-M65D118
...
64
Stirrer Motor Kit WPL-M12D52
...
65
Nla (see D-Pb17) WPL-M27D224
...
66
Bearing WPL-M2D176
...
67
Support Rack WPL-B8371001
...
68
Tubing WPL-M2D401
...
69
Nut (25) WPL-M1D798
