Amana 1551.000

Model: 1551.000

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Not Available WPL-M80D74
...
2
Trim, Outer Case WPL-M75D56
...
3
Bezel Door WPL-M6D201
...
4
Button, Door Release WPL-31990P01
...
5
Not Available WPL-M77D89
...
6
Gasket WPL-M25D48
...
7
Choke Filler WPL-M55D13
...
8
Light Barrier 500/1500 WPL-M2D360
...
9
Main Air Duct WPL-M65D151
...
10
Not Available WPL-M65D150
...
11
Spacer WPL-M2D440
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Cover Lamp WPL-M7D309
...
14
Socket Light WPL-M5D270
...
15
Light Bulb WPL-8009
...
16
Brace Upper WPL-M20D102
...
17
Fuse 20 A WPL-WPM0805101
...
18
Ia Screw WPL-M1D329
...
19
Bush, Strain Relf (10) WPL-M1D600
...
20
No.8 T X 3/8`` Screw WPL-M1D402
...
21
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
22
R F Gasket Kit WPL-M2D152
...
23
Ld Grn 16 Ga WPL-M5D120
...
24
3/8 Int Tooth Lockwasher WPL-M1D598
...
25
No.6 Truss Hd Mach Scr WPL-M1D665
...
26
Bearing Latch WPL-M2D327
...
27
Switch Asy WPL-M14D233
...
28
Switch Asy WPL-M14D232
...
29
Assy, Switch WPL-M14D75
...
30
Gasket-Rf WPL-M2D296
...
31
Kit, Magnetron WPL-M57D25
...
32
Cutout-Thermal-Control WPL-31866P01
...
33
Washer WPL-M1D565
...
34
Stirrer Blade Kit WPL-M35D18
...
35
.156 Dia Push On Clip WPL-M1D78
...
36
Cover, Stirrer WPL-M45D18
...
37
Retainer, Clip WPL-M1D797
...
38
Not Available WPL-M20D104
...
39
Fan, Blower Kit WPL-M35D16
...
40
Blower Motor Kit WPL-M12D33
...
41
Blower Brkt.kit WPL-M20D103
...
42
Lower Trim WPL-M75D55
...
43
Driver, Tri-Wing (m95d20) WPL-92458P01
...
44
Not Available WPL-M79D78
...
45
Screw (25) WPL-M1D590
...
46
Not Available WPL-M79D56
...
47
Capacitor-.69 WPL-59001160
...
48
Bracket WPL-10825501
...
49
Nut WPL-WP488130
...
50
Transformer WPL-M60D79
...
51
Not Available WPL-M65D197
...
52
Air Duct Cont WPL-M65D198
...
53
Not Available WPL-M7D460
...
54
Relay WPL-31133P01
...
55
No.6 Thread Forming Screw WPL-M1D627
...
56
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
57
Shelf WPL-M50D29
...
58
Ia Probete WPL-34005P01
...
59
Rack-Wirex WPL-M67D19
...
60
H V Barrier WPL-M2D329
...
61
Not Available WPL-M2D403
...
62
Not Available WPL-M65D118
...
63
Stirrer Motor Kit WPL-M12D52
...
64
H.v. Lead Kit WPL-M5D109
...
65
Screw (25) WPL-M1D413
...
66
Screw (25) WPL-M1D590
...
67
Screw (25) WPL-M1D590
...
68
Support Rack WPL-B8371001
...
69
Tubing WPL-M2D401
...
70
Nut (25) WPL-M1D798
...
71
Bezel,dec Panel WPL-M7D459
...
72
Mtg Plate WPL-M7D389
...
73
Assy, Mem Sw 1551 WPL-M7D391
...
74
Tuning Stud WPL-M2D488
...
75
End Cap Asm 515 Kit WPL-M7D360

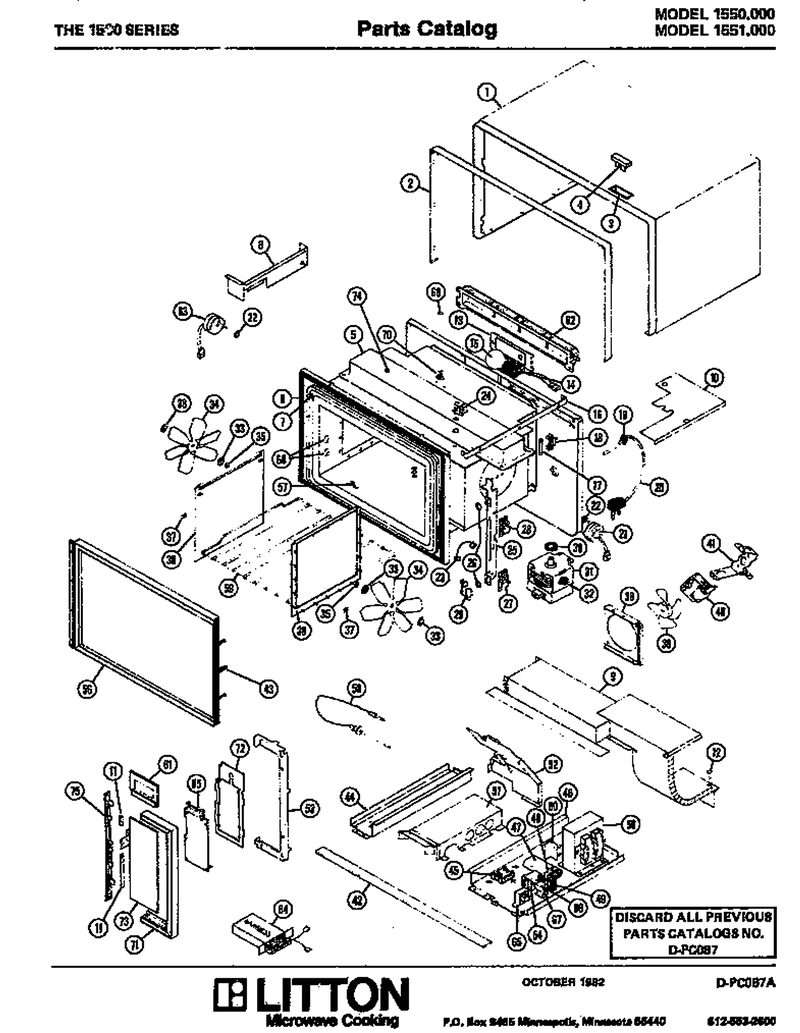

Schematic Image Zoomed
