Amana 1520.000

Model: 1520.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

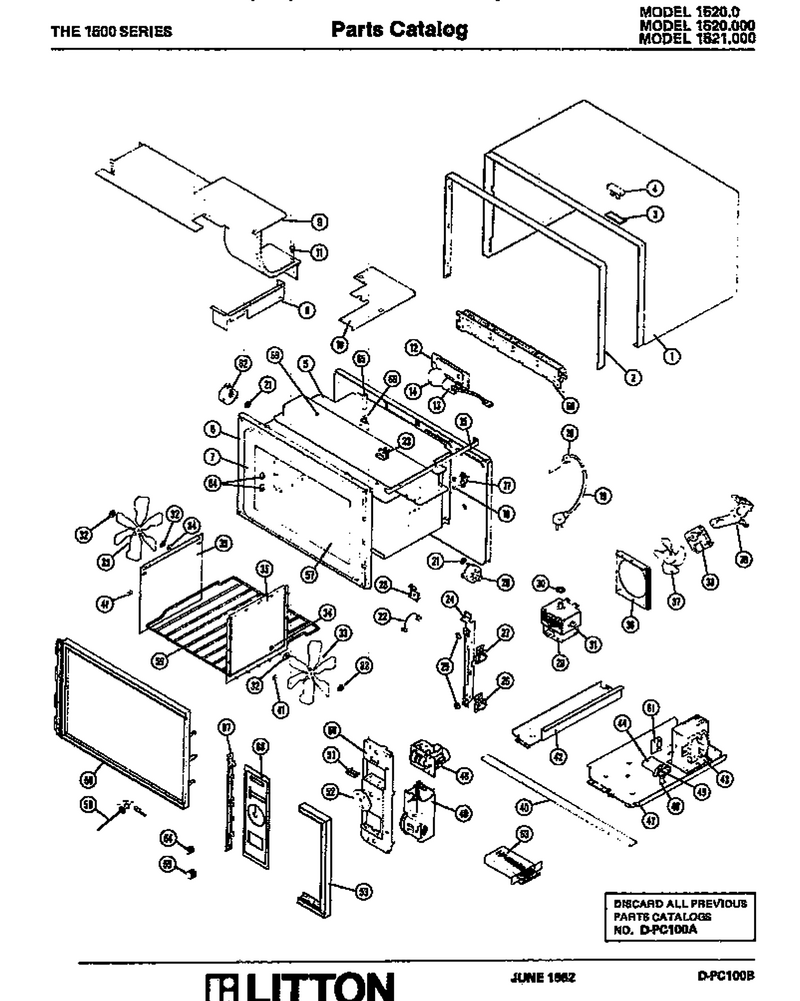

01 - Page 1

...
...
1
Not Available WPL-M80D74
...
2
Trim, Outer Case WPL-M75D56
...
3
Bezel Door WPL-M6D201
...
4
Button, Door Release WPL-31990P01
...
5
Not Available WPL-M77D89
...
6
Gasket WPL-M25D48
...
7
Choke Filler WPL-M55D13
...
8
Light Barrier 500/1500 WPL-M2D360
...
9
Main Air Duct WPL-M65D151
...
10
Not Available WPL-M65D150
...
11
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
12
Cover Lamp WPL-M7D309
...
13
Socket Light WPL-M5D270
...
14
Light Bulb WPL-8009
...
15
Ia 6-32 Screw (25) WPL-M1D664
...
16
Fuse 20 A WPL-WPM0805101
...
17
Ia Screw WPL-M1D329
...
18
Bush, Strain Relf (10) WPL-M1D600
...
19
No.8 T X 3/8`` Screw WPL-M1D402
...
20
Stirrer Motor WPL-M12D68
...
21
R.f. Gasket WPL-M2D492
...
22
Ld Grn 16 Ga WPL-M5D120
...
23
Washer (25) WPL-M1D617
...
24
Latch Slide WPL-M20D101
...
25
Bearing Latch WPL-M2D327
...
26
Ia Screw No.10-32 WPL-M1D370
...
27
Ia Screw No.10-32 WPL-M1D370
...
28
Screw (25) WPL-M1D107
...
29
Kit, Magnetron WPL-M57D25
...
30
Gasket-Rf WPL-M2D296
...
31
Cutout-Thermal-Control WPL-31866P01
...
32
Spcr-Stir WPL-M2D491
...
33
Stirrer Blade Kit WPL-M35D18
...
34
.156 Dia Push On Clip WPL-M1D78
...
35
Cover, Stirrer WPL-M45D18
...
36
Not Available WPL-M20D104
...
37
Fan, Blower Kit WPL-M35D16
...
38
Transmotor Kit WPL-M12D48
...
39
Blower Brkt.kit WPL-M20D89
...
40
Lower Trim WPL-M75D55
...
41
Screw WPL-WP489464
...
42
No.10 T X 3/8`` Screw WPL-M1D479
...
43
No.10 T X 3/8`` Screw WPL-M1D479
...
44
Capacitor-.69 WPL-59001160
...
45
Screw WPL-WP90767
...
46
Kit, Diode WPL-M3D71
...
47
Not Available WPL-M79D56
...
48
No.8 T X 3/8`` Screw WPL-M1D402
...
49
No.8 T X 3/8`` Screw WPL-M1D402
...
50
No.8 T X 3/8`` Screw WPL-M1D402
...
51
Cook Light WPL-M9D52
...
52
Not Available WPL-M6D286
...
53
Bezel Dec Pn WPL-35970P01
...
54
Digital Timer Knob Kit WPL-M6D53
...
55
Knob Vari M6d169 WPL-M6D169
...
56
Door Asy WPL-M68D103
...
57
Shelf WPL-M50D29
...
58
Ia Probete WPL-34005P01
...
59
Rack-Wirex WPL-M67D19
...
60
Ia Screw WPL-M1D329
...
61
Jw Clip WPL-53508P01
...
62
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
63
H.v. Lead Kit WPL-M5D109
...
64
Support Rack WPL-B8371001
...
65
Tubing WPL-M2D401
...
66
Nut (25) WPL-M1D798
...
67
End Cap Asm 515 Kit WPL-M7D360
...
68
Dec Panel WPL-M7D507
...
69
Tuning Stud WPL-M2D488
