Amana 1510.000

Model: 1510.000

Save Part Not Listed?
product name

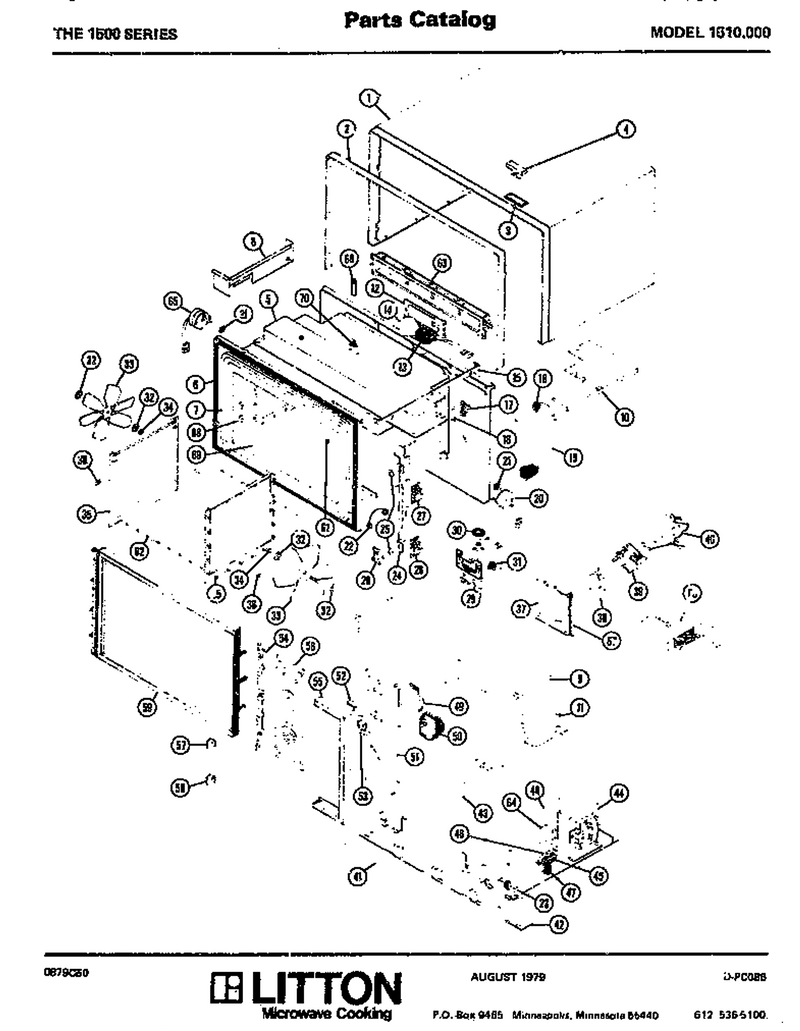

01 - Page 1

...
...
1
Screw, Base Mtg. WPL-M1D663
...
2
Trim, Outer Case WPL-M75D56
...
3
Bezel Door WPL-M6D201
...
4
Button, Door Release WPL-31990P01
...
5
Not Available WPL-M77D89
...
6
Gasket WPL-M25D48
...
7
Choke Filler WPL-M55D13
...
8
Light Barrier 500/1500 WPL-M2D360
...
9
Main Air Duct WPL-M65D151
...
10
Not Available WPL-M65D150
...
11
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
12
Cover Lamp WPL-M7D309
...
13
Wire Harness WPL-M5D186
...
14
Light Bulb WPL-8009
...
15
Brace Upper WPL-M20D102
...
16
Fuse 20 A WPL-WPM0805101
...
17
Ia Screw WPL-M1D329
...
18
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
19
No.8 T X 3/8`` Screw WPL-M1D402
...
20
Stirrer Motor Kit WPL-M12D39
...
21
R F Gasket Kit WPL-M2D152
...
22
Ld Grn 16 Ga WPL-M5D120
...
23
Screw WPL-WPW10068250
...
24
Latch Slide WPL-M20D101
...
25
Bearing Latch WPL-M2D327
...
26
Ia Screw No.10-32 WPL-M1D370
...
27
Ia Screw No.10-32 WPL-M1D370
...
28
Interlock Monitor Sw M14d134 WPL-92025A01
...
29
Kit, Magnetron WPL-M57D20
...
30
Gasket-Rf WPL-M2D296
...
31
Screw Thrm WPL-M1D666
...
32
Washer WPL-M1D565
...
33
Stirrer Blade Kit WPL-M35D18
...
34
.156 Dia Push On Clip WPL-M1D78
...
35
Cover, Stirrer WPL-M45D18
...
36
Retainer, Clip WPL-M1D797
...
37
Not Available WPL-M20D104
...
38
Fan, Blower Kit WPL-M35D16
...
39
Blower Motor Kit WPL-M12D33
...
40
Blower Brkt.kit WPL-M20D103
...
41
Lower Trim WPL-M75D55
...
42
Support, Trim Mtg. WPL-M52D135
...
43
Not Available WPL-M79D44
...
44
Transformer WPL-M60D79
...
45
Capacitor-.69 WPL-59001160
...
46
Bracket WPL-10825501
...
47
Nut WPL-WP488130
...
48
No.10 T X 3/8`` Screw WPL-M1D479
...
49
Timer WPL-M30D60
...
50
Screw (25) WPL-M1D523
...
51
No.8 T X 3/8`` Screw WPL-M1D402
...
52
Cook Light WPL-M9D52
...
53
Dial Timer WPL-M6D194
...
54
Screw (25) WPL-M1D772
...
55
Bezel Dec Pnl 1500`s WPL-M7D373
...
56
Dec Panel WPL-M7D374
...
57
Knob, Timer WPL-29977P01
...
58
Knob % Tmr WPL-M6D211
...
59
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
60
Shelf WPL-M50D29
...
61
Cavity Plug (10) WPL-M1D755
...
62
Rack-Wirex WPL-M67D19
...
63
Not Available WPL-M65D118
...
64
H V Barrier WPL-M2D329
...
65
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
66
H.v. Lead Kit WPL-M5D109
...
67
Gasket WPL-A3030302
...
68
Support Rack WPL-B8371001
...
69
Tubing WPL-M2D401
...
70
Nut (25) WPL-M1D798
