Amana 1465.000

Model: 1465.000

Save Part Not Listed?
product name

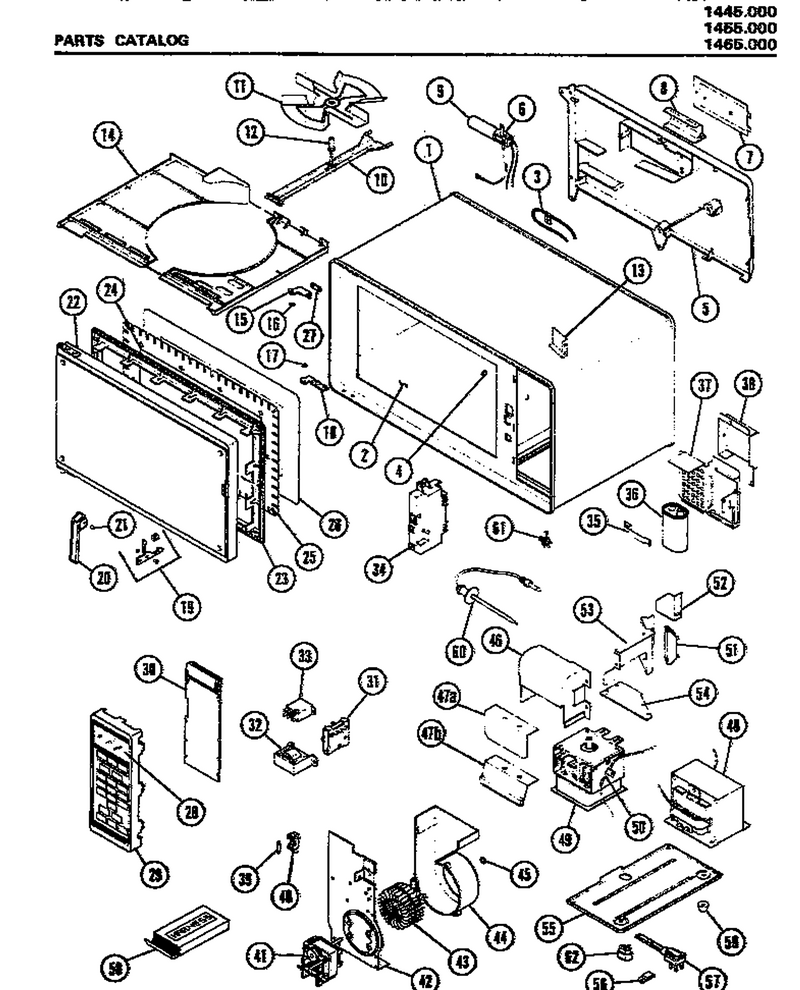

01 - Page 1

...
...
NI
Torx Driver, T-20 (m95d23) WPL-M95D23
...
1
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
2
Adhesive WPL-W10841140
...
3
Sensor, Cavity Kit WPL-M4D102
...
5
Screw WPL-WP90767
...
6
Lamp Brkt WPL-40610P01
...
7
Screw WPL-WP90767
...
8
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
9
Light Bulb WPL-44865P01
...
10
Plastic Fastener WPL-5524122001
...
11
Kit-Insert & Blade Stirrer WPL-R0130737
...
12
Ball WPL-38321P01
...
13
Deflector WPL-M8D333
...
14
Stirrer Cover M45d50 WPL-3010017901
...
15
Brkt Top WPL-45009P01
...
16
No.10 Wave Washer WPL-M2D583
...
17
Nylon Flat Washer WPL-40370P01
...
18
Hinge Asy WPL-45179P01
...
19
Door Hook Kit WPL-R0163249
...
20
Handle WPL-M11D78
...
21
Groove Pin WPL-M2D577
...
22
Outer Door Assembly WPL-M70D121
...
23
Door Filler Kit WPL-M55D22
...
24
Outer Window Kit WPL-M51D63
...
25
No.8 Ab X 3/8`` Screw WPL-M1D906
...
26
Window, Inner WPL-10785101
...
27
Plate Nut WPL-45010P01
...
28
Window Dspl M2d727 WPL-44753P03
...
29
Mem Tch Pnl Asy 1465 M7d784 WPL-M7D784
...
30
Net-Assy,ckt Bd WPL-M32R32
...
31
Screw (25) WPL-M1D590
...
32
Kit, Lv Transformer WPL-M60D107
...
33
Relay WPL-38806P01
...
34
Switch, Interlock WPL-M14D253
...
35
Strap, Capacitor WPL-10822101
...
36
H V Cap .91 +-6% WPL-M10D52
...
37
Capacitor Cover WPL-M20D258
...
38
Screw WPL-WP90767
...
39
Fuse 20 A WPL-WPM0805101
...
40
Ia Screw WPL-M1D329
...
41
Blower Motor Kit WPL-M12D100
...
42
Blower Bracket WPL-M20D285
...
43
Kit, Blower Wheel WPL-R0163293
...
44
Blower Housing Kit WPL-M65D330
...
45
Retainer WPL-M1D892
...
46
Screw WPL-WP90767
...
47
Air Deflector WPL-M8D337
...
48
Kit, Transformer WPL-M60D181
...
49
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
50
Sensor Magnetron Kit WPL-M4D101
...
51
Hv Rect 12kv 750max WPL-1330000301
...
52
Rear Deflector WPL-M8D335
...
53
Duct Side Air WPL-M65D329
...
54
Screw WPL-WP90767
...
55
Bottom Access Panel WPL-92758P01
...
56
Nut Twin Spd WPL-52735P01
...
57
Flat Washer (1) WPL-M1D56
...
58
H.v. Lead Kit WPL-M5D350
...
59
Foot WPL-M2D676
...
60
Probe-Temp WPL-45584P01
...
61
3/8 Int Tooth Lockwasher WPL-M1D598
...
62
Rivet, Pop WPL-A4539629
