product name

Amana 1455.001

Model: 1455.001

Save Part Not Listed?
product name

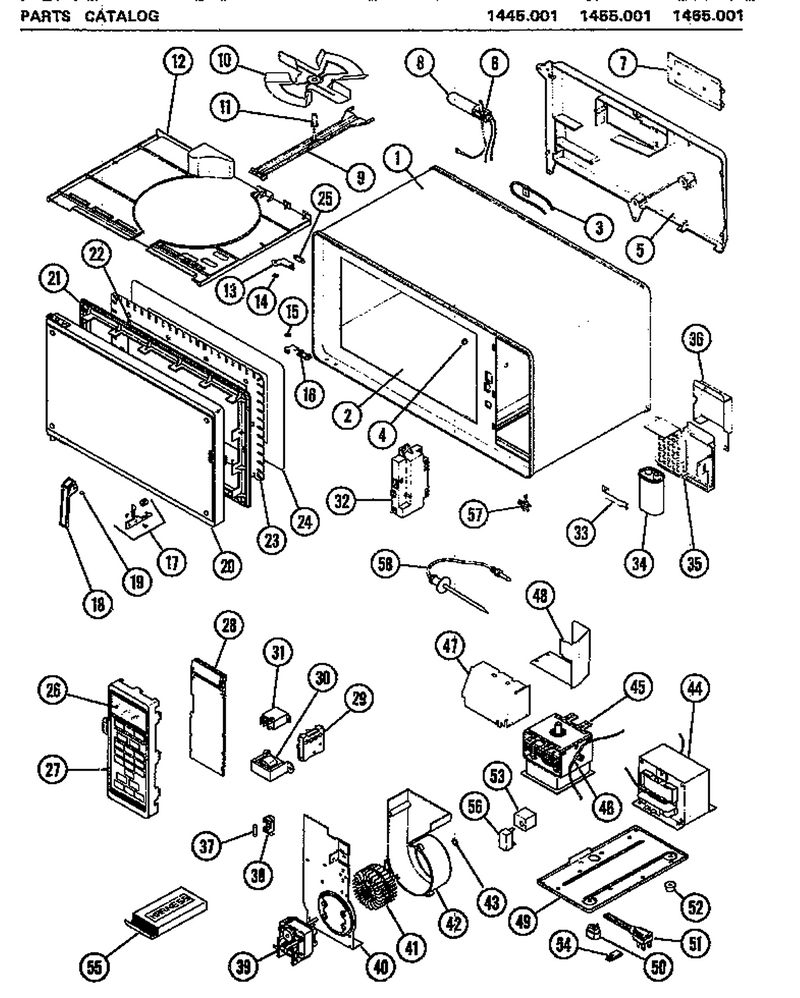

01 - Page 1

...
...
1
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
2
Adhesive WPL-W10841140
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Cavity Plug (10) WPL-M1D755
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP90767
...
7
Screw WPL-WP90767
...
8
Light Bulb WPL-44865P01
...
9
Kit, Stirrer Bar WPL-M20D319
...
10
Kit-Insert & Blade Stirrer WPL-R0130737
...
11
Ball WPL-38321P01
...
12
Stirrer Cover M45d50 WPL-3010017901
...
13
Brkt Top WPL-45009P01
...
14
No.10 Wave Washer WPL-M2D583
...
15
Nylon Flat Washer WPL-40370P01
...
16
Hinge Asy WPL-45179P01
...
17
Door Hook Kit WPL-R0163249
...
18
Handle WPL-M11D78
...
19
Groove Pin WPL-M2D577
...
20
Outer Door Assembly WPL-M70D121
...
21
Door Filler Kit WPL-M55D22
...
22
Outer Window Kit WPL-M51D63
...
23
Door Plate,inner WPL-R0163246
...
24
Window, Inner WPL-10785101
...
25
Plate Nut WPL-45010P01
...
26
Window Disp WPL-44753P01
...
27
Membrane Pnl. WPL-M7D786
...
28
Net-Assy,ckt Bd WPL-M32R32
...
29
Triac WPL-M16D93
...
30
Screw WPL-WP90767
...
31
Relay WPL-38806P01
...
32
Switch, Interlock WPL-M14D253
...
33
Screw WPL-WP90767
...
34
H V Cap .91 +-6% WPL-M10D52
...
35
Screw WPL-WP90767
...
36
Screw WPL-WP90767
...
37
Fuse 20 A WPL-WPM0805101
...
38
Ia Screw WPL-M1D329
...
39
Blower Motor Kit WPL-M12D100
...
40
Blower Bracket WPL-M20D285
...
41
Kit, Blower Wheel WPL-R0163293
...
42
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
43
Retainer WPL-M1D892
...
44
Kit, Transformer WPL-M60D181
...
45
Kit, Magnetron WPL-M57D37
...
46
Sensor Magnetron Kit WPL-M4D101
...
47
Front Air Duct WPL-3000004301
...
48
Screw WPL-WP90767
...
49
Nut-Speed WPL-M0287001
...
50
Strain Relief WPL-M2D673
...
51
Power Cord WPL-M26D55
...
52
Foot WPL-M2D676
...
53
Foam Insulator WPL-M2D744
...
54
Cord Retainer WPL-M2D674
...
55
Wire Harness WPL-M27D382
...
56
Kit, Diode WPL-M3D71
...
57
Washer (25) WPL-M1D617
...
58
Probe-Temp WPL-45584P01
