Amana 1455.000

Model: 1455.000

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Use And Care Manual WPL-Y0510000036
...
1
Not Available WPL-M77D140
...
2
Adhesive WPL-W10841140
...
3
Sensor, Cavity Kit WPL-M4D102
...
5
Rear Cover WPL-M20D288
...
6
Lamp Brkt WPL-40610P01
...
7
Screw WPL-WP90767
...
8
Reflector WPL-M20D263
...
9
Light Bulb WPL-44865P01
...
10
Plastic Fastener WPL-5524122001
...
11
Kit-Insert & Blade Stirrer WPL-R0130737
...
12
Ball WPL-38321P01
...
13
Deflector WPL-M8D333
...
14
Stirrer Cover M45d50 WPL-3010017901
...
15
Brkt Top WPL-45009P01
...
16
No.10 Wave Washer WPL-M2D583
...
17
Nylon Flat Washer WPL-40370P01
...
18
Hinge Asy WPL-45179P01
...
19
Door Hook Kit WPL-R0163249
...
20
Handle WPL-M11D78
...
21
Groove Pin WPL-M2D577
...
22
Outer Door Assembly WPL-M70D121
...
23
Door Filler Kit WPL-M55D22
...
24
Outer Window Kit WPL-M51D63
...
25
Door Plate,inner WPL-R0163246
...
26
Window, Inner WPL-10785101
...
27
Plate Nut WPL-45010P01
...
28
Display Window WPL-M2D726
...
29
Mem Tch Pnl Asy 1455 M7d785 WPL-M7D785
...
30
Net-Assy,ckt Bd WPL-M32R32
...
31
Screw (25) WPL-M1D590
...
32
Kit, Lv Transformer WPL-M60D107
...
33
Screw (25) WPL-M1D590
...
34
Screw WPL-WPW10001160
...
35
Strap, Capacitor WPL-10822101
...
36
H V Cap .91 +-6% WPL-M10D52
...
37
Capacitor Cover WPL-M20D258
...
38
Cover Lead WPL-M20D286
...
39
Fuse 20 A WPL-WPM0805101
...
40
Ia Screw WPL-M1D329
...
41
No.8 Flat Washer WPL-M1D136
...
42
Blower Bracket WPL-M20D285
...
43
Kit, Blower Wheel WPL-R0163293
...
44
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
45
Retainer WPL-M1D892
...
46
Screw WPL-WP90767
...
47
Air Deflector WPL-M8D337
...
48
Kit, Transformer WPL-M60D181
...
49
Kit, Magnetron WPL-M57D37
...
50
Sensor Magnetron Kit WPL-M4D101
...
51
Hv Rect 12kv 750max WPL-1330000301
...
52
Rear Deflector WPL-M8D335
...
53
Duct Side Air WPL-M65D329
...
54
Not Available WPL-M65D328
...
55
Bottom Access Panel WPL-92758P01
...
56
Nut Twin Spd WPL-52735P01
...
57
Power Cord WPL-M26D55
...
58
H.v. Lead Kit WPL-M5D350
...
59
Foot WPL-M2D676
...
60
Probe-Temp WPL-45584P01
...
61
3/8 Int Tooth Lockwasher WPL-M1D598
...
62
Rivet, Pop WPL-A4539629

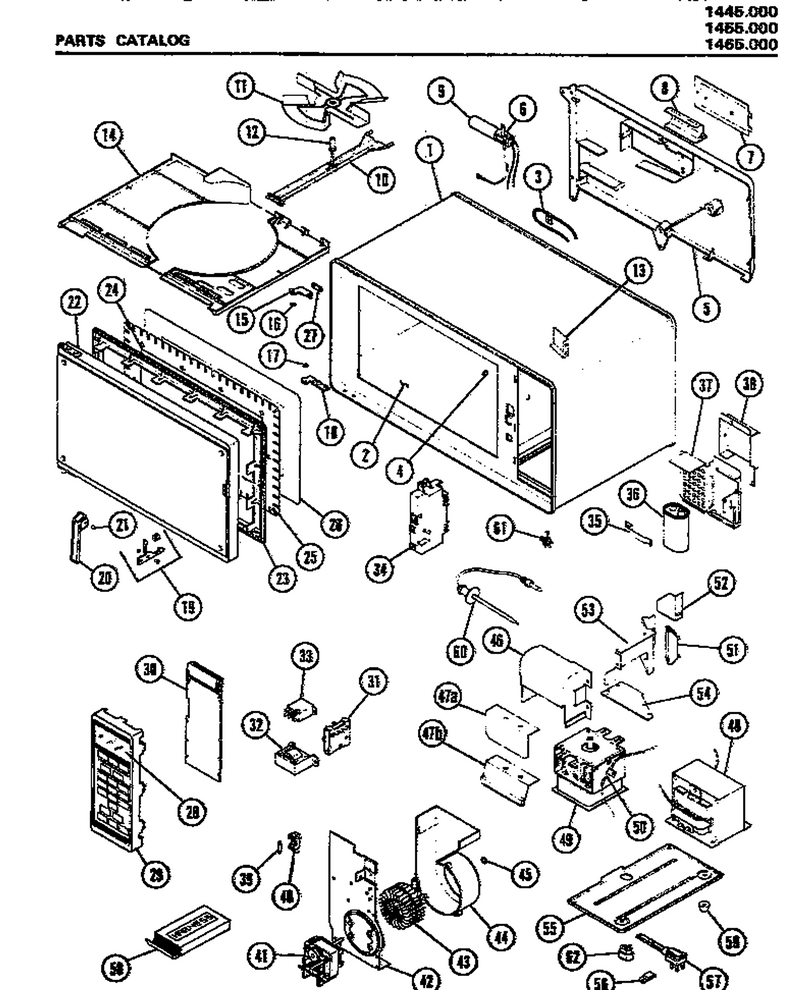

Schematic Image Zoomed
