Amana 1450.004

Model: 1450.004

Save Part Not Listed?
product name

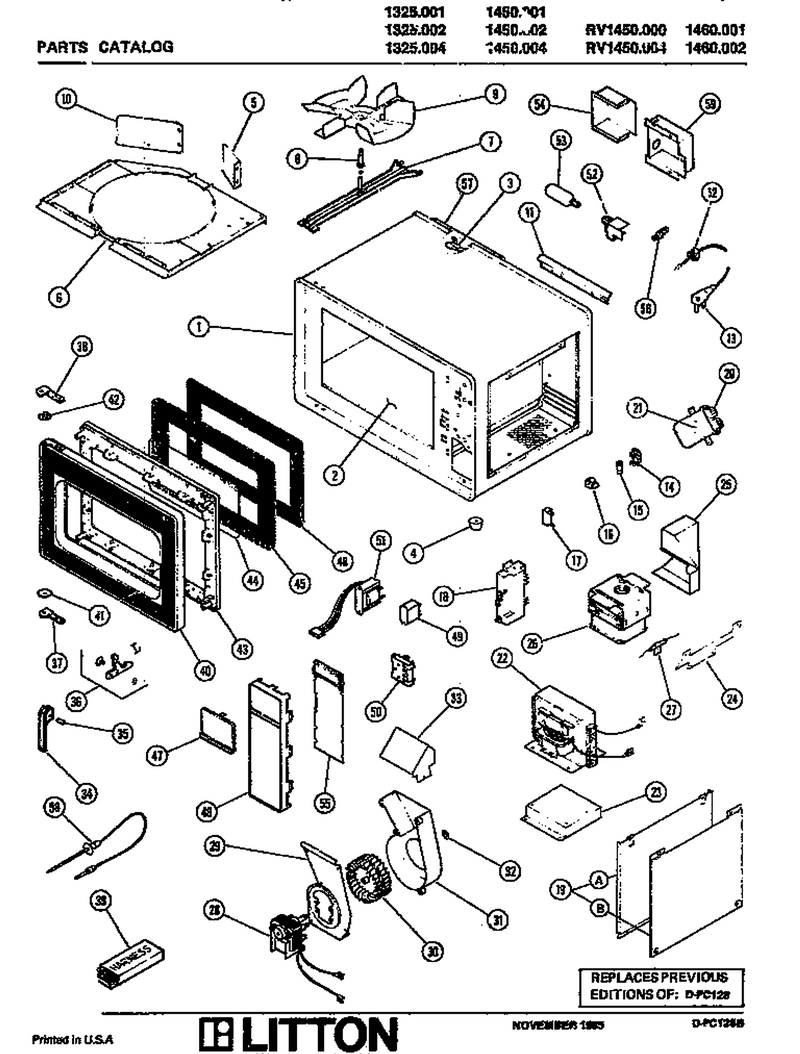

01 - Page 1

...
...
NI
M95d11-Centigrade Thermo WPL-M95D11
...
1
Clip WPL-M1D884
...
2
Adhesive WPL-W10841140
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Molded Foot(4per Pkg.) WPL-M2D547
...
5
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
6
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
7
Stirrer Supt Bar Kit WPL-M20D327
...
8
Ball WPL-38321P01
...
9
Blade, Stirrer WPL-10826002Q
...
10
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
11
Channel, Wire WPL-10826901
...
12
Bush, Strain Relf (10) WPL-M1D600
...
13
No.8 Spring Lockwasher (25) WPL-M1D57
...
14
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
15
Fuse 20 A WPL-WPM0805101
...
16
Cable Clip WPL-M2D580
...
17
Kit, Diode WPL-M3D71
...
18
Switch, Interlock WPL-M14D253
...
19
Access Pnl WPL-M53D51
...
20
Capacitor 1.60mf Kit WPL-M10D88
...
21
Screw WPL-WP90767
...
22
Bolt Xfmer (10) WPL-M1D889
...
23
No.10 T X 3/8`` Screw WPL-M1D479
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP90767
...
26
Gasket-Rf WPL-M2D296
...
27
Sensor Magnetron Kit WPL-M4D101
...
28
No.8 Flat Washer WPL-M1D136
...
29
Screw WPL-WP90767
...
30
Wheel Blower M35d37 WPL-45146P01
...
31
Blwr Hsg M65d293 WPL-42553P01
...
32
Retainer WPL-M1D892
...
33
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
34
Handle Inlay Kit WPL-M7D647
...
35
Groove Pin WPL-M2D577
...
36
Door Hook Kit WPL-M2D625
...
37
Bracket, Hinge Upper WPL-M8D249
...
38
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
39
H.v. Lead Kit WPL-M5D350
...
40
Outer Door Asy Kit WPL-M70D90
...
41
Nylon Flat Washer WPL-40370P01
...
42
No.10 Wave Washer WPL-M2D583
...
43
Door Filler Kit WPL-M55D18
...
44
Outer Window Assy. Kit WPL-M51D53
...
45
No.8 Ab X 3/8`` Screw WPL-M1D906
...
46
Window, Inner Door WPL-10785001
...
47
Display Window Kit WPL-M2D630
...
48
Touch Pnl Assy Kit WPL-M7D643
...
49
Screw WPL-M0202325
...
50
Screw (25) WPL-M1D590
...
51
Kit, Lv Transformer WPL-M60D107
...
52
Screw WPL-WP90767
...
53
Bulb-Light WPL-40407P01
...
54
Light Cover WPL-M7D566
...
55
No.6 Thread Forming Screw WPL-M1D627
...
56
Washer (25) WPL-M1D617
...
57
Rivet-Pop WPL-59002054
...
58
Ia Probete WPL-34005P01
...
59
Screw WPL-WP90767
