Amana 1443.002

Model: 1443.002

Save Part Not Listed?
product name

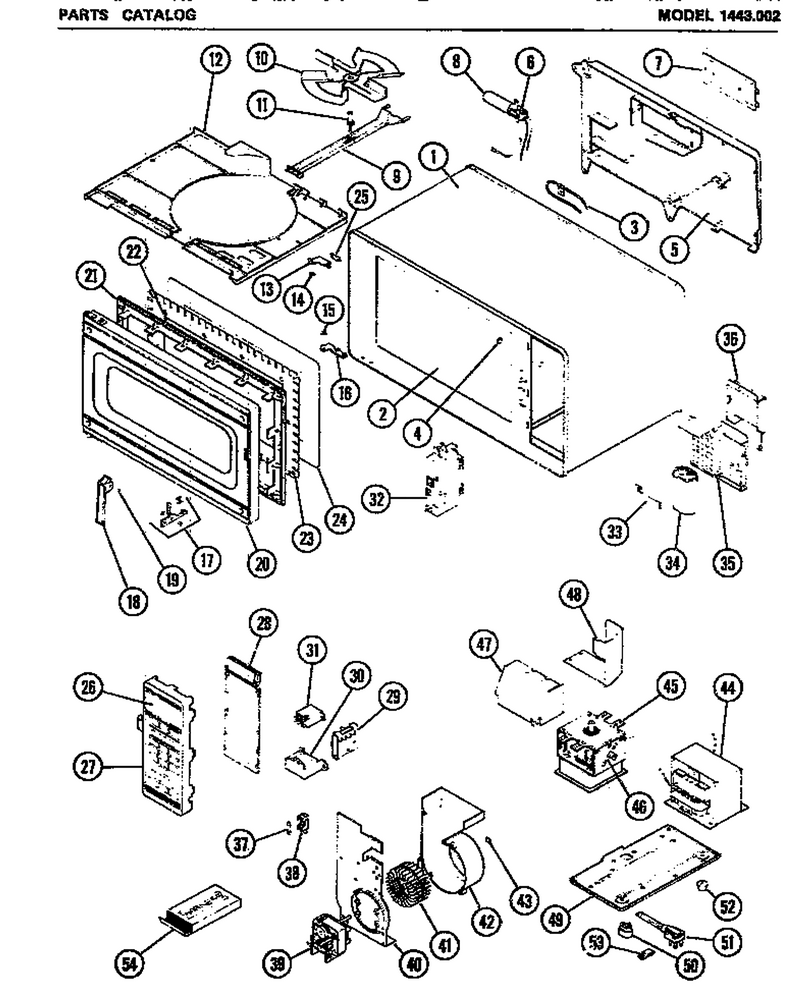

01 - Page 1

...
...
1
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
2
Adhesive WPL-W10841140
...
3
Sensor Cavity Kit WPL-M4D124
...
4
Cavity Plug (10) WPL-M1D755
...
5
Screw WPL-WP90767
...
6
Lamp Holder 1435utc WPL-45954P01
...
7
Screw WPL-WP90767
...
8
Light Bulb WPL-44865P01
...
9
Kit, Stirrer Bar WPL-M20D319
...
10
Kit-Insert & Blade Stirrer WPL-R0130737
...
11
Ball WPL-38321P01
...
12
Stirrer Cover M45d50 WPL-3010017901
...
13
Brkt Top WPL-45009P01
...
14
No.10 Wave Washer WPL-M2D583
...
15
Nylon Flat Washer WPL-40370P01
...
16
Hinge Asy WPL-45179P01
...
17
Door Hook Kit WPL-R0163249
...
18
Handle WPL-M11D78
...
19
Groove Pin WPL-M2D577
...
20
Outer Door Assembly WPL-M70D162
...
21
Door Filler Kit WPL-M55D22
...
22
Outer Window Kit WPL-M51D63
...
23
Door Plate,inner WPL-R0163246
...
24
Window, Inner WPL-10785101
...
25
Plate Nut WPL-45010P01
...
26
Window Disp WPL-44753P01
...
27
Membrane Pnl. WPL-M7D786
...
28
Net-Assy,ckt Bd WPL-M32R32
...
29
Triac WPL-M16D93
...
30
Kit, Lv Transformer WPL-M60D118
...
31
Screw (25) WPL-M1D590
...
32
Switch, Interlock WPL-M14D253
...
33
Strap, Capacitor WPL-10822101
...
34
Kit, Cap & Diode WPL-M10D140
...
35
Capacitor Cover WPL-M20D258
...
36
Cover Lead 1435.001 WPL-M20D310
...
37
Fuse 20 A WPL-WPM0805101
...
38
Ia Screw WPL-M1D329
...
39
No.8 Flat Washer WPL-M1D136
...
40
Blower Bracket WPL-M20D285
...
41
Kit, Blower Wheel WPL-R0163293
...
42
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
43
Retainer WPL-M1D892
...
44
No.10 T X 3/8`` Screw WPL-M1D479
...
45
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
46
Sensor Magnetron Kit WPL-M4D101
...
47
Front Air Duct WPL-3000004301
...
48
Screw WPL-WP90767
...
49
Not Available WPL-M53D68
...
50
Strain Relief WPL-M2D673
...
51
Flat Washer (1) WPL-M1D56
...
52
Pop Rivet WPL-A4539625
...
53
Cord Retainer WPL-M2D674
...
54
Use And Care Manual WPL-Y0510000036
