Amana 14390.A

Model: 14390.A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

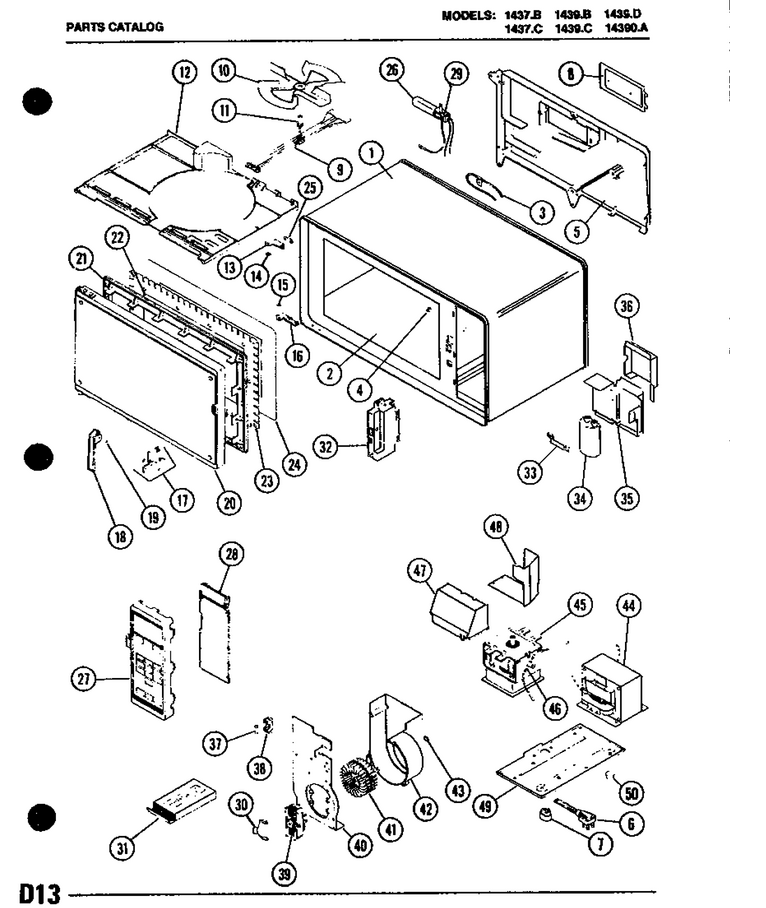

01 - Page 1

...
...
NI
Toast T/u Paint WPL-M13D43
...
1
Rivet-Plastcx WPL-42192P01
...
2
Shelf Kit WPL-M50D45
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Cavity Plug (10) WPL-M1D755
...
5
Screw WPL-WP90767
...
6
Nut WPL-WP488130
...
7
Strain Relief WPL-M2D673
...
8
Clip-Dr M2d610 (25) WPL-38886P01
...
9
Kit, Stirrer Bar WPL-M20D319
...
10
Kit-Insert & Blade Stirrer WPL-R0130737
...
11
Ball WPL-38321P01
...
12
Stirrer Cover M45d50 WPL-3010017901
...
13
Brkt Top WPL-45009P01
...
14
Nylon Flat Washer WPL-40370P01
...
15
Nylon Flat Washer WPL-40370P01
...
16
Hinge Asy WPL-45179P01
...
17
Door Hook Kit WPL-R0163249
...
18
Handle WPL-M11D78
...
19
Groove Pin WPL-M2D577
...
20
Outer Door Asy M70d171 WPL-M70D171
...
21
Door Filler Kit WPL-M55D26
...
22
Outer Window WPL-M51D70
...
23
Door Plate,inner WPL-R0163246
...
24
Window, Inner WPL-10785101
...
25
Plate Nut WPL-45010P01
...
26
Light Bulb WPL-44865P01
...
27
Mem Tch Pnl WPL-M7D899
...
28
Net-Assy,ckt Bd(rework) WPL-M32R65
...
29
Screw WPL-WP90767
...
30
Filter WPL-M10D126
...
31
Wire Harness WPL-M27D467
...
32
Interlock Switch Module WPL-M14D305
...
33
Screw WPL-WP90767
...
34
Kit, Cap & Diode WPL-M10D140
...
35
Screw WPL-WP90767
...
36
Screw WPL-WP90767
...
37
Fuse 20 A WPL-WPM0805101
...
38
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
39
Nut WPL-WP488130
...
40
Screw WPL-WP90767
...
41
Kit, Blower Wheel WPL-R0163293
...
42
Screw (25) WPL-M1D963
...
43
Retainer WPL-M1D892
...
44
No.10 T X 3/8`` Screw WPL-M1D479
...
45
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
46
Sensor Magnetron Kit WPL-M4D101
...
47
Front Air Duct WPL-3000004301
...
48
Rear Air Duct 1400utc WPL-45766P01
...
49
Screw WPL-WP489464
...
50
Pop Rivet WPL-A4539625
