Amana 1435.001

Model: 1435.001

Save Part Not Listed?
product name

Popular Parts

Popular Parts

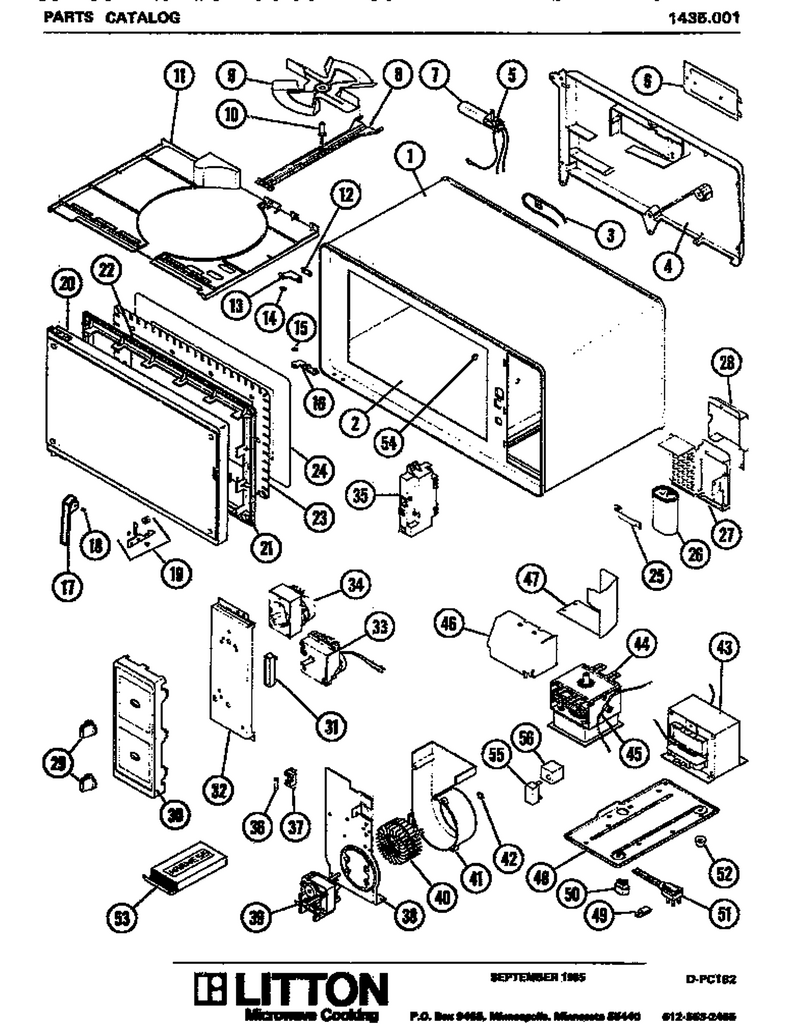

01 - Page 1

...
...
1
Cavity Assy. WPL-M77D144
...
2
Shelf Kit WPL-M50D45
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Screw WPL-WP90767
...
5
Lamp Holder 1435utc WPL-45954P01
...
6
Screw WPL-WP90767
...
7
Light Bulb WPL-44865P01
...
8
Plastic Fastener WPL-5524122001
...
9
Kit-Insert & Blade Stirrer WPL-R0130737
...
10
Ball WPL-38321P01
...
11
Stirrer Cover M45d50 WPL-3010017901
...
12
Plate Nut WPL-45010P01
...
13
No.6 Flat Hd Machine Screw WPL-M1D60
...
14
No.10 Wave Washer WPL-M2D583
...
15
Nylon Flat Washer WPL-40370P01
...
16
Hinge Asy WPL-45179P01
...
17
Handle WPL-M11D78
...
18
Groove Pin WPL-M2D577
...
19
Door Hook Kit WPL-R0163249
...
20
Outer Door Assembly WPL-M70D121
...
21
Door Filler Kit WPL-M55D22
...
22
Outer Window Kit WPL-M51D63
...
23
No.8 Ab X 3/8`` Screw WPL-M1D906
...
24
Window, Inner WPL-10785101
...
25
Screw WPL-WP90767
...
26
H V Cap .91 +-6% WPL-M10D52
...
27
Capacitor Cover WPL-M20D258
...
28
Cover Lead 1435.001 WPL-M20D310
...
29
Knobx WPL-42180P01
...
30
Inlay WPL-M7D787
...
31
Screw WPL-WPW10068250
...
32
Screw WPL-WP90767
...
33
Timer WPL-M22D47
...
34
Screw Thrm WPL-M1D666
...
35
U-Clip WPL-M2D575
...
36
Fuse 20 A WPL-WPM0805101
...
37
Ia Screw WPL-M1D329
...
38
Blower Bracket WPL-M20D285
...
39
Blower Motor Kit WPL-M12D100
...
40
Kit, Blower Wheel WPL-R0163293
...
41
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
42
Retainer WPL-M1D892
...
43
No.10 T X 3/8`` Screw WPL-M1D479
...
44
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
45
Sensor Magnetron Kit WPL-M4D101
...
46
Front Air Duct WPL-3000004301
...
47
Screw WPL-WP90767
...
48
Nut-Speed WPL-M0287001
...
49
Rivet, Pop WPL-A4539629
...
50
Strain Relief WPL-M2D673
...
51
Power Cord WPL-M26D55
...
52
Foot WPL-M2D676
...
53
H.v. Lead Kit WPL-M5D350
...
54
Cavity Plug (10) WPL-M1D755
...
55
Lock Washer WPL-M0272803
...
56
Torx Driver, T-20 (m95d23) WPL-M95D23
