Amana 1335.000

Model: 1335.000

Save Part Not Listed?
product name

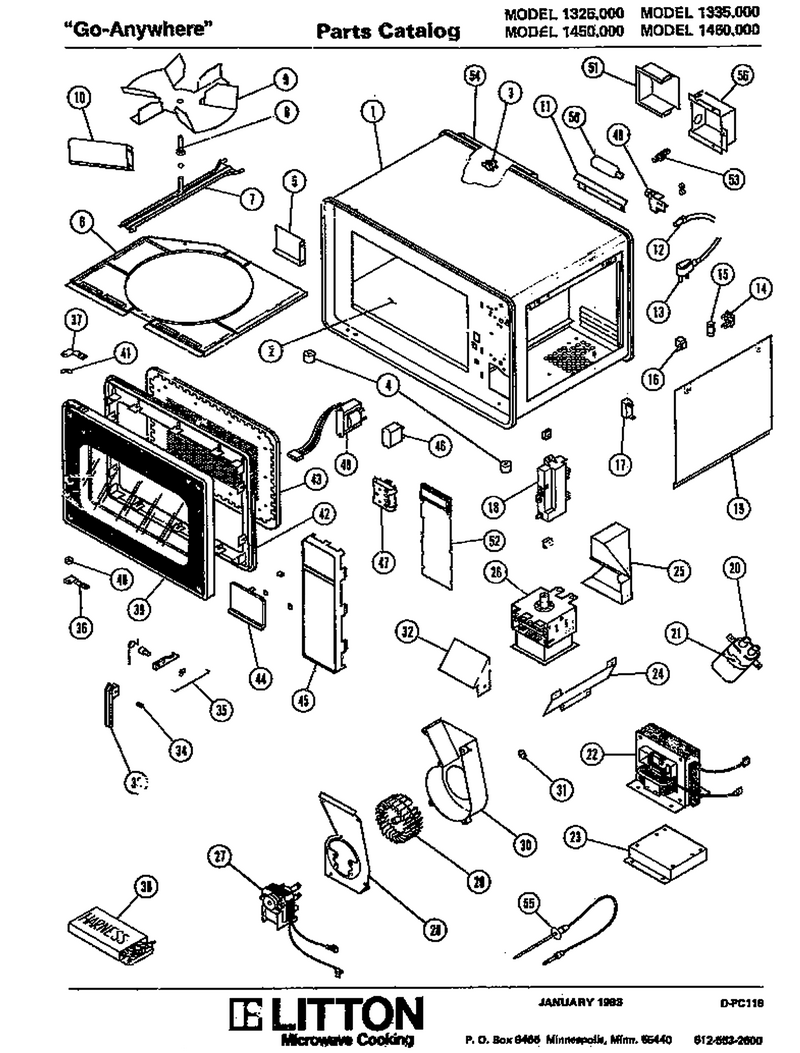

01 - Page 1

...
...
NI
Use And Care Manual WPL-M94D379
...
1
Not Available WPL-M77D114
...
2
Adhesive WPL-W10841140
...
3
Screw, Socket Mtg. WPL-M1D890
...
4
.156 Dia Pop Rivet Alum (25) WPL-M1D891
...
5
Deflector WPL-M65D265
...
6
Stirrer Cover WPL-44103P01
...
7
Stirrer Supt Bar Kit WPL-M20D327
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Blade, Stirrer WPL-10826002Q
...
10
Deflector WPL-40365P01
...
11
Channel, Wire WPL-10826901
...
12
Bush, Strain Relf (10) WPL-M1D600
...
13
Power Cord WPL-1731300202
...
14
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
15
Fuse 20 A WPL-WPM0805101
...
16
Cable Clip WPL-M2D580
...
17
Nut WPL-WP488130
...
18
U-Clip WPL-M2D575
...
19
Pnl Access Side WPL-M53D49
...
20
Capacitor 1.60mf Kit WPL-M10D88
...
21
Screw WPL-WP90767
...
22
No.10 T X 3/8`` Screw WPL-M1D479
...
23
No.10 T X 3/8`` Screw WPL-M1D479
...
24
No.6 Thread Forming Screw WPL-M1D627
...
25
Duct Cav In WPL-40358P01
...
26
Barrier- Foil Tape WPL-92011P01
...
27
Nut WPL-WP488130
...
28
Blower Bracket Kit WPL-M20D210
...
29
Wheel Blower M35d37 WPL-45146P01
...
30
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
31
Retainer WPL-M1D892
...
32
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
33
Handle Door Kit WPL-M11D58
...
34
Groove Pin WPL-M2D577
...
35
Door Hook Kit WPL-M2D582
...
36
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
37
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
38
H.v. Lead WPL-M5D188
...
39
Outer Door Asy Kit WPL-M70D71
...
40
Nylon Flat Washer WPL-40370P01
...
41
No.10 Wave Washer WPL-M2D583
...
42
Door Filler WPL-M55D16
...
43
No.8 Ab X 1/2`` Screw WPL-M1D886
...
44
Display Windowx WPL-M2D572
...
45
Touch Pnl Assy Kit WPL-M7D643
...
46
Nut WPL-WP488130
...
47
Screw (25) WPL-M1D590
...
48
Nut WPL-WP488130
...
49
Screw WPL-WP90767
...
50
Bulb-Light WPL-40407P01
...
51
Light Cover WPL-M7D566
...
52
No.6 Thread Forming Screw WPL-M1D627
...
53
Probe Jack WPL-M14D246
...
54
Exhaust Baffle WPL-M65D269
...
55
Ia Probete WPL-34005P01
...
56
Screw WPL-WP90767
