Amana 1315.004

Model: 1315.004

Save Part Not Listed?
product name

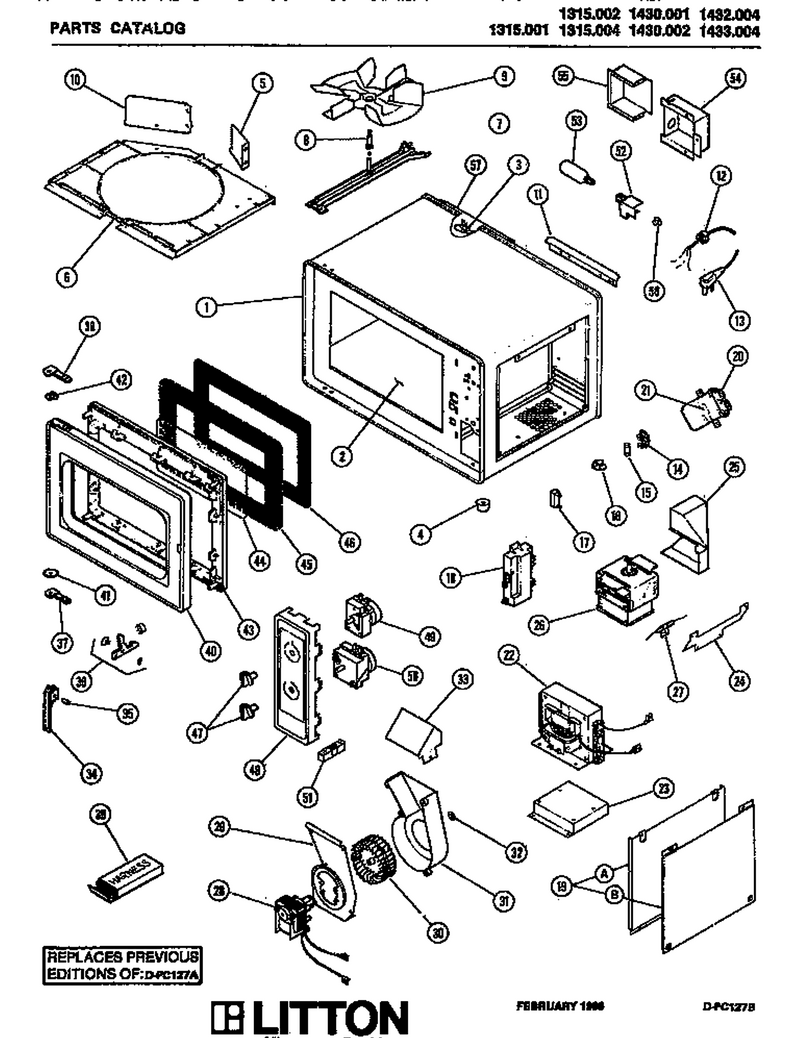

01 - Page 1

...
...
NI
Bowl, Power Test Kit WPL-M95D5
...
1
Not Available WPL-M77D121
...
2
Adhesive WPL-W10841140
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
.156 Dia Pop Rivet Alum (25) WPL-M1D891
...
5
Deflector WPL-M65D265
...
6
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
7
Stirrer Supt Bar Kit WPL-M20D327
...
8
Ball WPL-38321P01
...
9
Blade, Stirrer WPL-10826002Q
...
10
Deflector WPL-40365P01
...
11
Channel, Wire WPL-10826901
...
12
Bush, Strain Relf (10) WPL-M1D600
...
13
Power Cord WPL-1731300202
...
14
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
15
Fuse 20 A WPL-WPM0805101
...
16
Cable Clip WPL-M2D580
...
17
Nut WPL-WP488130
...
18
U-Clip WPL-M2D575
...
19
Access Pnl WPL-M53D51
...
20
Capacitor 1.60mf Kit WPL-M10D88
...
21
Screw WPL-WP90767
...
22
Bolt Xfmer (10) WPL-M1D889
...
23
No.10 T X 3/8`` Screw WPL-M1D479
...
24
No.6 Thread Forming Screw WPL-M1D627
...
25
Duct Cav In WPL-40358P01
...
26
Barrier- Foil Tape WPL-92011P01
...
27
Sensor Magnetron Kit WPL-M4D101
...
28
Blower Motor WPL-M12D79
...
29
Blower Bracket Kit WPL-M20D210
...
30
Wheel Blower M35d37 WPL-45146P01
...
31
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
32
Retainer WPL-M1D892
...
33
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
34
Handle Door Kit WPL-M11D69
...
35
Groove Pin WPL-M2D577
...
36
Door Hook Kit WPL-M2D625
...
37
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
38
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
39
H.v. Lead Kit WPL-M5D350
...
40
Outer Door Asy Kit WPL-M70D95
...
41
Nylon Flat Washer WPL-40370P01
...
42
No.10 Wave Washer WPL-M2D583
...
43
Door Filler Kit WPL-M55D18
...
44
Outer Window Assy. Kit WPL-M51D53
...
45
No.8 Ab X 3/8`` Screw WPL-M1D906
...
46
Window, Inner Door WPL-10785001
...
47
Knob WPL-M6D307
...
48
Dec Panel Assy Kit WPL-M7D618
...
49
Timer 35 Min WPL-M30D82
...
50
Timer WPL-M22D47
...
51
Screw WPL-WPW10068250
...
52
Lamp Brkt WPL-40610P01
...
53
Bulb-Light WPL-40407P01
...
54
Screw WPL-WP90767
...
55
Light Cover WPL-M7D566
...
56
Cavity Plug (10) WPL-M1D755
...
57
Exhaust Baffle WPL-M65D269
