Amana 12M12TA (BOM: P1230809R)

Model: 12M12TA (BOM: P1230809R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

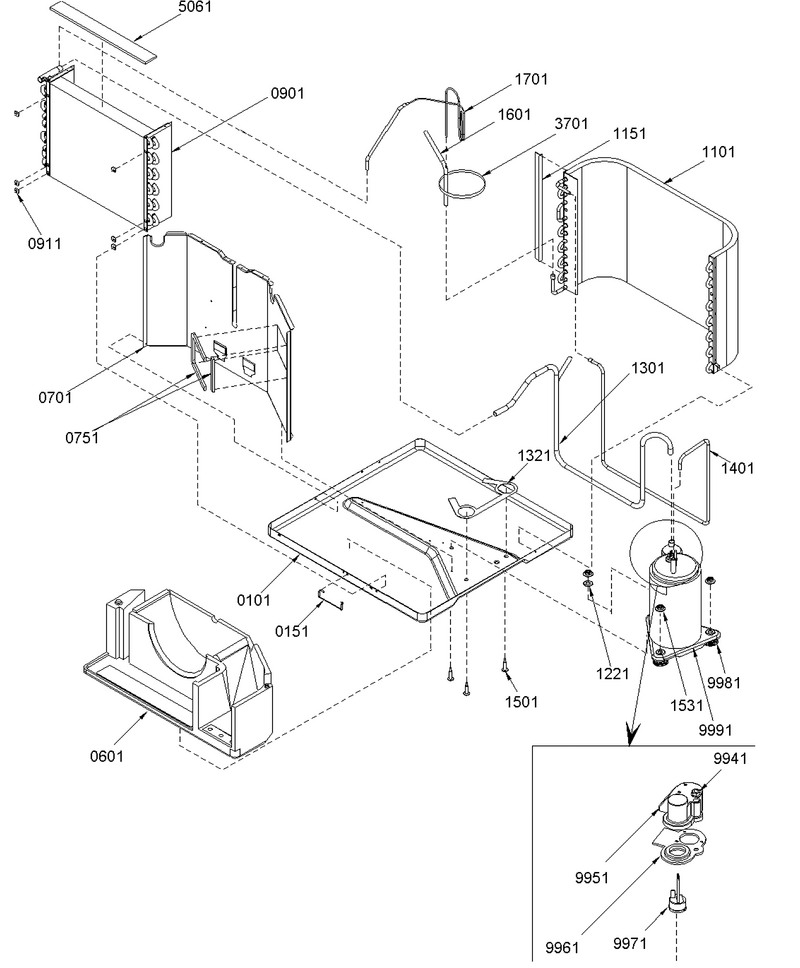

01 - Chassis Assembly

...
...
NI
Gasket 1/2 By 3/8 WPL-10839716
...
101
Basepan, Compact WPL-20070807
...
151
Handle, Basepan WPL-20088701
...
601
Sub To 20062602 Scroll WPL-20062601
...
701
Panel, Partition WPL-20062507
...
751
Gasket (1=1ft.) WPL-10839705
...
901
Assy, Evaporator WPL-20112101
...
911
Screw WPL-M0586001
...
1101
Condensor WPL-20112301Q
...
1151
Seal, Outer Strip WPL-Y20065008
...
1221
Washer WPL-20113001A
...
1301
Assy, Suction Tube WPL-20118801
...
1401
Tube, Discharge WPL-20076703
...
1501
Bolt, Shoulder WPL-20109101
...
1531
Nut, Palnut WPL-20112901
...
1601
Strainer WPL-B1394401
...
1701
Capil Assy WPL-20089203
...
3701
Tie-Wire WPL-WPW10339879
...
5061
Gasket, 1/4 X 1.75 WPL-10839816
...
9941
Nut WPL-A9036601
...
9951
Cover Terminal WPL-C6470701
...
9961
Gasket, Term. Cover WPL-B1434901
...
9971
Overload WPL-D6961630
...
9981
Grommet WPL-C6466001
...
9991
Compressor WPL-11101508H

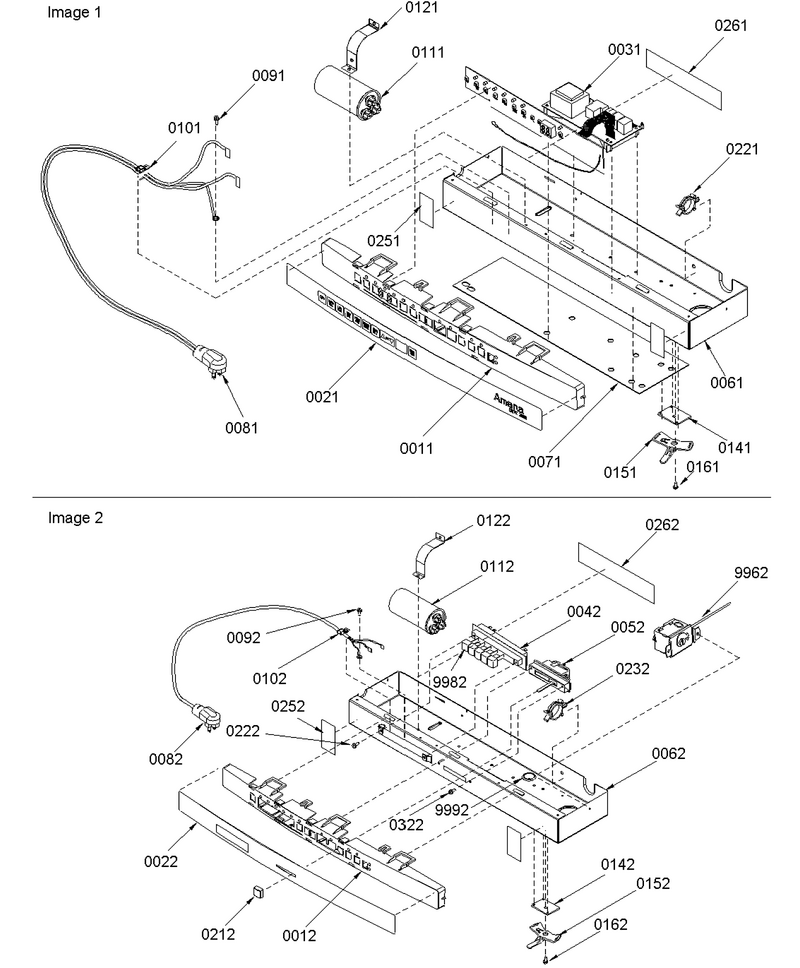

03 - Control Assembly

...
...
11
Housing, Control WPL-20052901
...
21
Overlay, Comp Qz WPL-20054101
...
31
Board-Control-Pc WPL-20103501
...
61
Box, Control WPL-20063601
...
71
Insul, Cont Box WPL-20231801
...
81
Cord, Power WPL-Y20057501
...
91
Screw WPL-M0227803
...
101
Clamp, Speed WPL-M0103904
...
111
Capacitor-Poly WPL-D6789049
...
121
Strap, Capacitor WPL-C6300511
...
141
Blocking, Indexing Vent WPL-20050701
...
151
Lever-Control, Vent WPL-20050801
...
161
Screw-Sm WPL-M0245104
...
221
Clip-Guide WPL-M0118702
...
251
Gasket, Foam WPL-10839820
...
261
Gasket (ft.) WPL-10839803

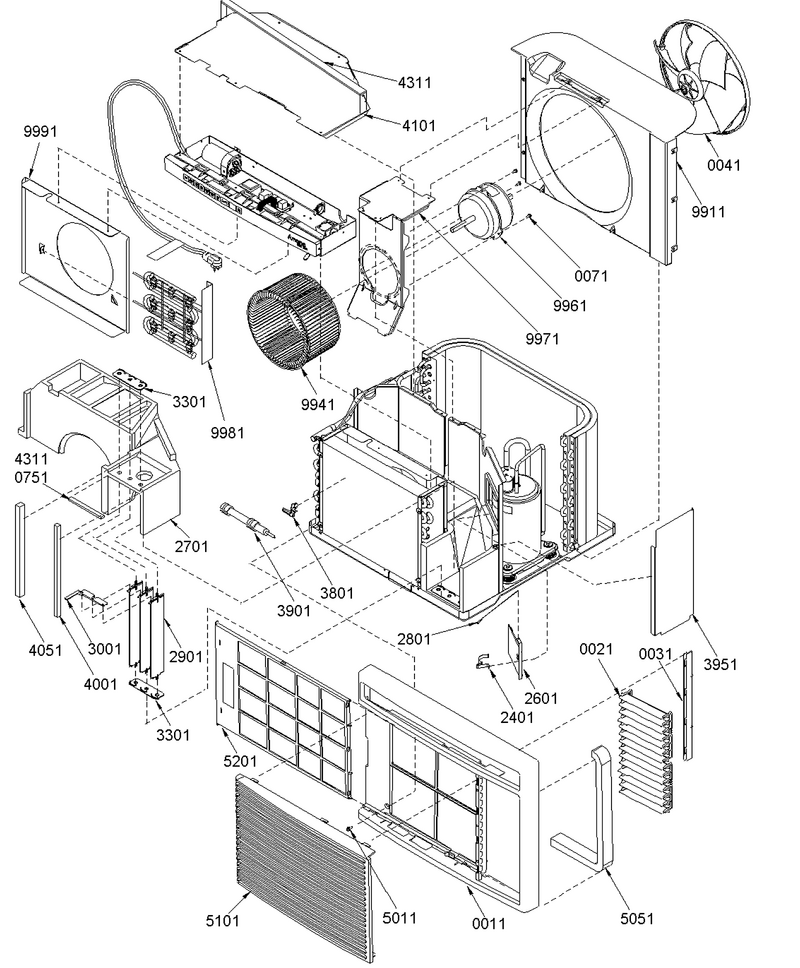

02 - Chassis Assembly

...
...
11
Assy- Fron WPL-20059002
...
21
Louver, Horizontal WPL-20052601
...
31
Housing, Control WPL-20052701
...
41
Fan, Condenser WPL-20046501
...
71
Screw WPL-WP308544
...
751
Gasket (1=1ft.) WPL-10839705
...
2401
Spring, Exh Door WPL-20055502
...
2601
Door, Exhaust WPL-20051302
...
2701
Scroll, Top Evap WPL-20062701
...
2801
Actuator, Exh Door WPL-Y20055606
...
2901
Louver, Vert WPL-20111201
...
3001
Gang Bar, Vertical Louver WPL-20051404
...
3301
Base, Pivot WPL-20051502
...
3801
Clip, T`stat WPL-20075601
...
3951
Panel, Side (right) WPL-20068702
...
4101
Cover, Top WPL-20090601
...
5101
Insert, Compact WPL-20051801
...
5201
Filter, Compact WPL-20064301
...
9911
Shroud, Condenser WPL-20063401
...
9941
Wheel, Blower WPL-20061202
...
9961
Motor, Fan 12/14m12ta WPL-20059704
...
9971
Bracket, Fan WPL-20053905

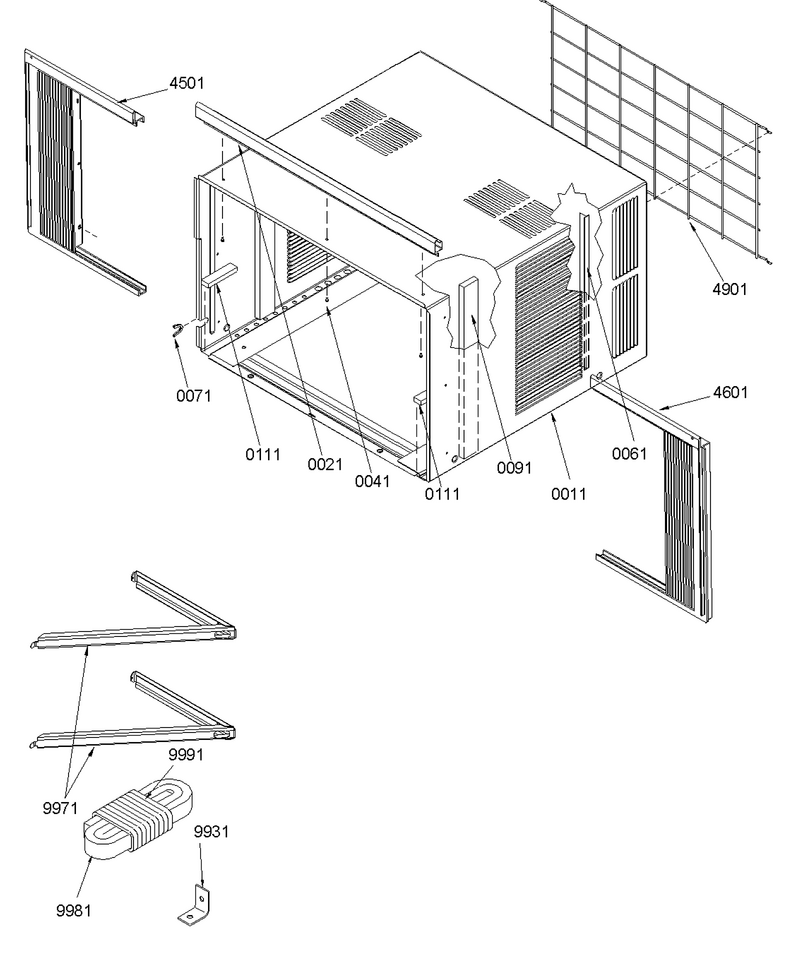

04 - Outer Case Assembly

...
...
NI
Screw WPL-M0213032
...
11
Outercase, Box WPL-20060201
...
21
Rail, Top V WPL-20055102
...
41
Screw WPL-WP693995
...
61
Seal, Outer Strip WPL-Y20065008
...
71
Grommet, Power Cord WPL-20075701
...
4501
Curt Frame Assy-Lh WPL-20055003Q
...
4601
Curt Frame Assy-Rh WPL-20055004
...
4901
Grille, Rear Comp WPL-20063301
...
9931
Brkt, Window Stop WPL-10661401
...
9971
Brkt, Support WPL-20061801
...
9981
Gasket WPL-10839702
...
9991
Gasket .500 X .250 WPL-10839720
