product name

Amana 120.000

Model: 120.000

Save Part Not Listed?
product name

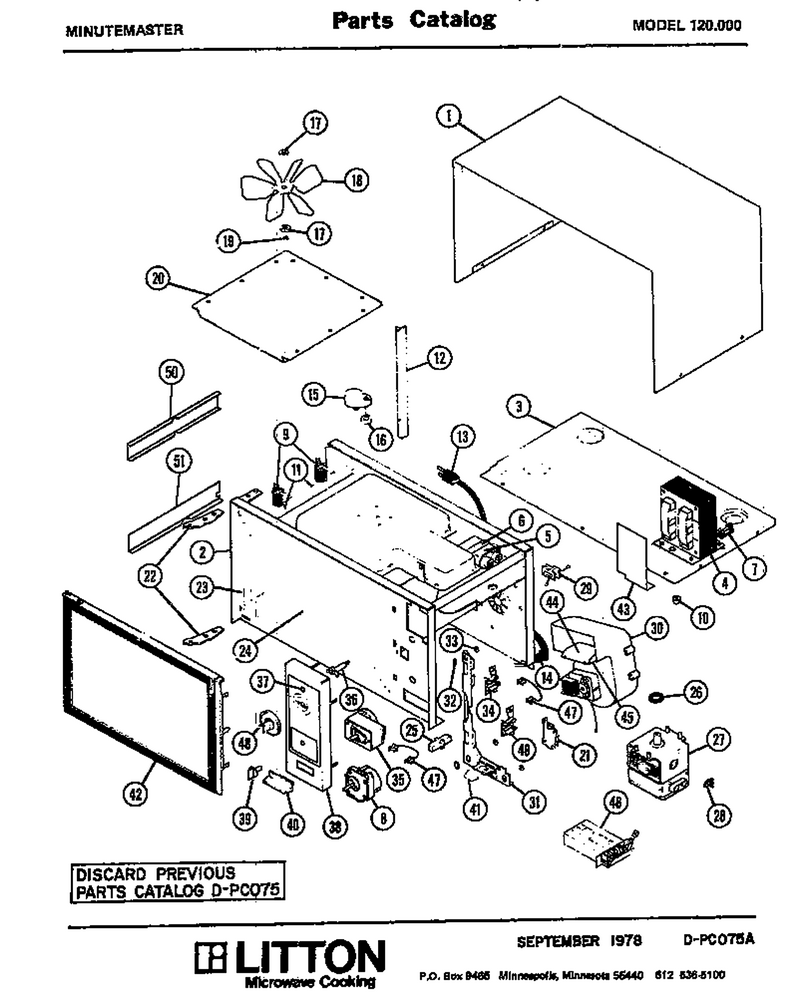

01 - Page 1

...
...
1
No.8 Ab X 1/2`` Screw WPL-M1D358
...
2
Roller WPL-M2D174
...
3
No.8 Ab X 1/2`` Screw WPL-M1D358
...
4
Screw (25) WPL-M1D544
...
5
H V Cap .91 +-6% WPL-M10D27
...
6
Capacitor Brkt WPL-M20D60
...
7
Fuse 20 A WPL-WPM0805101
...
8
Screw (25) WPL-M1D523
...
9
Rivet WPL-WP210720
...
10
Nut WPL-WP488130
...
11
Light Bulb WPL-8009
...
12
Screw WPL-WP90767
...
13
Power Cord WPL-M26D20
...
14
Strain Relief WPL-M2D208
...
15
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
16
R F Gasket Kit WPL-M2D152
...
17
Spcr-Stir WPL-M2D26
...
18
Stirrer Blade Kit WPL-M35D22
...
19
.156 Dia Push On Clip WPL-M1D78
...
20
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
21
Screw (25) WPL-M1D107
...
22
Screw (25) WPL-M1D452
...
23
Choke Filler WPL-M55D8
...
24
Adhesive WPL-W10841140
...
25
Speed Clip WPL-M8D123
...
26
Gasket-Rf WPL-M2D296
...
27
Nut, Mag. Mtg. WPL-M1D95
...
28
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
29
Kit, Diode WPL-M3D71
...
30
Blower Assembly WPL-M41D13
...
31
Washer (25) WPL-M1D361
...
32
Oval Bearing WPL-M2D175
...
33
Bearing WPL-M2D176
...
34
Switch Assy M14d123 WPL-92547P01
...
35
Timer WPL-M30D62
...
36
Indicator Light WPL-M9D30
...
37
Lens WPL-25107P01
...
38
Dec Panel WPL-M7D323
...
39
Knob-Controller WPL-M6D141
...
40
Dr Rel Bar-Uas-S/s-35663p01x WPL-M11D12
...
41
Ia Spring WPL-M2D168
...
42
Screw (25) WPL-M1D459
...
43
Insulator WPL-M65D93
...
44
Not Available WPL-M65D94
...
45
Clip U Type WPL-M1D616
...
46
H. V. Lead, 6`` Length WPL-M5D140
...
47
Ld Grn 16 Ga WPL-M5D120
...
48
Knob & Skirt Kit WPL-M6D47
...
49
Ia Screw No.10-32 WPL-M1D370
...
50
Air Duct Top WPL-M65D153
...
51
Air Duct Bottom WPL-M65D152
