Amana 1150.001

Model: 1150.001

Save Part Not Listed?
product name

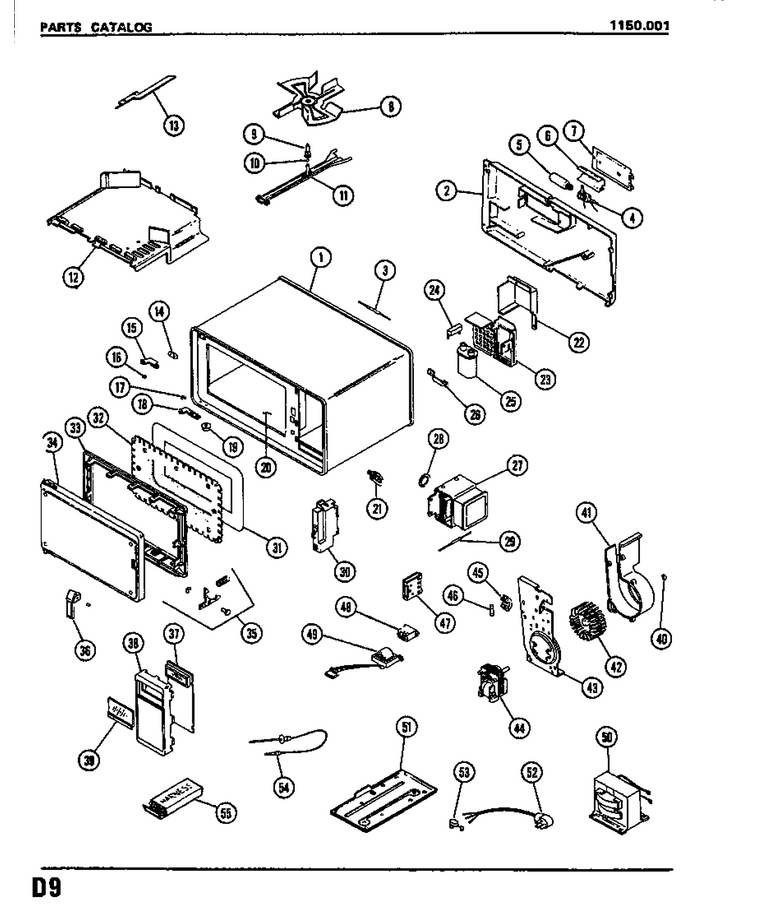

01 - Page 1

...
...
NI
Torx Driver, T-20 (m95d23) WPL-M95D23
...
1
Retainer Clip WPL-M2D677
...
2
Cover-Rear M65d316 WPL-46190P02
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Lamp Holder 1435utc WPL-45954P01
...
5
Light Bulb WPL-44865P01
...
6
Not Available WPL-M1D135
...
7
Screw WPL-WP90767
...
8
Kit-Insert & Blade Stirrer WPL-R0130737
...
9
Kit, Stirrer Insert WPL-M2D678
...
10
Ball WPL-38321P01
...
11
Kit, Stirrer Bar WPL-M20D319
...
12
Stirrer Cover WPL-46713P01
...
13
Baffle Rh-Uas-S/s-46713p01x WPL-M65D311
...
14
Plate Nut WPL-45010P01
...
15
No.6 Flat Hd Machine Screw WPL-M1D60
...
16
No.10 Wave Washer WPL-M2D583
...
17
Nylon Flat Washer WPL-40370P01
...
18
Hinge Asy WPL-45179P01
...
19
Foot WPL-M2D676
...
20
Adhesive WPL-W10841140
...
21
3/8 Int Tooth Lockwasher WPL-M1D598
...
22
Screw WPL-WP90767
...
23
Screw WPL-WP90767
...
24
Kit, Diode WPL-M3D71
...
25
Hv Cap .728mfd 2000vx WPL-43267P01
...
26
Strap, Capacitor WPL-10822101
...
27
Kit, Magnetron WPL-M57D37
...
28
Gasket-Rf WPL-M2D296
...
29
Sensor Magnetron Kit WPL-M4D101
...
30
Screw WPL-WPW10001160
...
31
Window, Inner Door WPL-10785201
...
32
Door Screen Kit WPL-M70D105
...
33
Door Filler Kit WPL-M55D20
...
34
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
35
Kit, Door Hook WPL-M2D675
...
36
Groove Pin WPL-M2D577
...
37
Net-Assy,ckt Bd(rework) WPL-M32R50
...
38
M7d783 Mem Tch Pnl 1150 WPL-92747P01
...
39
Display Window WPL-M2D723
...
40
Retainer WPL-M1D892
...
41
Housing WPL-44881P01
...
42
Kit, Blower Wheel WPL-R0163293
...
43
Blower Brkt Kit WPL-M20D256
...
44
Blower Motor Kit WPL-M12D100
...
45
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
46
Fuse 12 Amp WPL-M4D65
...
47
Screw (25) WPL-M1D590
...
48
Relay WPL-38806P01
...
49
Screw WPL-WP90767
...
50
No.10 T X 3/8`` Screw WPL-M1D479
...
51
Nut-Speed WPL-M0287001
...
52
Power Cord 15a M26d58 WPL-M26D52
...
53
Strain Relief WPL-M2D673
...
54
Probe-Temp WPL-45584P01
...
55
H.v. Lead Kit WPL-M5D350
