Amana 1146.001

Model: 1146.001

Save Part Not Listed?
product name

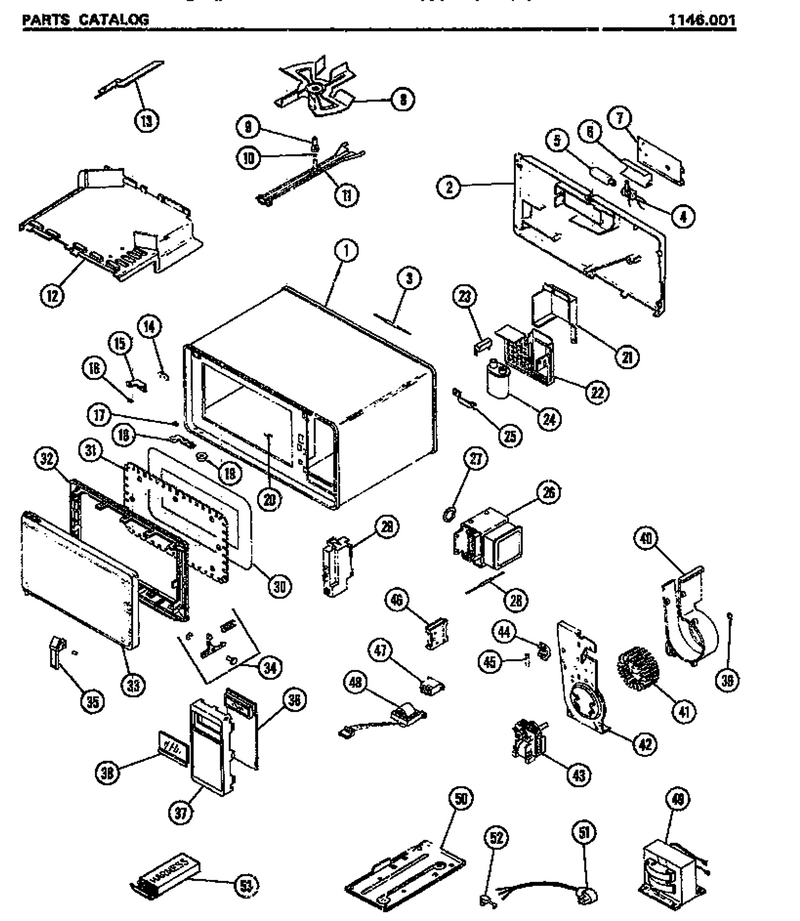

01 - Page 1

...
...
NI
Use And Care Manual WPL-45148P01
...
1
Cavity Asm WPL-M77D138
...
2
Screw WPL-WP90767
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Screw WPL-WP90767
...
5
Light Bulb WPL-44865P01
...
6
Not Available WPL-M1D135
...
7
Screw WPL-WP90767
...
8
Kit-Insert & Blade Stirrer WPL-R0130737
...
9
Kit, Stirrer Insert WPL-M2D678
...
10
Ball WPL-38321P01
...
11
Plastic Fastener WPL-5524122001
...
12
Stirrer Cover WPL-46713P01
...
13
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
14
Plate Nut WPL-45010P01
...
15
No.6 Flat Hd Machine Screw WPL-M1D60
...
16
No.10 Wave Washer WPL-M2D583
...
17
Nylon Flat Washer WPL-40370P01
...
18
Hinge Asy WPL-45179P01
...
19
Foot WPL-M2D676
...
20
Adhesive WPL-W10841140
...
21
Lead Cover WPL-M20D257
...
22
Capacitor Cover WPL-M20D258
...
23
Kit, Diode WPL-M3D71
...
24
Hv Cap .728mfd 2000vx WPL-43267P01
...
25
Screw WPL-WP90767
...
26
Kit, Magnetron WPL-M57D37
...
27
Gasket-Rf WPL-M2D296
...
28
Sensor Magnetron Kit WPL-M4D101
...
29
Screw WPL-WPW10001160
...
30
Window, Inner Door WPL-10785201
...
31
Door Screen Kit WPL-M70D105
...
32
Door Filler Kit WPL-M55D20
...
33
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
34
Kit, Door Hook WPL-M2D675
...
35
Groove Pin WPL-M2D577
...
36
Net-Assy,ckt Bd(rework) WPL-M32R46
...
37
Touch Panel Assy M7d752 WPL-M7D752
...
38
Display Window WPL-M2D679
...
39
Retainer WPL-M1D892
...
40
Housing WPL-44881P01
...
41
Kit, Blower Wheel WPL-R0163293
...
42
Screw WPL-WP90767
...
43
Blower Motor Kit WPL-M12D100
...
44
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
45
Fuse 12 Amp WPL-M4D65
...
46
Triac WPL-M16D93
...
47
Nut WPL-WP488130
...
48
Screw WPL-WP90767
...
49
Hv Xfmr 500w Class-N 60hz WPL-M60D129
...
50
Screw WPL-WP90767
...
51
Flat Washer (1) WPL-M1D56
...
52
Strain Relief WPL-M2D673
...
53
Wire Pkg Assy WPL-M27D371
