Amana 1139.C

Model: 1139.C

Save Part Not Listed?
product name

01 - Page 3

...
...
NI
U & C Manual WPL-M94D581
...
1
Retainer Clip WPL-M2D677
...
2
Screw WPL-WP90767
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Lamp Holder 1435utc WPL-45954P01
...
5
Light Bulb WPL-44865P01
...
6
Strain Relief WPL-M2D673
...
7
Clip-Dr M2d610 (25) WPL-38886P01
...
8
Kit-Insert & Blade Stirrer WPL-R0130737
...
9
Kit, Stirrer Insert WPL-M2D678
...
10
Ball WPL-38321P01
...
11
Kit, Stirrer Bar WPL-M20D319
...
12
Stirrer Cover WPL-46713P01
...
13
Stirrer Support Cover WPL-46800P01
...
14
Plate Nut WPL-45010P01
...
15
Brkt Top WPL-45009P01
...
16
Nylon Flat Washer WPL-40370P01
...
17
Nylon Flat Washer WPL-40370P01
...
18
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
19
Foot WPL-M2D676
...
20
Adhesive WPL-W10841140
...
21
Lead Cover WPL-M20D257
...
22
Capacitor Cover WPL-M20D258
...
23
Wire Hrnss WPL-M27D440
...
24
Cap & Diode Kit WPL-M10D119
...
25
Screw WPL-WP90767
...
26
Kit, Magnetron WPL-M57D37
...
27
Gasket-Rf WPL-M2D296
...
28
Sensor Magnetron Kit WPL-M4D101
...
29
Screw WPL-WP98165
...
30
Window, Inner Door WPL-10785201
...
31
No.8 Ab X 3/8`` Screw WPL-M1D906
...
32
Door Filler Kit WPL-M55D24
...
33
Outer Dr Asy M70d199 WPL-4001014101
...
34
Kit, Door Hook WPL-M2D675
...
35
Groove Pin WPL-M2D577
...
36
Touch Panel Assembly WPL-M7D898
...
37
Net-Assy,ckt Bd(rework) WPL-M32R66
...
38
Filter WPL-M10D126
...
39
H V Transformer Kit WPL-M60D158
...
40
Nut-Speed WPL-M0287001
...
41
Screw (25) WPL-M1D969
...
42
Retainer WPL-M1D892
...
43
Housing WPL-44881P01
...
44
Kit, Blower Wheel WPL-R0163293
...
45
Blower Brkt Kit WPL-M20D256
...
46
Transmotor WPL-M12D114
...
47
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
48
Fuse 12 Amp WPL-M4D65
...
49
Outer Window Kit WPL-M51D64

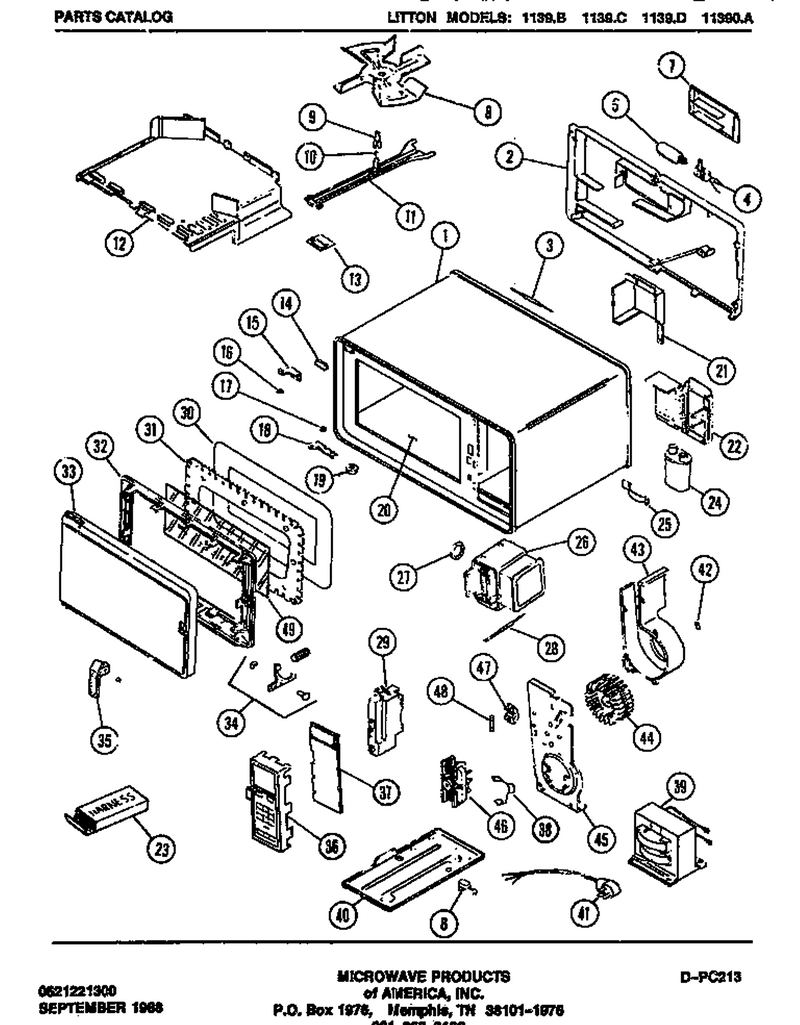

Schematic Image Zoomed
