Amana 1131.101

Model: 1131.101

Save Part Not Listed?
product name

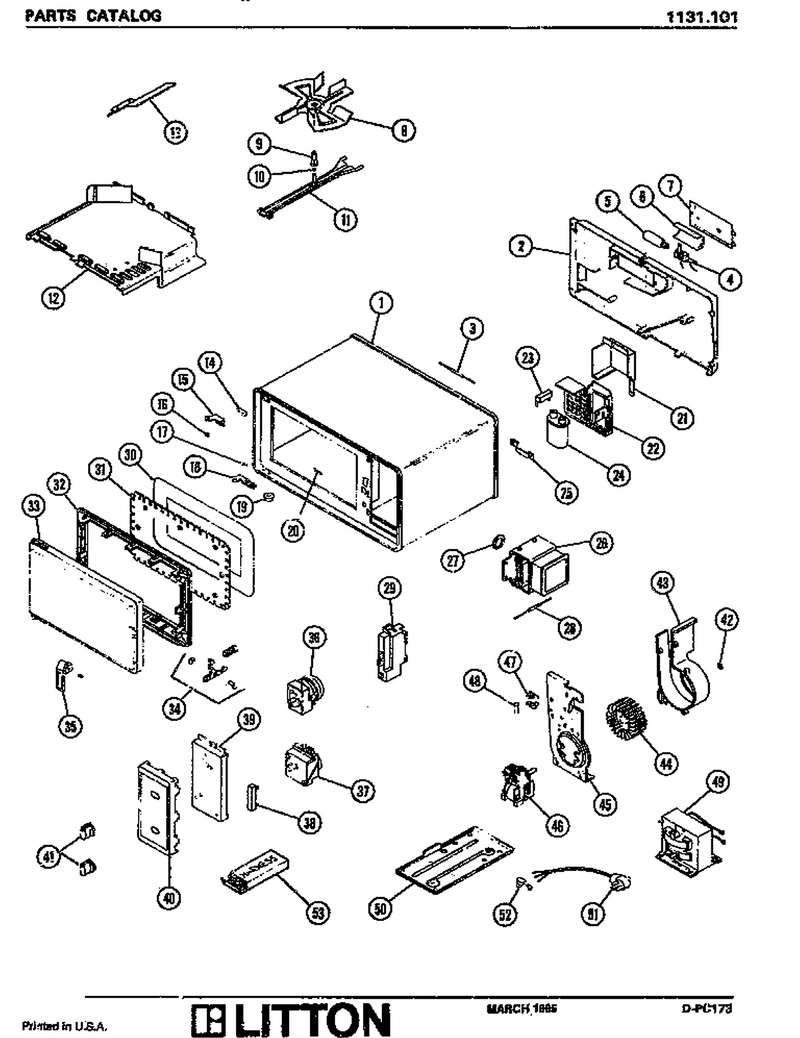

01 - Page 1

...
...
NI
Use And Care Manual WPL-43461P01
...
1
Cavity Asm WPL-M77D138
...
2
Cover-Rear M65d316 WPL-46190P02
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Lamp Holder 1435utc WPL-45954P01
...
5
Light Bulb WPL-44865P01
...
6
Not Available WPL-M1D135
...
7
Screw WPL-WP90767
...
8
Kit-Insert & Blade Stirrer WPL-R0130737
...
9
Kit, Stirrer Insert WPL-M2D678
...
10
Ball WPL-38321P01
...
11
Kit, Stirrer Bar WPL-M20D319
...
12
Stirrer Cover WPL-46713P01
...
13
Baffle Rh-Uas-S/s-46713p01x WPL-M65D311
...
14
Plate Nut WPL-45010P01
...
15
No.6 Flat Hd Machine Screw WPL-M1D60
...
16
No.10 Wave Washer WPL-M2D583
...
17
Nylon Flat Washer WPL-40370P01
...
18
Hinge Asy WPL-45179P01
...
19
Foot WPL-M2D676
...
20
Adhesive WPL-W10841140
...
21
Lead Cover WPL-M20D257
...
22
Capacitor Cover WPL-M20D258
...
23
Kit, Diode WPL-M3D71
...
24
Capacitor 1.60mf Kit WPL-M10D88
...
25
Screw WPL-WP90767
...
26
Magnetron Kit WPL-M57D35
...
27
Gasket-Rf WPL-M2D296
...
28
Sensor Magnetron Kit WPL-M4D101
...
29
Screw WPL-WPW10001160
...
30
Window, Inner Door WPL-10785201
...
31
No.8 Ab X 3/8`` Screw WPL-M1D906
...
32
Door Filler Kit WPL-M55D20
...
33
Outer Door Assy WPL-M70D119
...
34
Kit, Door Hook WPL-M2D675
...
35
Groove Pin WPL-M2D577
...
36
Screw Thrm WPL-M1D666
...
37
Screw (25) WPL-M1D754
...
38
M3d48 Resister WPL-32064P01
...
39
Mounting Plate 1100.002 WPL-46804P01
...
40
Dec Pnl Assy Kit WPL-M7D747
...
41
Knob WPL-42180P03
...
42
Retainer WPL-M1D892
...
43
Housing WPL-44881P01
...
44
Kit, Blower Wheel WPL-R0163293
...
45
Blower Brkt Kit WPL-M20D256
...
46
Blower Motor Kit WPL-M12D100
...
47
Ia Screw WPL-M1D329
...
48
Fuse 12 Amp WPL-M4D65
...
49
High Voltage Transformer WPL-M60D135
...
50
Access Pnl Bottom WPL-M53D58
...
51
Flat Washer (1) WPL-M1D56
...
52
Strain Relief WPL-M2D673
...
53
Harness Pkg WPL-M27D365
