Amana 1131.002

Model: 1131.002

Save Part Not Listed?
product name

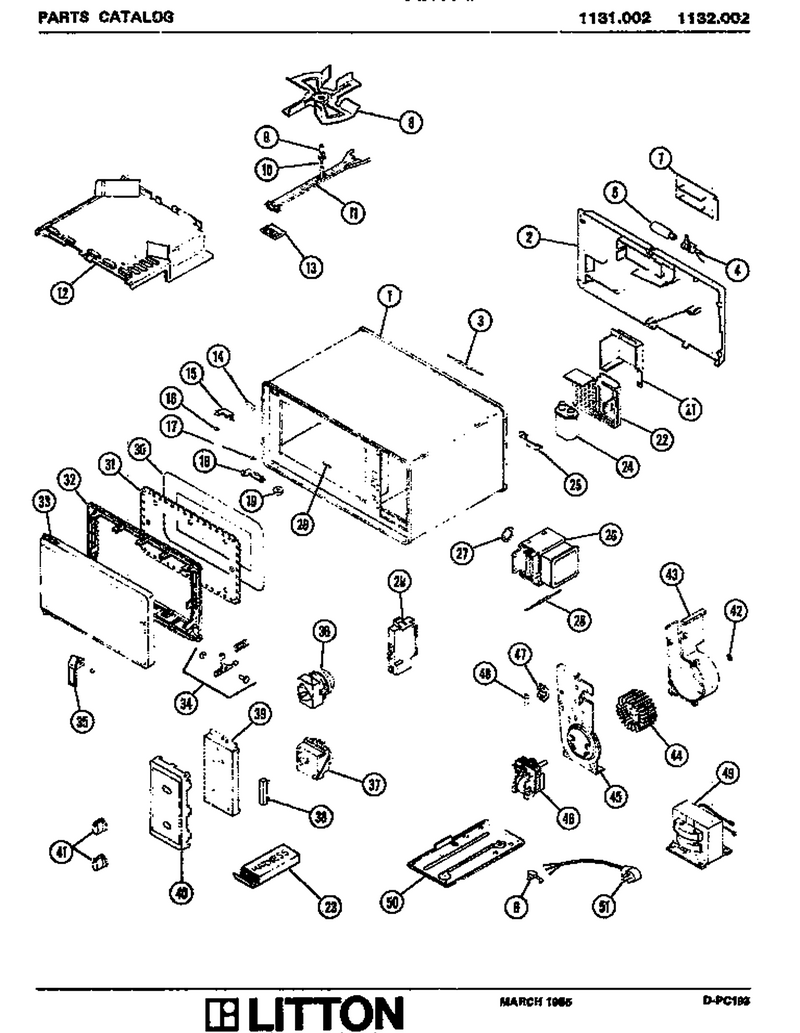

01 - Page 1

...
...
1
Retainer Clip WPL-M2D677
...
2
Cover-Rear M65d316 WPL-46190P02
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Lamp Holder 1435utc WPL-45954P01
...
5
Light Bulb WPL-44865P01
...
6
Strain Relief WPL-M2D673
...
7
Screw WPL-WP90767
...
8
Kit-Insert & Blade Stirrer WPL-R0130737
...
9
Kit, Stirrer Insert WPL-M2D678
...
10
Ball WPL-38321P01
...
11
Kit, Stirrer Bar WPL-M20D319
...
12
Stirrer Cover WPL-46713P01
...
13
Stirrer Support Cover WPL-46800P01
...
14
Plate Nut WPL-45010P01
...
15
No.6 Flat Hd Machine Screw WPL-M1D60
...
16
No.10 Wave Washer WPL-M2D583
...
17
Nylon Flat Washer WPL-40370P01
...
18
Hinge Asy WPL-45179P01
...
19
Pop Rivet WPL-A4539625
...
20
Adhesive WPL-W10841140
...
21
Lead Cover WPL-M20D257
...
22
Capacitor Cover WPL-M20D258
...
23
H.v. Lead Kit WPL-M5D350
...
24
Cap & Diode Kit WPL-M10D115
...
25
Screw WPL-WP90767
...
26
Kit, Magnetron WPL-M57D37
...
27
Gasket-Rf WPL-M2D296
...
28
Sensor Magnetron Kit WPL-M4D101
...
29
Screw WPL-WPW10001160
...
30
Window, Inner Door WPL-10785201
...
31
No.8 Ab X 3/8`` Screw WPL-M1D906
...
32
Door Filler Kit WPL-M55D20
...
33
Outer Door Assy WPL-M70D119
...
34
Kit, Door Hook WPL-M2D675
...
35
Kit, Handle WPL-M11D74
...
36
Timer WPL-M30D78
...
37
Screw (25) WPL-M1D754
...
38
Screw WPL-WPW10068250
...
39
Mounting Plate 1100.002 WPL-46804P01
...
40
Inlay Dec Pnl WPL-M7D743
...
41
Knob WPL-42180P03
...
42
Retainer WPL-M1D892
...
43
Housing WPL-44881P01
...
44
Kit, Blower Wheel WPL-R0163293
...
45
Blower Brkt Kit WPL-M20D256
...
46
Blower Motor Kit WPL-M12D100
...
47
Ia Screw WPL-M1D329
...
48
Fuse 12 Amp WPL-M4D65
...
49
Hv Xfmr 500w Class-N 60hz WPL-M60D129
...
50
Screw WPL-WP90767
...
51
Ia Screw8-32 (25) WPL-M1D368
