Amana 1131.001

Model: 1131.001

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Torx Driver, T-20 (m95d23) WPL-M95D23
...
1
Cavity Asm WPL-M77D138
...
2
Cover-Rear M65d316 WPL-46190P02
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Lamp Holder 1435utc WPL-45954P01
...
5
Light Bulb WPL-44865P01
...
6
Not Available WPL-M1D135
...
7
Screw WPL-WP90767
...
8
Kit-Insert & Blade Stirrer WPL-R0130737
...
9
Kit, Stirrer Insert WPL-M2D678
...
10
Ball WPL-38321P01
...
11
Plastic Fastener WPL-5524122001
...
12
Stirrer Cover WPL-46713P01
...
13
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
14
Plate Nut WPL-45010P01
...
15
No.6 Flat Hd Machine Screw WPL-M1D60
...
16
No.10 Wave Washer WPL-M2D583
...
17
Nylon Flat Washer WPL-40370P01
...
18
Hinge Asy WPL-45179P01
...
19
Foot WPL-M2D676
...
20
Adhesive WPL-W10841140
...
21
Lead Cover WPL-M20D257
...
22
Capacitor Cover WPL-M20D258
...
23
Kit, Diode WPL-M3D71
...
24
Hv Cap .728mfd 2000vx WPL-43267P01
...
25
Screw WPL-WP90767
...
26
Kit, Magnetron WPL-M57D37
...
27
Gasket-Rf WPL-M2D296
...
28
Sensor Magnetron Kit WPL-M4D101
...
29
Switch, Interlock WPL-M14D253
...
30
Window, Inner Door WPL-10785201
...
31
No.8 Ab X 3/8`` Screw WPL-M1D906
...
32
Door Filler Kit WPL-M55D20
...
33
Outer Door Assy WPL-M70D119
...
34
Kit, Door Hook WPL-M2D675
...
35
Groove Pin WPL-M2D577
...
36
Timer WPL-M30D78
...
37
Screw (25) WPL-M1D754
...
38
M3d48 Resister WPL-32064P01
...
39
Screw WPL-WP90767
...
40
Dec Pnl Assy Kit WPL-M7D747
...
41
Knob WPL-42180P03
...
42
Retainer WPL-M1D892
...
43
Housing WPL-44881P01
...
44
Kit, Blower Wheel WPL-R0163293
...
45
Screw WPL-WP90767
...
46
Blower Motor Kit WPL-M12D100
...
47
Ia Screw WPL-M1D329
...
48
Fuse 12 Amp WPL-M4D65
...
49
Hv Xfmr 500w Class-N 60hz WPL-M60D129
...
50
Access Pnl Bottom WPL-M53D58
...
51
Flat Washer (1) WPL-M1D56
...
52
Strain Relief WPL-M2D673
...
53
H.v. Lead Kit WPL-M5D350

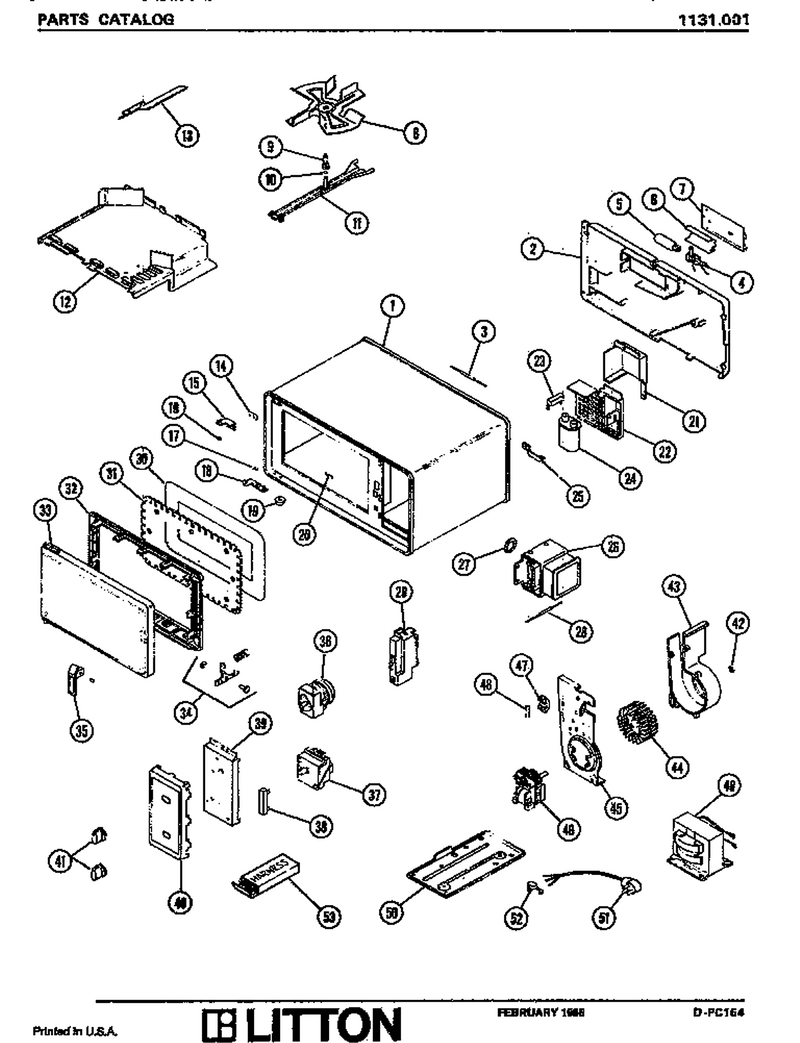

Schematic Image Zoomed
