product name

Amana 1130.001

Model: 1130.001

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Toast T/u Paint WPL-M13D43
...
1
Retainer Clip WPL-M2D677
...
2
Rear Cover Kit WPL-M65D310
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Kit-Insert & Blade Stirrer WPL-R0130737
...
5
Kit, Stirrer Insert WPL-M2D678
...
6
Ball WPL-38321P01
...
7
Plastic Fastener WPL-5524122001
...
8
Stirrer Cover WPL-46713P01
...
9
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
10
Plate Nut WPL-45010P01
...
11
No.6 Flat Hd Machine Screw WPL-M1D60
...
12
No.10 Wave Washer WPL-M2D583
...
13
Nylon Flat Washer WPL-40370P01
...
14
Hinge Asy WPL-45179P01
...
15
Foot WPL-M2D676
...
16
Adhesive WPL-W10841140
...
17
Lead Cover WPL-M20D257
...
18
Capacitor Cover WPL-M20D258
...
19
Kit, Diode WPL-M3D71
...
20
Capacitor 1.60mf Kit WPL-M10D88
...
21
Screw WPL-WP90767
...
22
Kit, Magnetron WPL-M57D37
...
23
Gasket-Rf WPL-M2D296
...
24
Sensor Magnetron Kit WPL-M4D101
...
25
Screw WPL-WPW10001160
...
26
Window, Inner Door WPL-10785201
...
27
Door Screen Kit WPL-M70D105
...
28
Outer Window Kit WPL-M51D60
...
29
Door Filler Kit WPL-M55D20
...
30
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
31
Kit, Door Hook WPL-M2D675
...
32
Groove Pin WPL-M2D577
...
33
Screw Thrm WPL-M1D666
...
34
Screw (25) WPL-M1D754
...
35
M3d48 Resister WPL-32064P01
...
36
Screw WPL-WP90767
...
37
Inlay Dec Pnl WPL-M7D744
...
38
Knobx WPL-42180P01
...
39
Retainer WPL-M1D892
...
40
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
41
Kit, Blower Wheel WPL-R0163293
...
42
Blower Brkt Kit WPL-M20D256
...
43
Blower Assembly WPL-M12D92
...
44
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
45
Fuse 12 Amp WPL-M4D65
...
46
High Voltage Transformer WPL-M60D135
...
47
Nut-Speed WPL-M0287001
...
48
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
49
Strain Relief WPL-M2D673
...
50
Ground Lead Kit WPL-M5D351

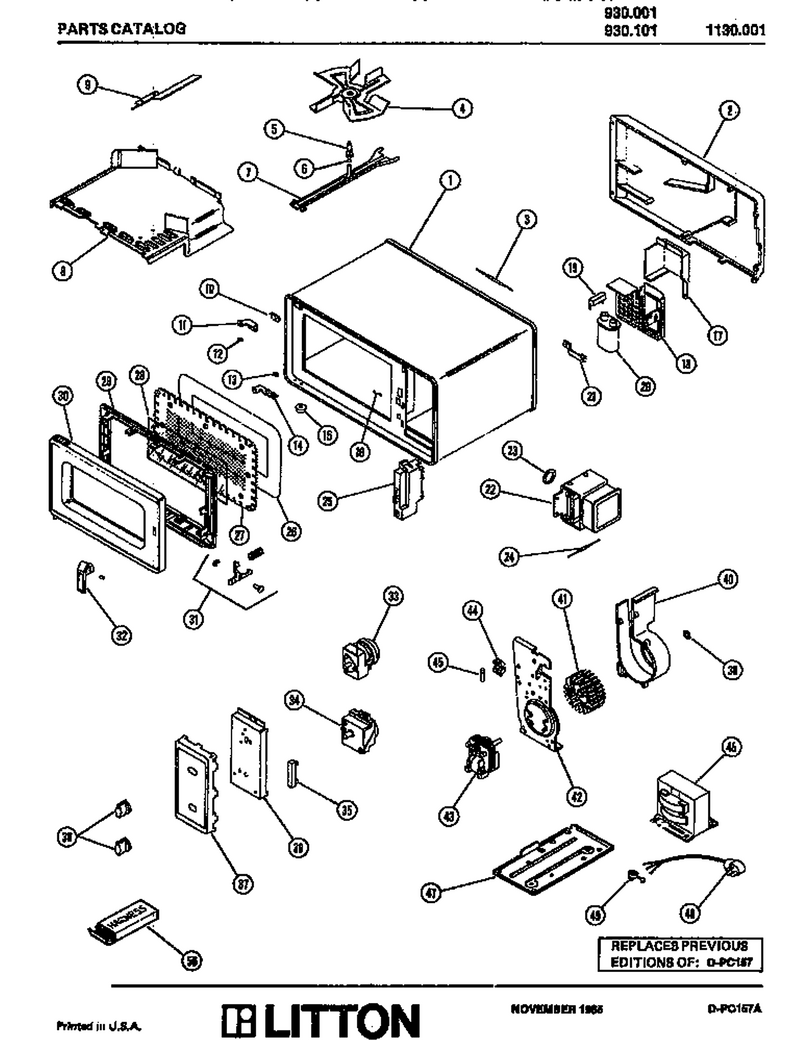

Schematic Image Zoomed
