Amana 1130.000

Model: 1130.000

Save Part Not Listed?
product name

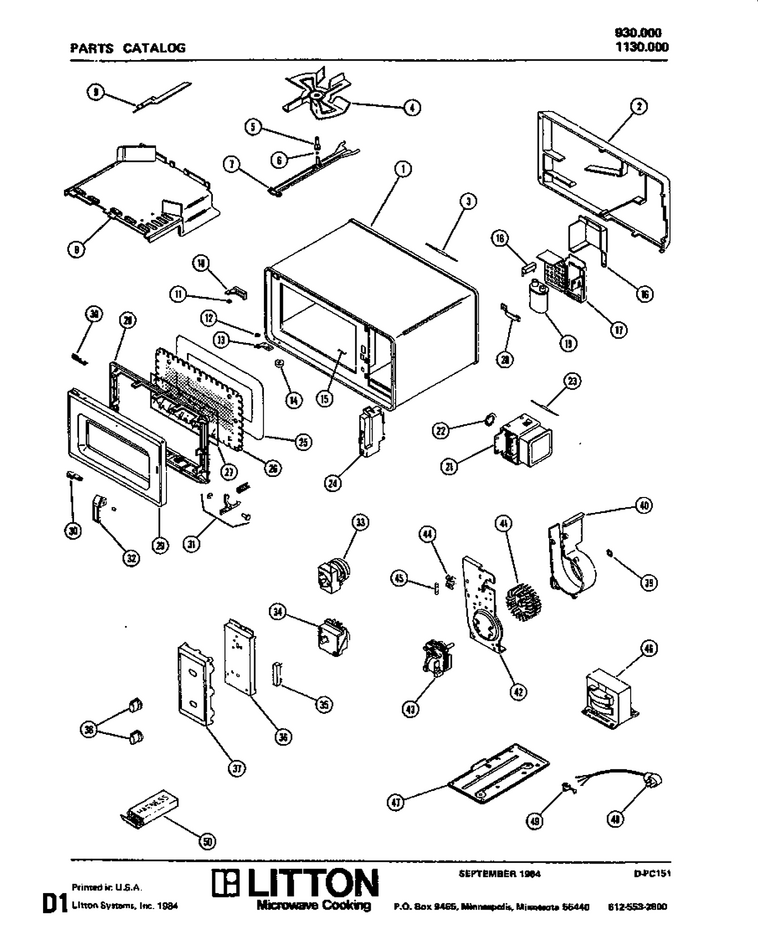

01 - Page 1

...
...
NI
Use And Care Manual WPL-43461P01
...
1
Retainer Clip WPL-M2D677
...
2
Rear Cover Kit WPL-M65D310
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Kit-Insert & Blade Stirrer WPL-R0130737
...
5
Kit, Stirrer Insert WPL-M2D678
...
6
Ball WPL-38321P01
...
7
Plastic Fastener WPL-5524122001
...
8
Stirrer Cover WPL-46713P01
...
9
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
10
Jw Gasket WPL-M2D251
...
11
No.10 Wave Washer WPL-M2D583
...
12
Nylon Flat Washer WPL-40370P01
...
13
Hinge Brkt Bottom WPL-M8D304
...
14
Foot WPL-M2D676
...
15
Adhesive WPL-W10841140
...
16
Lead Cover WPL-M20D257
...
17
Capacitor Cover WPL-M20D258
...
18
Kit, Diode WPL-M3D71
...
19
Hv Cap .728mfd 2000vx WPL-43267P01
...
20
Screw WPL-WP90767
...
21
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
22
Gasket-Rf WPL-M2D296
...
23
Sensor Magnetron Kit WPL-M4D101
...
24
Screw WPL-WPW10001160
...
25
Window, Inner Door WPL-10785201
...
26
Door Screen Kit WPL-M70D105
...
27
Outer Window Kit WPL-M51D60
...
28
Door Filler Kit WPL-M55D20
...
29
Outer Door Assy WPL-M70D106
...
30
No.8-32 Pan Hd Mach Scr (25) WPL-M1D916
...
31
Kit, Door Hook WPL-M2D675
...
32
Groove Pin WPL-M2D577
...
33
Timer WPL-M30D78
...
34
Screw (25) WPL-M1D754
...
35
Screw WPL-WPW10068250
...
36
Screw WPL-WP90767
...
37
Dec Pnl Assy Kit WPL-M7D747
...
38
Knob WPL-42180P03
...
39
Retainer WPL-M1D892
...
40
Housing WPL-44881P01
...
41
Kit, Blower Wheel WPL-R0163293
...
42
Blower Brkt Kit WPL-M20D256
...
43
Blower Assembly WPL-M12D92
...
44
Ia Screw WPL-M1D329
...
45
Fuse 12 Amp WPL-M4D65
...
46
Hv Xfmr 500w Class-N 60hz WPL-M60D129
...
47
Access Pnl Bottom WPL-M53D58
...
48
Flat Washer (1) WPL-M1D56
...
49
Strain Relief WPL-M2D673
...
50
H.v. Lead Kit WPL-M5D350
