Amana 113-3NE (BOM: P5497505R)

Model: 113-3NE (BOM: P5497505R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

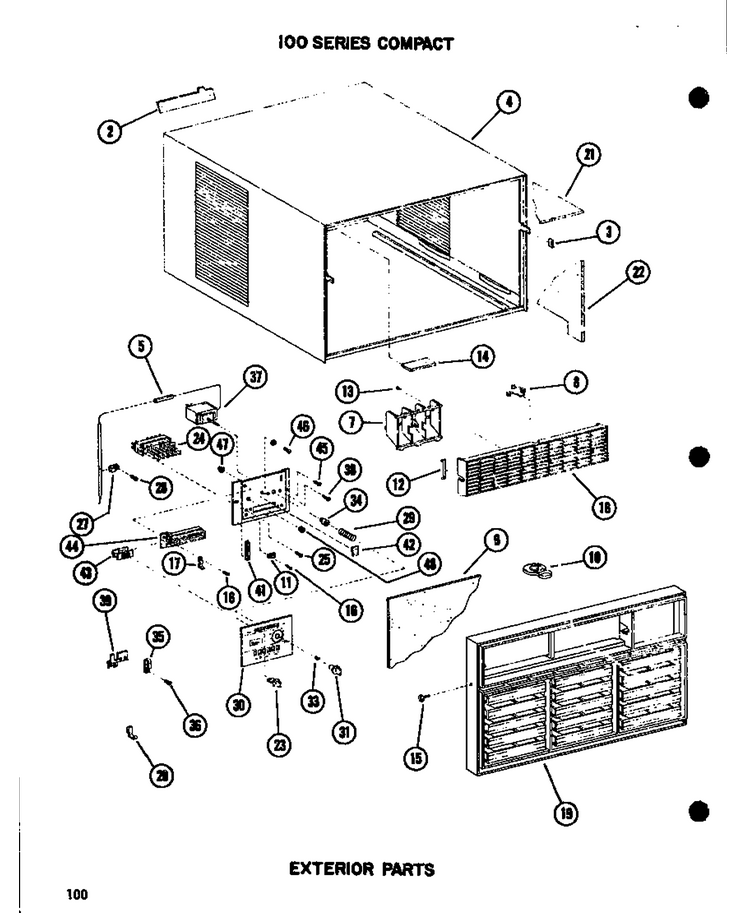

04 - Exterior Parts

...
...
5
Sleeve WPL-M0321016
...
19
Front WPL-D5502015
...
24
Switch WPL-C5940603
...
26
Bracket WPL-B1149502
...
27
Clamp WPL-M0102317
...
28
Screw WPL-WP90767
...
30
Escutcheon WPL-C5938102
...
31
Knob K WPL-D7009805
...
35
Clamp WPL-M0103901
...
37
Thermostat WPL-B1150203

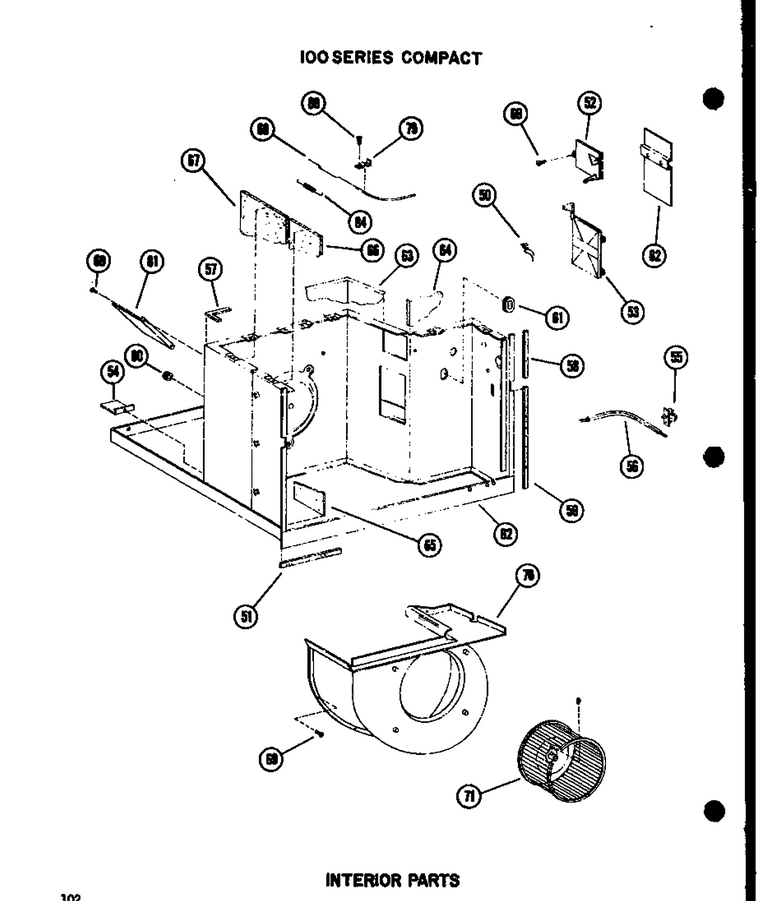

05 - Interior Parts

...
...
56
Wiring Harness-Comp WPL-B1151601
...
62
Basepan Wld WPL-D5506404

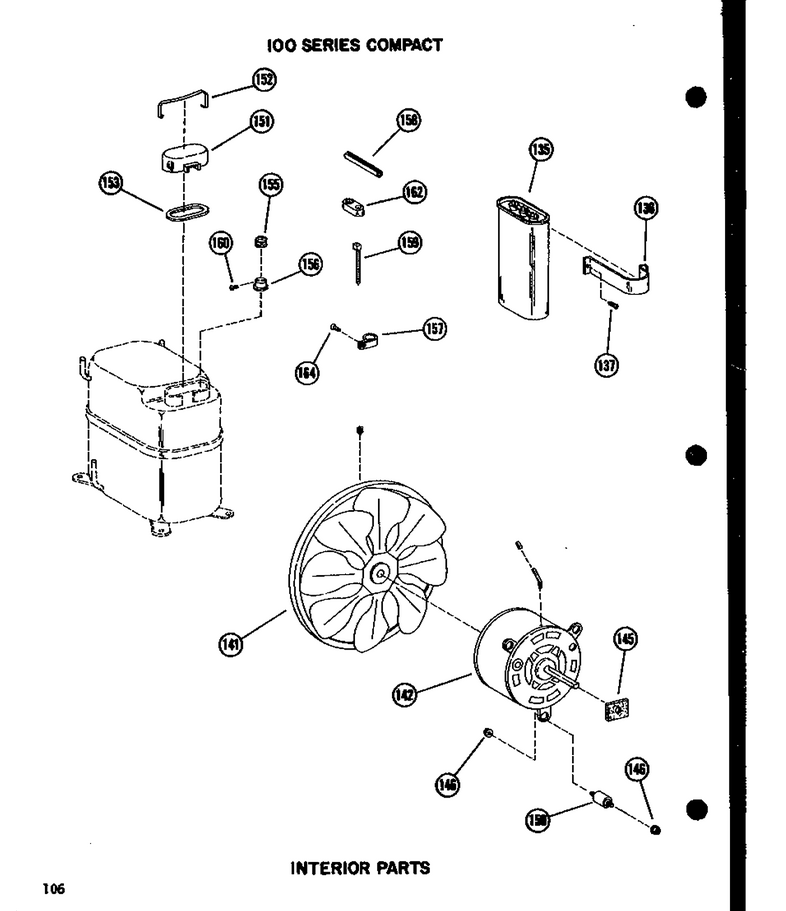

06 - Interior Parts

...
...
136
Strap-Capacitor WPL-A4634202
...
142
Mtr, Fan, 208/230 V, 60 Hz, Cw WPL-C5938901Q

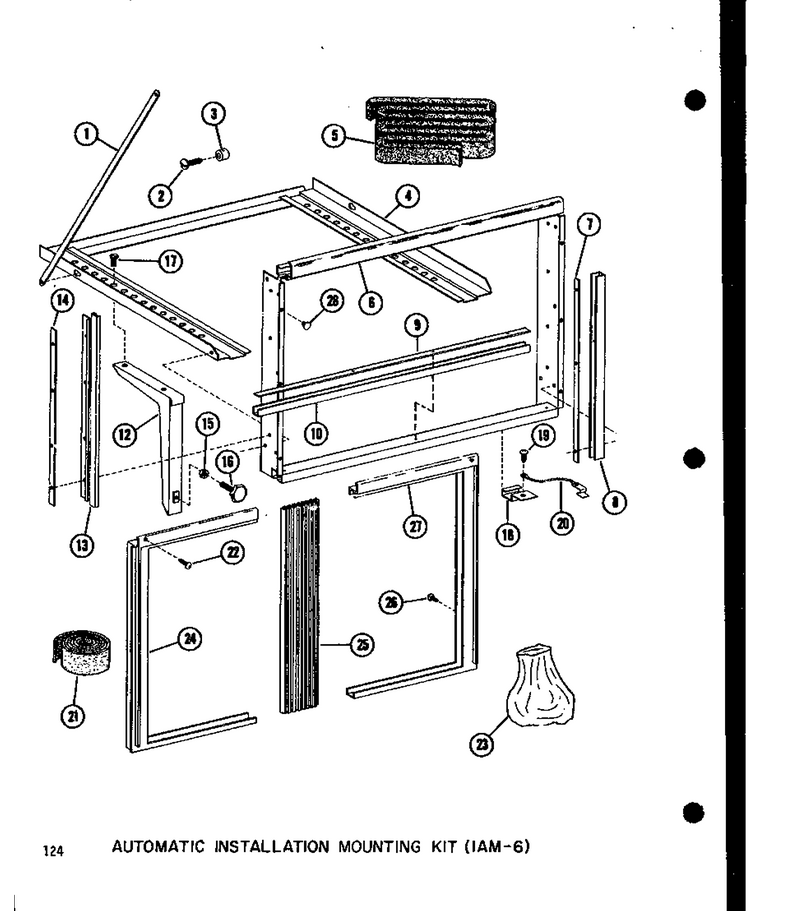

01 - Automatic Installation Mtg Kit (1am-6)

...
...
1
Support, Strap WPL-B5107706
...
2
Screw WPL-M0212062
...
3
Spacer K WPL-A4065501
...
4
Frame, Support WPL-C5935405
...
5
Gasket WPL-10839702
...
6
Wld-Frame WPL-C5949901
...
7
Backer Strip WPL-B1158902
...
8
Gasket WPL-B1158802
...
9
Backer Strip WPL-B1158901
...
10
Gasket WPL-B1158801
...
12
Weldment, Angle Support, L.h. WPL-C5872102
...
13
Curtain 1 WPL-11118401
...
14
Backer Strip, Curtain Support WPL-B1158906
...
15
Nut-Keps WPL-M0282019
...
16
Screw Adjusting WPL-M0200003
...
17
Screw WPL-M0206557
...
18
Clip, Sill WPL-A3321002
...
19
Screw WPL-M0211532
...
20
Cable Assy WPL-B5113103
...
21
Gasket WPL-A3030302
...
22
Screw WPL-M0213032
...
23
Accessory Kit WPL-B1139005
...
24
Frame Kit L WPL-10659811
...
25
Curtain WPL-D5516701
...
26
Screw WPL-M1250031
...
27
Crtn Frame Kit WPL-10659812
...
28
Plug WPL-M0310312

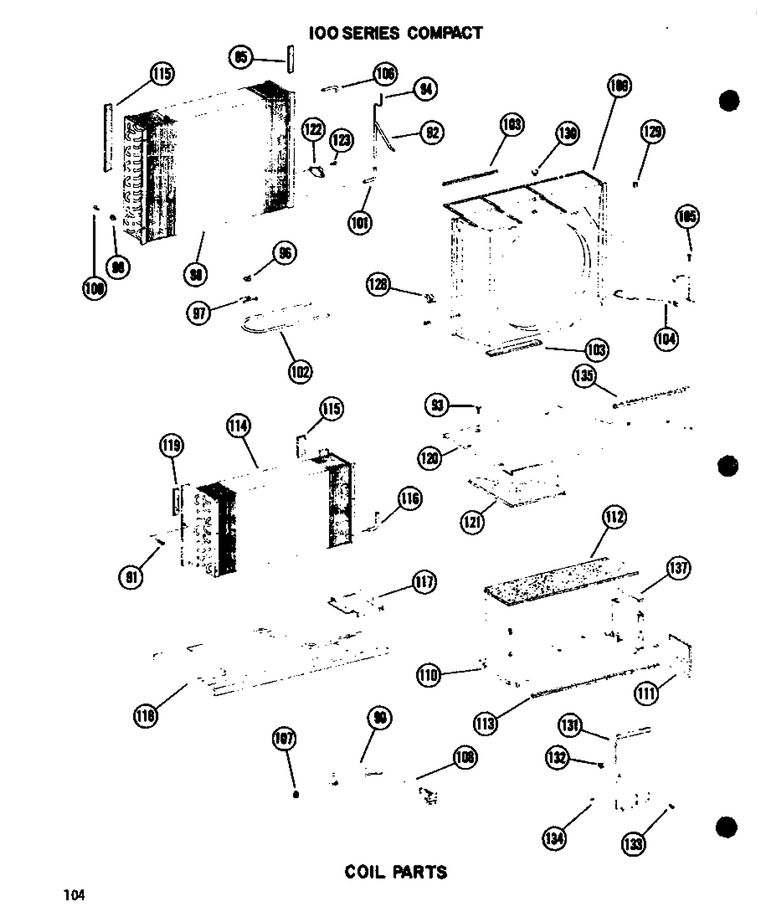

03 - Coil Parts

...
...
101
Elbow WPL-A3311901
...
107
Grommet WPL-A3045501
...
116
Elbow WPL-A4083917

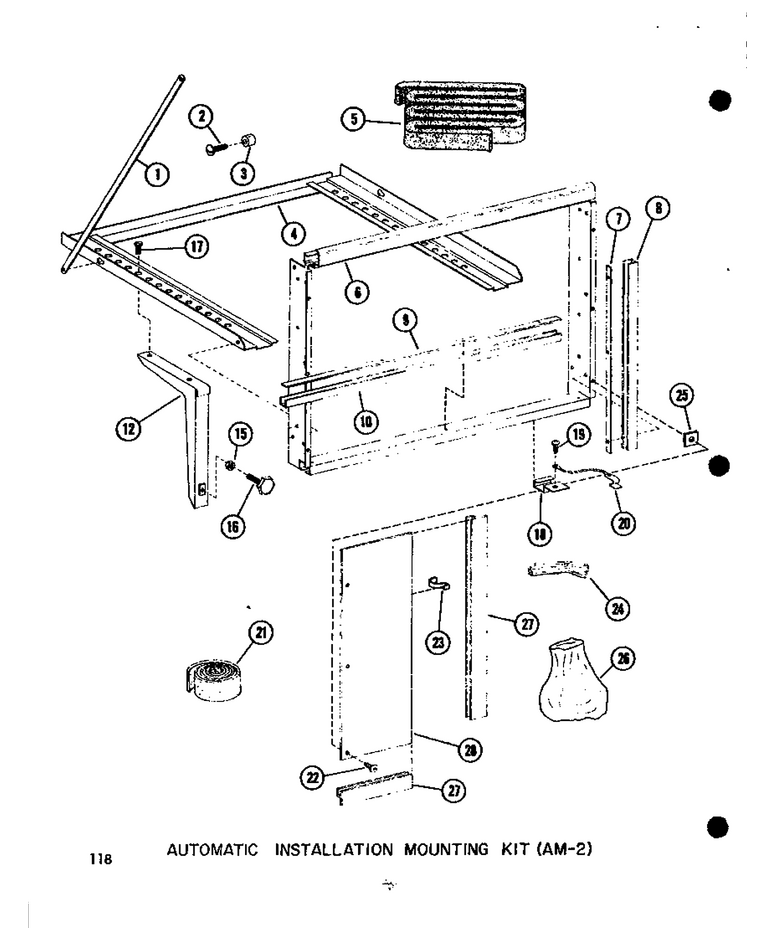

02 - Automatic Installation Mtg Kit (am-2)

...
...
1
Support, Strap WPL-B5107706
...
2
Screw WPL-M0212062
...
3
Spacer K WPL-A4065501
...
4
Frame, Support WPL-C5935405
...
5
Gasket WPL-10839702
...
6
Wld-Frame WPL-C5949901
...
7
Backer Strip WPL-B1158902
...
8
Gasket WPL-B1158802
...
9
Backer Strip WPL-B1158901
...
10
Gasket WPL-B1158801
...
12
Angle Support Weld WPL-C5872103
...
15
Nut-Keps WPL-M0282019
...
16
Screw Adjusting WPL-M0200003
...
17
Screw WPL-M0206557
...
18
Clip, Sill WPL-A3321002
...
19
Screw WPL-M0211532
...
20
Cable Assy WPL-B5113103
...
21
Gasket WPL-A3030302
...
22
Screw WPL-M0211519
...
23
Spring WPL-B1100601
...
24
Sealer WPL-M0275521
...
25
Speed Nut WPL-M0288305
...
26
Accessory Mtg Kit WPL-A3313002
...
27
Gasket WPL-B4144504
...
28
Window Board WPL-A3321501
