Amana 1110.002

Model: 1110.002

Save Part Not Listed?
product name

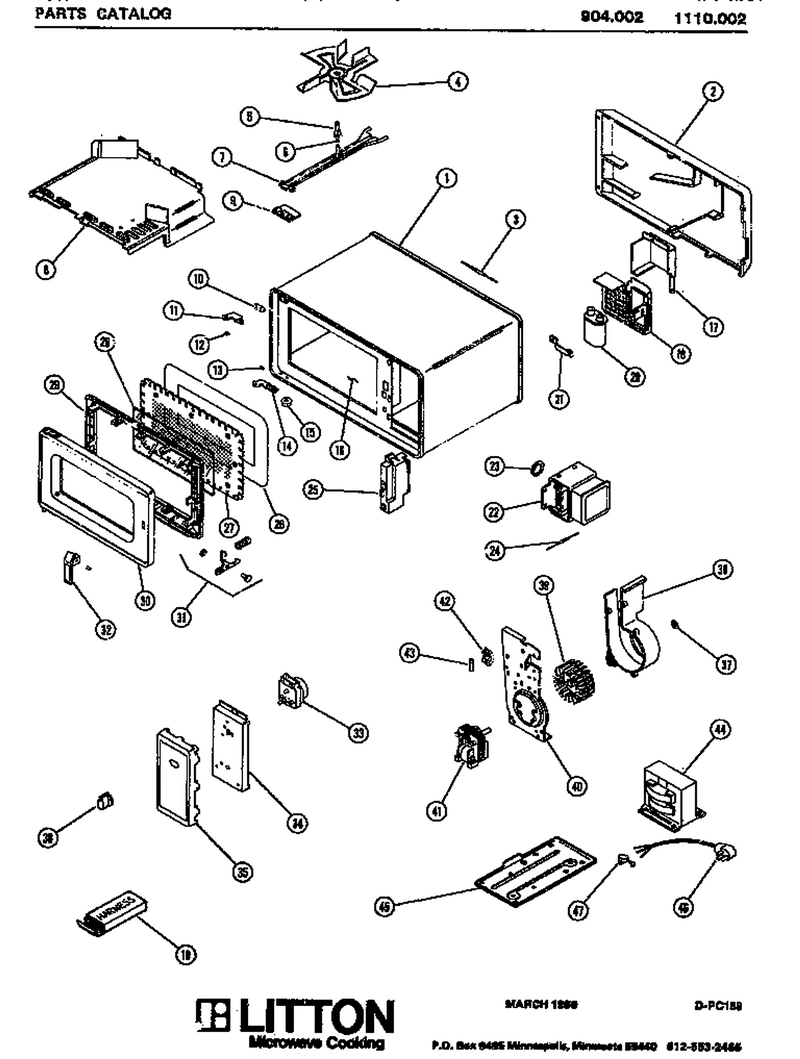

01 - Page 1

...
...
1
Retainer Clip WPL-M2D677
...
2
Rear Cover Kit WPL-M65D310
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Kit-Insert & Blade Stirrer WPL-R0130737
...
5
Kit, Stirrer Insert WPL-M2D678
...
6
Ball WPL-38321P01
...
7
Kit, Stirrer Bar WPL-M20D319
...
8
Stirrer Cover WPL-46713P01
...
9
Stirrer Support Cover WPL-46800P01
...
10
Plate Nut WPL-45010P01
...
11
No.6 Flat Hd Machine Screw WPL-M1D60
...
12
No.10 Wave Washer WPL-M2D583
...
13
Nylon Flat Washer WPL-40370P01
...
14
Hinge Asy WPL-45179P01
...
15
Foot WPL-M2D676
...
16
Shelf W/sealant Kit WPL-M50D44
...
17
Lead Cover WPL-M20D257
...
18
Capacitor Cover WPL-M20D258
...
19
H.v. Lead Kit WPL-M5D350
...
20
Cap & Diode Kit WPL-M10D115
...
21
Strap, Capacitor WPL-10822101
...
22
Kit, Magnetron WPL-M57D37
...
23
Gasket-Rf WPL-M2D296
...
24
Sensor Magnetron Kit WPL-M4D101
...
25
Screw WPL-WPW10001160
...
26
Window, Inner Door WPL-10785201
...
27
Door Screen Kit WPL-M70D105
...
28
Outer Window Kit WPL-M51D60
...
29
Door Filler Kit WPL-M55D20
...
30
Outer Door WPL-M70D112
...
31
Kit, Door Hook WPL-M2D675
...
32
Kit, Handle WPL-M11D74
...
33
Timer 15 Min. Kit WPL-M30D89
...
34
Screw WPL-WP90767
...
35
Inlay Dec Pnl WPL-M7D746
...
36
Knob WPL-42180P03
...
37
Retainer WPL-M1D892
...
38
Housing WPL-44881P01
...
39
Kit, Blower Wheel WPL-R0163293
...
40
Blower Brkt Kit WPL-M20D256
...
41
Nut WPL-WP488130
...
42
Ia Screw WPL-M1D329
...
43
Fuse 12 Amp WPL-M4D65
...
44
Hv Xfmr 500w Class-N 60hz WPL-M60D129
...
45
Access Pnl Bottom WPL-M53D58
...
46
Flat Washer (1) WPL-M1D56
...
47
Use And Care Manual WPL-43461P01
